Scan code: LN135566 Manufacturer code: TUF GAMING B760M-E D4

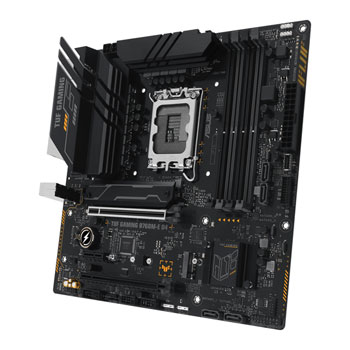

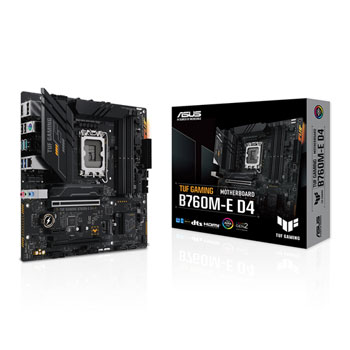

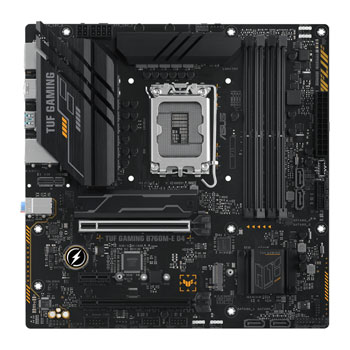

ASUS TUF GAMING B760M-E D4 DDR4 M-ATX Motherboard

ASUS TUF GAMING B760M-E D4, Intel B760, LGA1700, DDR4, PCIe 4.0, 2x M.2, 2.5GbE, USB 3.2 Gen2, mATX

Free FREE ASUS TUF GAMING P1 MOUSE PAD (LN 129160)
Thumbnail 1 : ASUS TUF GAMING B760M-E D4 DDR4 M-ATX Motherboard Thumbnail 2 : ASUS TUF GAMING B760M-E D4 DDR4 M-ATX Motherboard Thumbnail 3 : ASUS TUF GAMING B760M-E D4 DDR4 M-ATX Motherboard Thumbnail 4 : ASUS TUF GAMING B760M-E D4 DDR4 M-ATX Motherboard
Scan code: LN135566 Manufacturer code: TUF GAMING B760M-E D4
Order in the next 2 hrs 29 mins and get it tomorrow
£189.98
Get it Tomorrow, 24 JunIn stock
From £17.22 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £17.22
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £189.98
Total inc. interest: £206.53
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

TUF GAMING B760M-E D4 Intel 13th Generation mATX Motherboard

TUF GAMING Motherboard

Get TUF. Game Tough.TUF GAMING B760M-E D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

Intel® B760Chipset

LGA 1700CPU Socket

13th Gen Intel®Compatible Processors

m-ATXForm Factor

Rock Solid Performance

Incredible Speed & StabilityWith upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR4 memory and PCIe 4.0 storage, the TUF GAMING B760M-E D4 is the perfect foundation for your next Intel battle rig.​

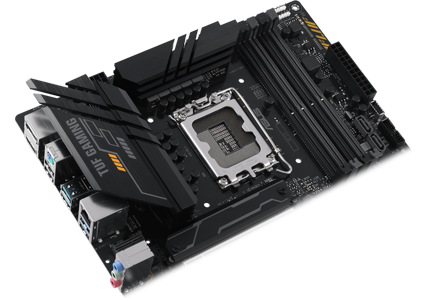

Power Architecture

DrMOS
Power Stages
10+1 power stages combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.

TUF
CAPACITORS
The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.

SIX-LAYER
PCB
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

DDR4 Support

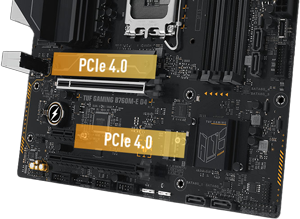

PCIe 4.0 SupportThe two PCIe 4.0 M.2 slots support up to two 2280 devices and the data-transfer speeds are up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.

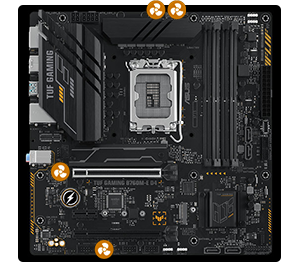

Comprehensive Fan ControlsTUF GAMING B760M-E D4 features comprehensive fan controls that can be configured via the Fan Xpert 2+ utility in Armoury Crate or via the award-winning ASUS UEFI BIOS.

VRM HEATSINK ARRAY

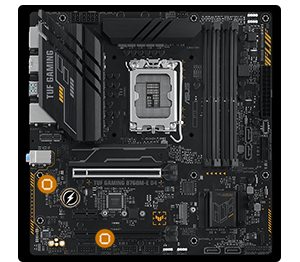

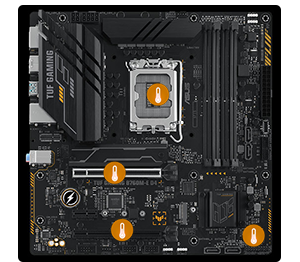

Multiple Temperature SourceEach header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 2+ or via the UEFI.

4 pin fan

4-pin fanOnly the chassis fan headers support auto-detection of PWM or DC fans.

CPU FAN HEADERS

Smart Fan ProtectionA dedicated integrated circuit protects each fan header from excess heat and electrical currents.​

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Build With Confidence

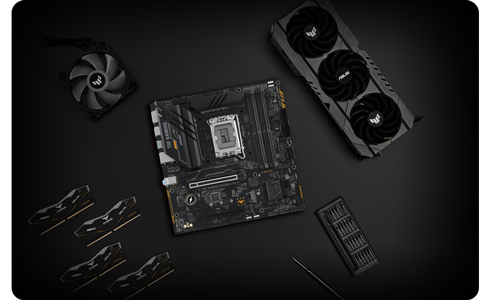

TUF Gaming Alliance

TUF GAMING AllianceTUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.

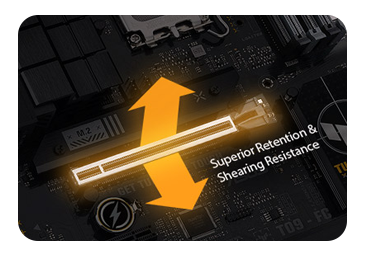

SafeSlot

SafeSlot Core+
& SafeDIMM
SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence.

pcie performance

M.2

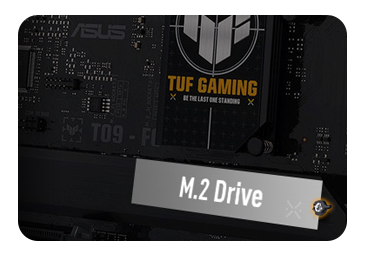

Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.

Fine Quality Components for Exceptional Clarity & Fidelity

SUPREMEFX Audio

Realtek 7.1 Surround SoundThe unique audio codec designed in close collaboration with Realtek for TUF GAMING B760 motherboard features an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.

Full Connectivity

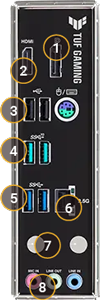

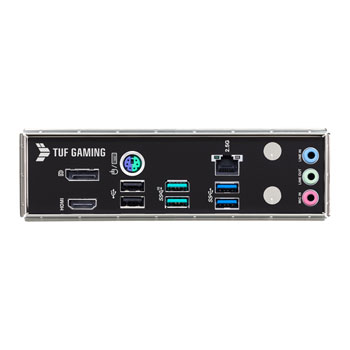

I/O Ports

1 - DisplayPort
2 - HDMI
3 - 2 x USB 2.0
4 - 2 x USB 3.2 Gen 2
5 - 2 x USB 3.2 Gen 1
6 - Realtek 2.5Gb Ethernet
7 - Vertical M.2 slot (Key E)
8 - 3 x Audio jacks

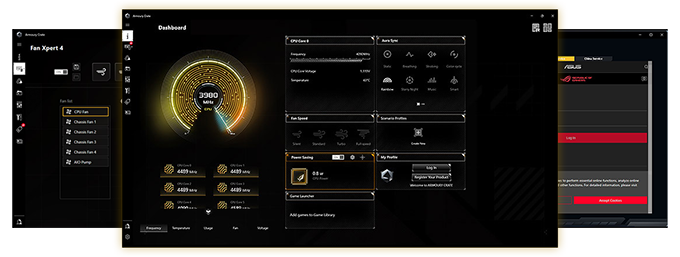

Control Your Rig with Armoury Crate

Armoury Crate

Centralised Control The ASUS-exclusive Armoury Crate software centralises control of all supported gaming products. A single intuitive interface lets you customise RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also displays information from (and enables control of) a growing hardware ecosystem. Armoury Crate also enables easy product registration and features a news section to keep you in touch with the gaming community.

Specifications
Core Specifications
Edition TUF Gaming B760M-E D4
Form Factor MicroATX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5066(OC)
  • DDR4 - 5333(0C)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio
Graphics Support
Primary GPU Interface On-board
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E Vertical (Supports WiFi Modules)
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System Panel Connector with Chassis Intrusion
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Realtek (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN135566
Model Number TUF GAMING B760M-E D4
GTIN 4711387131404
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
