ASUS AMD B550 TUF GAMING B550M-PLUS Micro-ATX Motherboard
ASUS TUF GAMING B550M-PLUS, AMD B550, AM4, DDR4, SATA3, PCIe 4.0, Dual M.2, CrossFire, 2.5GbE, USB 3.2 Gen2, Micro-ATX
|Instalment Rate:||14.9% p.a. (fixed)|
|Cost of purchase:||£169.99|
|Total inc. interest:||£183.13|
Purchase Rate: 19.9% p.a. (variable)
Representative: 19.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 17th Aug
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

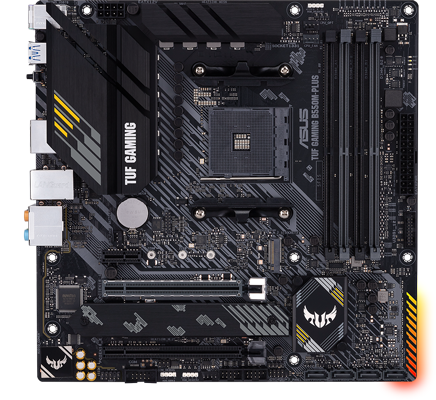

TUF GAMING B550M-PLUS 3rd Generation Ryzen ATX Motherboard from ASUS
Durable. Stable. Reliable. Introducing the all-new TUF GAMING B550M-PLUS from ASUS, perfect for those who want solid performance in a smaller form factor. This motherboard supports 3rd generation AMD Ryzen processors and is ready to give you an unprecedented lightning fast speeds with support for PCI-E 4.0 technology. The B550M-PLUS distils the essential elements of the latest AMD platform to give you game ready features and proven durability. Engineered from military grade components with a new upgraded power solution and cooling options this outstanding AM4 motherboard will deliver rock-solid performance with unwavering gaming stability for everyone. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case, including the support for ASUS Aura Sync lighting to bring additional colours and lighting effects to your system allowing you to flex your creativity and personality with the B550M-PLUS as a solid foundation.
New Upgraded Power Design
DrMOSThe onboard VRM of TUF Gaming B550M-Plus utilises 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 3rd Gen AMD Ryzen™ Processors demand.
Stack Cool 3+ 2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds.
Procool SocketCompared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.
Take Complete Control of your BIOS Updates

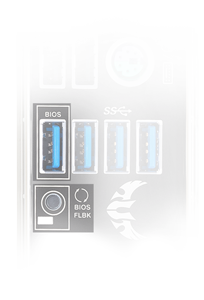

BIOS FlashbackBIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without having memory or a CPU installed.
Exclusive 2.5 Gigabit Ethernet
2.5x Bandwidth Improvement2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
The Software that gives you Complete Control
ASUS Armory CrateArmoury Crate is a new software utility designed to give you centralised control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customise RGB lighting and effects for every compatible device in your arsenal and synchronise them with Aura Sync for uniﬁed system lighting effects. You can also turn on the AI Noise-Canceling Microphone function for crystal-clear in-game voice communication. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.
Incredible Speeds with PCIe 4.0 Technology
PCIe 4.0 M.2 SlotThe TUF Gaming B550 series motherboards now boasts an incredible PCIe 4.0 M.2 slot supporting NVMe M.2 Storage between 42mm-80mm with transfer speeds of up to 64 GBPS effectively doubling the bandwidth of the previous PCIe 3.0 technology giving you maximum data transmission rates with lower latency meaning you can spend more time having fun getting blistering load speeds for your games and less time moving large files around.
Little Things Make a Big Difference
Trustworthy Stability and Compatibility TUF Gaming motherboards are designed to be easy to set up and configure just the way you want —even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
DRAM Overcurrent ProtectionOn-board resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Stainless-Steel Back I/OTUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.
LANGuardTUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
Outshine the Competition with ASUS Aura Sync
Your Motherboard, Your Way A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Connections at your Fingertips
|Edition||TUF GAMING B500M-PLUS|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||ECC/Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB|
|Audio||Realtek ALC S1200A 7.1 HD Audio|
|Primary GPU Interface||PCIe 4.0 (x16)|
|NVIDIA SLI Support||Not Supported|
|AMD CrossFire Support||2-Way CrossFire|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||
|RAID Support via|
|Storage Mode Support||
|Network Interface Type||Wired 2.5 Gigabit LAN (10/100/1000/2500)|
|Network Chip/Modules||1 x Realtek (2.5GbE LAN)|
|Rear I/O Connectors||
|Board Dimensions||244 x 244 mm|
|Model Number||TUF GAMING B550M-PLUS|
