ASUS TUF GAMING B550-PLUS ATX Motherboard

ASUS TUF GAMING B550-PLUS, AMD B550, AM4, DDR4, PCIe 4.0, SATA3, Dual M.2, CrossFire, 2.5GbE, USB 3.2 Gen2 A+C, ATX

Thumbnail 1 : ASUS TUF GAMING B550-PLUS ATX Motherboard Thumbnail 2 : ASUS TUF GAMING B550-PLUS ATX Motherboard Thumbnail 3 : ASUS TUF GAMING B550-PLUS ATX Motherboard Thumbnail 4 : ASUS TUF GAMING B550-PLUS ATX Motherboard ASUS TUF GAMING B550-PLUS ATX Motherboard : video thumbnail 1
Scan code: LN108171 Manufacturer code: B550-PLUS
Was: £159.98
£149.99
Order now and receive it by Monday, 21st September
From £13.47 / month (APR 14.9%)
Monthly Payment: £13.47
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £149.99
Total inc. interest: £161.58
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 21st Sep to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

TUF GAMING B550-PLUS 3rd Generation Ryzen ATX Motherboard from ASUS

B550-PLUS

Durable. Stable. Reliable. Introducing the all-new TUF GAMING B550-PLUS from ASUS, This motherboard supports 3rd generation AMD Ryzen processors and is ready to give you an unprecedented lightning fast speeds with support for PCI-E 4.0 technology. The B550-PLUS distils the essential elements of the latest AMD platform to give you game ready features and proven durability. Engineered from military grade components with a new upgraded power solution and coooling options this outstanding AM4 motherboard will deliver rock-solid performance with unwavering gaming stability for everyone. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case, including the support for ASUS Aura Sync lighting to bring additional colours and lighting effects to your system allowing you to flex your creativity and personality with the B550-PLUS as a solid foundation.

AMD B550Chipset

AM4CPU Socket

ATXForm Factor

New Upgraded Power Design

DrMOS The onboard VRM of TUF Gaming B550-Plus utilises 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 3rd Gen AMD Ryzen™ Processors demand.

Stack Cool 3+ 2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds.

Procool SocketCompared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.

Take Complete Control of your BIOS Updates

back

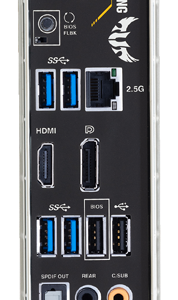

BIOS FlashbackBIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without having memory or a CPU installed.

Exclusive 2.5 Gigabit Ethernet

back

2.5x Bandwidth Improvement2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.

Need A Wireless Connection?

back

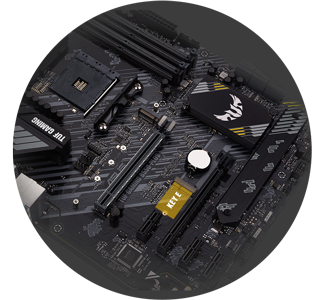

M.2 Wi-fi ModuleTUF Gaming B550-Plus comes along with an M.2 (Key E) slot which gives you the flexibility to upgrade your networking solution by installing an M.2 Wi-Fi/Bluetooth module.
*Wi-Fi/Bluetooth module is not included.

Incredible Speeds with PCIe 4.0 Technology

4K Recording

PCIe 4.0 M.2 SlotThe TUF Gaming B550 series motherboards now boasts an incredible PCIe 4.0 M.2 slot supporting NVMe M.2 Storage between 42mm-110mm with transfer speeds of up to 64 GBPS effectively doubling the bandwidth of the previous PCIe 3.0 technology giving you maximum data transmission rates with lower latency meaning you can spend more time having fun getting blistering load speeds for your games and less time moving large files around.

Please Note

**The M.2_1 supports PCIe 4.0 and the M.2_2 supports PCIe 3.0.

The Software that gives you Complete Control

ASUS Armory CrateArmoury Crate is a new software utility designed to give you centralised control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customise RGB lighting and effects for every compatible device in your arsenal and synchronise them with Aura Sync for unified system lighting effects. You can also turn on the AI Noise-Canceling Microphone function for crystal-clear in-game voice communication. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.

Little Things Make a Big Difference

Trustworthy Stability and Compatibility TUF Gaming motherboards are designed to be easy to set up and configure just the way you want —even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.

DRAM Overcurrent Protection

DRAM Overcurrent ProtectionOn-board resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-Steel Back I/O

Stainless-Steel Back I/OTUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.

Stainless-Steel Back I/O

LANGuardTUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

Outshine the Competition with ASUS Aura Sync

Your Motherboard, Your Way A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Breathe

Breathe

Colour cycle

Colour Cycle

CPU Temp

CPU Temperature

EQ Effect

Equaliser

Rainbow Effect

Rainbow

Stars Effect

Starry Night

Static Effect

Static

Strobing Effect

Strobing

Connections at your Fingertips

4K Recording
Specifications
Core Specifications
Edition TUF GAMING B500-PLUS
Form Factor ATX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4400(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC S1200A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Realtek (2.5GbE LAN)

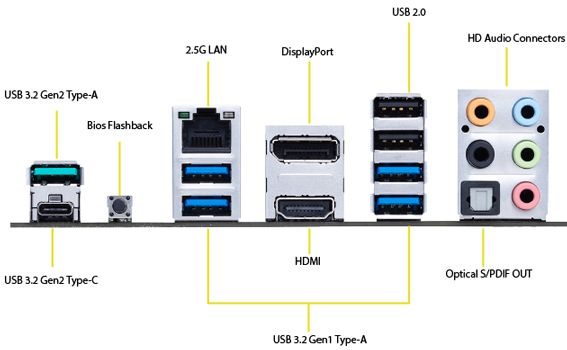

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN108171
Model Number B550-PLUS
GTIN 4718017749435
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
ASUS TUF GAMING B550-PLUS, AMD B550, AM4, DDR4, PCIe 4.0, SATA3, Dual M.2, CrossFire, 2.5GbE, USB 3.2 Gen2 A+C, ATX is rated 4.5 out of 5 by 4.
Rated 3 out of 5 by from Good features, mediocre BIOS & software Overall, an average B550 mainboard with a decent amount of features. At this price point, I'd have expected the BIOS to be better, it took me a little while to set up the RAM correctly, it gave me a few failed boots at first as of this, and especially configuration of fan curves is a bit of a nightmare - If you are planning on building a silent PC, maybe check other mainboard manufacturers and save yourself a headache. The software suite (AI Suite) is not great, especially Fan Xpert4 is very buggy. Even when setting fan spin up / spin down time to maximum, the fans would still change RPM constantly and very quickly (and therefore audibly), so it took me a few hours of adjusting to get the PC completely silent during office tasks. It would not even detect all case fans at first, it took several attempts until I could even control them in the software, and the sole reason I installed the software to begin with was the lacking fan control features in the BIOS. If you are not as obsessed with having a silent PC as I am, it might be a great pick, but I can't give it more than 3 stars simply due to BIOS & software issues.
Date published: 2020-07-29
Rated 5 out of 5 by from good featured motherboard Bought for 1st self built computer, nicely made motherboard with pcie 4 x16 and nvme. Manual and board it self is well labeled and shoud be easy to find your way around only down side is the fact the io shield is not pre attached
Date published: 2020-07-16
Rated 5 out of 5 by from Great motherboard Running with a Ryzen 3700x and Corsair 3600mhz RAM. Had to fiddle with settings in BIOS for the RAM to run at 3600mhz but seems to be stable so far. Good selection of features.
Date published: 2020-07-01
Rated 5 out of 5 by from Great motherboard so far Nice looking board packed with features for great price! Has RGB LEDs on the bottom right and works perfect with my corsair RGB Ram. Would recommend the board! Had few issues with the ASUS Armoury Create software to control the LEDs but after reboot all was sorted. BIOS little confusing but got there in the end :)
Date published: 2020-06-26
