ASUS TUF AMD Ryzen B450M PLUS AM4 Micro ATX GAMING Motherboard
ASUS TUF B450M-PLUS GAMING, AMD B450, S AM4, DDR4, SATA3, M.2, 2-Way CrossFire, Realtek GbE, USB 3.1 G2 A+G1 C, MicroATX
By DPD On 17th Oct 2019
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
TUF B450M Plus- AMD Ryzen mATX Motherboard from ASUS
TUF MICRO ATX MOTHERBOARD with AURA SYNCTUF B450 Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand. The TUF B450M gaming motherboard boasts incredible stability, efficient cooling and temperature monitoring. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance. ASUS Aura Sync offers full lighting through the motherboard’s RGB Header.
Enhanced TUF Protection
TUF gaming allianceA growing range of compliant parts, from PC chassis and power supplies to CPU coolers and DRAM, guarantee both compatibility and aesthetic harmony. We're also continually increasing our partnerships to make the TUF Gaming Alliance ever stronger. The Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
SafeSlotThe PCIe slot has been reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
ESD GUARDSESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge — greatly surpassing the respective industry standards of +/- 6kV and +/- 4kKV

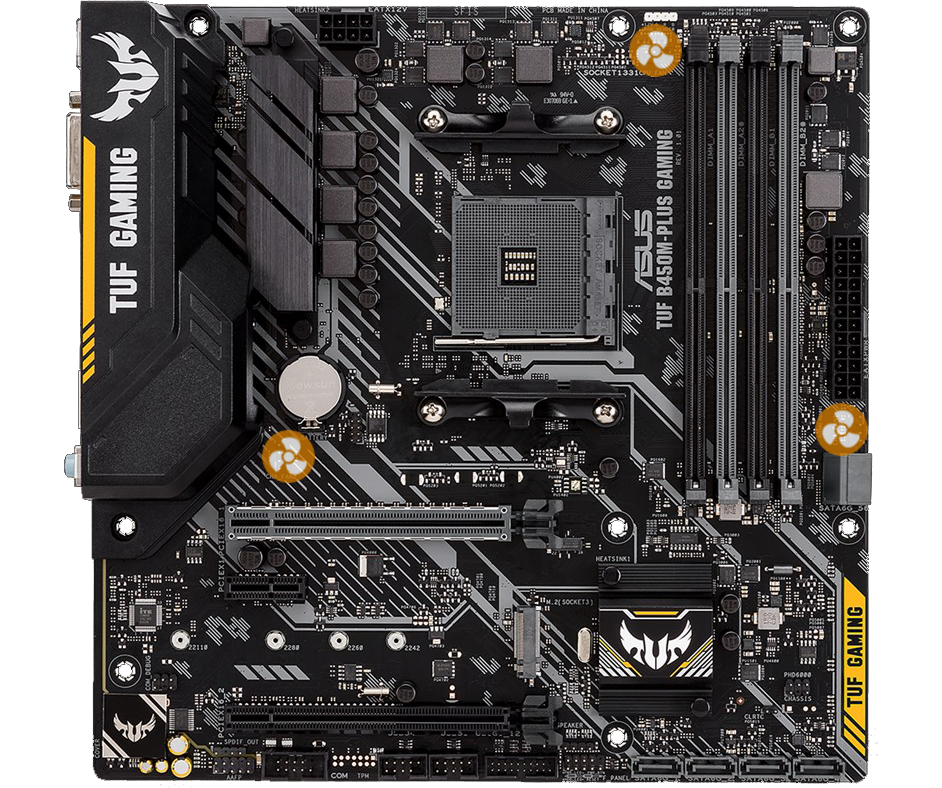

Comprehensive Cooling Controls With Fan Xpert 4 Core
Multiple Temperature Sources With FAN Xpert 2+ you're able to control system fans based on inputs from up to three temperature sources. For example, FAN Xpert 2+ can be set to spin up the chassis fans in response to the GPU temperature. So, when the gaming action heats up, additional cooling kicks in — just when you most need it. Choose your temperature sources and thresholds, from motherboard and CPU to GPU, and leave FAN Xpert 2+ to do the rest.
4-pin PWM/DC fan connectors Enables full control of PWM or DC water pumps, perfect for both custom and self-contained cooling setups.
GPU Temperature SensingSystem temperatures are key to a stable gaming rig ― especially GPU temperatures. TUF Gaming motherboards include Fan Xpert 4 Core software that's able to intelligently control system fans based upon the input of multiple sensors, including the temperature of ASUS graphics cards*. This ensures that your TUF Gaming system stays perfectly cooled, no matter how long you play.
Ultrafast Transfer Speed
AMD B450 chipsetThe AMD B450 chipset delivers high performance and flexibility with the latest AMD® AM4-socket Ryzen™ processors. It offers AMD StoreMI storage acceleration technology and provides two 10Gbps USB 3.1 ports, two USB 3.0 ports, and four 6Gbps SATA ports for faster data retrieval.

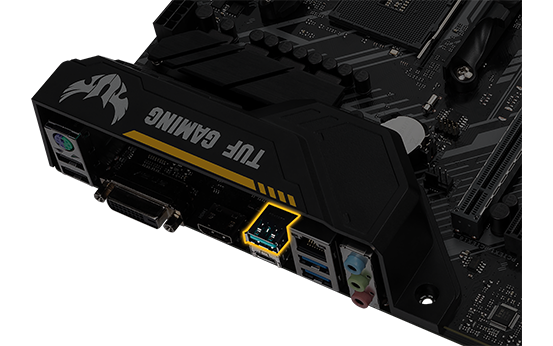

Native 10Gbps USB 3.1 Gen 2 Type-A SupportWith dual backward-compatible USB 3.1 Gen 2 Type-A, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps – or twice as fast as USB 3.1 Gen 1.
Speed Up with Onboard M.2With x4 PCI Express® 3.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, making your PC and apps work as fast as possible.
Make Your Memory Faster
Industry-leading DDR4 memory compatibility TUF Gaming motherboards are subjected to stringent tests to ensure they're ready for any gaming environment. That foundation is backed by extensive validation lists that include memory kits for a range of budgets. Whether you're building a gaming PC that hits the performance sweet spot or aiming for sensible specs, it's easy to pick the right kit for your TUF Gaming rig.

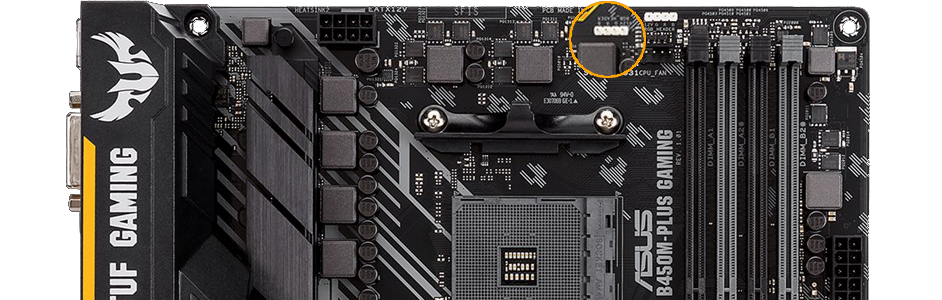

ASUS Aura Sync RGB Lighting
BRIGHTEN YOUR BUILD A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full lighting connected via the motherboard's RGB header, with a variety of functional presets for external LED strips. And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.
Exceptional DTS Gaming Audio
COMBINED FEATURES DELIVER ELEVATED AUDIO Intelligent design and premium hardware create audio quality unlike anything you've ever experienced! Hone your battleskills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game.
Military-Grade TUF Components
TUF CHOKES Certified military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability.
TUF CAPACITORS +20% temperature tolerance and 5X-longer lifespan.
TUF MOSFETS Certified military-grade MOSFETs with lower RDS(on)*. *Lower RDS(on) results in better power efficiency and reduced heat generation.
TUF LANGuard TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
AMD StoreMI Technology
Affordable acceleration for any hard drive AMD StoreMI technology is a software utility that accelerates any drive for better system responsiveness with reduced startup and software load times. It combines SSD performance with the affordability and capacity of an HDD by automatically moving frequently accessed data to dedicated SSD storage.
|Edition||TUF B450M-PLUS GAMING|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||ECC/Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||64GB (4x16GB)|
|Audio||Realtek ALC887-VD2 8-Channel HD Audio|
|Primary GPU Interface||PCIe 3.0 (x16)|
|NVIDIA SLI Support||Not Supported|
|AMD CrossFire Support||2-Way CrossFire|
|On-Board Graphics Connectors||
|SATA Support||SATA3 / M.2|
|RAID Support via||SATA|
|Storage Mode Support||
|Network Interface Type||Wired Gigabit LAN (10/100/1000)|
|Network Chip/Modules||1 x Realtek RTL8111H (Gigabit LAN)|
|Rear I/O Connectors||
|Board Dimensions||244 x 244 mm|
|Note||*ECC Memory (ECC mode) support varies by CPU.|
|Model Number||TUF B450M-PLUS GAMING|
