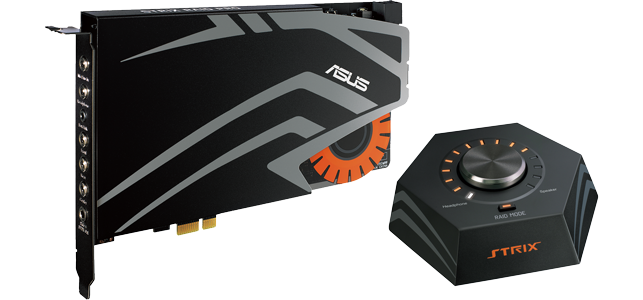

Asus STRIX RAID PRO PCIe 7.1 Surround Gaming Soundcard with Control Unit

Asus STRIX RAID PRO 7.1 Surround Sound PCIe x1 Gaming Sound Card with DAC, 116dB SNR, 600ohm Headphone Amp, Control Unit

Asus
Scan code: LN68453 Manufacturer code: 90YB00I0-M1UA00 Request call
Was: £119.99
£115.99
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
3xs Approved High End
Delivery options £5.48 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview 7.1 PCIe gaming sound card set with an audiophile-grade DAC and 116dB SNR

Sharpen Your Hearing Take Control
Strix Raid Pro is a premium sound card set built with audiophile-grade components to satisfy gamers who demand ultimate audio performance. Strix Raid Pro features rich, immersive, and clear sound with an incredible 116dB signal-to-noise ratio (SNR), and a 600ohm headphone amplifier for deep, tight bass. The simple yet powerful Sonic Studio sound utility and control box provides complete sound card control and allows instant in-game audio adjustments.

Gamer-Friendly Design: Instant in-game audio adjustment with Raid Mode
ASUS exclusive Raid Mode can be turned on right in the heat of gaming action with just one-click on the audio control box to provide the exact audio adjustment you want. With this powerful combination of Raid Mode and the audio control box, gamers no longer need to pause the game and open sound software to adjust their audio, ensuring they never miss a single moment of gaming action.

Gamers can save their favorite or most frequently-used audio adjustments — Equalizer, Bass Boost, Virtual Surround, and Mic Volume — into custom presets that they can instantly turn on or off with the dedicated Raid Mode button on the audio control box. It also has a convenient knob to adjust the Raid Mode intensity level.

Total Audio Control: Take complete control of your audio with Sonic Studio
Strix Raid Pro features the latest Sonic Studio software suite for full control over every sound technology, from equalization (EQ) to 7.1-speaker level-balancing. Sonic Studio has a single navigation page that puts everything in front of you, with an intuitive point-and-click interface that allows you to pre-set audio profiles to suit different audio requirements.

Gain the gaming edge with Sonic Radar Pro!
Modern games are more than graphics – precise audio positioning gives gamers a distinct edge over enemies. That's why Strix Raid Pro includes Sonic Radar Pro, an ASUS exclusive technology that visualizes and enhances in-game sounds, giving you a vital edge in first-person shooters.

Fire up your favorite game and Sonic Radar Pro displays a ‘radar' HUD (heads-up display) that pinpoints in-game actions relative to your position, so you'll know exactly where you are on the battlefield and what's happening around you!

Multiple radar-enhancers can be enabled in order to visualize and boost specific sounds such as footsteps, gunshots, and call-outs. Sounds are plotted on the 360-degree HUD, even when there's no clear line of sight, so invisibility is no barrier to pinpointing opponents, giving you a distinct advantage over other players!

What's more, Sonic Radar's on-screen appearance and position is completely customizable, so you can make it work just the way you want, with whatever game you want!

Game With Crystal-Clear Audio: Winning formula for exceptional audio quality

116dB signal-to-noise ratio (SNR) clarity
High-fidelity grade ESS SABRE9006A DAC delivers unrivalled, jitter-free sound and an exceptional 116dB signal-to-noise ratio (SNR) for 32 times greater clarity than average onboard audio.

Sound detail boost with 600ohm integrated headphone amplifier
The powerful TI-TPA6120 headphone amp lets you experience the full potential of your gaming headset. A 600ohm headphone amplifier provides enhanced bass and clear, detailed sound.

Hyper Grounding Technology
Noise-blocking multi-layer PCB developed with decades of ASUS professional layout expertise.

Lighting effects
Express your gaming style with Strix Raid Pro. Its owl-eye design even lights up in the dark.

STRIX: Unleash your gaming instincts
Taken from the ancient Roman and Greek word for owl, Strix means the keenest hearing and sharpest eyesight. Strix means feeling your environment so that you detect and react to the slightest movement. Strix means survival on the very edge of instinct. Strix is in your blood, as it is in ours. Features • Instant-on Raid Mode: Customize in-game audio with one click.
• 116dB signal-to-noise ratio (SNR) and audiophile-grade DAC: Enjoy high-fidelity, immersive sound.
• Sonic Studio utility: Take full control over loads of sound technologies via an intuitive, one-page interface.
• Sonic Radar Pro: Lets you pinpoint the exact location of in-game sounds and enhances critical audio details like enemy footsteps for an aural advantage.
• 600ohm headphone amplifier: For enhanced bass and clear, detailed sound.
Specifications
Specifications
Edition STRIX RAID PRO
Max. Speaker Channel Configuration 7.1 Surround Sound
Interface PCIe 2.0 (x1)
Audio Processor C-Media USB2.0 6632AX HD Sound Processor
Digital-to-Analog Converter (DAC) ESS SABRE9006A Premier 8 Ch. Audio
Signal-to-Noise Ratio 110 ~ 116 dB
Frequency Response 10 Hz to 48 KHz (-3dB, 24bit/96KHz input)
Inputs/Outputs
  • 1 x 3.5mm (1/8") Jack In
  • 5 x 3.5mm (1/8") Jack Out
  • 1 x S/PDIF 3.5mm/Optical Combo Out
Analog Sample Rate
  • 176.4 KHz
  • 192 KHz
  • 44.1 KHz
  • 48 KHz
  • 88.2 KHz
  • 96 KHz
Analog Resolution
  • 16-bit
  • 24-bit
Digital Sample Rate
  • 192 KHz
  • 44.1 KHz
  • 48 KHz
  • 96 KHz
Digital Resolution
  • 16-bit
  • 24-bit
Headphone Amp Yes
Headphone Amp Rating 600 Ohm
Remote Control No
Control Unit Yes
Breakout Box No
Included Accessories
  • 1 x Box Link Cable
  • 1 x Control Box
  • 1 x Driver CD
  • 1 x Quick Start Guide
  • 1 x S/PDIF Optical Adaptor
Compatible OS
  • Windows 10 (32 bit)
  • Windows 10 (64 bit)
  • Windows 7 SP1 (32 bit)
  • Windows 7 SP1 (64 bit)
  • Windows 8 (32-bit)
  • Windows 8 (64-bit)
  • Windows 8.1 (32 bit)
  • Windows 8.1 (64 bit)
Dimensions 130 x 22 x 190 mm (WxHxD)
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
RTB Period:
24 months
Manufacturer Contact Details
Reviews
Rated 2 out of 5 by 2 reviewers.
Rated 3 out of 5 by Not as good as I was hoping it would be Now, I have been using a Creative Recon3D with the 5.25" DVD Drve bay breakout Box, however it is starting to show itsage and so i was looking for something to replace it and I needed the ability to switch headphones and speakers, plus has Volume controls and this looked like it would fit the bill a treat. It has however been a slightly disappointing card. It has some lovely warm sound and has a smooth natural warming sound that is very much different to the Creative Recon3Dfor certain tacks, however, I have also found that when you listen very carefully, the sound does fluctuate very very slightly. almost as if the volume is being turned up and down by the tiniest little bit, but its definitely there. Being a fussy Audiophile, I have to say that this is a seriously irritating problem. Also when playing games, and it is under heavy load, I have found it can crackle and hiss. Not good at all. I have dug out the Xonar D2X from another machine, just to compare the two, and the D2X is definitely better and does not have that fluctuation that this strix card has. I was wondering if it is just my card, but Im not too sure. I have also tried the card in other machines and with other speaker setups, and the sound is certainly noticeably fluctuating on all the motherboards, and so I really need to hear another card of the same. I would NOT be buying another one of these cards and I will be replacing it with a different card sometime, but I am in no real rush. 23 February 2016
Rated 1 out of 5 by EMI Shielding is mediocre. I bought this to power a meaty set of headphones (150ohms) as it had a built in amp. That part is fine. The software bundled is OK, It too has the responsiveness of a rock, with every adjustment of the equalizer having to make a save before any changes take place. But the real deal breaker is the amount of EMI (electro magnetic interference) that it picks up. I have a pretty decent gaming rig which may make a difference as the soundcard picks up the whirring from the two GPU fans, and the power supply as well as any EMI from the Motherboard. You also get horrible background noise when moving your mouse. Best bet is to get an external DAC and Amp, or external USB soundcard. If I could I would definitely ask for my money back on this product. 28 December 2015
