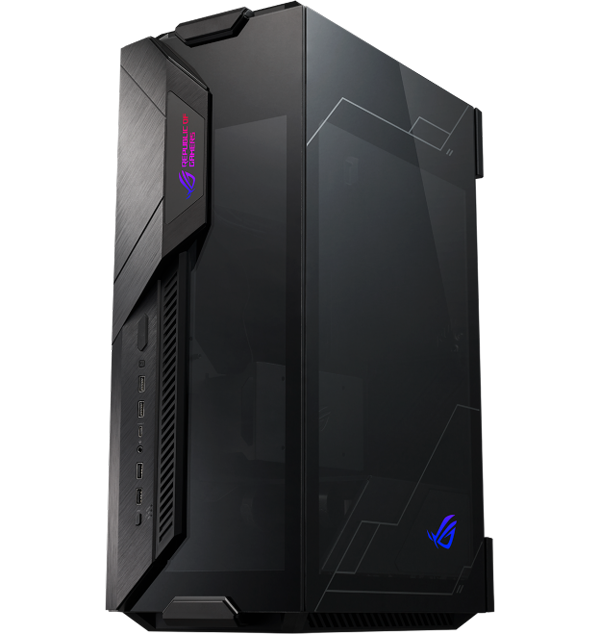

ROG Z11 Mini-ITX RGB Chassis with Tempered Glass
A premium Mini-ITX/DTX case with a sleek and stylish look If you're a PC enthusiast looking for a sleek and stylish look that rises above the competition, the ASUS ROG Z11 delivers just that, by empowering users to showcase compact builds without compromise. Designed diligently with the enthusiast in mind to maximize function, flexibility and connectivity. The patented 11° tilt design offers optimized airflow and heat dissipation to produce an innovative solution for thermal performance with serious hardware – such as an ATX power supply or a 3-slot graphics card without a riser cable. Plus, for those who desire water cooling, Z11 offers sufficient space and the alternative of a custom liquid cooling loop. Adding style to substance, internal build components are stunningly illuminated by Aura Sync lighting that can be seen through the front and right-side of the 4mm thick tempered glass panels. This case reserves space for a water-cooling pump and reservoir above the power supply unit shroud, providing mini-ITX/DTX enthusiasts with the flexibility to customize their liquid-cooling loop solution.
Take Personalisation up a Level with the ROG Z11

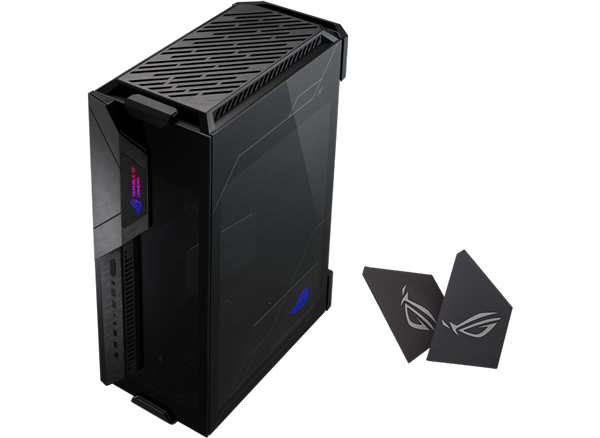

CREATE YOUR OWN STYLE WITH AURA SYNC LIGHTING The ASUS ROG Z11 features integrated addressable RGB LEDs in the front and side panels, which can be customized using a dedicated control button or with Aura Sync lighting software. These allow ROG Z11 to light up with infinite colour and a wide range of effects, which can be synchronized with a vast ecosystem of Aura Sync-compatible components. Additionally, for more personalisation two ROG nameplates are included to complement onboard lighting. Depending on your preferred orientation, you've got the choice of either displaying the nameplates horizontally or vertically.
Experience the ROG Z11 in all its Glory

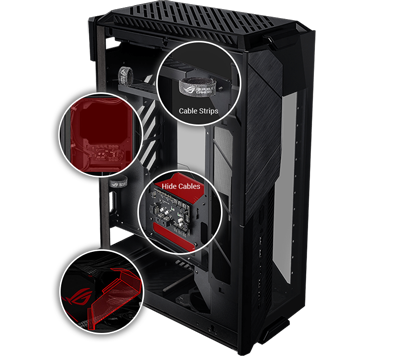

EXTRA CABLE ROUTING SPACEThe motherboard tray’s 11° tilt creates a maximum of 40 mm of extra space for easy cable management. The PSU shroud offers two pieces, and the removable second piece provides greater cable management space and greater airflow directed towards the graphics card. Handy cable strips enable convenient bundling of cables. The multifunction cover cleverly hides cabling and allows for an SSD or ROG Aura Terminal to be mounted.
Keep your PC Clean and Dust-free

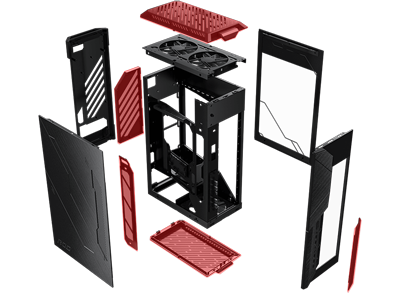

REMOVABLE DUST FILTERSRemovable dust filters on the top, bottom, left, front and back sides provide complete protection from dust, and make short work of cleaning and maintenance.
Place in Either a Vertical or Horizontal Position

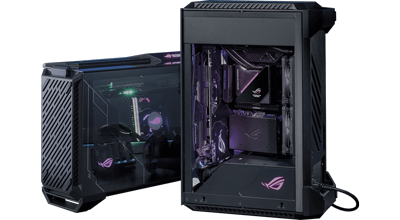

Dual Orientation DesignROG Z11 can be placed in either the vertical or horizontal position, allowing users to make any build their own. On top of providing the flexibility to orient the case according to workspace availability and preferences, Z11 also empowers users to choose the orientation that is optimal for the components in their build. Angled and regular power cords are also included in the accessory box to conveniently complement each position.
Front Panel Access to ARGB Lighting Control

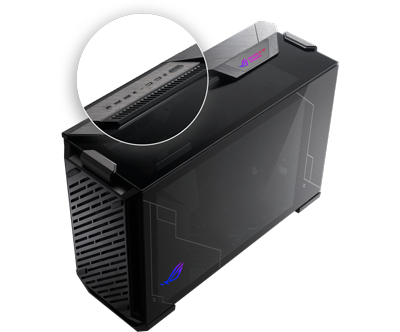

Extensive ConnectivityA built-in extension hub enables builders to connect up to six PWM fans and three addressable RGB fans or LED strips, and offers an extra USB 2.0 port to make assembly easier. Plenty of I/O ports and an ARGB lighting control button on the front panel make connecting components and devices a breeze.
ASUS Exclusive Thermal Performance
Patented 11° Tilt Design Optimized airflow and superior thermal performance are critical in high-powered systems with compact form factors, and ROG Z11 delivers this with a patented interior layout that tilts the motherboard tray at an 11° angle, providing an additional 40 mm of space at the back of the motherboard. This additional space enhances heat dissipation around the CPU and graphics card, as well as the M.2 SSD that can be installed on the back of the motherboard. The layout also enables compatibility with a 3-slot graphics card without a riser cable and creates a striking visual display of components.

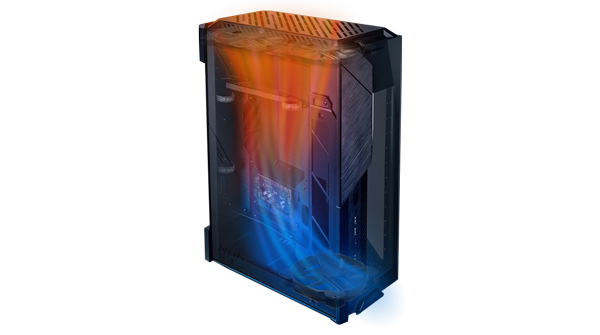

Optimal Airflow ROG Z11 is built for optimized cooling performance. The entire design is conducive to efficient heat discharge from the case via the chimney effect and negative air pressure, which is generated by the fans expelling hot air at a faster rate than intake. With the choice of up to five 120 mm fans, or three 140 mm plus two 120 mm fans, users can maximize airflow and have the flexibility to customize.
ROG Z11 – Mini-ITX Unleashed
|Core Chassis Specifications|
|Case Edition||ROG Z11|
|Case Form Factor||Mini-ITX|
|Motherboard Form Factor||
|I/O, Bays & Expansion|
|Front/Side/Top Panel I/O||
|Drive Bays||1 x 3.5" / 2x 2.5" Internal|
|Standard Expansion Slots||3|
|Vertical Expansion Slots|
|Fans & Filters|
|Fan Bays||5 x 120mm / 3x 140mm|
|Fans Included||3 x 140mm|
|Liquid Cooling Support|
|Front Radiator Compatibility|
|Top Radiator Compatibility|
|Bottom Radiator Compatibility||1 x 120mm|
|Rear Radiator Compatibility||1 x 120/140/240mm|
|Side Radiator Compatibility|
|Max CPU Cooler Height||130 mm|
|Max GPU Card Length||320 mm|
|Cable Routing Space||40 mm|
|Window Construction||Tempered Glass|
|LED Lighting Functionality|
|LED Lighting Emitters||Front Panel LED Logo Projection|
|LED Lighting Colour||RGB|
|LED Lighting Support & Control|
|Power Supply Compatibility|
|PSU Wattage (If Included)|
|PSU 80+ Rating (If Included)|
|PSU Mounting Location||Bottom Mount, Rear|
|Max PSU Length|
|Chassis Physical Specifications|
|Chassis Construction Materials||Aluminium / Plastic|
|Dimensions||194 x 531 x 386 (WxHxD mm)|
|Weight||8.73 kg (Approx)|
