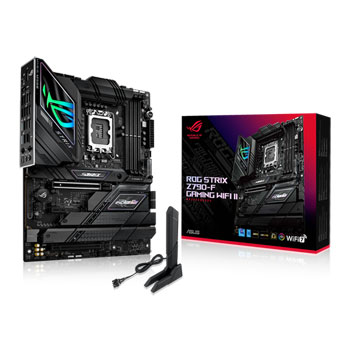

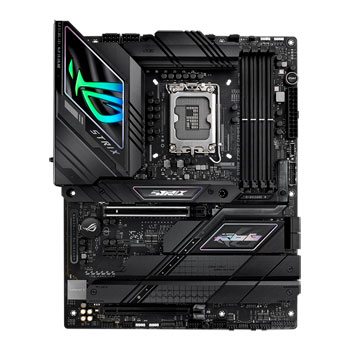

ASUS ROG STRIX Intel Z790-F GAMING WIFI II ATX Motherboard

ASUS ROG STRIX Z790-F GAMING WIFI II, Intel Z790, S 1700, DDR5, PCIe 5.0, 5x M.2, 2.5GbE, ATX

Thumbnail 1 : ASUS ROG STRIX Intel Z790-F GAMING WIFI II ATX Motherboard Thumbnail 2 : ASUS ROG STRIX Intel Z790-F GAMING WIFI II ATX Motherboard Thumbnail 3 : ASUS ROG STRIX Intel Z790-F GAMING WIFI II ATX Motherboard Thumbnail 4 : ASUS ROG STRIX Intel Z790-F GAMING WIFI II ATX Motherboard
Scan code: LN141529 Manufacturer code: ROG STRIX Z790-F GAMING WIFI II
Order by 7PM today and get it tomorrow (upgrade to Sunday delivery at checkout)
Was: £449.99
£409.99
Get it Tomorrow, 16 JunIn stock
FREE DELIVERY ON THIS ITEM
From £20.02 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £37.15
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £409.99
Total inc. interest: £445.70
Monthly Payment: £20.02
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £409.99
Total inc. interest: £480.44
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £10.89 / month (APR 19.9%)
Delivery Options
  • By DPD On 17th Jun to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

ASUS ROG Strix Z790-F GAMING WIFI II Intel ATX Motherboard

ASUS ROG Strix Intel Z790 Series ATX Motherboard

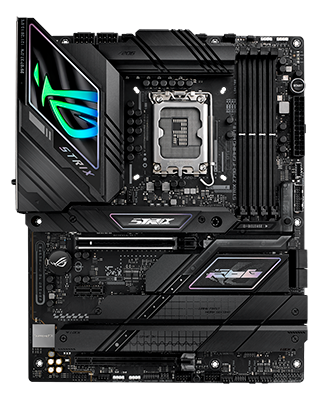

GET READY FOR THE NEWEST GENERATIONThe ROG Strix Z790-F II strikes from the shadows with a flurry of advanced power and features to elevate the latest Intel® processors, graphics cards, storage and wireless networking to the next level. Armed with enhanced DDR5 support, ample cooling, PCIe 5.0 and WiFi 7, this high-performance ninja is ready for the toughest of missions.

Intel Z790Chipset

LGA 1700CPU Socket

Supports 13th & 14th GenIntel® Core™ Processors

ATXForm Factor

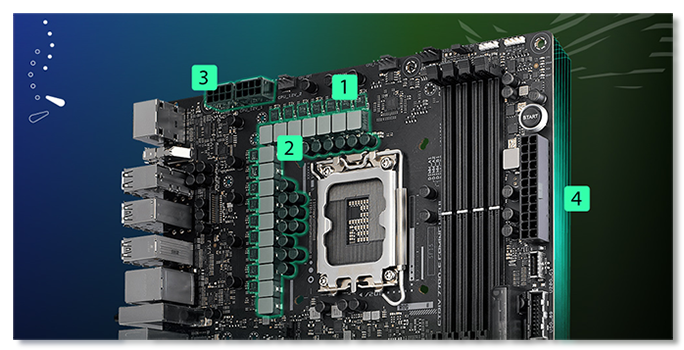

Advanced Power Design

Breakdown

1 - 16 (90A)+ 1(90A)+ 2
POWER STAGES
The VRM features 16+1+2 power stages, each rated to handle up to 90 amps.

2 - ALLOY CHOKES
& DURABLE CAPACITORS
Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

3 - DUAL PROCOOL
II POWER CONNECTORS
ProCool II connectors are precision-built to ensure flush contact with PSU power lines. A metal sheath improves heat dissipation and lowers electrical impedance.

4 - SIX-LAYER
PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

PCIe 5.0The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with four PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximise performance.

PCIe 5.0

Push Frequency and Timings to the Max

DIMM FlexDIMM Flex provides enthusiasts with a powerful new way to overclock their DDR5 memory modules. It employs specialised circuitry that can boost performance or address potential stability issues, depending on temperature readings. When temperatures are nominal, it can use the extra headroom to increase speeds and efficiency. And when temperatures increase, it can adjust memory behavior downward to maintain stability.

features

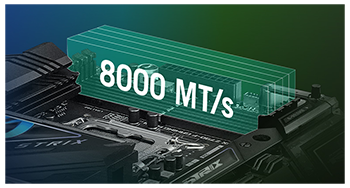

DDR5
DOMINATION
ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 8 GT/s mark on the Strix Z790-F II, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

features

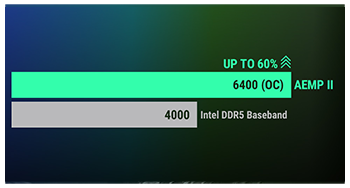

AEMP IIASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature that allows users to achieve supreme memory performance and compatibility with optimized clock speeds, even when they're using PMIC-restricted memory modules that do not provide an XMP or EXPO profile. Developed through a flexible training method, AEMP II simplifies the process of fine-tuning memory settings beyond the baseline configuration, all while ensuring system stability.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

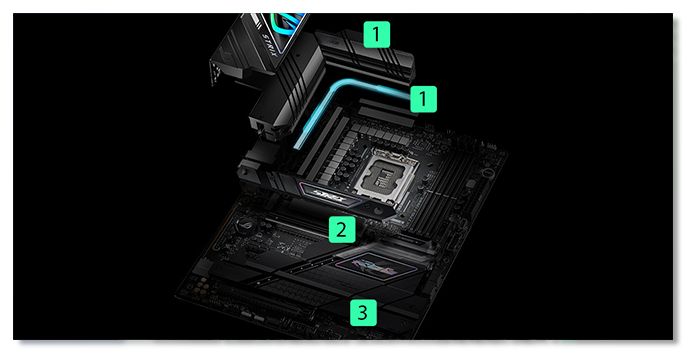

Expert Thermal Management

Breakdown

1 - VRM HEATSINK ARRAYCovering the power solution are two thick heatsinks connected by a heatpipe, sharing cooling capacity across VRMs and providing ample surface area and mass to handle the power needs of high-performance Intel 14th Gen processors.

2 - M.2 BACKPLATEAn integrated backplate helps ensure that high-performance drives can deliver peak performance, even when airflow is restricted.

3 - M.2 HEATSINKSHeatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.

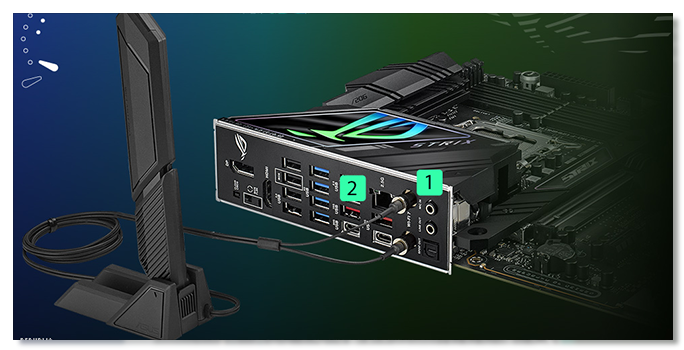

Supreme Networking Capability

Networking

1 - WIFI 7With Multi-Link Operation (MLO), WiFi 7 can outperform WiFi 6E to deliver faster speeds, higher reliability and increased data transfer efficiency.

2 - Intel® 2.5 GB EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.

ASUS WIFI Q-ANTENNADual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

Up to +6% Faster6 GHz

Up to +18% Faster5/2.4 GHz

Improvement compared to previous generation antenna.

DIY Friendly

Q-ANTENNA

Q-ANTENNAWith Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

PCIE® SLOT Q-RELEAS

PCIE® SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

M.2 Q-LATCH

M.2 Q-LATCHThe innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

CLEAR CMOS & BIOS FLASHBACK™

CLEAR CMOS & BIOS FLASHBACK™The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.​ BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

START BUTTON

START BUTTONThis convenient button removes the need to manually jump hard-to-reach pins during testing and troubleshooting.

Q-LED

Q-LEDThe on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup. Builders can use the Q-LED feature to correct power delivery issues affecting their motherboard, and it can also alert them when memory modules have not been properly installed--even before attempting to boot a newly built PC.

Leading Connectivity

Armed with all the essentials The ROG Strix Z790-F II delivers next-gen connectivity for ultrafast data transfers and low-latency networking. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

The Strix Z790-F II comes loaded with two USB 20Gbps Type-C® connectors for speedy data transfers up to 20Gbps. One is a port on the rear I/O; the other can be attached to the chassis front panel and it also features Power Delivery (PD) 3.0 technology to quickly charge devices up to 30W.

Connectivity

Connectivity Breakdown

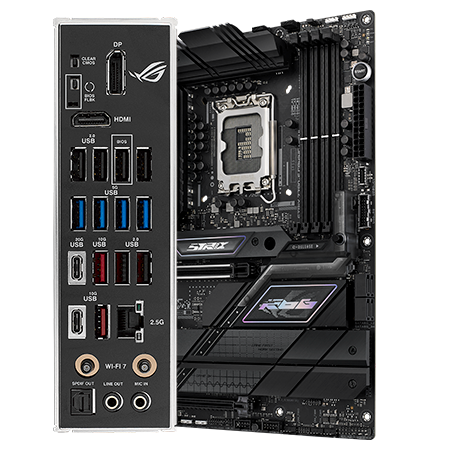

I/O Ports • 1 x USB 20Gbps port (1 x USB Type-C®)
• 3 x USB 10Gbps ports (2 x Type-A+1 x USB Type-C®)
• 4 x USB 5Gbps ports (4 x Type-A)
• 6 x USB 2.0 ports (6 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet
• 2 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Connectors & Headers 5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header

Control your Rig with Armoury Crate

Armoury Crate

account management software Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customise RGB lighting and effects for compatible devices and synchronise them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.


*Windows 10 or 11 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.

Specifications
Core Specifications
Edition ROG STRIX Z790-F GAMING WIFI II
Form Factor ATX
CPU Socket 1700
Chipset Intel Z790
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
  • DDR5 - 7400(OC)
  • DDR5 - 7600(OC)
  • DDR5 - 7800+(OC)
Max. Memory Capacity 192GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 2 x M.2, 22-80, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x CPU_OV jumper
  • 1 x Front Panel Audio Header
  • 5 x M.2
  • 4 x SATA III - 6Gb/s
  • 1 x START (Power On) button
  • 5 x System Fan header
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Thermal Sensor Header
  • 1 x Thunderbolt header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules

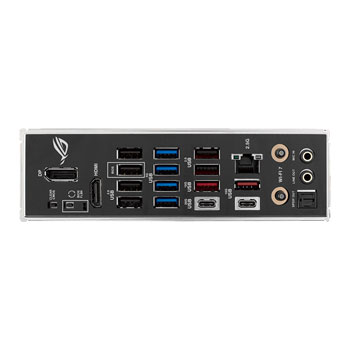

Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 6 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN141529
Model Number ROG STRIX Z790-F GAMING WIFI II
GTIN 4711387356548
