Scan code: LN129376 Manufacturer code: ROG STRIX Z790-E GAMING

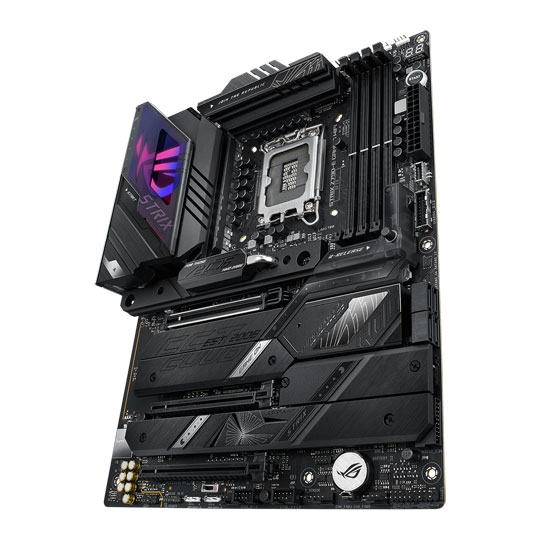

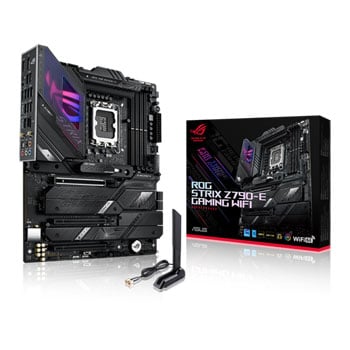

ASUS ROG STRIX Z790-E GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard

ASUS ROG STRIX Z790-E GAMING WIFI, Intel Z790, S 1700, DDR5, PCIe 5.0, 5x M.2, 2.5GbE, ax WiFi/BT, USB 3.2 Gen2, ATX

Thumbnail 1 : ASUS ROG STRIX Z790-E GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard Thumbnail 2 : ASUS ROG STRIX Z790-E GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard Thumbnail 3 : ASUS ROG STRIX Z790-E GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard Thumbnail 4 : ASUS ROG STRIX Z790-E GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard
Scan code: LN129376 Manufacturer code: ROG STRIX Z790-E GAMING
Order now and get it tomorrow, Mon 17th Jun
Was: £569.99
£459.98
Get it Tomorrow, 17 JunIn stock
From £22.46 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £41.68
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £459.98
Total inc. interest: £500.06
Monthly Payment: £22.46
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £459.98
Total inc. interest: £539.05
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £12.22 / month (APR 19.9%)
Delivery Options
  • By DPD On 17th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

ASUS ROG Strix Z790-E GAMING WIFI Intel ATX Motherboard

ASUS ROG Strix Intel Z790 Series ATX Motherboard

GET READY FOR THE NEWEST GENERATION Slash the 6GHz barrier in style with the Strix Z790-E. Translucent shrouds outline its RGB ignition panel, alluding to its ability to jump into lightspeed under the guidance of AI Overclocking and a hyper-reactive VRM. DDR5 enhancements and an assortment of PCIe 5.0 options ramp up velocity even further, and setup is a breeze thanks to its unique Q-Design feature set.

Please note: This motherboard is compatible with Intel® Socket LGA 1700 – ready for 13th Gen Intel® Core™ processors & 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors.

Intel Z790Chipset

LGA 1700CPU Socket

Supports 12th & 13th GenIntel® Core™ Processors

ATXForm Factor

Teamed Power Architecture and Power Solution

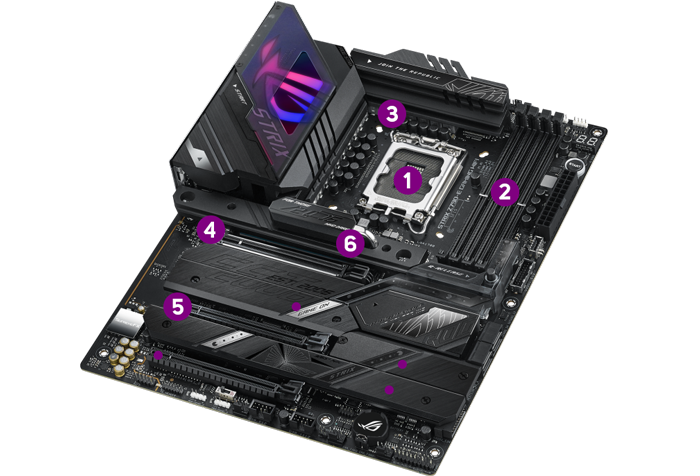

Breakdown

1.Intel® Socket LGA 1700 for 13th & 12th Gen Intel® Core™ Processors,
and Pentium® Gold, and Celeron® Processors.​
2. Dual Channel Memory, 4 x DIMM Max. 128GB, DDR5 7800+ MT/s (OC) /
Supports Intel® Extreme Memory Profile (XMP) and OPTIMEM II
3. 18+1 Power Stages
4. Expansion Slots – • 1 x PCIe 5.0 (x16) SafeSlot CPU
5. • 2 x PCIe 4.0 (x16) Slot Chipset
6. Five M.2 Slots – • 1 x PCIe 5.0 (x4) M.2 22110   • 3 x PCIe 4.0 (x4) M.2 2280   • 1 x PCIe 4.0 (x4) M.2 2280 & SATA

Experience All-Round Performance

Push frequency and timings to the max Robust power delivery, speedy storage and memory, and comprehensive cooling elevate any build with the ROG Strix Z790-E at its center. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

features

DDR5 Strength & AEMP IIROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Strix Z790-E.
AEMP II allows for automatic tuning of kits during system startup and leverages the PCB trace optimizations of the Strix Z790-E to push frequencies higher than ever before.

features

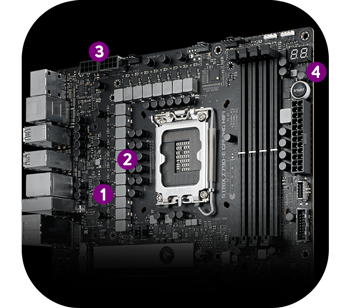

High-quality components 1. Power Architecture 18+1 power stages
2. Alloy chokes and durable capacitors
3. Dual PROCOOL II power connectors
4. Eight-Layer PCB

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Expert Thermal Management

cooling

Two thick heatsinks Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors.​

cooling

M.2 heatsinks and backplate An integrated backplate helps ensure that high-performance drives can deliver peak performance, even when airflow is restricted. Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability. An M.2 heatsink with a direct-contact heat pipe efficiently transfers thermal energy away from a mounted drive and into the path of chassis airflow, ensuring optimal operating temperatures.​

cooling

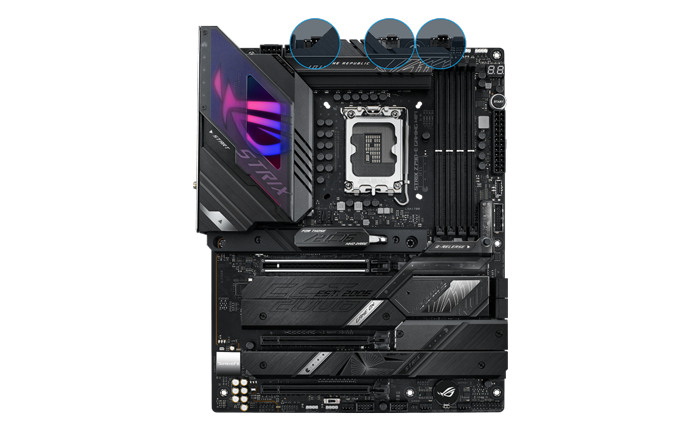

CPU fan headers & AIO A dedicated pair of PWM/DC fan headers provides easy access to CPU coolers. A dedicated PWM/DC header connects self-contained water-cooling setups.

cooling

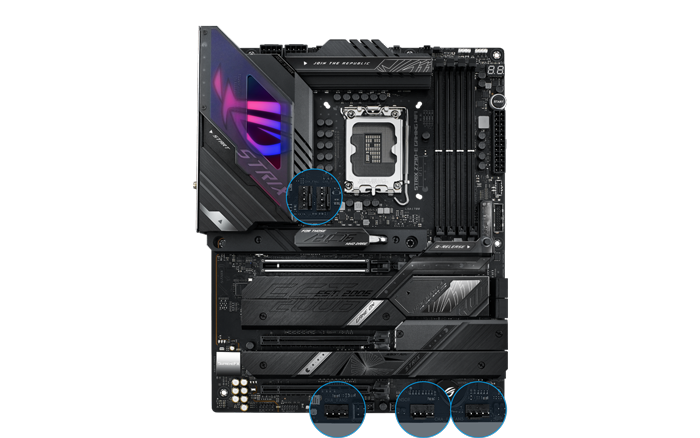

4-pin fan headers Features five chassis fan headers, each supporting auto-detection of PWM or DC fans.

Outshine the Competition

RGB

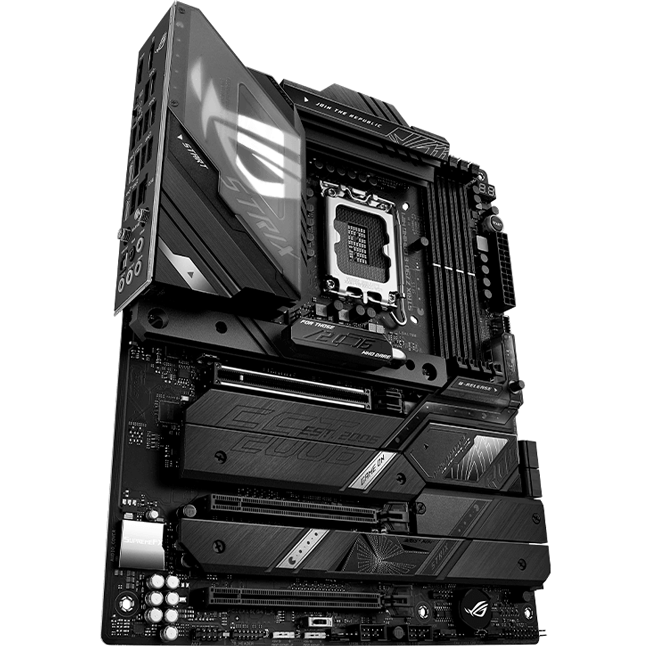

Personalize your gaming rig The ROG Strix Z790-E bears the same LGA 1700 socket as the Z690 models, so it is backward compatible with all coolers that supported the previous generation, including all AIO offerings from ASUS and ROG.

ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

Undeniably ROG Strix

ID Design

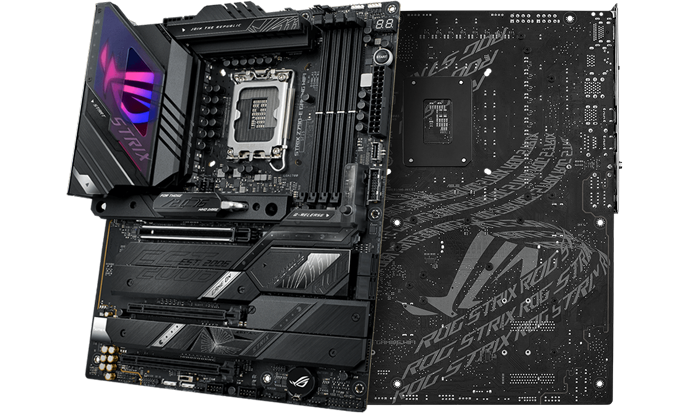

The ROG Strix Ecosystem Awaits Diagonal slats, brushed aluminum, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix Z790-E bears all of them with pride. But for this generation, translucent diffusers line the I/O shroud and the Q-Release array, softly contrasting the metallic heatsinks nearby.​

Create a Fully Customized Gaming Setup

features

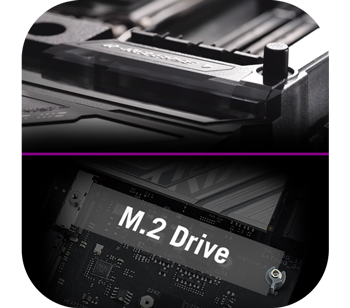

DIY FRIENDLY PCIE SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device. The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

features

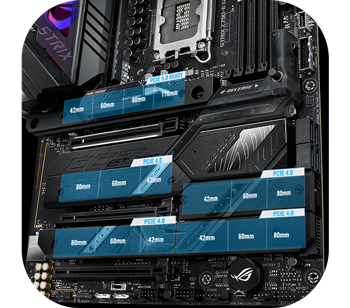

PCIe 5.0 PerformanceFully embracing the new standard, the Strix Z790-E offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. One of the onboard M.2 slots is geared for blistering 16 GB/s read and write speeds thanks to its PCIe 5.0 interface, while all the rest can deliver still-impressive 8 GB/s transfers.

Supreme Networking Capability

Networking

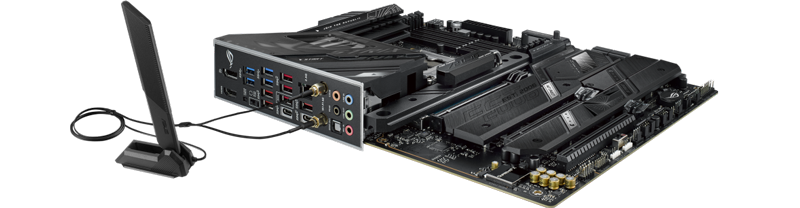

WIFI 6EOnboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

Intel® 2.5 GB EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.

Fine-quality Components for Exceptional Clarity & Fidelity

Audio

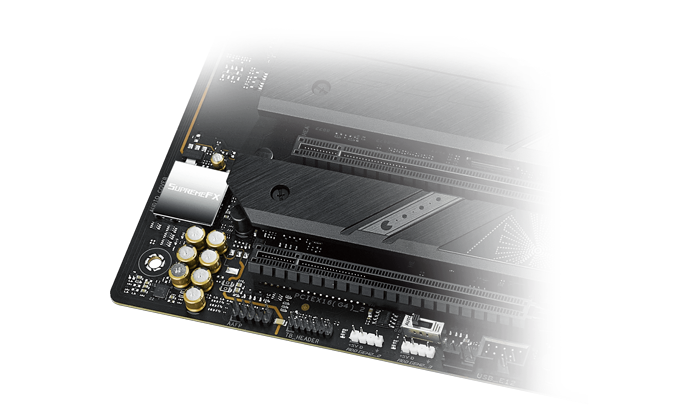

Unique Design Features for Powerful Audio ROG Strix Z790 motherboards are pre-loaded with the DTS® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix Z790-E implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.

Leading Connectivity

Armed with all the essentials The ROG Strix Z790-E delivers next-gen connectivity for ultrafast data transfers and low-latency networking. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

The Strix Z790-E comes loaded with two USB 3.2 Gen 2x2 Type-C® connectors for speedy data transfers up to 20 Gbps. One is a port on the rear I/O; the other can be attached to the chassis front panel and it also features Power Delivery (PD) 3.0 technology to quickly charge devices up to 30W.

Connectivity

Full Connectivity Breakdown

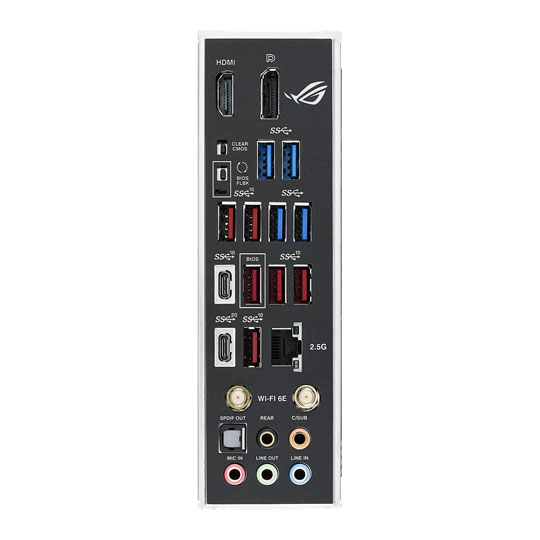

I/O Ports • HDMI Port • DisplayPort
• Clear CMOS Button • BIOS Flashback Button
• 4 x USB 3.2 Gen 1 Ports (4 x Type-A)
• 7 x USB 3.2 Gen 2 Ports
(6 x Type-A + 1 x USB Type-C®)
• 1 x USB 3.2 Gen 2x2 Port (USB Type-C®)
• 1 x Intel® 2.5Gb Ethernet Port • WiFi 6E
• 1 x Optical S/PDIF Out Port
• 5 x Gold-plated Audio Jacks

Connectors & Headers • 1 x USB 3.2 Gen 2x2 USB Type-C®
Front Panel Connector
• 1 x USB 3.2 Gen 1 Header
(Supports 2 x USB 3.2 Gen 1 Ports)
• 4 x SATA 6Gb/s Ports
• 2 x USB 2.0 Headers
(Supports 4 x USB 2.0 Ports)
• 1 x Thunderbolt™ (USB4®) Header

Control your Rig with Armoury Crate

Armoury Crate

account management software Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.

*Windows 10 or 11 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.

Specifications
Core Specifications
Edition ROG STRIX Z790-E GAMING WIFI
Form Factor ATX
CPU Socket 1700
Chipset Intel Z790
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
  • DDR5 - 7800+(OC)
Max. Memory Capacity 128GB
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 3 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen5x4
  • 2 x PCIe 4.0 x16
  • 1 x PCIe 5.0 x16
SATA Support N/A
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x CPU_OV jumper
  • 1 x Front Panel Audio Header
  • 1 x Power button
  • 1 x SATA III - 6Gb/s
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 3.2 Gen1 Type-A
  • 6 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN129376
Model Number ROG STRIX Z790-E GAMING
GTIN 4711081938538
