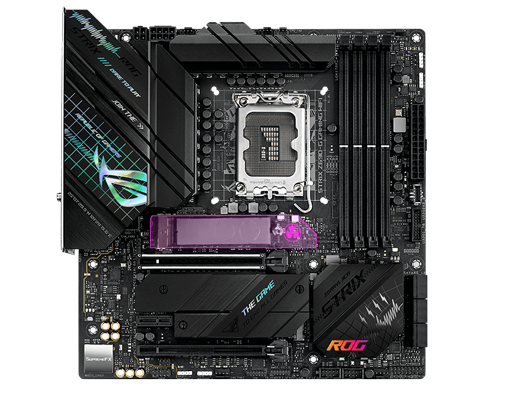

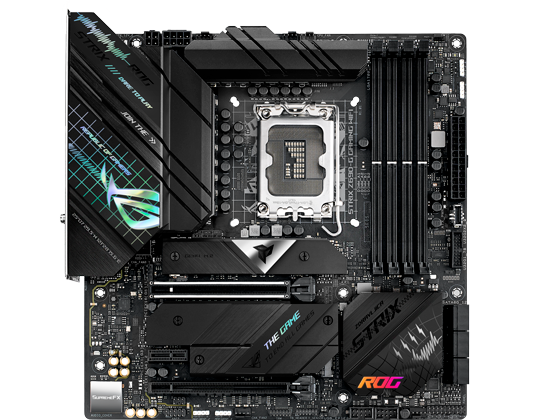

ROG Strix Z690-G Gaming WiFi Intel 12th Generation MicroATX Motherboard

ASUS ROG Strix Z690-G Gaming WiFi MicroATXMotherboard

GET READY FOR THE NEWEST GENERATION Introducing the newest series of Z690 motherboards – ROG Strix Z690-G Gaming WiFi MicroATX from ASUS. ROG Strix Z690-G Gaming WiFi is the premiere choice for enthusiasts who enjoy building compact mATX setups. Premium-grade power delivery, cooling, and the latest networking standards have been packed in to ride alongside DDR5 and PCIe 5.0, unleashing the full force of 12th Gen Intel® Core™ processors. And layered on top, there’s a stack of ASUS-exclusive intelligent controls to optimize every aspect of system performance.

Please note: This motherboard is compatible with Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel® Z690Chipset

LGA 1700CPU Socket

12th Gen Intel®Compatible Processors

MicroATXForm Factor

Teamed Power Architecture and Power Solution

Breakdown

1. Supports the latest 12th Gen Intel® Processors
2. Dual Channel Memory, Max. 128GB, DDR5 / Supports Intel® XMP and OPTIMEM II
3. 14+1 Power Stages
4. Expansion Slots:
• 1 x PCIe 5.0 x16 slot (x16) CPU   |   • 1 x PCIe 4.0 x16 slot (x4) Chipset   |   • 1 x PCIe 3.0 x1 slot Chipset
5. Three M.2 Onboard Slots:
• 1 x M.2 (PCIe 4.0 x4)   |   • 1 x M.2 (PCIe 4.0 x4)   |   • 1 x M.2 (PCIe 4.0 x4 & SATA)

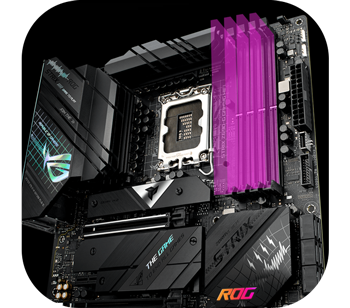

Experience DDR5 Overclocking Strength

Push frequency and timings to the max Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, the Strix Z690 lineup breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).

features

A DEDICATED CIRCUIT FOR DDR5 MEMORYOrdinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. ROG motherboards leverage onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.

features

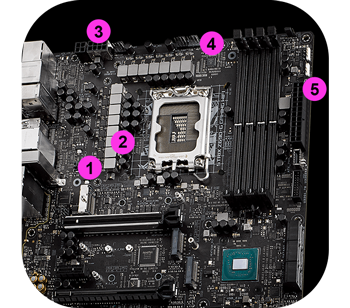

High-quality components 1. 14+1 power stages and low-side MOSFETS
2. Alloy chokes and durable capacitors
3. PROCOOL II power connector
4. DIGI+ power control (VRM)
5. Multi-layered 8 layer PCB

AI Overclocking at a Glance

Intelligent Motherboard ROG engineers developed and extensively-tested intelligent software solutions to ensure your system stays in optimal condition. Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push each system to its limits.

features

Designed by ExpertsFor each new motherboard platform, ROG in-house experts painstakingly profile thousands of processors and system configurations to hone the highly advanced algorithm of AI Overclocking.

features

Predictive EdgeThe algorithm analyses your CPU and system cooling, and then defines optimal voltage and frequency settings. Predicted values can be applied manually or engaged automatically to save time.

features

Real-time AdjustmentsOnce activated, the AI Overclocking utility continually tracks vital system stats, making profile adjustments to account for changes in system usage or ambient temperature.

Top-level PC Performance Demands Exceptional Cooling

cooling

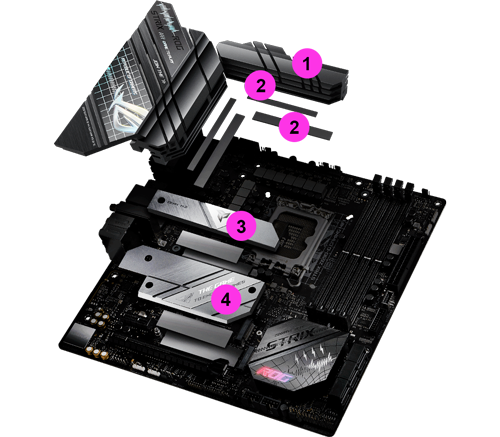

Cooling innovation The ROG Strix Z690-G Gaming WiFi is armed with Two thick heatsinks that are bonded to the metal I/O shield cool the VRMs. This structure provides ample mass and surface area to deal with the thermals of Intel’s latest processors. Specially engineered thermal pads efficiently transfer heat from the inductor and phase array to the heatsink.
Multiple M.2 heatsinks help maintain onboard M.2 NVME SSDs at optimal temperatures for consistent performance and reliability. Two integrated M.2 backplates help ensure that high-performance drives deliver peak performance, even when airflow is restricted.

1. Integrated I/O Cover & VRM Heatsinks
2. Thermal Pads
3. Two M.2 Heatsinks
4. Two M.2 Backplates

Outshine the Competition

RGB

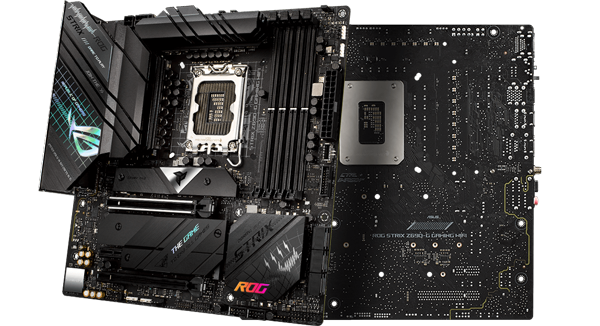

Personalize and gear up with ROG components In addition to elite performance, ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs as well as lighting strips connected to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Undeniably ROG Strix ROG Strix Z690-G Gaming WiFi reinforces the sci-fi aesthetic of the ROG worldview with iridescent logos on the I/O cover and M.2 heatsink, and the PCH cover gives users the freedom to personalize their rig with customizable RGB

Expert Thermal Management

Cooling Solution ROG Strix Z690 motherboards feature comprehensive cooling options that are configurable via the Fan Xpert 4 tool in Armoury Crate or within the UEFI BIOS.

cooling

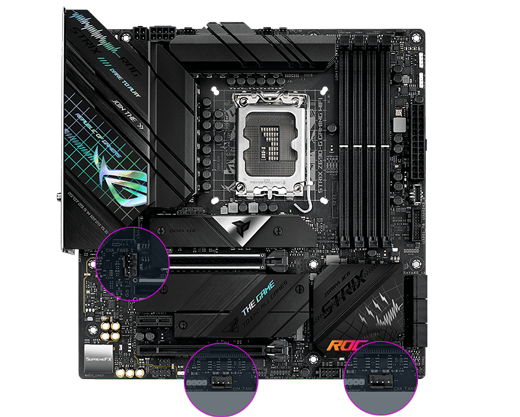

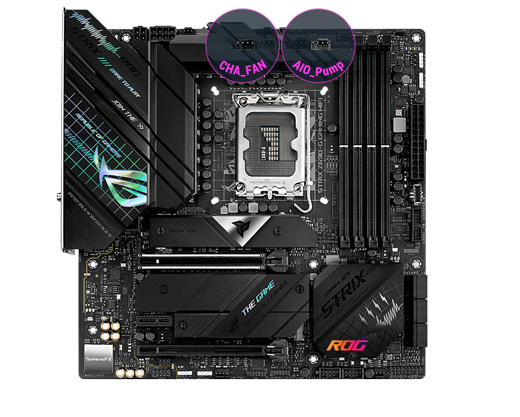

The most comprehensive cooling options ever A dedicated pair of PWM/DC fan headers for CPU coolers. A dedicated PWM/DC header for self-contained water-cooling setups.

cooling

M.2 heatsink and backplate Keeps a mounted M.2 SSD at the optimum operating temperature for consistent performance and reliability. Provides additional heat dissipation to deal with the thermal load of high-performance M.2 NVMe SSDs.

cooling

4-pin PWM/DC fan headers Headers that supports auto-detection of PWM or DC fans.

Create a Fully Customized Gaming Setup

features

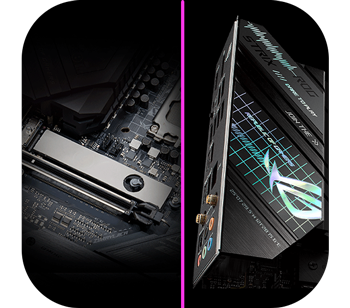

M.2 Q-LATCH, PRE-MOUNTED I/O SHIELDThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws. The patented ROG I/O shield is finished in sleek matte black and comes pre-mounted, which further simplifies the process of installing the motherboard.

features

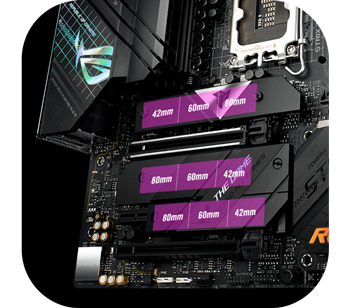

PCIe PerformanceWith three strategically placed M.2 slots, ROG Strix Z690-G Gaming WiFi leverages mighty CPU and chipset bandwidth to deliver lightning-fast PCIe 4.0 data transfers, Intel NVM Express® RAID, and high-capacity drive options that blaze past traditional SATA-based SSDs.

Supreme Networking Capability

Networking

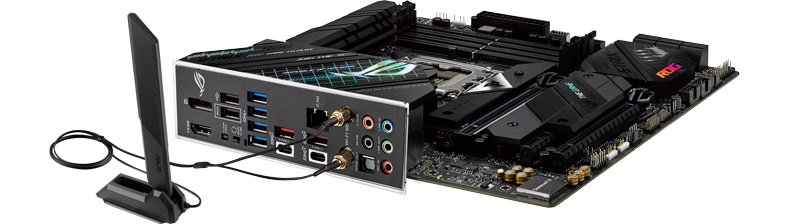

WIFI 6E (802.11 AX)Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.

Intel® 2.5 GB EthernetOnboard 2.5 Gb Ethernet gives your wired connection a boost, delivering speeds up to 2.5X faster standard Ethernet connections for faster file transfers, low-lag gaming and high-res video streaming.

Fine-quality Components for Exceptional Clarity & Fidelity

Audio

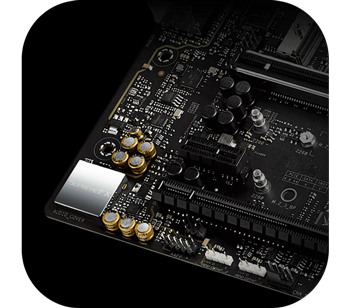

Unique Design Features for Powerful Audio ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In ROG Strix Z690-G Gaming WiFi, SupremeFX features the ALC4080 codec to increase playback resolution from 192 kHz to 384 kHz across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier that’s capable of driving of a wide variety of gaming headsets and high-fidelity headphones. ROG Strix Z690 motherboards are pre-loaded with the DTS® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment.

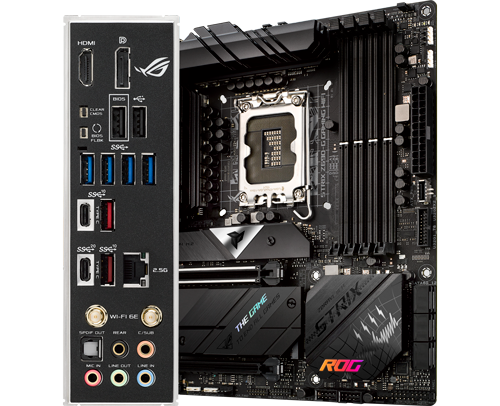

Full Connectivity Breakdown

Connectivity

Armed with all the essentials 1. HDMI Port   |   2. DisplayPort   |   3. 4 x USB 2.0 Ports   |   4. Clear CMOS Button   |   5. BIOS Flashback Button
6. 4 x USB 3.2 Gen 1 Ports   |   7. 3 x USB 3.2 Gen 2 Ports / 2x Type-A + 1x Type-C   |   8. 1 x USB 3.2 Gen 2x2 Ports
9. Intel® 2.5Gb Ethernet   |   10. Intel® Wi-Fi 6E   |   11. Optical S/PDIF OUT   |   12. Gold-Pated Audio Jacks
13. 1 x USB 3.2 Gen 2x2 Type-C® Port   |   14. 2 x USB 3.2 Gen 1 Ports   |   15. 6x SATA 6Gb/s   |   16. Thunderbolt header

Control your Rig with Armoury Crate

Armoury Crate

account management software Armoury Crate is a software utility designed to provide centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate puts command of all your Aura gear at your fingertips with the new Aura Creator suite ready. The software also provides control of settings for a growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even offers dedicated product registration and ROG news feeds to help you stay in touch with the ROG gaming community.

Specifications
Core Specifications
Edition ROG STRIX Z690-G GAMING WIFI
Form Factor MicroATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 5.0 x16
SATA Support N/A
RAID Support via SATA
Storage Mode Support
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x CPU/DRAM Overvoltage Jumper
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 5 x Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 244 x 244 mm
