Scan code: LN120785 Manufacturer code: ROG STRIX Z690-A GAMING WIFI D4

ASUS Intel Z690 ROG STRIX Z690-A GAMING WIFI D4 PCIe 5.0 ATX Motherboard

ASUS ROG STRIX Z690-A GAMING WIFI D4, Intel Z690, S 1700, DDR4, PCIe 5.0, SATA3, M.2, 2.5GbE/ax WiFi, USB 3.2 Gen2, ATX

Thumbnail 1 : ASUS Intel Z690 ROG STRIX Z690-A GAMING WIFI D4 PCIe 5.0 ATX Motherboard Thumbnail 2 : ASUS Intel Z690 ROG STRIX Z690-A GAMING WIFI D4 PCIe 5.0 ATX Motherboard Thumbnail 3 : ASUS Intel Z690 ROG STRIX Z690-A GAMING WIFI D4 PCIe 5.0 ATX Motherboard Thumbnail 4 : ASUS Intel Z690 ROG STRIX Z690-A GAMING WIFI D4 PCIe 5.0 ATX Motherboard
Scan code: LN120785 Manufacturer code: ROG STRIX Z690-A GAMING WIFI D4
£309.98
Order now and get it tomorrow, Tue 7th Dec
From £12.92 / month (APR 0%) or 0% for 4 months
Monthly Payment: £25.84
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £309.98
Total inc. interest: £309.98
Monthly Payment: £12.92
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £309.98
Total inc. interest: £309.98
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £7.74 / month (APR 15.9%)
Delivery Options
  • By DPD On 7th Dec to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
ASUS Cashback Promo

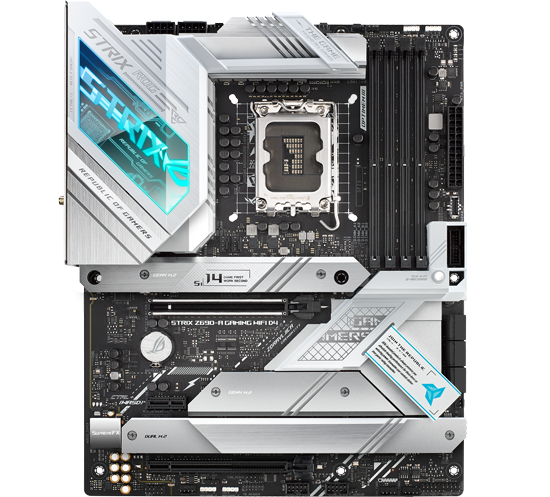

ROG Strix Z690-A Gaming WiFi D4 Intel 12th Generation ATX Motherboard

ASUS ROG Strix Z690-A Gaming WiFi D4 Motherboard

GET READY FOR THE NEWEST GENERATION Introducing the newest series of Z690 motherboards – ROG Strix Z690-A Gaming WiFi D4 from ASUS. The ROG Strix Z690-A Gaming WiFi D4 motherboard deploys robust power delivery and cooling to unleash the full force of 12th Gen Intel® Core™ processors, all orchestrated by ASUS-exclusive intelligent controls that deliver advanced user experiences. Meanwhile, onboard WiFi 6 and ample PCIe® 4.0 M.2 slots bring the speed that you need, and DIY-friendly innovations help simplify the PC building process. To top it all off, Strix Z690-A Gaming WiFi D4 dazzles with customizable RGB lighting and a refined brushed-metal finish.

Please note: This motherboard is compatible with Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel® Z690Chipset

LGA 1700CPU Socket

12th Gen Intel®Compatible Processors

ATXForm Factor

Teamed Power Architecture and Power Solution

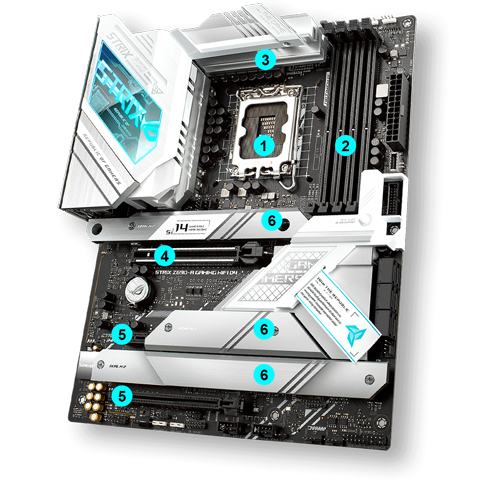

Breakdown

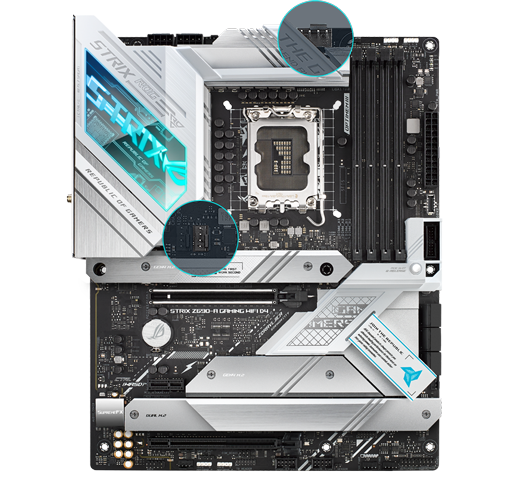

1. Supports the latest 12th Gen Intel® Processors
2. Dual Channel Memory, Max. 128GB, DDR4 / Supports Intel® XMP and OPTIMEM III
3. 16+1 Power Stages
4. Expansion Slots: 1 x PCIe 5.0 x16 SafeSlot (x16) CPU
5. 1 x PCIe 3.0 x16 slot (x4) Chipset   |   1 x PCIe 3.0 x1 slot Chipset
6. Four M.2 Slots: 1 x (PCIe 4.0 x4 from CPU)
• 1 x (PCIe 4.0 x4 from PCH)   |   • 1 x (PCIe 4.0 x4 from PCH)   |   • 1 x (PCIe 4.0 x4 & SATA from PCH)

Experience All-Round Performance

Push frequency and timings to the max ROG Strix Z690-A Gaming WiFi D4 provides up-rated power delivery and optimized cooling to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings, while Two-Way AI Noise Cancellation ensures crystal-clear in-game communication. ROG Strix Z690-A Gaming WiFi D4 is armed with all the essentials required to create a gaming PC with top-tier performance.

features

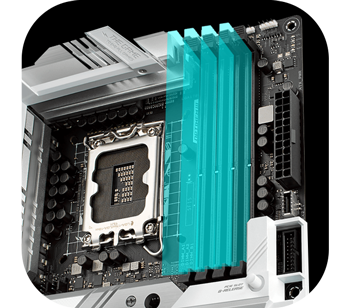

OPTIMEM IIIWith proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, OptiMem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies. Stack ROG Strix Z690-A Gaming WiFi D4 with your favorite modules and maximize the throughput of the 12th Gen Intel Core Alder Lake processor for applications that demand massive bandwidth.

features

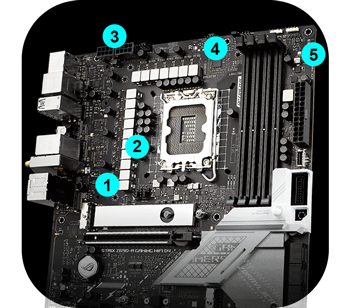

High-quality components 1. 16+1 power stages and low-side MOSFETS
2. Alloy chokes and durable capacitors
3. 8+8-pin PROCOOL II power connectors
4. DIGI+ power control (VRM)
5. Multi-layered 6 layer PCB

AI Overclocking at a Glance

Intelligent Motherboard ROG engineers developed and extensively-tested intelligent software solutions to ensure your system stays in optimal condition. Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push each system to its limits.

features

Designed by ExpertsFor each new motherboard platform, ROG in-house experts painstakingly profile thousands of processors and system configurations to hone the highly advanced algorithm of AI Overclocking.

features

Predictive EdgeThe algorithm analyses your CPU and system cooling, and then defines optimal voltage and frequency settings. Predicted values can be applied manually or engaged automatically to save time.

features

Real-time AdjustmentsOnce activated, the AI Overclocking utility continually tracks vital system stats, making profile adjustments to account for changes in system usage or ambient temperature.

Top-level PC Performance Demands Exceptional Cooling

cooling

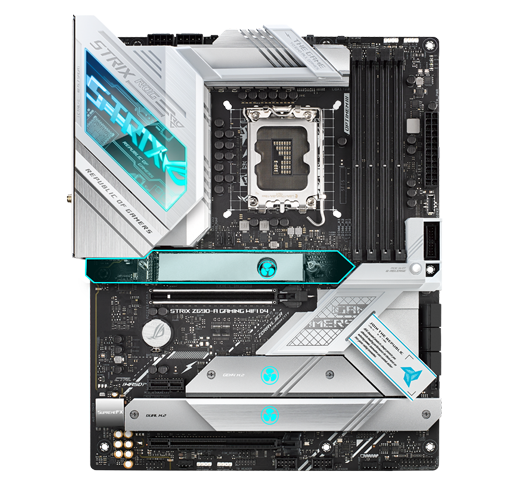

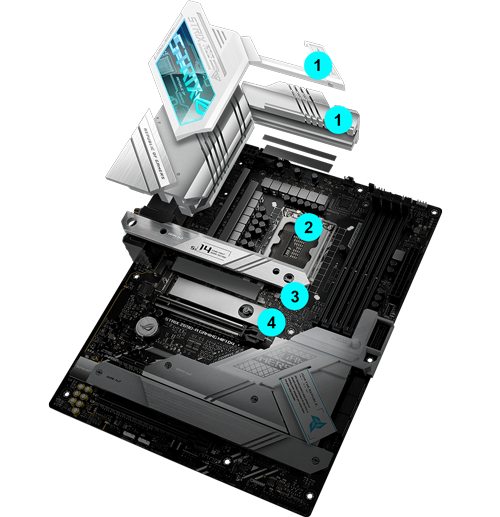

Cooling innovation The ROG Strix Z690-A Gaming WiFi D4 is armed with Two thick heatsinks cool the VRMs and protect the rear I/O panel that is bonded to a pre-mounted metal I/O shield. This structure provides ample surface area and mass to deliver a river of power to high-performance 12th Gen Intel processors. Specially engineered thermal pads efficiently transfer heat from the inductor and phase array to the heatsink. Multiple M.2 heatsinks help maintain onboard M.2 NVME SSDs at optimal temperatures for consistent performance and reliability. An integrated M.2 backplate helps ensure that high-performance drives deliver peak performance, even when airflow is restricted.

1. Integrated I/O Cover & VRM Heatsinks
2. Thermal Pads
3. Four M.2 Heatsinks
4. M.2 Backplate

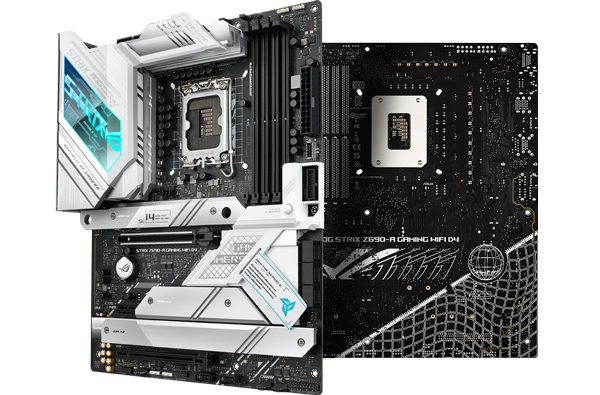

Outshine the Competition

RGB

Personalize and gear up with ROG components In addition to elite performance, ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs and third-party lighting strips that can connect to onboard RGB headers. In addition, all lighting can be easily synced with other Aura-compatible hardware.

Undeniably ROG Strix A specially illuminated acrylic display on the I/O cover gives the illusion that the circuit board is visible beneath an RGB ROG logo. Meanwhile, touches of brushed metal throughout the motherboard, plus the stitched fabric of the ROG Strix Cable organizer, deliver a variety of carefully crafted surface textures. Last but not least, a special lighting pattern built into the motherboard finishes off a colorful tour of the ROG worldview.

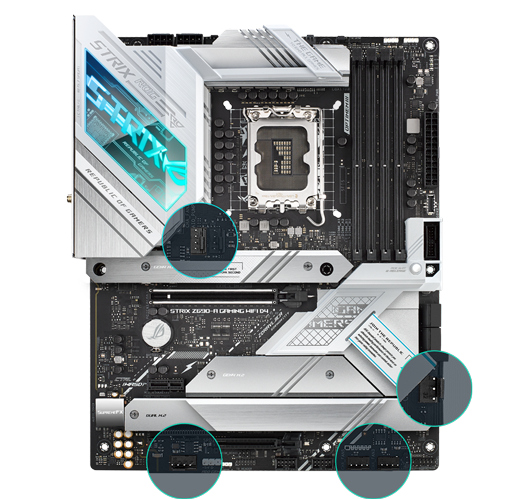

Expert Thermal Management

Cooling Solution ROG Strix Z690 motherboards feature comprehensive cooling options that are configurable via the Fan Xpert 4 tool in Armoury Crate or within the UEFI BIOS.

cooling

The most comprehensive cooling options ever A dedicated pair of PWM/DC fan headers for CPU coolers. A dedicated PWM/DC header for self-contained water-cooling setups.

cooling

M.2 heatsink and backplate Keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability. Provides additional mass to deal with the thermal load of high-performance M.2 drives.

cooling

4-pin PWM/DC fan headers Headers that supports auto-detection of PWM or DC fans.

Create a Fully Customized Gaming Setup

features

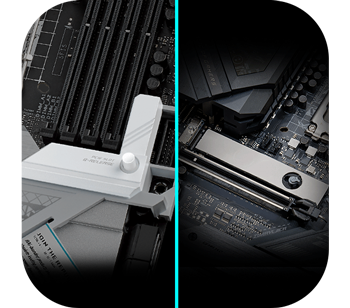

DIY FRIENDLY PCIE SLOT Q-RELEASEA physical button located on the chipset heatsink unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

features

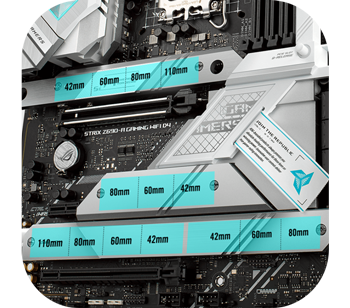

PCIe PerformanceWith four strategically placed M.2 slots, ROG Strix Z690-A Gaming WiFi D4 takes full advantage of CPU and chipset bandwidth to usher in support for dizzyingly quick PCIe® Gen 4.0 SSDs, lightning-fast Intel NVM Express® RAID, and high-capacity drives that blaze past traditional SATA-based storage.

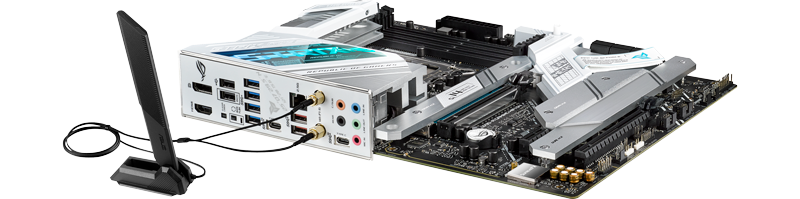

Supreme Networking Capability

Networking

WIFI 6 (802.11 AX)Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense wireless environments, providing exceptional online gaming experiences. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

Intel® 2.5 GB EthernetOnboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.

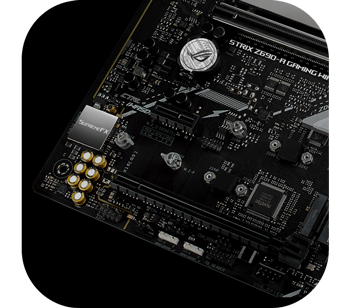

Fine-quality Components for Exceptional Clarity & Fidelity

Audio

Unique Design Features for Powerful Audio ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In ROG Strix Z690-A Gaming WiFi D4, SupremeFX features the ALC4080 codec to increase playback resolution from 192 kHz to 384 kHz across all channels. ROG Strix Z690 motherboards are pre-loaded with the DTS® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment.

Full Connectivity Breakdown

Connectivity

Armed with all the essentials 1. HDMI Port   |   2. DisplayPort   |   3. Clear CMOS Button   |   4. BIOS Flashback Button   |   5. 2 x USB 2.0 Ports
6. 4 x USB 3.2 Gen 1 Ports   |   7. 1 x USB 3.2 Gen 2x2 Type-C Port   |   8. Intel® 2.5Gb Ethernet
9. 2 x USB 3.2 Gen 2 Ports   |   10. Intel® Wi-Fi 6   |   11. 1 x Type-C Port   |   12. 5 x Audio Jacks
13. 1 x USB 3.2 Gen 2x2 Type-C Port   |   14. 2 x USB 3.2 Gen 1 Ports   |   15. 6x SATA 6Gb/s   |   16. Thunderbolt header

Control your Rig with Armoury Crate

Armoury Crate

account management software Armoury Crate is a software utility designed to provide centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate puts command of all your Aura gear at your fingertips with the new Aura Creator suite ready. The software also provides control of settings for a growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even offers dedicated product registration and ROG news feeds to help you stay in touch with the ROG gaming community.

Specifications
Core Specifications
Edition ROG STRIX Z690-A GAMING WIFI D4
Form Factor ATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4500(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4700(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5333(0C)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 5.0 x16
SATA Support N/A
RAID Support via SATA
Storage Mode Support
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 1 x CPU_OV
  • 1 x Front Panel Audio Header
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 5 x Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 244 x 244 x 50 mm
Note
Additional Information
Scan Code LN120785
Model Number ROG STRIX Z690-A GAMING WIFI D4
GTIN 4711081446460
