ASUS ROG STRIX Z590-F GAMING WiFi Intel Z590 PCIe 4.0 ATX Motherboard
ASUS ROG STRIX Z590-F GAMING WiFi, Intel Z590, S 1200, DDR4, PCIe 4.0, SATA3, 4x M.2, 2.5GbE, ax/BT5.2, USB 3.2, ATX
|Instalment Rate:||5.9% p.a. (fixed)|
|Cost of purchase:||£219.98|
|Total inc. interest:||£226.89|
|Instalment Rate:||5.9% p.a. (fixed)|
|Cost of purchase:||£219.98|
|Total inc. interest:||£233.38|
|Cost of purchase:||£99|
|Total inc. interest:||£99|
Purchase Rate: 21.9% p.a. (variable)
Representative: 21.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 6th Jul
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
ROG Strix Z590-F Gaming WiFi Intel 11th Generation ATX Motherboard
BUILT FOR PERFORMANCE GAMINGThe incredibly powerful ROG Strix Z590-F Gaming WiFi motherboard is designed with advanced power delivery and enhanced cooling to manage with the strains of potent 11th Generation Intel® Core™ Rocket Lake processors. Along with the latest Intel® Wi-Fi 6E and PCI Express® 4.0 M.2 for super-fast transfer speeds and storage, Strix Z590-F Gaming WiFi features Two-Way AI Noise Cancellation to guarantee clear communication in any situation. This powerhouse of a motherboard is decked in a futuristic look that’s emphasised with a brushed-metal finish, iridescent ROG logo on the I/O shroud, and Aura Sync illumination.
Please note: This motherboard is compatible with Intel® Socket LGA 1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors.
Storage and Memory Advantages

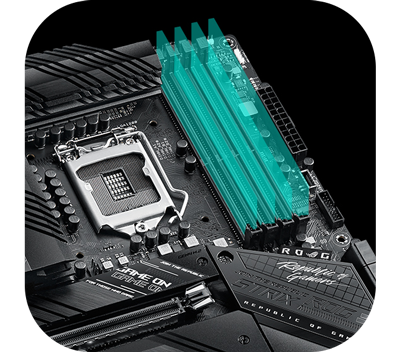

Optimem IIROG Strix Z590-F Gaming WiFi supports up to 128 GB DDR4 memory across four slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk, enhancing memory stability and compatibility while giving memory kits higher frequency margins.

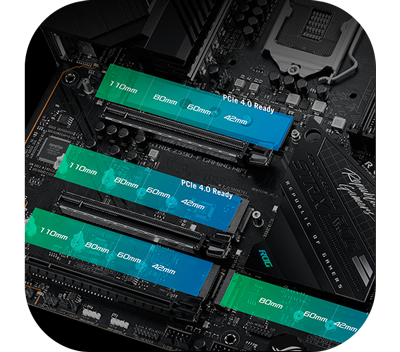

PCIe 4.0-ReadyROG Strix Z590-F Gaming WiFi features four onboard M.2 slots, two of which support the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available with the latest Intel processors. An M.2 backplate helps deal with the heat generated by the PCIe 4.0 SSDs. In addition, three of the M.2 slots support up to a 22110 socket and NVM Express® RAID.
Cooler by Design

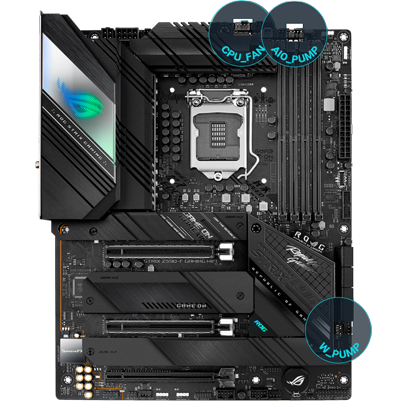

Fan pump headersA dedicated pair of PWM/DC fan headers for CPU coolers. A dedicated PWM/DC header for self-contained water-cooling setups. A dedicated header that can supply over 3 amps to high-performance PWM or DC water pumps.

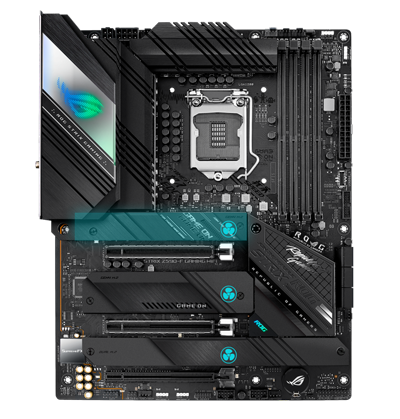

M.2 heatsink and backplateThe M.2 Heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability. While the M.2 Backplate helps ensure that high-performance drives deliver peak performance, even when airflow is restricted.
4-pin PWM/DC Fan HeadersEach header supports auto-detection of PWM or DC fans.
* Supports ASUS HYDRANODE
Integrated I/O Cover and VRM Heatsinks ROG Strix Z590 motherboards feature comprehensive cooling options that are configurable via Fan Xpert 4 or the UEFI BIOS. A bundled fan bracket and additional VRM fan provide additional cooling to critical components as you push your build to its limits. Connected by an L-shaped heat pipe, the two VRM heatsinks feature strakes to increase surface area for improved heat dissipation. Both heatsinks also integrate a high-surface-area aluminium I/O cover which helps dissipate heat. High-quality thermal pads efficiently transfer heat from the inductor and phase array to the heatsink.
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.CLICK HERE TO FIND OUT MORE >

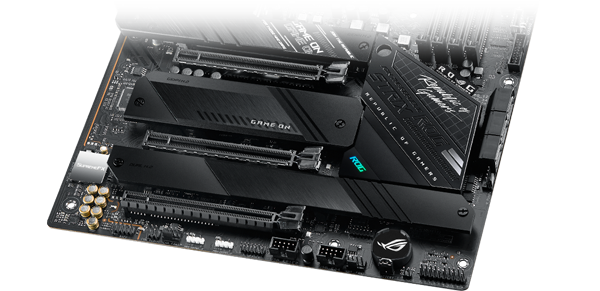

Experience ROG SupremeFX
exceptional clarity and fidelity for the best sound quality ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In ROG Strix Z590-F Gaming WiFi, this combination features the ALC4080 codec with a Savitech amplifier to deliver pristine audio, increasing playback resolution from 192 kHz to 384 kHz and also decreasing distortion and reducing signal interference from surrounding components.
TWO-WAY AI NOISE CANCELLATION
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.
*A splitter cable is necessary when using a 3.5 mm headset.
Undeniably ROG Strix Style
Outshine the Competition ROG Strix Z590-F Gaming WiFi embodies the ROG spirit with its futuristic cyberpunk-inspired design elements and monochromatic color palette. The ROG logo on the I/O heatsink is illuminated by Aura RGB LEDs and can be synced with other Aura-compatible hardware to create an eye-catching, unified look. With built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs, as well as lighting strips connected to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.

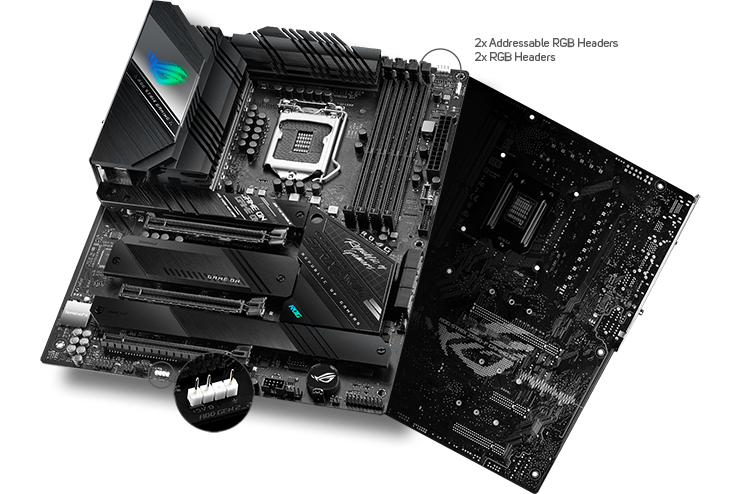

ROG Strix Z590-F Gaming WiFi's Addressable Gen 2 RGB headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
Control your Rig with Armoury Crate
account management software
This new software utility is designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customise RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for ASUS product, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community. ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.
Bundled third-party software like AIDA64 and MemTest86 allow you to benchmark individual components or the entire system. Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics
Designed by expertsAt the heart of AI Overclocking is a proprietary algorithm developed by ROG R&D engineers who worked with world-renowned overclockers to create a tool for users of all levels.
Predictive edgeThe algorithm analyzes your CPU and cooling system and, based on what it finds, predicts optimal settings. The software then automatically applies these settings to guide the clocking process, balancing frequency and voltage.
Real-time adjustmentsThe software monitors workload, system temperature, fan speed and power draw at one-minute intervals, and makes real-time adjustments to ensure ongoing optimal performance.
AI OVERCLOCKING AT A GLANCE
ROG AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU and cooling system to predict optimal voltage and frequency settings.
Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, and an auto-tuning option is available for beginners.
AI Cooling Features
CPU temperature detectionAI Cooling detects CPU temperatures and uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system and keep fan noise down.
Automated optimizationUnder stable system loads, the software automatically lowers fan* speed to the optimal setting, decreasing fan noise without compromising performance.

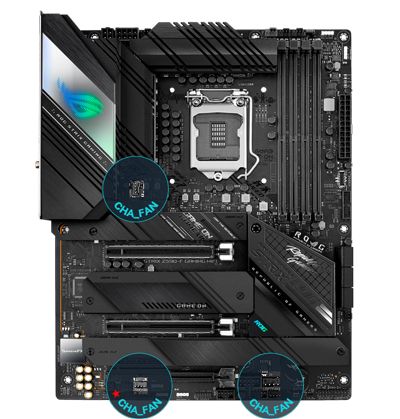

*Fans need to be connected to the following headers for AI Cooling control: CPU_FAN / CPU_OPT / CHA_FAN / M.2_FAN / H_AMP / RAD_FAN
Ongoing monitoringAI Cooling continues to monitor the system and adjust fan speed based on current load.
SELF-ADAPTIVE FAN TUNING ASUS AI Cooling technology automatically manages and controls motherboard-connected fans to ensure optimal settings based on current system load and temperature. AI Cooling can easily be activated via the Fan Xpert 4 dashboard in ASUS AI Suite 3. Once activated, it will override all manual controls. For those who prefer manual control, AI Cooling provides reference points on a graph, detailing fan speed in relation to temperature to provide a guide for fan settings.
AI Networking Features
IdentificationGameFirst VI analyzes usage patterns and the digital signatures of your applications and compares them to a database of over 200,000 apps.
BoostGameFirst VI intelligently switches application priority and adjusts bandwidth, depending on the situation. When gaming, it accelerates and prioritizes game packets to give you super-smooth online gameplay – even when you're streaming high-quality video or transferring large files.
VisualizationAn intuitive graph provides an overview of real-time network status. Simply click on the tab to view the current bandwidth usage of each application, geolocation status of each network connection, or an analysis of the WiFi channels.
how does it work? The proprietary ROG GameFirst VI utility is designed to help all users – beginners, experts, and everyone in between – optimize network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI-enhanced identification and boost technologies to ensure faster and smarter network optimization.
Networking and Leading Connectivity

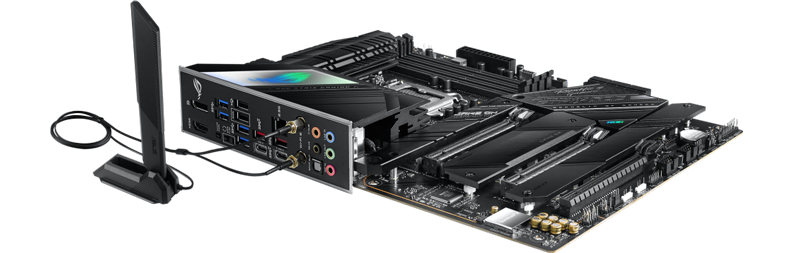

Intel® WiFi 6E （802.11 ax)Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultra-fast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.
*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.
Intel 2.5 Gb EthernetOnboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.
Unbelievable Power Design
Power DesignDigital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs.

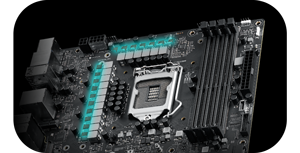

Teamed Power Stages14+2 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.

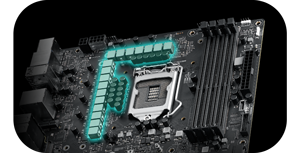

Alloy Chokes and CapacitorsSuperior chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

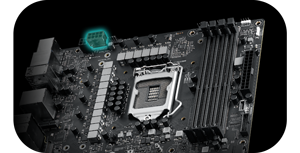

ProCool II Power ConnectorThe ASUS ProCool II socket is built to tight specifications to ensure flush contact with the PSU power lines. Metal armor improves heat dissipation, and lower impedance helps prevent hotspots and improves reliability.

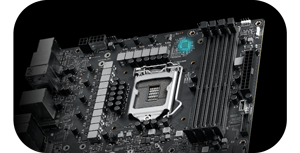

Digi+ Power ControlThe built-in Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.

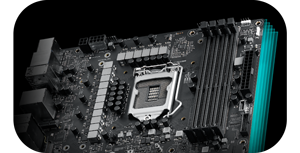

Six-layer PCBThe PCB design quickly dissipates heat around the VRM to improve overall system stability and provide the CPU with more overclocking headroom.
TOP TIER PERFORMANCE ROG Strix Z590-F Gaming WiFi is armed with up-rated power delivery and optimized cooling to enable top-tier performance for gaming. Fully equipped with intelligent controls for easy management of overclocking, cooling and networking settings, Strix Z590-F Gaming WiFi also features Two-Way AI Noise CancelLation for crystal-clear in-game communication.
Play your own Style with DIY Friendly Features

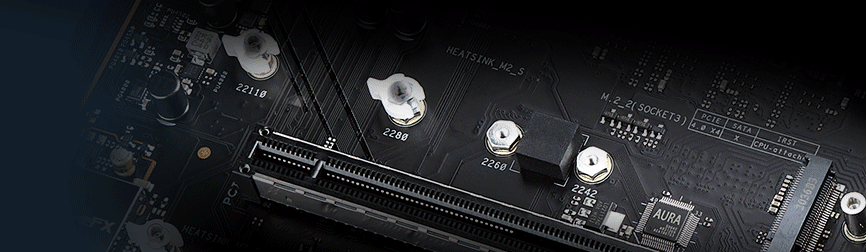

M.2 Q-LatchThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.

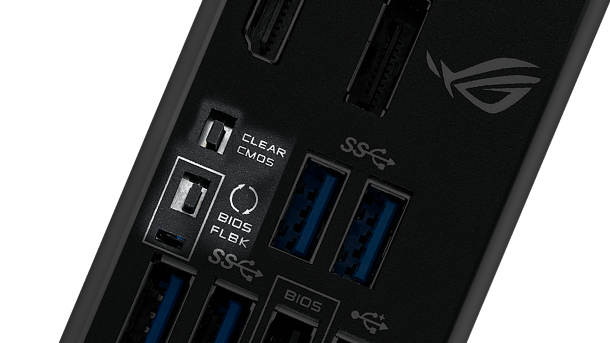

Clr CMOS Button and BIOS FlashBack™A quick press of the Clr CMOS button helps reset BIOS settings. It can also be used to reboot the PC if incorrect BIOS settings have been selected.
BIOS FlashBack™ is the simplest and safest way to update BIOS. Simply drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, and plug it into the USB BIOS FlashBack port and press the button.

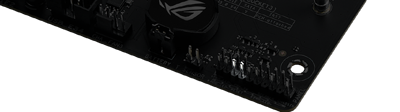

FlexKeyFlexyKey makes it possible to redefine the role of the chassis reset button. Assignable options include quick Aura lighting control, booting directly into UEFI, or performing a safe boot to recover settings.

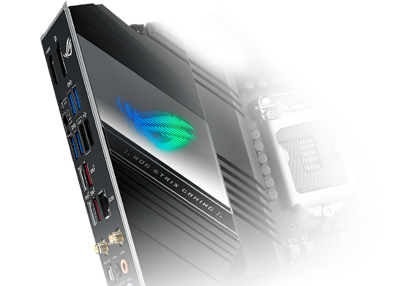

Pre-Mounted I/O ShieldThe patented ROG I/O shield is finished in sleek matte black and comes pre-mounted, which further simplifies the process of installing the motherboard.

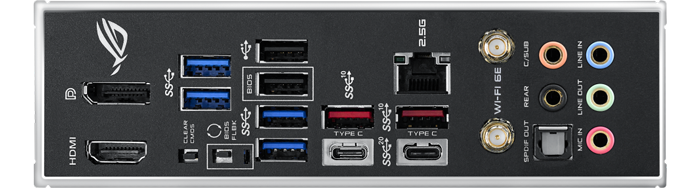

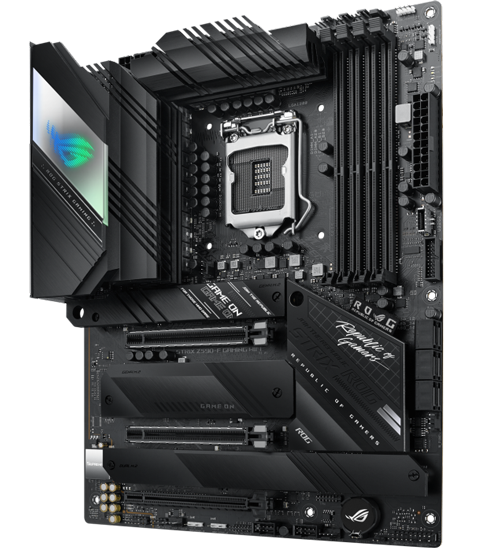

Z590-F Gaming WiFi Motherboard's Full Connectivity
• 1x HDMI 2.0 port / 1x DisplayPort1.4
• Clr CMOS Button / BIOS FlashBack™ Button
• 4x USB 3.2 Gen 1 Ports
• 2x USB 2.0 Ports
• 3x USB 3.2 Gen 2 Ports / 2x Type-A + 1 x Type-C®
• 1x USB 3.2 Gen 2x2 Port
• 1x Intel l225-V 2.5Gb Ethernet
• Intel® Wi-Fi 6E AX210
• 1x Optical S/PDIF Out
• 5x Audio Jacks
• 1x USB 3.2 Gen 2 Type-C® Port
• 2x USB 3.2 Gen 1 Ports
• 6x SATA 6Gb/s
• Thunderbolt Header
|Edition||ROG STRIX Z590-F GAMING WIFI|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB (4x32GB)|
|Audio||ROG SupremeFX 7.1 HD Audio|
|Primary GPU Interface||PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]|
|NVIDIA SLI Support||N/A|
|AMD CrossFire Support||Not Supported|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||
|SATA Support||SATA3 / M.2|
|RAID Support via|
|Storage Mode Support|
|Network Interface Type||
|Rear I/O Connectors||
|Board Dimensions||305 x 244 mm|
|Note||Intel® 11th Gen processors support PCIe 4.0|
|Model Number||ROG STRIX Z590-F GAMING WIFI|
