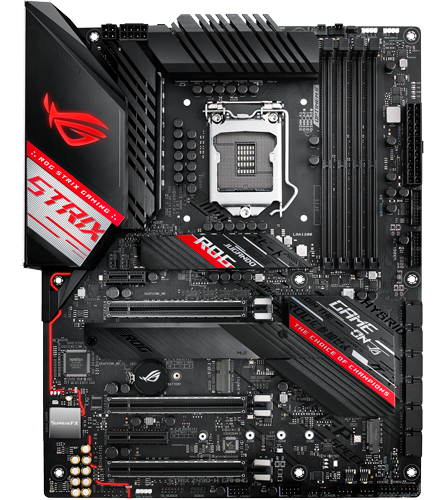

ROG Strix Z490 H-Gaming 10th Generation Intel ATX Motherboard from ASUS

Get Yourself off to a Great Start Introducing the ROG Strix Z490 H-Gaming Motherboard from ASUS. The ROG Strix Z490-H Gaming motherboard dons the classic red-and-black color scheme, and pairs it with futuristic cybertext for a new look. This ATX gaming motherboard is packed with all the essentials, including the latest connectivity and intuitive ROG software. Striking aesthetics and cutting-edge innovations make ROG Strix Z490-H Gaming ideal for gamers of all levels..

Intel Z490Chipset

LGA 1200CPU Socket

ATXForm Factor

Built to Take the Strain

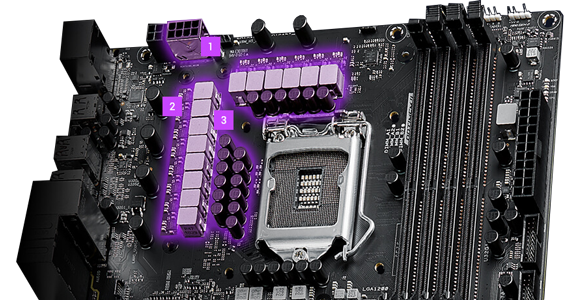

Power Delivery Enhancements

POWER DELIVERY ENHANCEMENTS Modern CPU architectures up the ante for motherboard power design by transitioning from deep power saving modes to full load almost instantaneously. Our latest VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.

1.8-pin ProCool II power connector The ProCool II socket is built to tight specifications to ensure flush contact with the PSU power lines and have a metal armour for improved heat dissipation. The connector's lower impedance helps prevent hotspots and improves reliability.

2. 12+2 DrMos
Power Stage
ROG Strix Z490-H Gaming utilises 12+2 DrMOS power stages to combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.

3.Upgraded
Chokes
Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

ROG Smart AI Overclocking

Heatsinks

Intelligent AI Control Our ROG engineers developed and extensively-tested intelligent software solutions to ensure your system stays in optimal condition.​

AI OverclockingTuning is now faster and smarter than ever before. AI Overclocking profiles the CPU and cooling to predict the optimal configuration for each system.

AI CoolingAI Cooling automatically manages and controls motherboard connected fans, ensuring the most efficient settings depending on the current system load and temperature.

AI NetworkingGameFirst VI optimises and organises network bandwidth, effectively reducing jitter and eliminating spike lag to ensure smooth online gameplay.

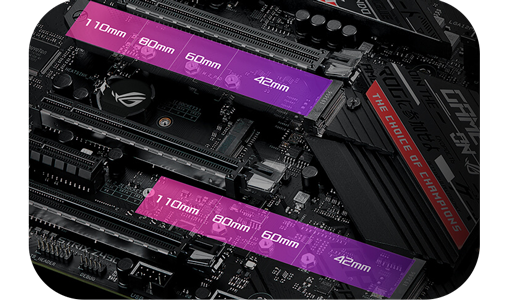

Support for up to Two M.2 Drives

M.2 Support

Maximum Storage CompatibilityTwo M.2 slots are available, with one supporting both SATA and PCIe 3.0 x4 modes, and the other supporting PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available.

The Future of Home-Networking

Networking

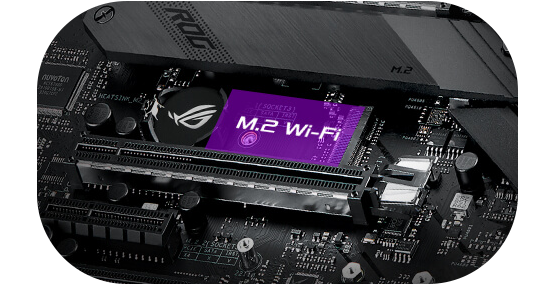

M.2 Socket with E Key Integrated with Intel® wireless-AX/AC technology, M.2 supports CNVi/PCIe/USB mode to build a faster and more cost-effective WiFi and Bluetooth® 5.1 solution.* *Bluetooth 5.1 will be ready in Windows 10 build 19041 or later.

INTEL 2.5G ETHERNETOnboard 2.5G Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.

This is High Quality Audio

4K Recording

SupremeFX Built-in SupremeFX audio technology ensures pristine audio. It provides a flat frequency response for a neutral, detailed sound signature. And if you're using a gaming headset, the front panel output is driven by two op amps to preserve audio quality.

Audio Enhancement Options with Sonic Studio III

4K Recording

Sonic Studio IIISonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

Sonic Studio LinkThe new Sonic Studio Link now allows you to apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback devices.

Sonic Studio Virtual MixerA virtual audio device that lets streamers combine sound output and output from different apps. This allows you to mix your voice and video game audio within streaming software. A variety of adjustment and monitoring tools provide a high level of digital control.

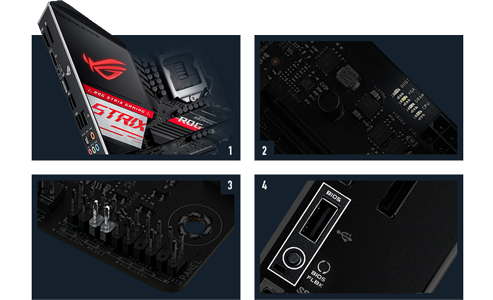

D.I.Y Friendly

4K Recording

1. Pre-mounted I/O shieldROG’s patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard.

2. Q-LEDsFour onboard LEDs indicate power status, and any problem with the CPU, memory, graphics card or boot device for quick diagnosis.

3. FlexKeyThe front-panel header lets you customise the reset button on the front-panel of your chassis to provide quick access to your choice of Aura lighting controls, DirectKey or system reset.

4. BIOS FlashBack™BIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without having memory or a CPU installed.

Specifications
Core Specifications
Edition ROG STRIX Z490-H GAMING
Form Factor ATX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4500(OC)
  • DDR4 - 4600(OC)
Max. Memory Capacity 128GB
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x PCIe 3.0 x1
  • 3 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x4
SATA Support SATA3 / M.2
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin M.2_FAN connector
  • 1 x 8-pin (Power)
  • 1 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS Header
  • 1 x CPU_OV jumper
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 5.1 Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x HDMI
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
