Scan code: LN107122 Manufacturer code: ROG STRIX Z490-G GAMING(WI-FI)

ASUS Intel Z490 ROG STRIX Z490-G GAMING Wi-Fi Micro-ATX Motherboard

ASUS ROG STRIX Z490-G GAMING Wi-Fi, Intel Z490, S 1200, DDR4, SATA3, Dual M.2, CrossFire, ax Wifi/2.5GbE, Micro-ATX

Thumbnail 1 : ASUS Intel Z490 ROG STRIX Z490-G GAMING Wi-Fi Micro-ATX Motherboard Thumbnail 2 : ASUS Intel Z490 ROG STRIX Z490-G GAMING Wi-Fi Micro-ATX Motherboard Thumbnail 3 : ASUS Intel Z490 ROG STRIX Z490-G GAMING Wi-Fi Micro-ATX Motherboard Thumbnail 4 : ASUS Intel Z490 ROG STRIX Z490-G GAMING Wi-Fi Micro-ATX Motherboard ASUS Intel Z490 ROG STRIX Z490-G GAMING Wi-Fi Micro-ATX Motherboard : video thumbnail 1
Scan code: LN107122 Manufacturer code: ROG STRIX Z490-G GAMING(WI-FI)
£249.98
Order now and receive it by Tuesday, 11th August
From £12.00 / month (APR 14.9%)
Monthly Payment: £22.45
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £249.98
Total inc. interest: £269.27
Monthly Payment: £12.00
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £249.98
Total inc. interest: £287.95
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 11th Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ROG Strix Z490 G-Gaming (Wi-Fi) 10th Generation Intel Micro-ATX Motherboard from ASUS

Get Yourself off to a Great Start Introducing the ROG Strix Z490 G-Gaming Motherboard from ASUS. The ROG Strix Z490-G Gaming (Wi-Fi) motherboard boasts boosted power delivery, an optimised cooling design and intuitive ROG software to help you get the most out of the latest 10th Generation Intel® Core™ processors. And it’s not just about performance, its cyberpunk-inspired aesthetics and a mirrored stainless steel Strix nameplate give it looks to match.

Intel Z490Chipset

LGA 1200CPU Socket

M-ATXForm Factor

Built to Take the Strain

Power Delivery Enhancements

POWER DELIVERY ENHANCEMENTS Modern CPU architectures up the ante for motherboard power design by transitioning from deep power saving modes to full load almost instantaneously. Our latest VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.

1.8-pin ProCool II power connector The ProCool II socket is built to tight specifications to ensure flush contact with the PSU power lines and have a metal armour for improved heat dissipation. The connector's lower impedance helps prevent hotspots and improves reliability.

2. 12+2 DrMos
Power Stage
ROG Strix Z490-G Gaming utilises 12+2 DrMOS power stages to combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.

3.Upgraded
Chokes
Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

ROG Smart AI Overclocking

Heatsinks

Intelligent AI Control Our ROG engineers developed and extensively-tested intelligent software solutions to ensure your system stays in optimal condition.​

AI OverclockingTuning is now faster and smarter than ever before. AI Overclocking profiles the CPU and cooling to predict the optimal configuration for each system.

AI CoolingAI Cooling automatically manages and controls motherboard connected fans, ensuring the most efficient settings depending on the current system load and temperature.

AI NetworkingGameFirst VI optimises and organises network bandwidth, effectively reducing jitter and eliminating spike lag to ensure smooth online gameplay.

Support for up to Two M.2 Drives

M.2 Support

Maximum Storage CompatibilityTwo M.2 slots are available, with one supporting both SATA and PCIe 3.0 x4 modes, and the other supporting PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available.

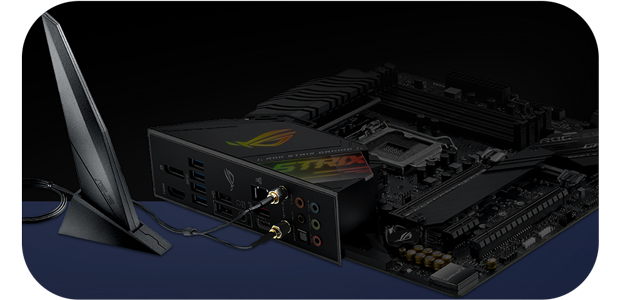

The Future of Home-Networking

Networking

WiFi 6 (802.11 ax) Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense wireless environments, providing exceptional online gaming experiences. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

INTEL 2.5G ETHERNETOnboard 2.5G Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.

This is High Quality Audio

4K Recording

SupremeFX Built-in SupremeFX audio technology ensures pristine audio. It provides a flat frequency response for a neutral, detailed sound signature. And if you're using a gaming headset, the front panel output is driven by two op amps to preserve audio quality.

Audio Enhancement Options with Sonic Studio III

4K Recording

Sonic Studio IIISonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

Sonic Studio LinkThe new Sonic Studio Link now allows you to apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback devices.

Sonic Studio Virtual MixerA virtual audio device that lets streamers combine sound output and output from different apps. This allows you to mix your voice and video game audio within streaming software. A variety of adjustment and monitoring tools provide a high level of digital control.

D.I.Y Friendly

4K Recording

1. Pre-mounted I/O shieldROG’s patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard.

2. Q-LEDsFour onboard LEDs indicate power status, and any problem with the CPU, memory, graphics card or boot device for quick diagnosis.

3. SafeSlotThe reinforced ASUS SafeSlot provides stronger PCIe device retention and greater shearing resistance.

4. BIOS FlashBack™BIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without having memory or a CPU installed.

Specifications
Core Specifications
Edition ROG STRIX Z490-G GAMING (Wi-Fi)
Form Factor MicroATX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4500(OC)
  • DDR4 - 4600(OC)
Max. Memory Capacity 128GB
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 1.4b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4
  • 1 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS Header
  • 1 x CPU_OV jumper
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Intel (2.5GbE LAN)
  • 1 x Intel 802.11ax WiFi + BT5 Module
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 5.1 Audio I/O
  • 2 x Antenna Ports
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort 1.4
  • 1 x HDMI
  • 1 x S/PDIF-Out (Optical)
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN107122
Model Number ROG STRIX Z490-G GAMING(WI-FI)
GTIN 4718017680400
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01442 265548
Reviews
ASUS ROG STRIX Z490-G GAMING Wi-Fi, Intel Z490, S 1200, DDR4, SATA3, Dual M.2, CrossFire, ax Wifi/2.5GbE, Micro-ATX is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Excellent board with many features I've always been really impressed with ASUS motherboards as they are completely robust and reliable. As i expected, the ASUS Z490-G is a very high end performance motherboard which offers a lot of features and technologies than other manufacturers. Great build quality. It supports the new 10th Gen Intel CPUs and offers 2 NVMe M.2 slots plus WiFi in built in. The cooling has been very intelligently designed taking into account their use of thermal pads and heatsinks throughout. I would advise to read the manual as could sometimes be a bit overwhelming to identify the many connectors/pins/slots. The BIOS offers a wide variety of settings and features, more than some other brands i have seen - so good to know ASUS are offering more control of the system especially the ASUS Aura feature which a very nice touch. Offers nearly everything from the ATX version (like for example Z490-F). Highly recommended motherboard despite the price.
