Scan code: LN107130 Manufacturer code: ROG STIRX Z490-E GAMING

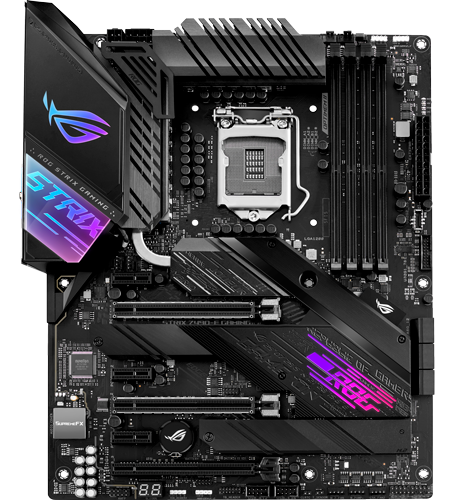

ASUS Intel Z490 ROG STRIX Z490-E GAMING ATX Motherboard

ASUS ROG STRIX Z490-E GAMING, Intel Z490, S 1200, DDR4, SATA3, Dual M.2, SLi/CrossFire, 2.5GbE/ax Wifi, USB 3.2, ATX

Thumbnail 1 : ASUS Intel Z490 ROG STRIX Z490-E GAMING ATX Motherboard Thumbnail 2 : ASUS Intel Z490 ROG STRIX Z490-E GAMING ATX Motherboard Thumbnail 3 : ASUS Intel Z490 ROG STRIX Z490-E GAMING ATX Motherboard Thumbnail 4 : ASUS Intel Z490 ROG STRIX Z490-E GAMING ATX Motherboard ASUS Intel Z490 ROG STRIX Z490-E GAMING ATX Motherboard : video thumbnail 1
Scan code: LN107130 Manufacturer code: ROG STIRX Z490-E GAMING
£304.99
Order now and receive it by Friday, 7th August
From £14.64 / month (APR 14.9%)
Monthly Payment: £27.38
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £304.99
Total inc. interest: £328.56
Monthly Payment: £14.64
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £304.99
Total inc. interest: £351.31
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 7th Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ROG Strix Z490 E-Gaming 10th Generation Intel ATX Motherboard from ASUS

ROG Strix Z490 E-Gaming

Get Yourself off to a Great Start Introducing the ROG Strix Z490 E-Gaming Motherboard from ASUS. The ROG Strix Z490-E Gaming motherboard is designed to cope with the demands of 10th Generation Intel® Core™ processors, with boosted power delivery and an optimised cooling design providing more surface area for heat dissipation. ROG Strix Z490-E Gaming features AI enhancements and intuitive dashboards to help you overclock and tweak various parameters easily. Performance aside, Strix Z490-E Gaming catches the eye, sporting cyberpunk inspired aesthetics including a mirrored stainless steel finish.

Intel Z490Chipset

LGA 1200CPU Socket

ATXForm Factor

Built to Take the Strain

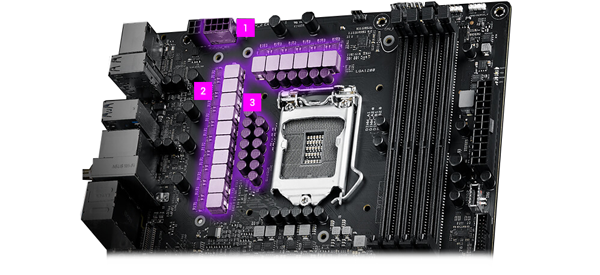

Power Delivery Enhancements

POWER DELIVERY ENHANCEMENTS Modern CPU architectures up the ante for motherboard power design by transitioning from deep power saving modes to full load almost instantaneously. Our latest VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.

1.8-pin ProCool II power connector The ProCool II socket is built to tight specifications to ensure flush contact with the PSU power lines and have a metal armour for improved heat dissipation. The connector's lower impedance helps prevent hotspots and improves reliability.

2. 14+2 DrMos
Power Stage
ROG Strix Z490-E Gaming utilises 14+2 DrMOS power stages to combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.

3.Upgraded
Chokes
Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

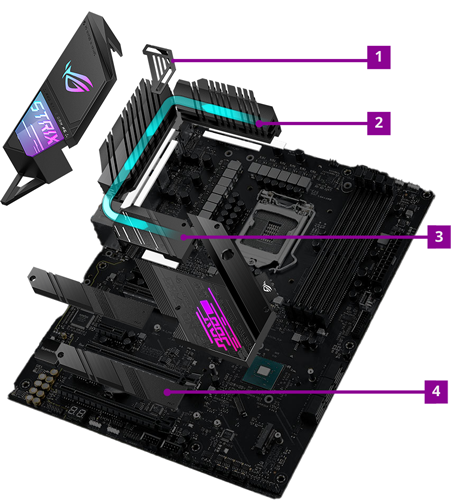

Unprecedented Thermal Dominance

Heatsinks

1. Fan Bracket
& MOS Fan
A bundled fan bracket and additional MOS fan provide additional cooling to areas around the VRM as you push your build to its limits.

2. MOS Heatsink with U-shaped Heatpipe The U-shaped design allows rapid and even heat transfer from the VRM to the extended MOS heatsink for better performance and wattage resistance. In addition, the MOS heatsink provides a large contact area for MOSFETs and chokes.​

3. Extended VRM heatsinkThe extended heatsink at the end of heatpipe increases thermal mass to offset the additional heat generated by high voltage, lowering temperatures by up to 5°C

4. Dual M.2 Heatsinks The M.2 heatsinks keep the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

ROG Smart AI Overclocking

AI Overclocking

Intelligent AI Control Our ROG engineers developed and extensively-tested intelligent software solutions to ensure your system stays in optimal condition.​

AI OverclockingTuning is now faster and smarter than ever before. AI Overclocking profiles the CPU and cooling to predict the optimal configuration for each system.

AI CoolingAI Cooling automatically manages and controls motherboard connected fans, ensuring the most efficient settings depending on the current system load and temperature.

AI NetworkingGameFirst VI optimises and organises network bandwidth, effectively reducing jitter and eliminating spike lag to ensure smooth online gameplay.

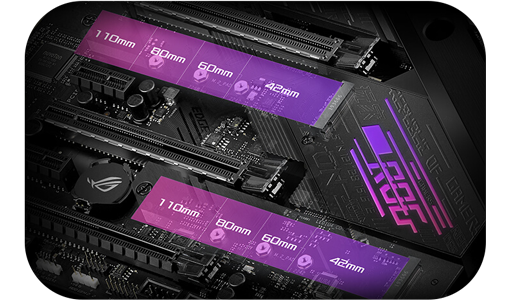

Support for up to Two M.2 Drives

M.2 Support

Maximum Storage CompatibilityTwo M.2 slots are available, with one supporting both SATA and PCIe 3.0 x4 modes, and the other supporting PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available.

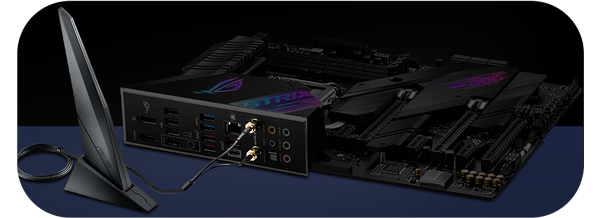

The Future of Home-Networking

Networking

Wi-Fi 6 (AX201) Onboard Wi-Fi 6 (802.11ax) supports ultrafast network speeds, improved capacity and better performance in dense Wi-Fi environments, providing exceptional online gaming experiences.

INTEL 2.5G ETHERNETOnboard 2.5G Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.

This is High Quality Audio

SupremeFX audio

SupremeFX Built-in SupremeFX audio technology ensures pristine audio. It provides a flat frequency response for a neutral, detailed sound signature. And if you're using a gaming headset, the front panel output is driven by two op amps to preserve audio quality.

D.I.Y Friendly

back

Pre-Mounted I.O ShieldROG’s patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard.

back

Q-Code Diagnostic codes provide a reference for fast and easy look up of common installation and component problems.

back

FlexKeyThe front-panel header lets you customise the reset button on the front-panel of your chassis to provide quick access to your choice of Aura lighting controls, DirectKey or system reset.

back

BIOS Flashback™ BIOS Flashback™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS Flashback port and press the button. Updates can even be performed without having memory or a CPU installed.

Discover the Features of the ROG STRIX Z490-E Gaming

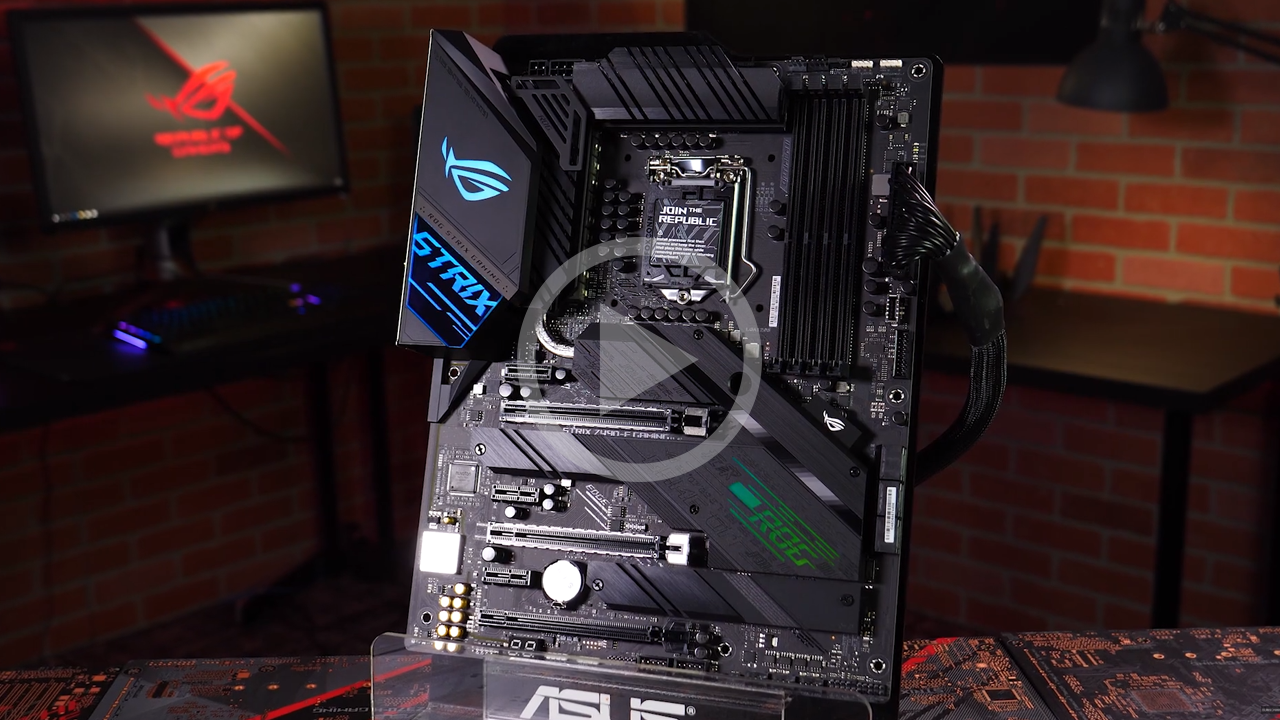

ROG Z490-E Gaming Video
Specifications
Core Specifications
Edition ROG STRIX Z490-E Gaming
Form Factor ATX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4000+(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4500(OC)
  • DDR4 - 4600(OC)
Max. Memory Capacity 128GB
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 1.4b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4
  • 3 x PCIe 3.0 x1
  • 3 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin M.2_FAN connector
  • 1 x 8-pin (Power)
  • 2 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS Header
  • 1 x CPU_OV jumper
  • 1 x Front Panel Audio Header
  • 1 x Q_Code
  • 6 x SATA III - 6Gb/s
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
  • 1 x VRM Heatsink Fan Header
  • 1 x Water Pump+ Connector (4-Pin)
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x Intel (2.5GbE LAN)
  • 1 x Intel 802.11ax WiFi + BT5 Module
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 5.1 Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x BIOS Flashback LED
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 x 50 mm
Note
Additional Information
Scan Code LN107130
Model Number ROG STIRX Z490-E GAMING
GTIN 4718017671620
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01442 265548
