Scan code: LN93004 Manufacturer code: ROG STRIX Z390-H GAMING

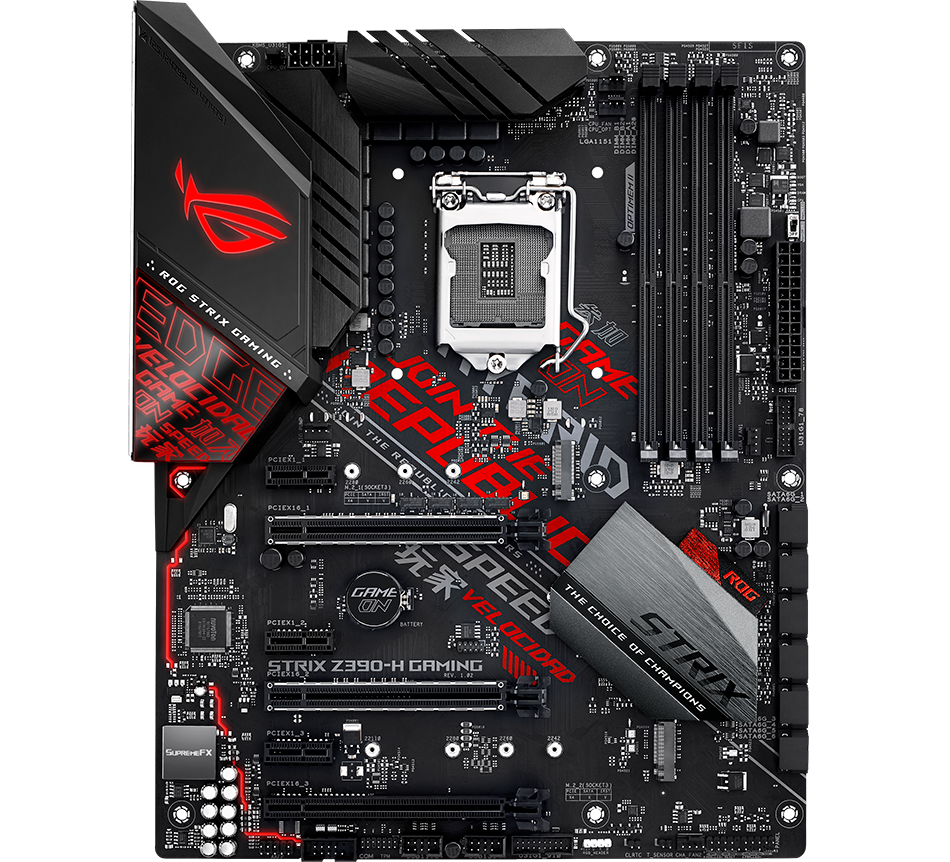

ASUS ROG STRIX Intel Z390-H GAMING 9th Gen ATX Motherboard

ASUS STRIX Z390-H GAMING, Intel Z390, S 1151, DDR4, SATA3, Dual M.2, 2-Way SLi/3-Way CrossFire, GbE, USB 3.1 A, ATX

Thumbnail 1 : ASUS ROG STRIX Intel Z390-H GAMING 9th Gen ATX Motherboard Thumbnail 2 : ASUS ROG STRIX Intel Z390-H GAMING 9th Gen ATX Motherboard Thumbnail 3 : ASUS ROG STRIX Intel Z390-H GAMING 9th Gen ATX Motherboard Thumbnail 4 : ASUS ROG STRIX Intel Z390-H GAMING 9th Gen ATX Motherboard ASUS ROG STRIX Intel Z390-H GAMING 9th Gen ATX Motherboard : video thumbnail 1 ASUS ROG STRIX Intel Z390-H GAMING 9th Gen ATX Motherboard : video thumbnail 2
Scan code: LN93004 Manufacturer code: ROG STRIX Z390-H GAMING
£185.48
From £16.66 / month (APR 14.9%)
Monthly Payment: £32.19
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £185.48
Total inc. interest: £193.12
Monthly Payment: £16.66
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £185.48
Total inc. interest: £199.82
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Nov 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

ROG STRIX Z390-H GAMING - Intel ATX Motherboard from ASUS

ASUS ROG STRIX Z390

SOLID HARDWARE SPECS FOR GAMING AND MOREROG Strix Z390-H Gaming revitalizes the classic ROG red-and-black color scheme, adding a futuristic cyber-text pattern for a stunning modern style. It's loaded with essentials, including the latest connectivity plus intuitive ROG software optimization. All this and more makes ROG Strix Z390-H Gaming the perfect choice for all types of gamers and any level of ambition. With comprehensive cooling options and upgraded power delivery to fuel CPUs with more cores, plus support for faster memory and storage, ROG Strix Z390-H Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.

Please note: This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.

Intel Z390Chipset

1151CPU Socket

8th & 9th Gen IntelCompatible CPUs

ATXForm Factor

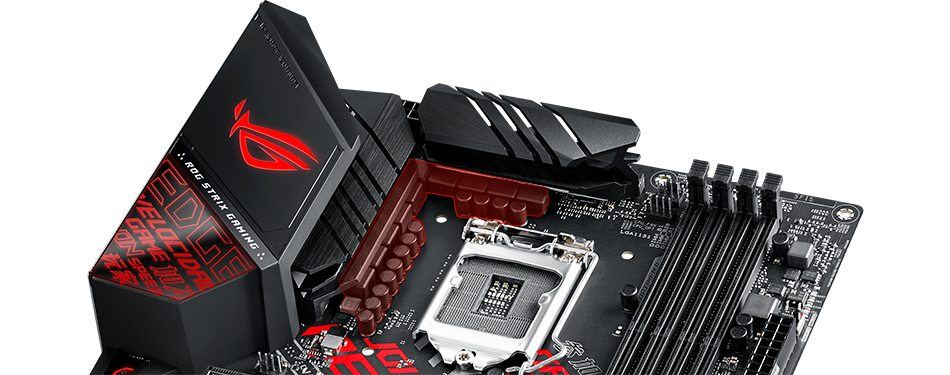

Accurate Power Delivery

Z390 ROG STRIX Performance

HIGH QUALITY COMPONENTSDigital power control together with an efficient thermal solution ensure ROG Strix Z390-H Gaming has the muscle to control Intel's latest CPUs. The Strix Z390-H Gaming uses high-quality thermal pads to help transfer heat from the inductor and phase array to a heatsink that has ample surface area to deal with the power demands of all Coffee Lake processors. Superior parts have been used when manufacturing the ROG STRIX boards to resist extreme temperatures and provide up to 110% better performance than the industry standard.

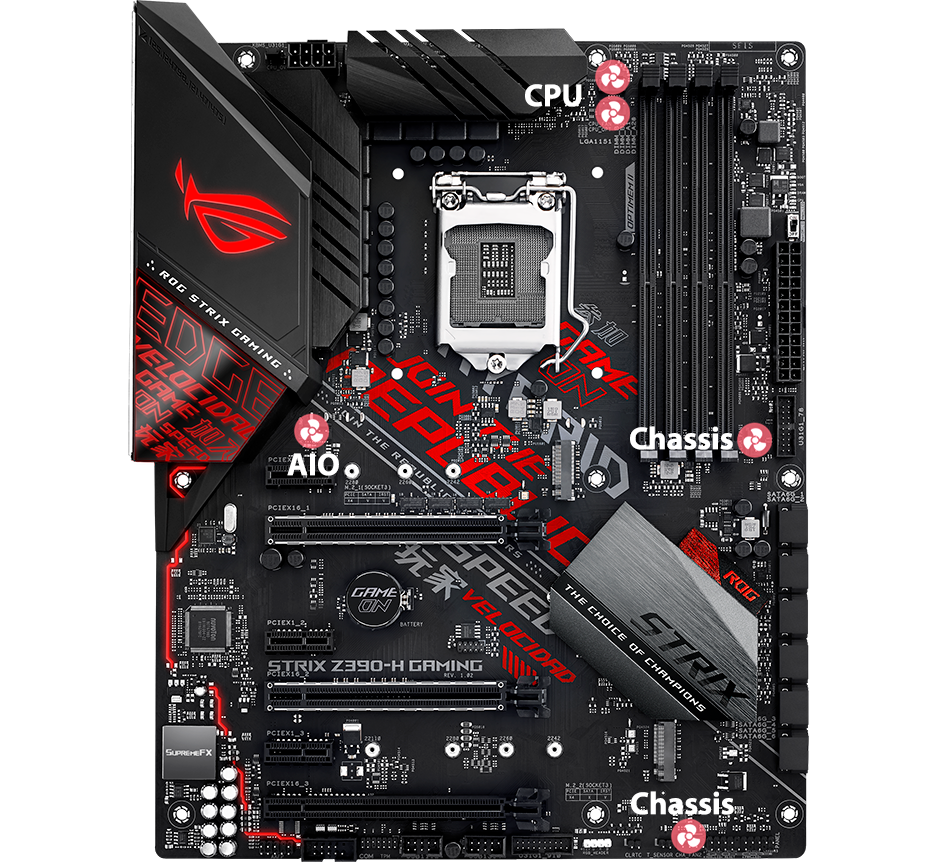

Cooler by Design

Z390 ROG STRIX Cooling

faster and undistorted current deliveryROG Strix Z390 Gaming series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS. A dedicated pair of PWM/DC fan headers for CPU coolers are easy to access on the top right of the CPU Socket whilst a dedicated AIO header can be found for self contained water-cooling setups. Every onboard header even supports auto-detection of PWM or DC fans.

Excellent Storage and Memory Capabilities

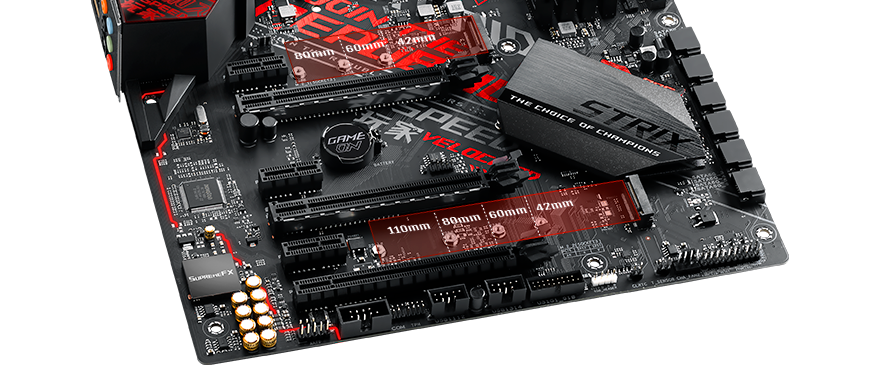

ASUS z390 m2 connectivity

Integrated OptiMem II technology ROG Strix Z390-H Gaming features dual M.2 slots. One slot supports both SATA and PCIe 3.0 x4 modes, and the other slot supports PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available. To provide Intel's latest CPUs unfettered access to memory bandwidth, motherboard trace routing has been reimagined with the ROG Strix Z390-H Gaming. Integrated OptiMem II technology carefully maps memory signal pathways across PCB layers to reduce vias, and it also adds shielding zones that significantly reduce crosstalk. To further enhance overclocking headroom for fully stacked memory configurations, a highly customized T-Topology layout delivers time-aligned signaling.

Intel Gigabit Ethernet

z390 gigabit intel ethernet

ASUS LANGuard ROG Strix Z390-H Gaming features Intel Ethernet (I219-V), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power. Featuring advanced signal-coupling technology and high-tolerance components, LANGuard provides consistent Ethernet performance and greater protection against static electricity and power surges.

Shielded Audio, Superior Sound

ROG Sonic Studio 3 Audio

Sonic Studio III provides crystal quality sounds Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset. Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

ASUS Aura Sync RGB Lighting

Z390 Aura RGB

Effortless Synchronization with all your Components The ASUS Aura ecosystem is in the ascendancy, with an extensive and growing list of ASUS products now offering Aura Sync compatibility — along with loads of compatible accessories and kits available through partners. Your ROG Strix motherboard's built-in Aura RGB lighting easily syncs with PC cases, memory modules, coolers and RGB LED strips from a broad selection of well-known manufacturers. ASUS Aura software provides simple and intuitive lighting management.

Level Up Your Performance

Flexible cooling controls for air or liquid ROG Strix motherboards provide comprehensive control over fans and all-in-one (AIO) coolers. Each header can be set to monitor and react to three user-configurable thermal sensors via Fan Xpert 4 or the media-acclaimed UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode which reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks.

All-around energy efficiency The Energy Processing Unit leverages an onboard microcontroller (EPU) to provide system-wide power savings by automatically optimizing power consumption, and the Away mode smart setting saves energy by shutting down unused I/O controllers.

Precise digital power control The Digi+ voltage regulator module (VRM) with onboard power circuitry delivers real-time control over voltage droop, switching frequency, and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

Enhanced UEFI BIOS

EASILY FIND YOUR WAY WITH EZ AND ADVANCED MODESThe UEFI BIOS is an early waypoint on any PC-building journey, and ROG STRIX Gaming Series has one of the best in the business. The EZ mode presents all the vital settings and stats on a single page making it incredible easy to overclock a CPU to improve performance or even configure a RAID array for faster data retrieval and backups. Whether you're a PC novice or a seasoned overclocker, EZ and Advanced modes will help you quickly find your way, quickly and easily.

EZ

EZ MODEThe wizard in EZ mode makes short work of settings basics like the time and date, as well as more intricate settings like fan parameters and SATA port identification.

search

ADVANCED MODE WITH Search FunctionWhen you're ready for a deeper dive, Advanced mode enables full control over every aspect of the motherboard — with a built-in Search function to find the setting you need in the blink of an eye.

ASUS Armoury Crate and More

asus armoury

Speed your game loads The brand-new Armoury Crate portal keeps you updated with the latest drivers and BIOS releases. Its easy-to-use UI can be configured to show a variety of information, including security updates, bug patches, the latest ROG news, gaming events and special offers.


Overwolf Overwolf is a clever, unobtrusive overlay that lets you browse the internet, check email, instant message and stream or record gameplay while you're in the game. Color-matched ROG skins that display your status as a member of an elite pack are also available for download from the Overwolf App Store.

DIY Friendly Design

safeslot

SafeSlotA PCIe slot that provides stronger PCIe device retention and greater shearing resitance.

esd guard

ESD Guards2X greater electrostatic protection than the industry standard. ESD guards cover the USB, Audio and LAN ports.

pcislot

Q-SlotOne easy-release clip to swap or secure your graphics card. Press to pop out or push in the card to secure.

Q DIMM

Q-DIMMOne sided clips for super simple, secure handling of memory modules.

Q LED protection

Q-LEDOnboard LEDs indicate power status as well as problems with the CPU, memory, graphics card or boot device to enable quick diagnosis.

memory protection

MemOK IIMemOK II automatically fixes boot failures that arise due to memory overclocking and instability.

Visual Beauty, Virtual Worlds

VR

THE MOST IMMERSIVE ENTERTAINMENT ROG Strix Gaming is VR Ready — and beyond! The ASUS Beyond VR Ready marque means that ROG Strix Gaming has been tested with loads of class-leading components to ensure that your productivity, gaming, and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready provides a new way to configure and build your dream system with total confidence.

Specifications
Core Specifications
Edition ROG STRIX Z390-H GAMING
Form Factor ATX
CPU Socket 1151
Chipset Intel Z390
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133+(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 1.4b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe 3.0/SATA
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x2 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x CPU_OV
  • 1 x Front Panel Audio Header
  • 1 x MemOK!-II switch
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.2
  • 1 x HDMI 1.4b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 3.1 Gen1 Type-A
  • 4 x USB 3.1 Gen2 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
