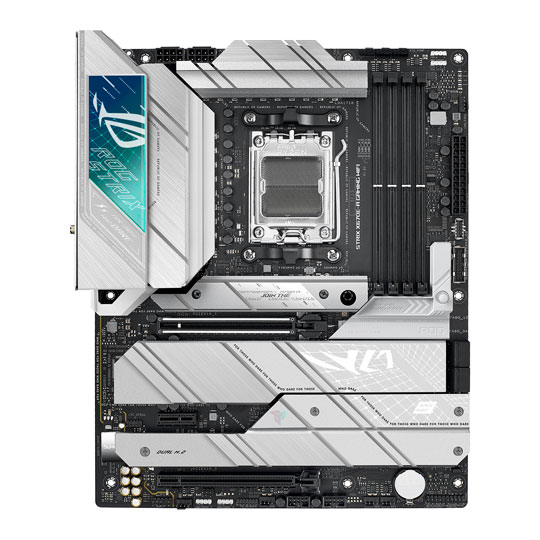

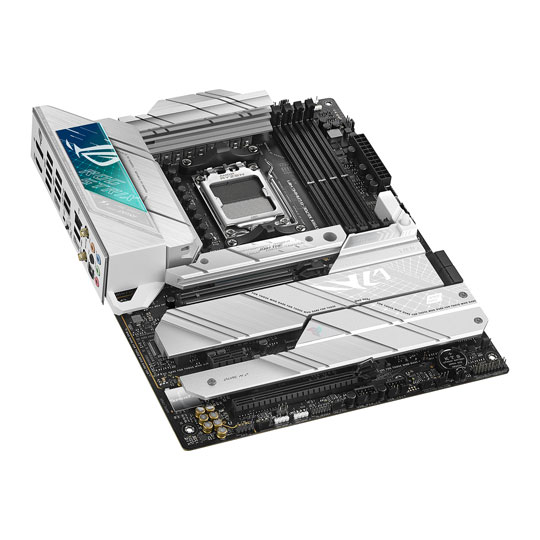

ROG Strix X670E-A GAMING WIFI Ryzen 7000 Series ATX Motherboard

ASUS ROG Strix X670E-A ATX Motherboard

GET READY FOR THE NEWEST GENERATION Suit up for the next gen with the stylish ROG Strix X670E-A Gaming WiFi. Its black PCB and white accents neatly contrast silver-coloured heatsinks that emphasize premium power delivery for AMD Ryzen™ 7000 Series processors. Exclusive ROG overclocking utilities, full PCIe 5.0 capabilities, and DDR5 support are woven in alongside, adding uniquely tailored performance and AM5 essentials to your gaming build.

Please note: This motherboard is compatible with AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors.

AMD X670Chipset

AMD AM5CPU Socket

AMD Ryzen 7000 SeriesDesktop Processors

ATXForm Factor

Teamed Power Architecture and Power Solution

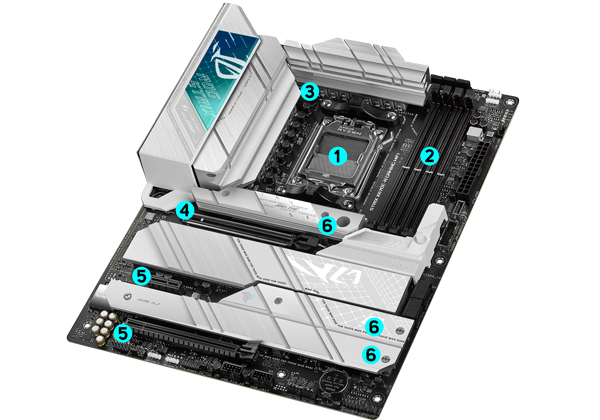

Breakdown

1. AMD AM5 Socket for AMD Ryzen™ 7000 Series Desktop Processors
2. Dual Channel Memory, 4 x DIMM Max. 128GB, DDR5 6400+ (OC) /
Supports AMD EXTended Profiles for Overclocking (EXPO™) and OPTIMEM II
3. 16+2 Power Stages
4. Expansion Slots – • 1 x PCIe 5.0 (x16) SafeSlot CPU
5. • 1 x PCIe 4.0 (x16) Slot Chipset   • 1 x PCIe 3.0 (x1) Slot Chipset
6. Four M.2 Slots – • 2 x PCIe 5.0 (x4)   • 1 x PCIe 4.0 (x4)   • 1 x PCIe 4.0 (x4)

Experience All-Round Performance

Push frequency and timings to the max Robust power delivery, innovative overclocking tools, and comprehensive cooling controls are core fundamentals of the ROG Strix X670E-A, giving you everything necessary to cruise and flex with AMD Ryzen™ 7000 in your build. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Featured overclocking tools include Dynamic OC Switcher, Ryzen™ Core Flex and PBO Enhancement.

features

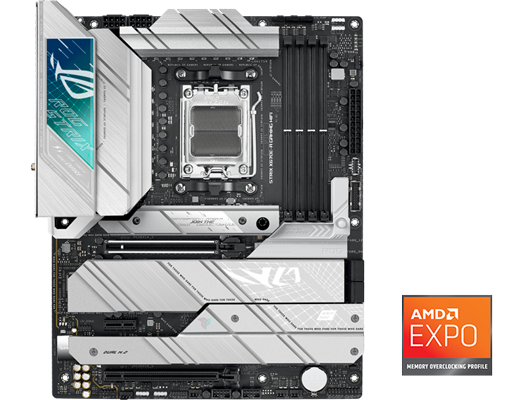

DDR5 Strength & AEMP FirmwareFor those who want to fly past stock DDR5 speeds, the Strix X670E-A is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

features

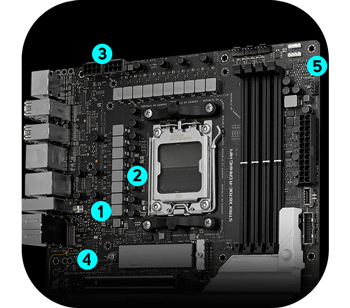

High-quality components 1. Power Architecture 16+2 power stages
2. Alloy chokes and durable capacitors
3. 2 x 8-pin PROCOOL II power connectors
4. DIGI+ power control (VRM)
5. Multi-layered 8 layer PCB

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Expert Thermal Management

cooling

with HIGH-CONDUCTIVITY THERMAL PADS Two VRM heatsinks, one expanding underneath the I/O shroud, provide ample surface area and mass to handle the power needs of high-performance AMD Ryzen™ 7000 Series processors. High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.

cooling

M.2 heatsinks and backplate Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability. An integrated backplate on the M.2_1 slot helps ensure that high-performance PCIe 5.0 drives can deliver peak performance, even when airflow is restricted.

cooling

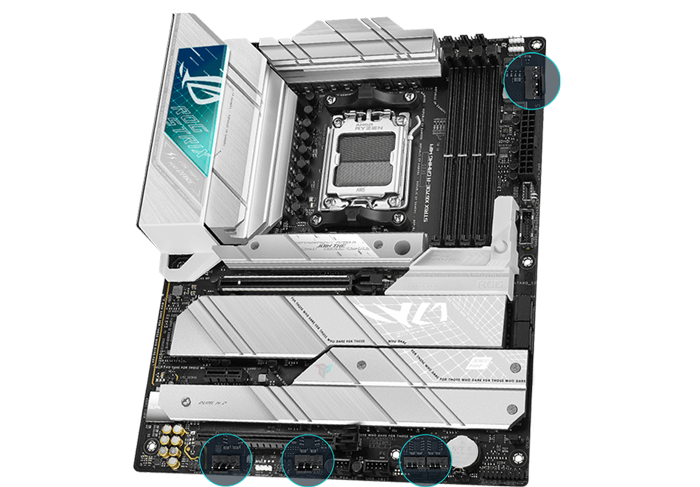

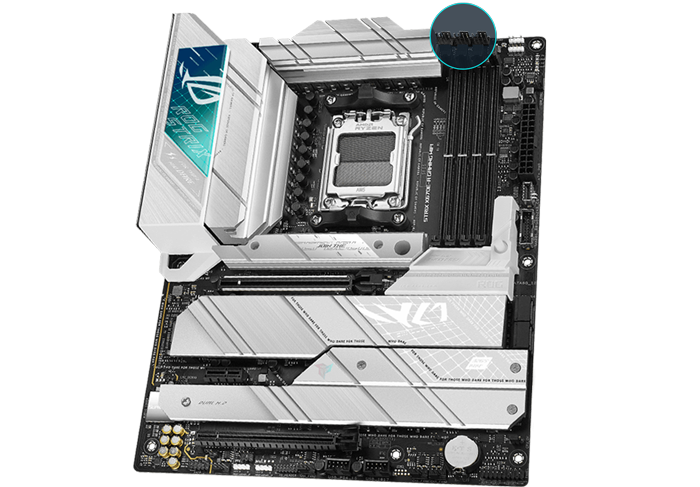

CPU fan headers & AIO A dedicated pair of PWM/DC fan headers provides easy access to CPU coolers. A dedicated PWM/DC header connects self-contained water-cooling setups.

cooling

4-pin PWM/DC fan headers Each header supports auto-detection of PWM or DC fans.

Outshine the Competition

RGB

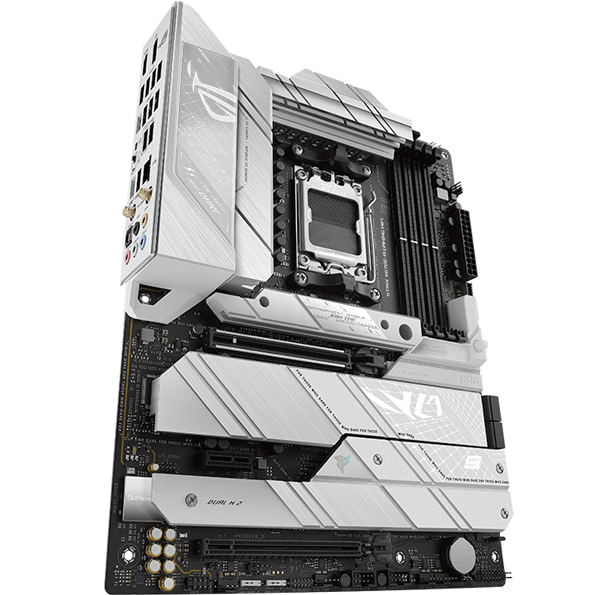

Personalize your gaming rig ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look. Enjoy complementary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.

Undeniably ROG Strix

ID Design

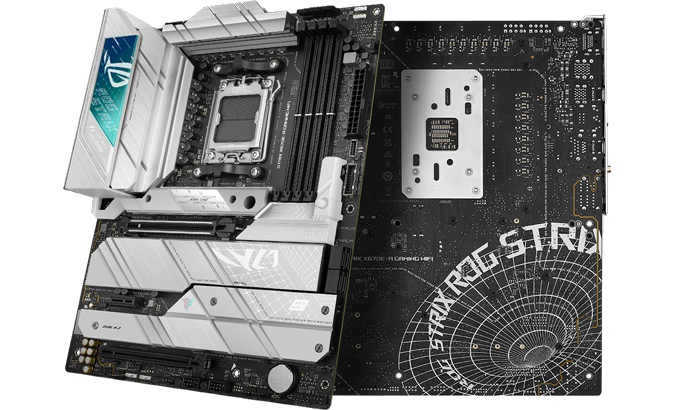

The ROG Strix Ecosystem Awaits The ROG Strix X670E-A Gaming WiFi will turn heads with a striking silver-white finish that contrasts with a bold Aura RGB-illuminated grid design. Parallel strakes and curved text on the VRM, M.2, and PCH heatsinks tie the whole aesthetic together with a clean, modern look. Pair the Strix X670E-A with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.

Create a Fully Customized Gaming Setup

features

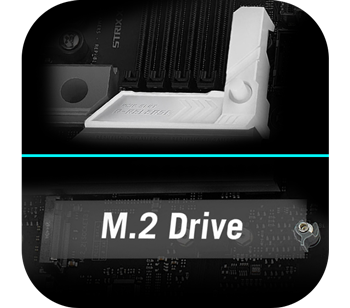

DIY FRIENDLY PCIE SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with a simple press, greatly simplifying the process of removing a PCIe card from the motherboard when it’s time to upgrade to a new GPU or add-in card. The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

features

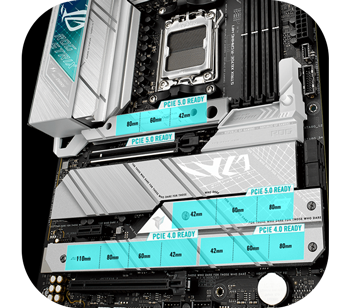

PCIe 5.0 PerformanceBlazing fast storage is at your command with two PCIE 5.0 M.2 slots and two PCIE 4.0 M.2 slots. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to the top x16 extension slot, which includes SafeSlot to support heavy graphics cards and Q-release for easy upgrades.

Supreme Networking Capability

Networking

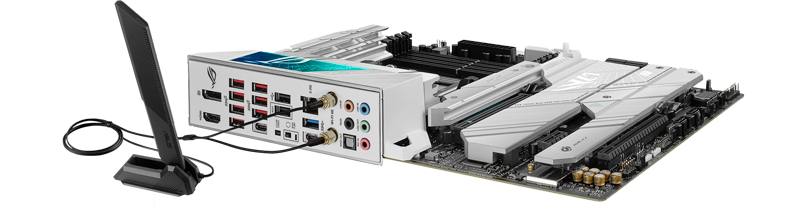

WIFI 6EOnboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

Intel® 2.5 GB EthernetOnboard Intel® 2.5 Gbps Ethernet gives your wired connection a boost, with speeds that are 2.5x faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.

Fine-quality Components for Exceptional Clarity & Fidelity

Audio

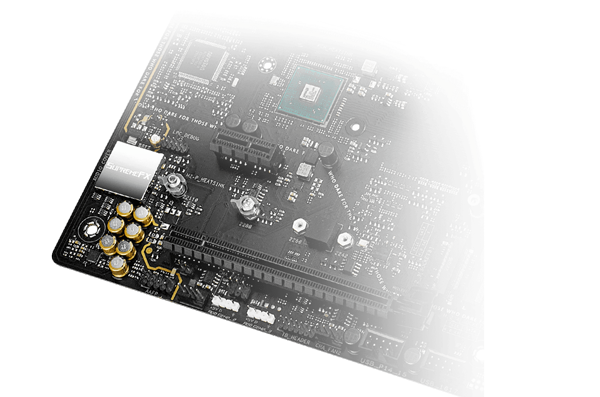

Unique Design Features for Powerful Audio ROG Strix X670E motherboards are pre-loaded with the DTS® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. The ROG Strix X670E-A Gaming WiFi's SupremeFX implementation features the ALC4080 codec to increase playback resolution from 192 kHz to 384 kHz across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier that’s capable of driving of a wide variety of gaming headsets and high-fidelity headphones. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

Leading Connectivity

Armed with all the essentials The ROG Strix X670E-A Gaming WiFi delivers a plethora of internal and external connectivity for low-latency networking and ultra-fast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

Connectivity

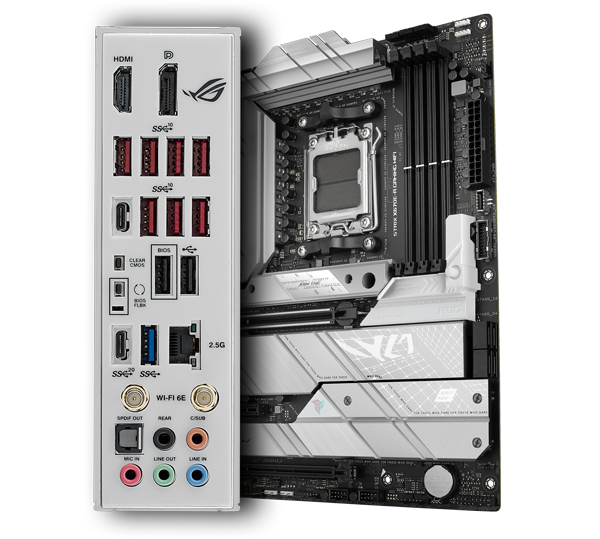

Full Connectivity Breakdown

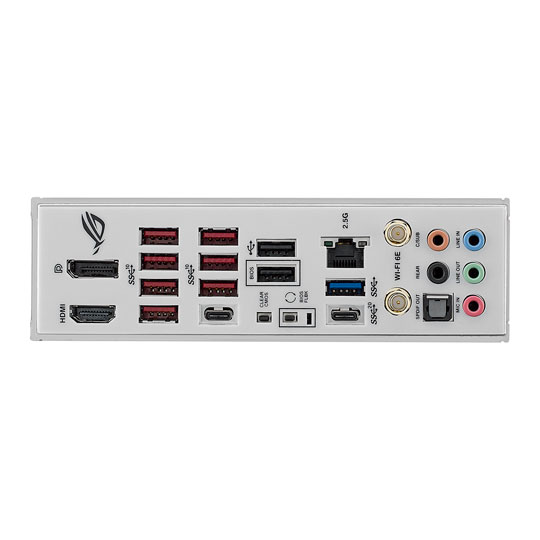

I/O Ports • HDMI Port • DisplayPort
• 8 x USB 3.2 Gen 2 Ports
(7 x Type-A, 1 x USB Type-C®)
• 2 x USB 2.0 Ports (2 x Type-A)
• Clear CMOS Button • BIOS Flashback Button
• 1 x USB 3.2 Gen 1 Port (1 x Type-A)
• 1 x USB 3.2 Gen 2x2 Port (1 x USB Type-C®)
• 1 x Intel® 2.5Gb Ethernet Port • WiFi 6E
• 1 x Optical S/PDIF Out Port
• 5 x Audio Jacks

Connectors & Headers • 1 x USB 3.2 Gen 2x2 Connector
(Supports USB Type-C®)
• 1 x USB 3.2 Gen 1 Header
(Supports 2 x USB 3.2 Gen 1 Ports)
• 4 x SATA 6Gb/s Ports
• 2 x USB 2.0 Headers
(Supports 4 x USB 2.0 Ports)
• 1 x Thunderbolt™ Header

Control your Rig with Armoury Crate

Armoury Crate

account management software Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.

*Windows 10 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.

Specifications
Core Specifications
Edition ROG STRIX X670E-A GAMING WIFI
Form Factor ATX
CPU Socket AM5
Chipset AMD X670
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 2 x M.2, 22-42/60/80, PCIe Gen5 x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x CPU_OV
  • 1 x Front Panel Audio Header
  • 4 x M.2
  • 4 x SATA III - 6Gb/s
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen 1
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Intel® I225V (2.5GbE LAN)
  • 1 x Intel® Wi-Fi 6E AX210 + BT5.2
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF (Optical)
  • 2 x USB 2.0
  • 1 x USB 3.2 Gen1 Type-A
  • 7 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 50 x 244 mm
