ASUS ROG Strix X299-E Gaming II X299 Intel X-Series Motherboard

ASUS ROG Strix X299-E Gaming II, Intel X299, S 2066, DDR4, SATA3, x3 M.2, 3-Way SLi/CrossFire, USB 3.2 A+C, ATX

Thumbnail 1 : ASUS ROG Strix X299-E Gaming II X299 Intel X-Series Motherboard Thumbnail 2 : ASUS ROG Strix X299-E Gaming II X299 Intel X-Series Motherboard Thumbnail 3 : ASUS ROG Strix X299-E Gaming II X299 Intel X-Series Motherboard Thumbnail 4 : ASUS ROG Strix X299-E Gaming II X299 Intel X-Series Motherboard
Scan code: LN103701 Manufacturer code: 90MB11A0-M0EAY0
£364.99
From £15.21 / month (APR 0%)
Monthly Payment: £60.84
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £364.99
Total inc. interest: £364.99
Monthly Payment: £30.42
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £364.99
Total inc. interest: £364.99
Monthly Payment: £20.28
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £364.99
Total inc. interest: £364.99
Monthly Payment: £15.21
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £364.99
Total inc. interest: £364.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £9.12 / month (APR 15.9%)
Delivery Options
  • By DPD On 12th Dec To 16th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

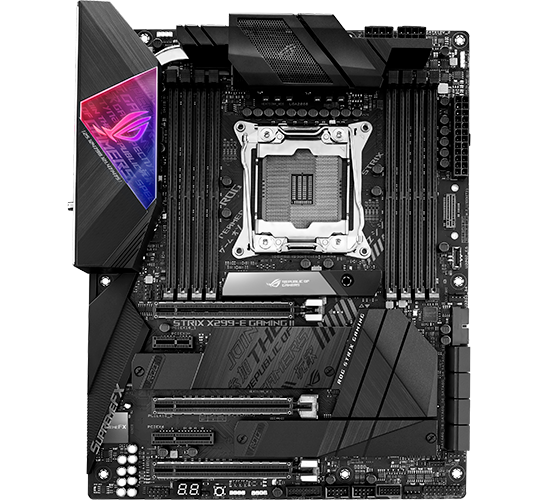

ROG Strix X299-E Gaming II Motherboard by ASUS

ASUS Prime X299-A II Motherboard

Built For Extreme CPU and GPU Power with AI OverclockingThe ROG Strix X299-E Gaming II comes with comprehensive cooling options and upgraded power delivery to fuel CPUs with more cores, plus faster storage and memory. ROG Strix X299-E Gaming II provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance with the ability to personalise this motherboard with the OLED display. AI overclocking helps you optimise your CPU performance very easily to enhance your gaming experience.

Please Note:The Intel X299 chipset supports LGA 2066-socket Intel® Core™ X-series processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X299 provides a maximum 10 USB 3.2 Gen 1 ports, 8 SATA 6 Gbps ports and up to 32 Gbps M.2 support for faster data retrieval.

Intel X299Chipset

LGA 2066CPU Socket

Intel X-SeriesCompatible CPUs

ATXForm Factor

ROG STRIX X299 Robust Power System

power design

Superior chokes and durable capacitors engineered to resist extreme temperaturesDigital power control and an array of power stages guarantees ROG Strix X299-E Gaming II has the muscle to control the latest Intel CPUs. The Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery alongside a CPU VRM with 12 power stages that combine high-side and low-side MOSFETs and drivers into a single package. ROG Strix X299-E Gaming II uses efficient chokes and high-quality thermal pads to help transfer heat from the inductor and phase array to a heatsink with ample surface area for the latest processors.

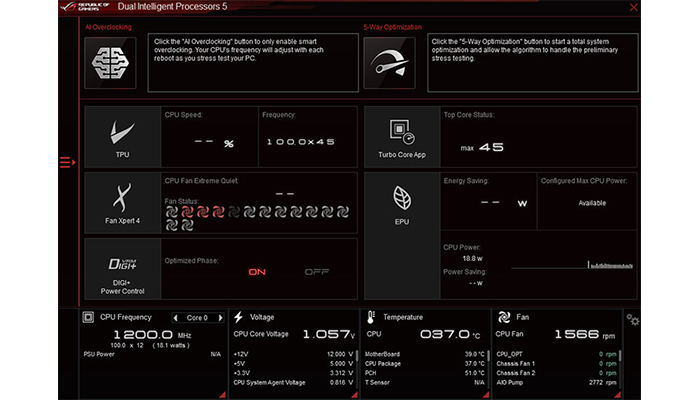

Tune it your Way with AI Overclocking

AI overclocking

onboard intelligence lets you perform automated overclocking in a single clickASUS AI Overclocking makes automatic tuning faster and smarter than ever before with just a single click. Available in Windows or directly through the UEFI, it profiles the CPU and cooling to predict the optimal configuration for each individual system. A proprietary algorithm evaluates the capabilities of your CPU whilst watching system vitals such as temperature, fan speed, and power draw to gauge cooling performance. The F11 hotkey opens AI OC Guide, which provides detailed information and instructions that helps you to manage manual tuning.

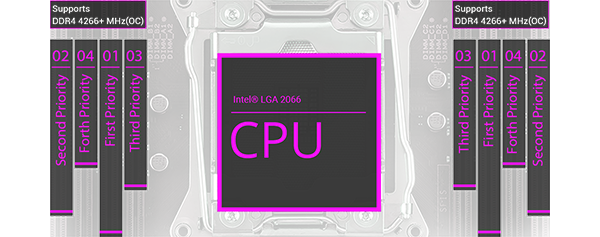

Go Further than Before with DDR4 4266MHZ+

asus ram memory

engineered with the latest connectivity for the best gaming experiencesThe X299 platform delivers ample bandwidth on multiple fronts. Its quad-channel memory controller supports up to 256 GB of DDR4 memory across eight slots. With optimized trace layout, the ROG Strix X299-E Gaming II can hit memory speeds up to DDR4 4266 MHz or beyond.

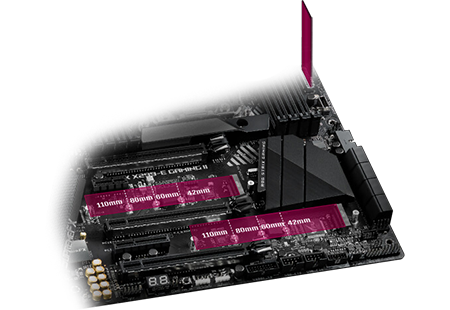

Improve Storage Performance with M.2 Heatsinks

back

Take advantage of the Intel Virtual RAID on CPU ROG Strix X299-E Gaming II features three M.2 slots. One slot supports both SATA and PCIe 3.0 x4 modes, and the other slots support PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available. With VROC, your RAID arrays are easily configured to be bootable, and traditional DMI bottlenecks are eliminated, so your storage won't be held back by other traffic.
*Additional purchase of Intel VROC hardware key required for RAID 1, 5 or 10
Intel OPTANE MEMORY

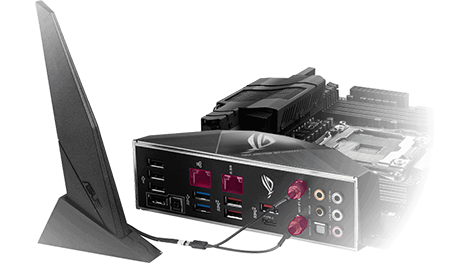

Latest Generation of Connectivity

back

Intel Gigabit Ethernet ROG Strix X299-E Gaming II amps up networking with 2.5G Ethernet and next-gen Intel® Wi-Fi 6 (802.11ax) that surpasses gigabit speeds to take your LAN to the next level. With ROG GameFirst software that offers multi-gate teaming, you'll enjoy the very best online gaming experience.

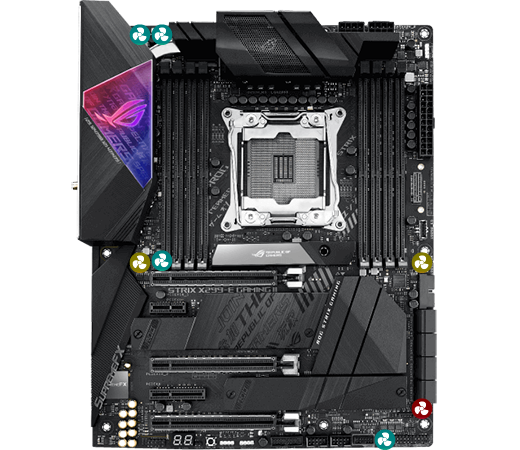

Innovative Cooling with ROG STRIX Series

Asus rog strix cooling

COOLER BY DESIGNROG Strix X299-E Gaming II features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS. An active cooling VRM heatsink provides a large contact area for the MOSFETs and chokes, and a heatpipe enables more efficient cooling of the west and north VRM heatsink for better performance and wattage resistance. The PCH heatsink also blends seamlessly with the M.2 Heatsinks which also improves performance.
CPU Fan Headers: A dedicated PWM/DC fan header for CPU coolers and a dedicated PWM/DC connector for self contained water-cooling setups. There is also a a dedicated header that can supply over 3A to high-performance PWM or DC water pumps.
M.2: A dedicated M.2 fan header helps keeps temperatures low for improved performance and longevity. The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
Chassis: Every onboard header supports auto-detection of PWM or DC fans.

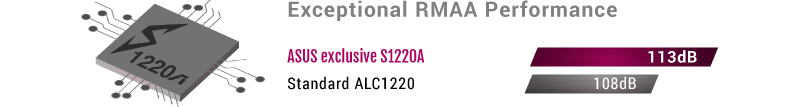

Upgrade to Unrivalled Audio

rog strix supremefx

Shielded Audio and Superior Sound with SUPREMEFX Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset. Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity. ROG Strix X299E Gaming II includes a pre-loaded DTS Sound Unbound app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences.

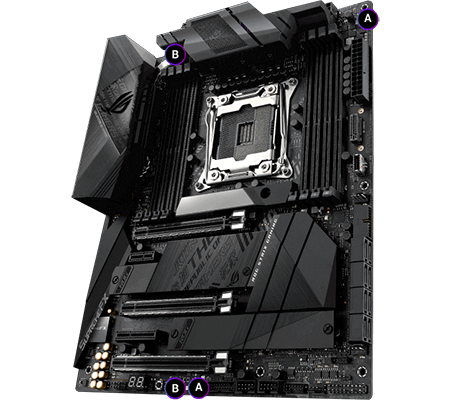

Link your RGB styles and effects across all ASUS devices

aura sync

ASUS' RGB Software with Addressable Gen 2 RGB headerA well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs and they can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware. The board has dual headers for standard 4-pin RGB strips(A), plus two more for the new Addressable Gen 2 RGB strips(B) and devices. ROG Strix X299-E Gaming II strikes an arresting pose, with or without RGB. The I/O shroud sports a laser-engraved ROG logo that lends understated style. But this is topped with an acrylic plate imprinted with ROG's signature cybertext patterns, so switching on the lights illuminates a whole new aesthetic dimension.

Specifications
Core Specifications
Edition ROG Strix X299-E Gaming II
Form Factor ATX
CPU Socket 2066
Chipset Intel X299
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133+(OC)
  • DDR4 - 4266(OC)
Max. Memory Capacity 256GB (8x32GB)
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 3-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 2 x M.2, 22-42/60/80/110, PCIe Gen3x4
  • 1 x PCIe 3.0 x1
  • 3 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x4
  • 8 x SATA 6GB/s
SATA Support N/A
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x AIO Pump Connector
  • 2 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x CPU OPT Fan Connector
  • 1 x CPU_OV jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 3 x M.2 Connector
  • 1 x M.2 Fan Header
  • 1 x NODE connector
  • 1 x Power button
  • 8 x SATA III - 6Gb/s
  • 2 x System Fan header
  • 1 x System panel(s) (Q-Connector)
  • 1 x Temperature Sensor Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x VROC_HW_Key
  • 1 x Water Pump Header
External Connectivity
Network Interface Type
  • Wired 2.5 Gigabit LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)
  • 1 x Intel® I219V (Gigabit LAN)
  • 1 x Realtek RTL8125-CG (2.5G LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB BIOS Flashback Button
  • 1 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN103701
Model Number 90MB11A0-M0EAY0
GTIN 4718017473231
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
