Scan code: LN107774 Manufacturer code: ROG STRIX H470-I GAMING

ASUS Intel H470 ROG STRIX GAMING Mini-ITX Motherboard

ASUS ROG STRIX GAMING, Intel H470, S 1200, DDR4, SATA3, M.2, WiFi 6, USB 3.2 Gen 2 A+C, Mini-ITX

Thumbnail 1 : ASUS Intel H470 ROG STRIX GAMING Mini-ITX Motherboard Thumbnail 2 : ASUS Intel H470 ROG STRIX GAMING Mini-ITX Motherboard Thumbnail 3 : ASUS Intel H470 ROG STRIX GAMING Mini-ITX Motherboard Thumbnail 4 : ASUS Intel H470 ROG STRIX GAMING Mini-ITX Motherboard
Scan code: LN107774 Manufacturer code: ROG STRIX H470-I GAMING
£159.98Item overdue since 17 June 2020
Pre order
From £14.37 / month (APR 14.9%)
Monthly Payment: £27.76
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £159.98
Total inc. interest: £166.57
Monthly Payment: £14.37
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £159.98
Total inc. interest: £172.34
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

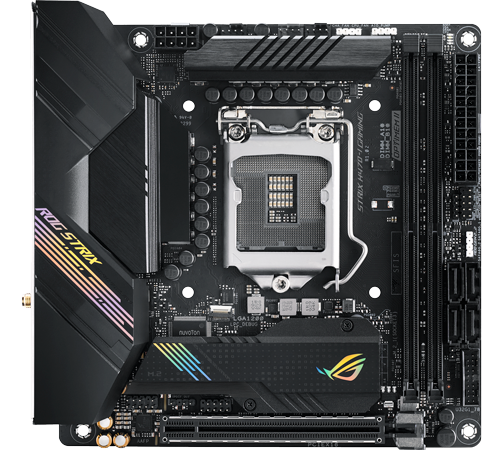

ROG Strix H470-I Gaming 10th Generation Intel Mini ITX Motherboard from ASUS

ROG Strix H470-I Gaming

All Around Performance Introducing the all-new ROG Strix H470-I Gaming Motherboard. ROG Strix H470-I Gaming motherboard features solid power delivery and effective cooling designed to handle the latest 10th Generation Intel® Core™ processors. With its arresting futuristic aesthetic and intuitive ROG software, ROG Strix H470-I Gaming gives you a head start on your dream gaming build.

Intel H470Chipset

LGA 1200CPU Socket

M-ITXForm Factor

Built to Take the Strain

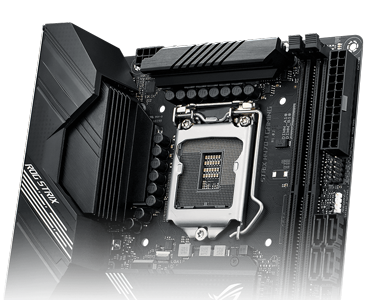

Power Delivery Enhancements

POWER DELIVERY ENHANCEMENTS The robust power design and comprehensive cooling features of Strix H470-I Gaming ensure great all-round performance, and an intuitive dashboard gives you full networking control so you can harness the full potential of your build.

Teamed Power Stages 6+2 power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.

PROCOOL POWER CONNECTOR The ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.

ALLOY CHOKE & CAPACITORSuperior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

ROG Smart AI Networking

Intelligent AI Control The proprietary ROG GameFirst VI utility is designed to help all users — beginners, experts, and everyone in between — optimize network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI-enhanced identification and boost technology to ensure faster and smarter network optimization​

Identify

IdentificationGameFirst VI analyzes your usage patterns and the digital signatures of your applications and compares them to a database of over 200,000 apps. The database is regularly updated to ensure that apps are recognized.

Identify

BoostGameFirst VI intelligently switches application priority and adjusts bandwidth accordingly, depending on the situation. When gaming, it accelerates and prioritizes game packets to give you supersmooth online gameplay — even when you're streaming high-quality video to your audience or transferring large files.

Identify

VisualisationAn intuitive graph gives you an overview of the network in real-time. Simply click on the tab to view current bandwidth usage of each application, geolocation status of each network connection, and an analysis of each WiFi channel.

Double Capacity DIMM Support

M.2 Support

64GB Total Memory CapacityROG Strix H470-I Gaming has a unique memory-trace design that supports up to 32 GB per DIMM slot to give you a total memory capacity of 64 GB. With double‑capacity DDR4 DIMM modules, the compact ROG Strix H470-I matches the memory capacity of four-DIMM motherboard designs.h4

Support for up to Two M.2 Drives

M.2 Support

Maximum Storage CompatibilityTwo M.2 slots are available, with one supporting both SATA and PCIe 3.0 x4 modes, and the other supporting PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available.

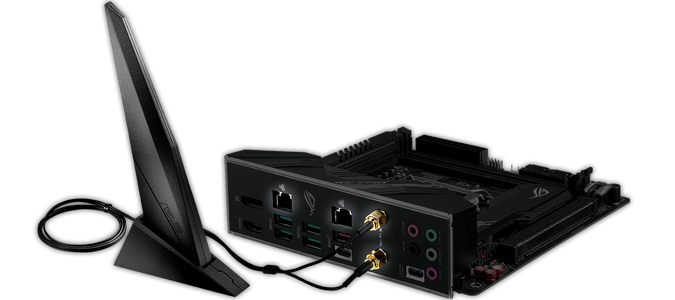

The Future of Home-Networking

Networking

Wi-Fi 6 Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense wireless environments, providing exceptional online gaming experiences. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

Dual LANROG Strix H470-I Gaming features Dual Gigabit Ethernet for faster, smoother gaming. With a single Intel® Ethernet controllers that have a natural synergy with Intel processors and chipsets, reducing CPU overhead and offering exceptionally high TCP and UDP throughput, so there's more power for games and other tasks.

D.I.Y Friendly

back

Pre-Mounted I.O ShieldROG’s patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard.

back

FlexKey Four onboard LEDs indicate power status, and any problem with the CPU, memory, graphics card or boot device for quick diagnosis.

back

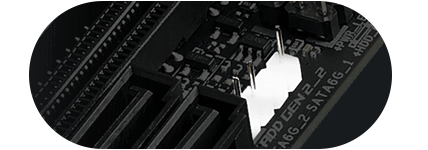

ADDRESSABLE GEN 2 RGB HEADERROG Strix H470-I Gaming's Addressable Gen 2 RGB headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

Boost your Game with Ramcache III

asus RAMCACHE 3

LAUNCH YOUR APPS AT NECK BREAKING SPEEDS RAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds. Smart mode automatically caches all your storage devices to maximize your system's resources using an intuitive interface which displays real time drive information. RamCache III also allows you to efficiently check the health status of assigned memory.

World Renowned UEFI BIOS

Not just for veteransThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Mode

Advanced Mode An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Easy Mode

EZ(Easy) ModeEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

ASUS Armoury Crate and More

asus armoury

Speed your game loads Armoury Crate is a software utility designed to provide centralised control of supported ROG gaming products. From a single intuitive interface, Armoury Crate puts command of all your Aura gear at your fingertips with the new Aura Creator suite ready. The software also provides control of settings for a growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even offers dedicated product registration and ROG news feeds to help you stay in touch with the ROG gaming community.

Specifications
Core Specifications
Edition ROG STRIX H470-I GAMING
Form Factor Mini-ITX
CPU Socket 1200
Chipset Intel H470
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x PCIe 3.0 x16
SATA Support SATA
RAID Support via
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x AIO Pump Connector
  • 1 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System Fan header
  • 1 x System panel connector
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type 802.11ax WiFi LAN
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 170 x 170 mm
Note
Additional Information
Scan Code LN107774
Model Number ROG STRIX H470-I GAMING
GTIN 4718017694315
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01442 265548
