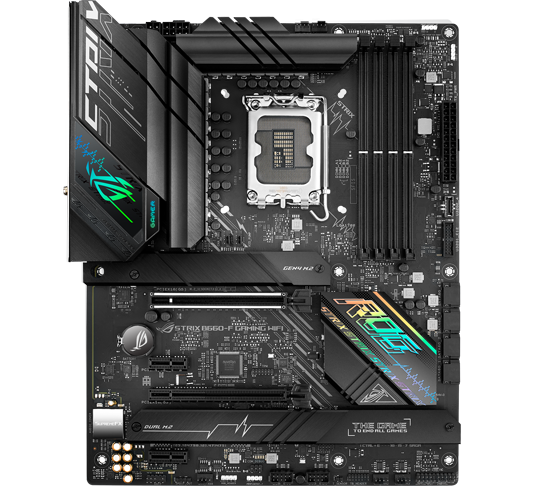

ROG Strix B660-F Gaming WiFi Intel 12th Generation ATX Motherboard

ASUS ROG Strix B660-F Gaming WiFi Motherboard

GET READY FOR THE NEWEST GENERATION Introducing the newest series of B660 motherboards – ROG Strix B660-F Gaming WiFi from ASUS. ROG Strix B660-F Gaming WiFi puts 12th Gen Intel® Core™ processors at center stage, with beefed-up power delivery, cooling, cutting-edge connectivity options, and a range of accoutrements that effortlessly propel builds to maximum performance. This series flagship is your ticket to next-level gaming. Renowned Software: Bundled AIDA64 Extreme 60-day free trial, and an intuitive UEFI BIOS dashboard with integrated MemTest86.

Please note: This motherboard is compatible with Intel® Socket LGA 1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Supports Intel® 10 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel® B660Chipset

LGA 1700CPU Socket

12th Gen Intel®Compatible Processors

ATXForm Factor

Teamed Power Architecture and Power Solution

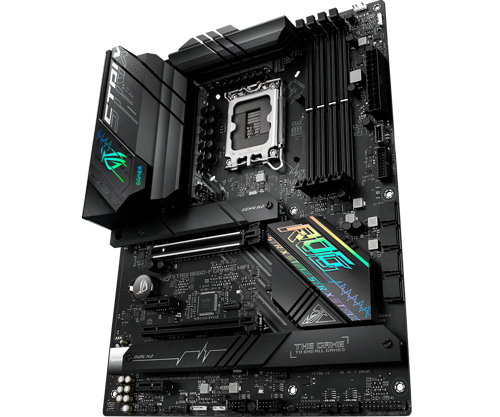

Breakdown

1. Supports the latest 12th Gen Intel® Processors
2. Dual Channel Memory, Max. 128GB, DDR5 / Supports Intel® XMP and OPTIMEM II
3. 16+1 Power Stages
4. Expansion Slots:
• 1 x PCIe 5.0 x16 slot (supports x16 mode)   |   • 1 x PCIe 3.0 x16 slot (supports x4 mode)***
• 2 x PCIe 3.0 x1 slots
5. Onboard Storage:
• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

Experience DDR5 Overclocking Strength

Push frequency and timings to the max ROG Strix B660-F Gaming WiFi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings. And Two-Way AI Noise Cancellation helps ensure crystal-clear in-game communication.

features

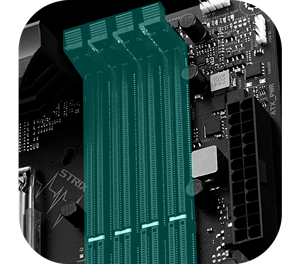

A DEDICATED CIRCUIT FOR DDR5 MEMORYOrdinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. ROG motherboards leverage special onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.

features

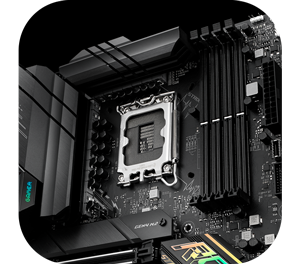

High-quality components 1. 16+1 power stage design
2. Durable components
3. PROCOOL Power Connectors
4. DIGI+ power control (VRM)
5. Multi-layered layer PCB

AI Overclocking at a Glance

Intelligent Motherboard ROG engineers developed and extensively-tested intelligent software solutions to ensure your system stays in optimal condition. Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push each system to its limits.

features

Designed by ExpertsFor each new motherboard platform, ROG in-house experts painstakingly profile thousands of processors and system configurations to hone the highly advanced algorithm of AI Overclocking.

features

Predictive EdgeThe algorithm analyses your CPU and system cooling, and then defines optimal voltage and frequency settings. Predicted values can be applied manually or engaged automatically to save time.

features

Real-time AdjustmentsOnce activated, the AI Overclocking utility continually tracks vital system stats, making profile adjustments to account for changes in system usage or ambient temperature.

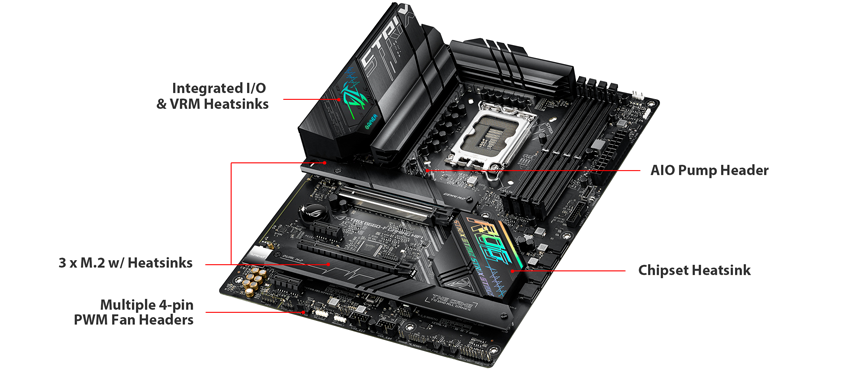

Top-level PC Performance Demands Exceptional Cooling

cooling

Cooling innovation The ROG Strix B660-F Gaming WiFi is armed with VRM heatsinks connected by a heat pipe and bonded to a pre-mounted metal I/O shield provide ample surface area and mass to handle the power needs of high-performance 12th Gen Intel processors.
An M.2 heatsink with a direct-contact heat pipe delivers ample surface area, enabling optimal running temperatures for PCIe 5.0 M.2 NVMe drives, even when airflow is restricted. The M.2 heatsinks keep the M.2 SSDs at optimum operating temperature for consistent performance and reliability. The integrated M.2 backplate help ensure that high-performance drives deliver peak performance, even when airflow is restricted.

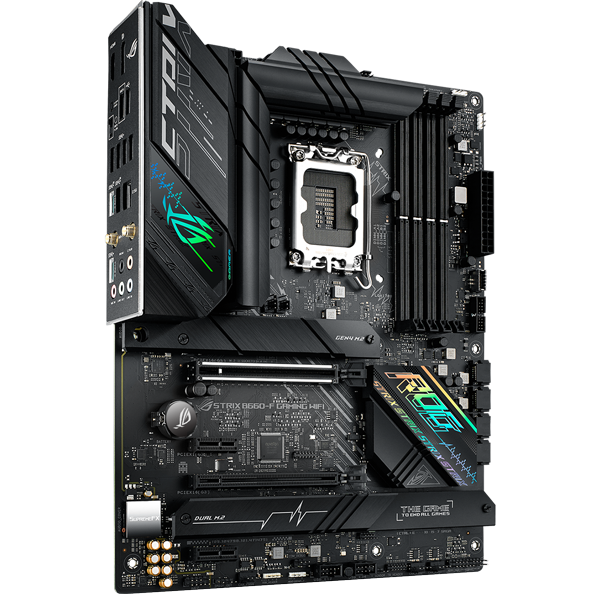

Outshine the Competition

RGB

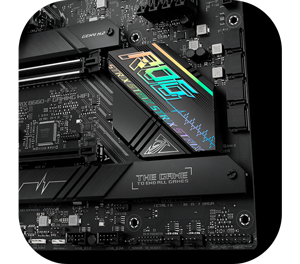

Personalize and gear up with ROG components In addition to elite performance, ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs and third-party lighting strips that can connect to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Create a Fully Customized Gaming Setup

features

DIY FRIENDLY PCIE SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device. The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.

features

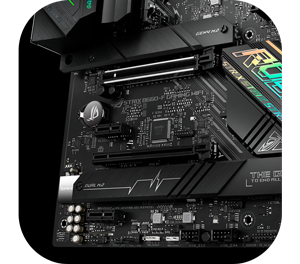

PCIe PerformanceWith one PCIe 5.0 M.2 slot delivering twice the speed of PCIe 4.0, two additional slots with PCIe 3.0, and one more 3.0 slot (supports x4 mode). ROG Strix leverages mighty CPU and chipset bandwidth to deliver the latest data transfers, Intel NVM Express® RAID, and high-capacity drive options that blaze past traditional SATA-based SSDs.

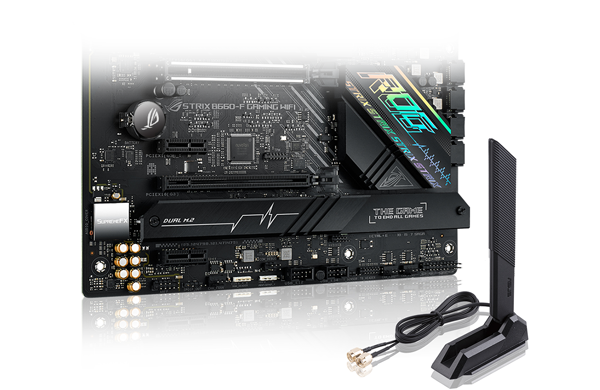

Supreme Networking Capability

Networking

WIFI 6 (802.11 AX)Onboard WiFi 6 technology takes advantage of the newly available radio spectrum in the 5 GHz band. It provides ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.

Intel® 2.5 GB EthernetOnboard 2.5 Gb Ethernet gives your wired connection a boost, delivering up to 2.5X the speed of standard Ethernet connections for faster file transfers, low-lag gaming and high-resolution video streaming.

Fine-quality Components for Exceptional Clarity & Fidelity

Audio

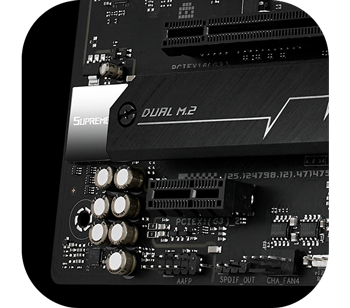

Unique Design Features for Powerful Audio ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In ROG Strix motherboards SupremeFX features the ALC4080 codec to increase playback to 384 kHz across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier that’s capable of driving of a wide variety of gaming headsets and high-fidelity headphones.

Full Connectivity

Connectivity

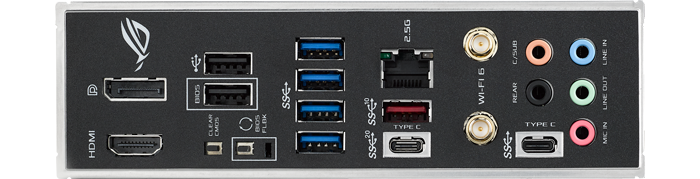

Armed with all the essentials 1. HDMI Port   |   2. DisplayPort   |   3. 2 x USB 2.0 Ports   |   4. Clear CMOS Button   |   5. BIOS Flashback Button
6. 4 x USB 3.2 Gen 1 Ports   |   7. 1 x USB 3.2 Gen 2x2 Port   |   8. 1 x USB 3.2 Gen 2 Port
9. Intel® 2.5Gb Ethernet   |   10. Intel® Wi-Fi 6   |   11. 1 x USB 3.2 Gen 1 Port   |   12. 5 x Audio Jacks
13. 1 x USB 3.2 Gen 2 Type-C®   |   14. 2 x USB 3.2 Gen 1 Headers   |   15. 4 x SATA 6Gb/s   |   16. Thunderbolt header

Control your Rig with Armoury Crate

Armoury Crate

account management software Armoury Crate is a software utility designed to provide centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate puts command of all your Aura gear at your fingertips with the new Aura Creator suite ready. The software also provides control of settings for a growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even offers dedicated product registration and ROG news feeds to help you stay in touch with the ROG gaming community.

Specifications
Core Specifications
Edition ROG STRIX B660-F GAMING WIFI
Form Factor ATX
CPU Socket 1700
Chipset Intel B660
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x AIO Pump Connector (4-Pin)
  • 1 x Aura RGB Header
  • 1 x Front Panel Audio Header
  • 3 x M.2
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel® I225V (2.5GbE LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x BIOS FLASHBACK+ Button
  • 1 x Central Speaker Out
  • 1 x Clear CMOS Button
  • 1 x DisplayPort
  • 1 x HDMI 2.1
  • 1 x Headphone-Out
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 2 x WiFi Antenna connectors
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN122636
Model Number ROG STRIX B660-F GAMING WIFI
GTIN 195553552189
