Offer
Scan code: LN126168 Manufacturer code: B560-F GAMING WIFI V2

ASUS ROG STRIX B560-F GAMING WIFI V2 Intel B560 PCIe 4.0 ATX Motherboard

ASUS ROG STRIX B560-F GAMING WIFI V2, Intel B560, S 1200, DDR4, PCIe 4.0, SATA3, 3x M.2, 2.5GbE, ax/BT5.0, USB 3.2, ATX

Thumbnail 1 : ASUS ROG STRIX B560-F GAMING WIFI V2 Intel B560 PCIe 4.0 ATX Motherboard Thumbnail 2 : ASUS ROG STRIX B560-F GAMING WIFI V2 Intel B560 PCIe 4.0 ATX Motherboard Thumbnail 3 : ASUS ROG STRIX B560-F GAMING WIFI V2 Intel B560 PCIe 4.0 ATX Motherboard Thumbnail 4 : ASUS ROG STRIX B560-F GAMING WIFI V2 Intel B560 PCIe 4.0 ATX Motherboard
Scan code: LN126168 Manufacturer code: B560-F GAMING WIFI V2
Order now and receive it by Friday, 8th July
Was: £179.99
£169.98
Get it Friday, 08 JulIn stock
From £14.61 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £14.61
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £169.98
Total inc. interest: £175.31
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 8th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ROG STRIX B560-F GAMING WIFI V2 ATX Motherboard from ASUS

ROG STRIX B560-F

THE HEART OF YOUR PCROG Strix B560-F Gaming WiFi delivers everything you need to create a well-balanced gaming PC utilising 11th Generation Intel® Core™ processors. It's primed for the latest graphics cards, high-speed storage setups, and networking standards, and then further boosted with AI-infused utilities that have trickled down from top-tier ROG motherboards to take performance well beyond mainstream. As a finishing touch, futuristic aesthetics accented by customisable RGB lighting allow you to make the build uniquely yours.

Intel B560Chipset

1200CPU Socket

ATXForm Factor

Impressive Power Design

POTENTIAL, REALISED Robust power delivery and comprehensive cooling features ensure exceptional performance, while AI-powered enhancements optimise network settings and improve in-game communication — all to help you maximise the full potential of your rig.

ROG STRIX B560-F

TEAMED POWER STAGES8+2 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.

ALLOY CHOKES AND CAPACITORSSuperior chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

PROCOOL POWER CONNECTORThe ASUS ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.

DIGI+ POWER CONTROLThe built-in Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.

SIX-LAYER PCBThe PCB design quickly dissipates heat around the VRM to improve overall system stability and provide the CPU with more overclocking headroom.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Keeping it Cool

COOLER BY DESIGN ROG Strix B560 motherboards feature comprehensive cooling options that are configurable via Fan Xpert 4 or the UEFI BIOS.

ROG STRIX B560-F
up

CPU Fan HeaderA dedicated pair of PWM/DC fan headers for CPU coolers.

up

AIO Pump Fan HeaderA dedicated PWM/DC header for self-contained water-cooling setups.

up

M.2 HeatsinkKeeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

up

4-pin PWM/DC Fan HeaderEach header supports auto-detection of PWM or DC fans.

AI Enhancements

500MDeep-Learning Database

AudioInput/output

HighFidelity

MinimalPerformance Impact

TWO-WAY AI NOISE CANCELATIONThis utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. Distracting keyboard clatter, mouse clicks and other ambient noises are intelligently neutralised so you can hear and be heard with crystal clarity while gaming or in calls.

AI Networking

HOW IT WORKSThe proprietary ROG GameFirst VI utility is designed to help all users — beginners, experts, and everyone in between — optimise network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI-enhanced identification and boost technology to ensure faster and smarter network optimisation.

up

BoostGameFirst VI intelligently switches application priority and adjusts bandwidth, depending on the situation. When gaming, it accelerates and prioritises game packets to give you supersmooth online gameplay ― even when you're streaming high-quality video or transferring large files.

up

IdentificationGameFirst VI analyzes usage patterns and the digital signatures of your applications and compares them to a database of over 200,000 apps.

up

VisualisationAn intuitive graph provides an overview of real-time network status. Simply click on the tab to view the current bandwidth usage of each application, geolocation status of each network connection, or an analysis of the WiFi channels.

Advanced Gaming Immersion

The latest connectivity features and audio enhancements propel ROG Strix B560-F Gaming WiFi performance to the next level.

up

OPTIMEM IIROG Strix B560-F Gaming WiFi supports up to 128 GB DDR4 memory across four slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk, enhancing memory stability and compatibility while giving memory kits higher frequency margins.

up

PCIE 4.0-READYROG Strix B560-F Gaming WiFi features three onboard M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available with the latest Intel processors.

Versatile Connectivity

4K Recording

WIFI 6 (802.11 AX)Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense wireless environments, providing exceptional online gaming experiences. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

INTEL 2.5 GB ETHERNETOnboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.

Play in your Own Style

RGB board
AURA SYNC

Static

AURA SYNC

Breathing

AURA SYNC

Strobing

AURA SYNC

Rainbow

AURA SYNC

Colour Cycle

AURA SYNC

Starry Night

AURA SYNC

Music

AURA SYNC

Smart

UNDENIABLY ROG STRIXWith its cyberpunk inspired aesthetic, ROG Strix B560-F Gaming WiFi boldly embodies the ROG spirit. The motherboard proudly displays the next-generation Aura RGB-illuminated glitch-effect ROG logo and a Strix nameplate etched in a series of straight lines and dots. ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs, as well as lighting strips connected to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.

ROG Strix B560-F Gaming WiFi's Addressable Gen 2 RGB headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

ROG Gives you More

4K Recording

TWEAK AND CUSTOMIZE ALLArmoury Crate is a software utility designed to give you centralised control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for compatible devices and synchronise them with Aura Sync to create a unified lighting scheme across your system. You can also use Armoury Crate to download drivers, software and the user manual. In addition, Armoury Crate features a dedicated product registration page as well as a news feed to help you stay in touch with the gaming community.

*Windows 10 is required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.

Waiting is Never an Issue

4K Recording

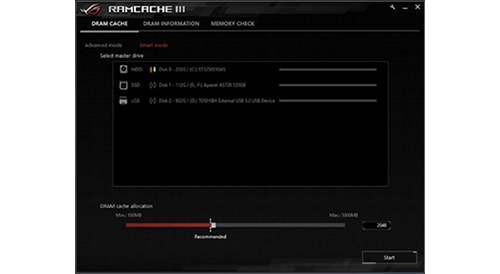

RAMCACHE IIIRAMCache III software turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express® storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.

Specifications
Core Specifications
Edition ROG STRIX B560-F GAMING WIFI V2
Form Factor ATX
CPU Socket 1200
Chipset Intel B560
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3200
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.0
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
  • 3 x M.2
  • 6 x SATA III - 6Gb/s
  • 1 x Thunderbolt header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Intel (2.5GbE LAN)
  • 1 x Intel 802.11ax WiFi + BT5 Module
Rear I/O Connectors
  • 1 x BIOS FLASHBACK+ Button
  • 1 x Central Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN126168
Model Number B560-F GAMING WIFI V2
GTIN 4711081109679
