Scan code: LN114084 Manufacturer code: ROG STRIX B560-A GAMING WIFI

ASUS ROG STRIX B560-A GAMING WIFI Intel B560 PCIe 4.0 ATX Motherboard

ASUS ROG STRIX B560-A GAMING WIFI, Intel B560, S 1200, DDR4, PCIe 4.0, SATA3, 2x M.2, 2.5GbE, ax WiFi, USB 3.2, ATX

Thumbnail 1 : ASUS ROG STRIX B560-A GAMING WIFI Intel B560 PCIe 4.0 ATX Motherboard Thumbnail 2 : ASUS ROG STRIX B560-A GAMING WIFI Intel B560 PCIe 4.0 ATX Motherboard Thumbnail 3 : ASUS ROG STRIX B560-A GAMING WIFI Intel B560 PCIe 4.0 ATX Motherboard Thumbnail 4 : ASUS ROG STRIX B560-A GAMING WIFI Intel B560 PCIe 4.0 ATX Motherboard
Scan code: LN114084 Manufacturer code: ROG STRIX B560-A GAMING WIFI
£179.99
Order now and get it tomorrow, Fri 24th Sep
From £16.16 / month (APR 14.9%)
Monthly Payment: £16.16
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £179.99
Total inc. interest: £193.91
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Sep to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ROG Strix B560-A Gaming WiFi Intel 11th Generation ATX Motherboard

ASUS ROG Strix B560-A Gaming WiFi ATX Motherboard

BUILT FOR PERFORMANCE GAMINGROG Strix B560-A Gaming WiFi delivers everything you need to create a well-balanced gaming PC utilizing 11th Generation Intel® Core™ processors. It's primed for the latest graphics cards, high-speed storage setups, and networking standards, and then further boosted with AI-infused utilities that have trickled down from top-tier ROG motherboards to take performance well beyond mainstream. As a finishing touch, futuristic aesthetics accented by customizable RGB lighting allow you to make the build uniquely yours.

Please note: This motherboard is compatible with Intel® Socket LGA 1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors.

Intel B560Chipset

LGA 1200CPU Socket

10th & 11th Gen IntelCompatible Processors

ATXForm Factor

Storage and Memory Advantages

up

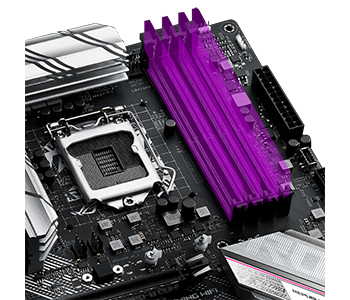

Optimem IIROG Strix B560-A Gaming WiFi supports up to 128 GB DDR4 memory across four slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk, enhancing memory stability and compatibility while giving memory kits higher frequency margins.

up

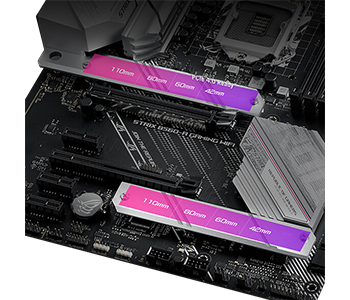

PCIe 4.0-ReadyROG Strix B560-A Gaming WiFi features two onboard M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available with the latest Intel processors.

Cooler by Design

Integrated I/O Cover and VRM Heatsinks Robust power delivery and comprehensive cooling features ensure exceptional performance, while AI-powered enhancements optimize network settings and improve in-game communication — all to help you maximize the full potential of your rig. ROG Strix B560 motherboards feature comprehensive cooling options that are configurable via Fan Xpert 4 or the UEFI BIOS.

cpu

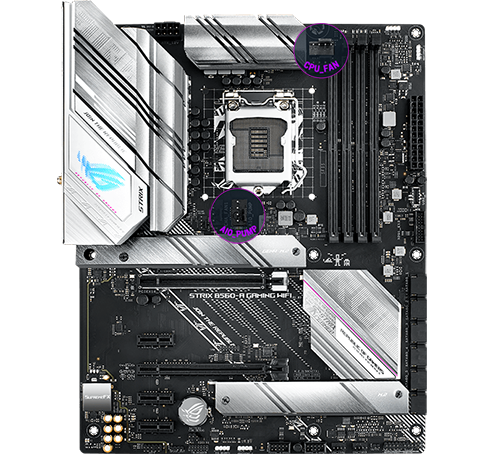

Fan pump headersA dedicated pair of PWM/DC fan headers for CPU coolers. A dedicated PWM/DC header for self-contained water-cooling setups.

m.2

M.2 heatsinkKeeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability

chassis

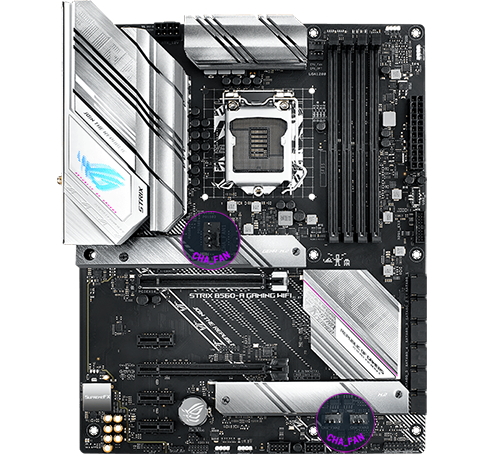

4-pin PWM/DC Fan HeadersEach header supports auto-detection of PWM or DC fans.

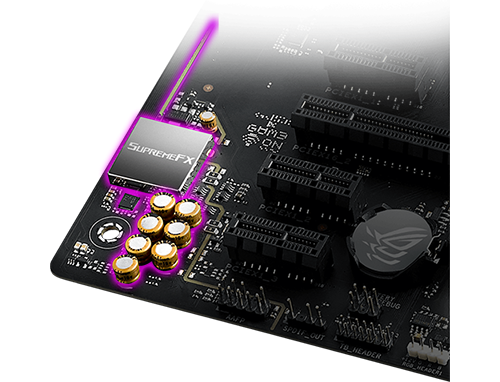

Experience ROG SupremeFX

Audio

Audio Cover | Audio-Line Shielding | Savitech SV3H712 Amplifier | Premium Nichicon™ Capacitors Leveraging premium components together with advanced circuit layout optimizations and shielding techniques, ROG SupremeFX technology ensures pristine audio for all inputs and outputs. Front panel audio output quality is further preserved by a Savitech amplifier that's capable of driving a diverse range of gaming headsets and high-fidelity headphones.

TWO-WAY AI NOISE CANCELLATION This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.
*A splitter cable is necessary when using a 3.5 mm headset.

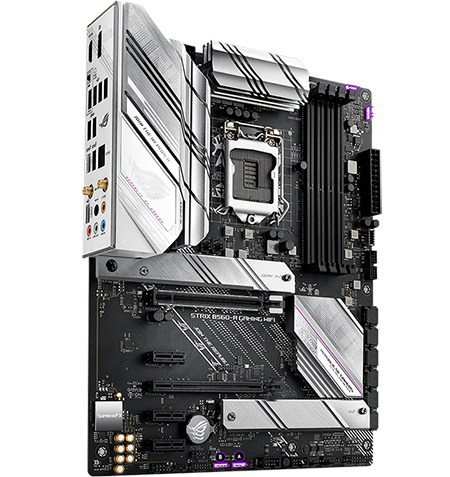

Undeniably ROG Strix Style

RGB board

2xADDRESSABLE GEN 2 RGB HEADER

2xRGB HEADER

Outshine the Competition ROG Strix B560 motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs, as well as lighting strips connected to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.

ROG Strix B560-A Gaming WIFI’s Addressable Gen 2 RGB headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

AURA SYNC

Static

AURA SYNC

Breathing

AURA SYNC

Strobing

AURA SYNC

Rainbow

AURA SYNC

Colour Cycle

AURA SYNC

Starry Night

AURA SYNC

Music

AURA SYNC

Smart

Control your Rig with Armoury Crate

Armoury Crate

account management software Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. You can also use Armoury Crate to download drivers, software and the user manual. In addition, Armoury Crate features a dedicated product registration page as well as a news feed to help you stay in touch with the gaming community.

ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. To further aid system setup and performance tuning, the highly acclaimed AIDA64 utility has also been added to the mix.

AI Networking Features

AI Networking

IdentificationGameFirst VI analyzes usage patterns and the digital signatures of your applications and compares them to a database of over 200,000 apps.

AI Networking

BoostGameFirst VI intelligently switches application priority and adjusts bandwidth, depending on the situation. When gaming, it accelerates and prioritizes game packets to give you super-smooth online gameplay – even when you're streaming high-quality video or transferring large files.

AI Networking

VisualizationAn intuitive graph provides an overview of real-time network status. Simply click on the tab to view the current bandwidth usage of each application, geolocation status of each network connection, or an analysis of the WiFi channels.

how does it work? The proprietary ROG GameFirst VI utility is designed to help all users – beginners, experts, and everyone in between – optimize network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI-enhanced identification and boost technologies to ensure faster and smarter network optimization.

Networking and Leading Connectivity

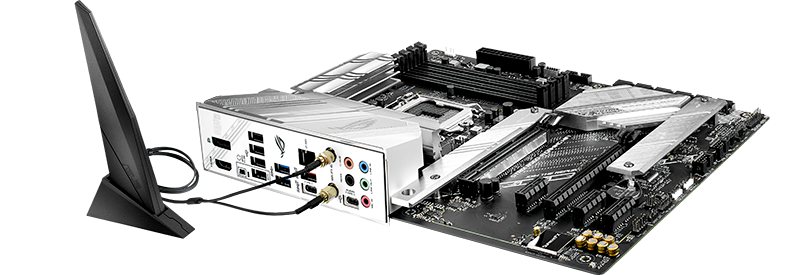

WiFi Antenna

Intel® WiFi 6(802.11 ax)Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense wireless environments, providing exceptional online gaming experiences. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

Intel 2.5 Gb EthernetOnboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.

Unbelievable Power Design

Teamed Power Stages8+2 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.

Alloy Chokes and CapacitorsSuperior chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

ProCool Power ConnectorThe ASUS ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.

Digi+ Power ControlThe built-in Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.

Six-layer PCBThe PCB design quickly dissipates heat around the VRM to improve overall system stability and provide the CPU with more overclocking headroom.

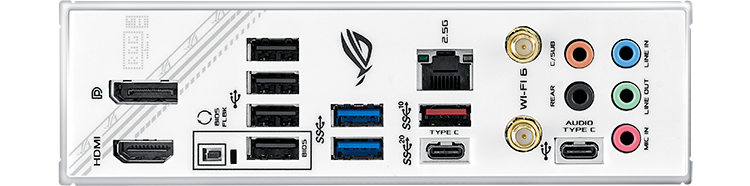

B560-A Gaming WiFi Motherboard's Full Connectivity

WiFi Antenna

• 1 x HDMI port 2.0/ 1 x DisplayPort 1.4
• 4 x USB 2.0 ports
• 2 x USB 3.2 Gen 1 ports
• 1 x USB 3.2 Gen 2x2 port
• 1 x Type-C®
• 1 x USB 3.2 Gen 2 port
• 1 x Realtek 2.5Gb Ethernet
• 1 x Intel® Wi-Fi 6 AX201
• 1 x Audio USB Type-C®
• 5 x audio jacks

• 1 x USB 3.2 Gen 1 Type-C® port
• 2 x USB 3.2 Gen 1 ports
• 6 x SATA 6 Gbps
• Thunderbolt Header

Specifications
Core Specifications
Edition ROG STRIX B560-A Gaming Wi-Fi
Form Factor ATX
CPU Socket 1200
Chipset Intel B560
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3200
Max. Memory Capacity
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface On-board
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.0
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin PCIe (Power)
  • 2 x Aura Addressable Gen2 Header
  • 1 x Clear CMOS Header
  • 2 x M.2
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Intel 802.11ax WiFi + BT5 Module
  • 1 x Realtek (2.5GbE LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.0
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN114084
Model Number ROG STRIX B560-A GAMING WIFI
GTIN 4711081128373
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
