New
Scan code: LN108178 Manufacturer code: ROG STRIX B550-I GAMING

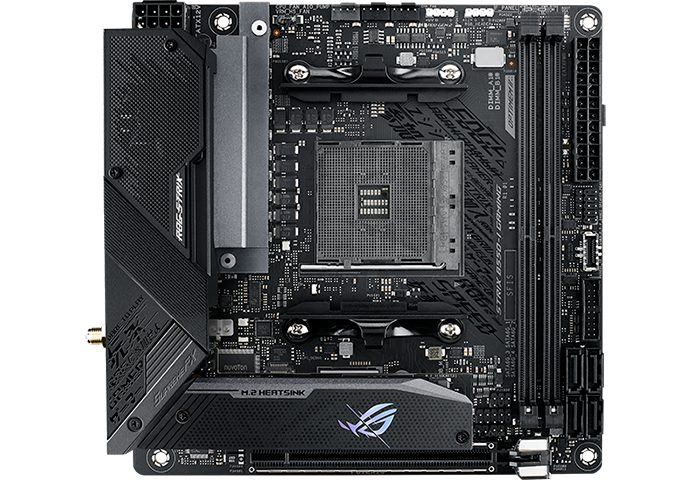

ASUS AMD B550 ROG STRIX B550-I GAMING Mini-ITX Motherboard

ASUS ROG STRIX B550-I GAMING, AMD B550, AM4, DDR4, SATA3, PCIe 4.0, Dual M.2, 2.5GbE/ax Wifi, USB 3.2 Gen2 A+C, Mini-ITX

Thumbnail 1 : ASUS AMD B550 ROG STRIX B550-I GAMING Mini-ITX Motherboard Thumbnail 2 : ASUS AMD B550 ROG STRIX B550-I GAMING Mini-ITX Motherboard Thumbnail 3 : ASUS AMD B550 ROG STRIX B550-I GAMING Mini-ITX Motherboard Thumbnail 4 : ASUS AMD B550 ROG STRIX B550-I GAMING Mini-ITX Motherboard ASUS AMD B550 ROG STRIX B550-I GAMING Mini-ITX Motherboard : video thumbnail 1
Scan code: LN108178 Manufacturer code: ROG STRIX B550-I GAMING
£209.99Item due on 17 July 2020
Due 17th Jul
From £10.08 / month (APR 14.9%)
Monthly Payment: £36.44
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £209.99
Total inc. interest: £218.62
Monthly Payment: £18.86
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £209.99
Total inc. interest: £226.20
Monthly Payment: £13.00
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £209.99
Total inc. interest: £233.97
Monthly Payment: £10.08
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £209.99
Total inc. interest: £241.91
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ROG STRIX B550-I GAMING - 3rd Gen Ready Ryzen Mini-ITX Motherboard

ASUS ROG STRIX B550

SOLID HARDWARE SPECS FOR GAMING AND MOREThe ASUS B550-I Gaming motherboard has most of the amazing features compact into a mini ITX or SFF build. The B550I motherboard is ready to power the 3rd Generation of AMD Ryzen Processors and well equipped with great features which you can find in the high end X570 motherboards. This will surely let you to take your gaming to an ultimate level of greatness. The B550 motherboards are PCIe 4.0 ready and come with a wealth of high speed connectivity options like Dual M.2 and one is even fitted with a heatsink. The Rog STRIX B550-I Gaming also offers rich customization options with guided performance tuning and optimization via intuitive ROG software that makes it easy for experienced and first-time system builders alike to create a gaming system with amazing RGB effects with AURA.

AMD B550Chipset

AM4CPU Socket

Ready for 3rd Gen AMD Ryzen™Compatible Processors

Mini ITXForm Factor

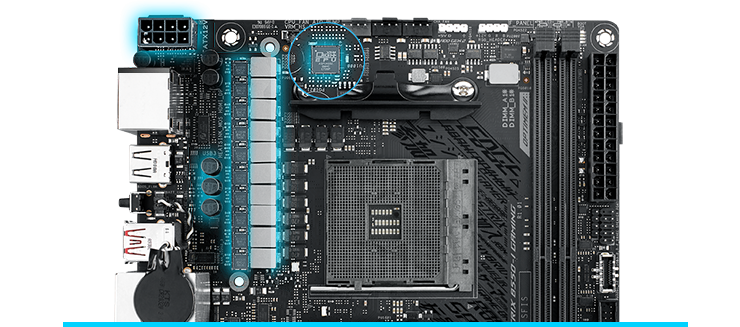

High Quality ROG STRIX Power Design

ROG STRIX B550 Pwer Design

Higher Quality Cooling for Optimal performanceThe ROG STRIX B550-I GAMING uses digital power control and a collection of power stages to ensure that you can utilise the power of the latest AMD Ryzen processors. The ROG STRIX motherboards use Pro Cool power connectors and superior chokes and durable capacitors which made to dissipate heat quickly and efficiently. The VRM and DRAM are controlled with ASUS DIGI+ power control which offers precise memory and voltage tuning for optimal performance and stability.

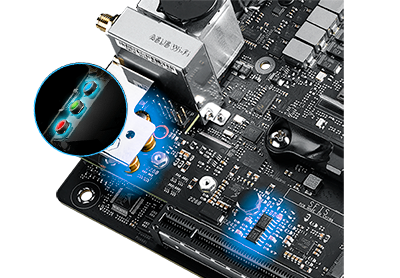

ROG SupremeFX Audio Technology

asus supreme fx audio on b550

AI NOISE CANCELLING MICROPHONE SOFTWAREBuilt-in ROG SupremeFX audio technology ensures pristine audio for ROG Strix B550-I Gaming. Along with ensuring a flat frequency response for a neutral, detailed sound signature, it offers two front-panel outputs driven by op amps that deliver high-quality audio to gaming headsets. A dedicated Audio USB Type-C® port on Strix B550-I Gaming has an S210 integrated chip that automatically determines audio signal type, while a bundled USB TypeC-to-3.5 mm adapter ensures compatibility with various headsets and headphones.

Super-Fast Networking Capabilities

b550 networking

Intel Dual Band PCIe Wi-Fi SupportThe B550-I GAMING Mini ITX motherboard has onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense wireless environments, providing exceptional online gaming experiences. you can also switch over to onboard 2.5 Gb Ethernet which gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming.

ROG STRIX B550-I GAMING Features

OUTSHINE THE COMPETITION WITH AURA ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs as well as lighting strips connected to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.

b550 Aura RGB Features

RGB Connectors1 x 4-pin Aura RGB Header
1 x 3-pin Addressable Gen 2 RGB Header

CoolingActive VRM Heatsink
M.2 Heatsink

PCIE 4.0 Support1 x PCIe 4.0 x16 SafeSlot (support x16)
1 x M.2 2242-2280 supports PCIe 4.0 x4

Fan ConnectorsA Dedicated pair of PWM/DC fan headers for CPU coolers
A PWM/DC header for self-contained water-cooling setups

M.2 Socket1 x M.2 supports PCIe 4.0 x4 & SATA modes
1 x M.2 supports PCIe 3.0 x4 & SATA modes

DDR4, 4 x DIMMDual Channel
ASUS OptiMem II

Get More with ROG

OPTIMIZE YOUR NETWORK TRAFFIC Take care of complex tuning with just one click. ASUS 5-Way Optimisation is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimisation leverages the same onboard intelligence as AI Overclocking, but goes further by running a Prime95-based stress test that continually monitors the system.

TPU insight

AI Suite 3 helps gives the intelligence needed to automatically fine-tune your system The TurboV Processing Unit (TPU) provides AI Suite 3 with the intelligence needed to automatically fine-tune voltages, monitor system stats, and adjust overclocking settings. AI Suite 3 also provides AI Overclocking prediction values for users who want more insight when experimenting with different settings.

EPU Guidance

Save money and energy efficiency The Energy Processing Unit (EPU) automatically optimises power consumption and maximises savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Fan Xpert 4

renowned ROG UEFI (BIOS) intelligently simplifies options for newcomers to PC DIY Fan Expert 4 provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. Control is also possible via the award-winning ROG UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.

DIGI+ power controls

optimise your PC for stability or full throttled gaming performance The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, allowing you to switch frequency and power-efficiency settings so you can fine-tune CPU voltage regulation for ultimate stability and performance.

Turbo App

Use the intuitive app to control many features easily This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritise network data and optimise audio settings at app level ― so your system is perfectly optimised for whatever you're doing.

ASUS Armoury Crate and More

asus armoury

Speed your game loads Armoury Crate is a new software utility designed to give you centralised control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate lets you easily customise RGB lighting and effects for compatible devices and synchronise them with Aura Sync to create a unified lighting scheme across your system. You can also use Armoury Crate to download the user manual, drivers and software. In addition, Armoury Crate features a dedicated product registration page as well as a news feed to help you stay in touch with the gaming community.

AI Networking Gives you Many More Features

AI Networking

Intel 2.5 Gb Ethernet Onboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming. ROG Strix Gaming is VR Ready and beyond! The ASUS Beyond VR Ready marque means that ROG Strix Gaming has been tested with loads of class-leading components to ensure that your productivity, gaming, and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready provides a new way to configure and build your dream system with total confidence.

Identification

IdentificationGameFirst VI analyzes your usage patterns and the digital signatures of your applications and compares them to a database of over 200,000 apps. The database is regularly updated to ensure that apps are recognised.

Boost

BoostGameFirst VI intelligently switches application priority and adjusts bandwidth as you need. When gaming, it accelerates and prioritises game packets giving you supersmooth online gameplay — even when you're streaming high-quality video or transferring large files.

Visualisation

VisualisationAn intuitive graph gives you an overview of the network in real time. Simply click on the tab to view current bandwidth usage of each application, geolocation status of each network connection, and an analysis of each WiFi channel.

Specifications
Core Specifications
Edition ROG STRIX B550-I GAMING
Form Factor Mini-ITX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000+(OC)
Max. Memory Capacity 64GB
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 1 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 1 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Aura Addressable Gen2 Header
  • 1 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 4 x SATA III - 6Gb/s
  • 1 x System panel connector
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
  • 1 x VRM Heatsink Fan Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Intel (2.5GbE LAN)
  • 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In (LED-Illuminated)
  • 1 x Line Out (LED-Illuminated)
  • 1 x Mic In (LED-Illuminated)
  • 2 x USB 2.0
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
Note
Additional Information
Scan Code LN108178
Model Number ROG STRIX B550-I GAMING
GTIN 4718017786379
