Scan code: LN108169 Manufacturer code: B550-F GAMING(WI-FI

ASUS AMD B550 ROG STRIX B550-F GAMING (WI-FI) ATX Motherboard

ASUS ROG STRIX B550-F GAMING (WI-FI), AMD B550, AM4, DDR4, PCIe 4.0, SATA3, Dual M.2, CrossFire, 2.5GbE/ax WiFi, ATX

Thumbnail 1 : ASUS AMD B550 ROG STRIX B550-F GAMING  (WI-FI) ATX Motherboard Thumbnail 2 : ASUS AMD B550 ROG STRIX B550-F GAMING  (WI-FI) ATX Motherboard Thumbnail 3 : ASUS AMD B550 ROG STRIX B550-F GAMING  (WI-FI) ATX Motherboard Thumbnail 4 : ASUS AMD B550 ROG STRIX B550-F GAMING  (WI-FI) ATX Motherboard ASUS AMD B550 ROG STRIX B550-F GAMING  (WI-FI) ATX Motherboard : video thumbnail 1
Scan code: LN108169 Manufacturer code: B550-F GAMING(WI-FI
£220.99
Order now and get it tomorrow, Fri 14th Aug
From £10.61 / month (APR 14.9%)
Monthly Payment: £19.84
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £220.99
Total inc. interest: £238.06
Monthly Payment: £10.61
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £220.99
Total inc. interest: £254.54
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 14th Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

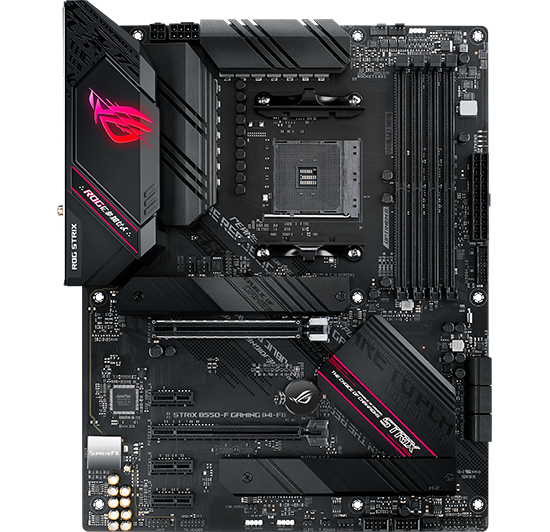

ROG STRIX B550-F GAMING with Wi-Fi 6 - 3rd Gen Ready Ryzen ATX Motherboard

ASUS ROG STRIX B550

SOLID HARDWARE SPECS FOR GAMING AND MOREThe ASUS B550-F Gaming with Wi-Fi is ready to power the 3rd Generation of AMD Ryzen Processors and well equipped with great features which you can find in the high end X570 motherboards. This will surely let you to take your gaming to an ultimate level of greatness. The B550 motherboards are PCIe 4.0 ready and come with a wealth of high speed connectivity options like Dual M.2 with heatsinks and even WiFi6 for fast wireless connectivity. The Rog STRIX B550-F Gaming (Wi-Fi) motherboard also offers rich customization options with lighting synchronization as well as guided performance tuning and optimization via intuitive ROG software that makes it easy for experienced and first-time system builders alike to create a gaming system with amazing RGB effects with AURA.

AMD B550Chipset

AM4CPU Socket

Ready for 3rd Gen AMD Ryzen™Compatible Processors

ATXForm Factor

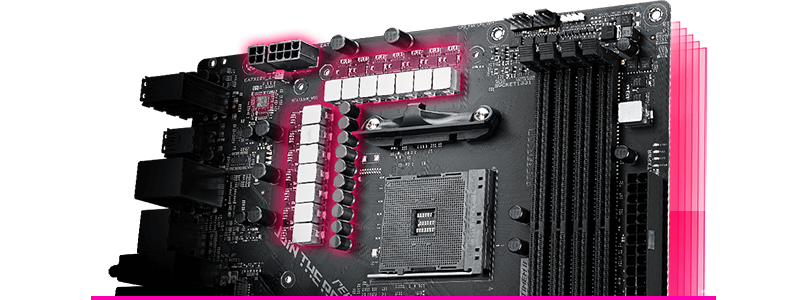

High Quality ROG STRIX Power Design

ROG STRIX B550 Pwer Design

Higher Quality Cooling for Optimal performanceThe ROG STRIX B550-F GAMING Wi-Fi uses digital power control and a collection of power stages to ensure that you can utilise the power of the latest AMD Ryzen processors. The ROG STRIX motherboards use Pro Cool power connectors and superior chokes and durable capacitors which made to dissipate heat quickly and efficiently. The VRM and DRAM are controlled with ASUS DIGI+ power control which offers precise memory and voltage tuning for optimal performance and stability.

Dual M.2 Slots for Better Performance

ASUS B550 M2 Slots

PCIe 4.0 Ready for faster speedsROG Strix B550-F Gaming Wi-Fi features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.

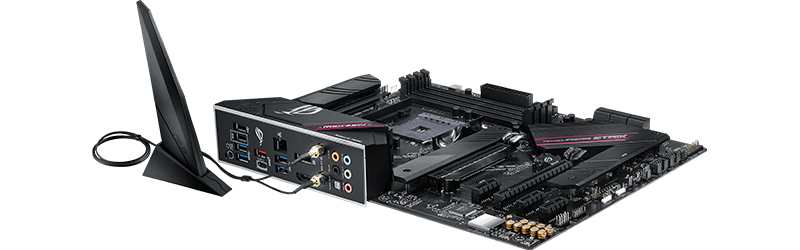

Super-Fast Networking Capabilities

b550 networking

Intel Dual Band PCIe Wi-Fi SupportThe B550-F GAMING has onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense wireless environments, providing exceptional online gaming experiences. you can also switch over to onboard 2.5 Gb Ethernet which gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming.

ROG SupremeFX Audio Technology

asus supreme fx audio on b550

AI NOISE CANCELLING MICROPHONE SOFTWAREBuilt-in ROG SupremeFX audio technology ensures pristine audio for ROG Strix B550-F Gaming. Along with ensuring a flat frequency response for a neutral, detailed sound signature, it offers two front-panel outputs driven by op amps that deliver high-quality audio to gaming headsets. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

ROG STRIX B550-F GAMING Features

OUTSHINE THE COMPETITION WITH AURA ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs as well as lighting strips connected to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.

b550 Aura RGB Features

RGB Connectors1 x 3-pin Addressable Gen 2 RGB Header
2 x 4-pin Aura RGB Headers

RGB LightingI/O Zone AURA Lighting
Chipset Zone AURA Lighting

Multi-GPU SLI®/ CFX Support1 x PCIe 4.0 x16 SafeSlot (x16) [CPU]
1 x PCIe 3.0 x16 slot (x4) [CHIPSET]
3 x PCIe 3.0 x1 slots [CHIPSET]

Fan ConnectorsA Dedicated pair of PWM/DC fan headers for CPU coolers
Multiple 4-pin PWM Fan Headers
All onboard headers support auto-detection of PWM or DC fans

M.2 Socket1 x M.2 supports PCIe 4.0 x4 & SATA modes
1 x M.2 supports PCIe 3.0 x4 & SATA modes

DDR4, 4 x DIMMDual Channel
ASUS OptiMem II

ASUS Armoury Crate and More

asus armoury

Speed your game loads Armoury Crate is a new software utility designed to give you centralised control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate lets you easily customise RGB lighting and effects for compatible devices and synchronise them with Aura Sync to create a unified lighting scheme across your system. You can also use Armoury Crate to download the user manual, drivers and software. In addition, Armoury Crate features a dedicated product registration page as well as a news feed to help you stay in touch with the gaming community.

AI Networking Gives you Many More Features

AI Networking

THE MOST IMMERSIVE ENTERTAINMENT ROG Strix Gaming is VR Ready and beyond! The ASUS Beyond VR Ready marque means that ROG Strix Gaming has been tested with loads of class-leading components to ensure that your productivity, gaming, and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready provides a new way to configure and build your dream system with total confidence.

Identification

IdentificationGameFirst VI analyzes your usage patterns and the digital signatures of your applications and compares them to a database of over 200,000 apps. The database is regularly updated to ensure that apps are recognised.

Boost

BoostGameFirst VI intelligently switches application priority and adjusts bandwidth as you need. When gaming, it accelerates and prioritises game packets giving you supersmooth online gameplay — even when you're streaming high-quality video or transferring large files.

Visualisation

VisualisationAn intuitive graph gives you an overview of the network in real time. Simply click on the tab to view current bandwidth usage of each application, geolocation status of each network connection, and an analysis of each WiFi channel.

Specifications
Core Specifications
Edition ROG STRIX B500-F GAMING (WI-FI)
Form Factor ATX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3666(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
Max. Memory Capacity 128GB
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support NVLink
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 4-pin (Power)
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Intel (2.5GbE LAN)
  • 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)
Rear I/O Connectors
  • 10 x 10 BaseT (LAN)
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN108169
Model Number B550-F GAMING(WI-FI
GTIN 4718017748773
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Reviews
ASUS ROG STRIX B550-F GAMING (WI-FI), AMD B550, AM4, DDR4, PCIe 4.0, SATA3, Dual M.2, CrossFire, 2.5GbE/ax WiFi, ATX is rated 4.9 out of 5 by 14.
Rated 4 out of 5 by from Easy First Time Build I used this board for my first ever build and my first impressions were that it looked incredibly premium and well finished. While building I found the instruction manual to be very well thought out and precise while minimalist. I have had a couple issues with this board which have prevented me from giving it a top score which are: - While using 4 sticks of RAM the 3rd away from the CPU has a rogue RGB setting which does not sync with the others and continues flashing even with RGB switched off, I sent it back for an RMA but it seems that this only happens with certain types of RAM, I'm using Crucial Ballistix which has the issue but Corsair Vengeance worked just fine. If set up in dual channel this won't be noticeable. - Some of the sockets are very tight fitting to the cable or components that go in which made it difficult to install the graphics card the first time round and the USB 3.0 case connector gripped so tight that when I tried to remove it the plastic male connector split apart from the rest of the cable and got stuck in the socket, I had to remove this with pliers which took considerable effort. Overall I think this board looks fantastic with the high quality finish and easy to use manual being the selling points of this board over similarly priced competitors that offer extra features.
Date published: 2020-08-01
Rated 5 out of 5 by from Expensive but good quality with excellent features A great entry into the B550 chipset from ASUS/ROG here. The WiFi-6 aerial has a good signal pickup range. Good choice of USB 3.0 and 3.2 on the back IO, as well as the 2.5G ethernet port. Do note that some latency issues have been reported with this Intel ethernet controller (Intel I225 V2). Doesn't seem to have much significant impact in games though. Only the ROG "eye" is RGB, which is a bit disappointing as this can be covered if you have a large air cooler. Would be good if there was another RGB strip near the motherboard power connector. There is a six pin and four pin CPU power connector, but it works well with just the single six pin connected. May be worth connecting both if you are doing very extreme overclocking (Custom loop or better for cooling) with a Ryzen 7 or 9. For most use cases only 6-pin is needed. Good number of motherboard headers, including 2xUSB2.0 and 1xUSB3.0, and several fan headers spread out across the motherboard. The power delivery or VRMs are of good quality according to experts, however the heatsink design is not the best, so you may see some high temps on the motherboard (This is generally not too bad, so long as it's under 100 Celsius). Overall an excellent motherboard offering, however it is definitely overpriced. B550 in general is a very expensive chipset, so you may want to look at cheaper offerings for both B450, B550 and even X570. I got this with the Asus Cashback deal (CPU+Mobo combo) making it a bit cheaper (about £20 off as Ryzen prices are a bit higher on Scan, and shipping on top).
Date published: 2020-07-28
Rated 4 out of 5 by from Good quality board with the usual slightly invasive ASUS software Seems to be a pretty good board with a great feature set and decent IO. PCIE4 M.2 working as expected. Overclocking seems decent too but I don't have anything to compare against. Overall very decent motherboard. I don't really like how invasive asus software is so avoided installing any: just the drivers, and have had no issues at all without AISUITE or Armoury Crate. The EZ bios worked to update to a later AGESA which improved memory latency. Also a good thing is that the red ROG asthetic is kept pretty minimal. One frustrating thing is that the M.2 socket is right next to the GPU PCI-E release which makes pressing it a pain - seems like a bit of an oversight but rarely a big issue.
Date published: 2020-07-28
Rated 5 out of 5 by from Great Mobo With Cool Features and Stunning Looks Installing the Asus B550-F WiFi was a breeze, with clear and detailed on board descriptions, would highly recommend this over many other similar priced boards.
Date published: 2020-07-20
Rated 5 out of 5 by from Great board from ASUS I've used ASUS board for my last few builds as they always live up to expectations. There were a few teething issues out of the box but nothing a BIOS update didn't rectify and it's been flawless since coupled with a Ryzen 9 3900x
Date published: 2020-07-18
Rated 5 out of 5 by from Great Value This motherboard cannot be faulted when it comes to build quality and features for the price. Would highly reccomend to anyone thinking about purchasing.
Date published: 2020-07-14
Rated 5 out of 5 by from Solid Honestly can not fault the build quality or the amount of features on this board, nice easy install and great to look at. 5/5
Date published: 2020-07-09
Rated 5 out of 5 by from Brilliant Motherboard Really great motherboard, full of features and looks great too.
Date published: 2020-07-02
