Scan code: LN91488 Manufacturer code: ROG STRIX B450-I GAMING

ASUS AMD Ryzen ROG STRIX B450-I AM4 Mini ITX GAMING Motherboard

ASUS ROG STRIX B450-I GAMING, AMD B450, S AM4, DDR4, SATA3, Dual M.2, Intel GbE, ac WiFi, USB 3.1 Gen2 A, Mini-ITX

Thumbnail 1 : ASUS AMD Ryzen ROG STRIX B450-I AM4 Mini ITX GAMING Motherboard Thumbnail 2 : ASUS AMD Ryzen ROG STRIX B450-I AM4 Mini ITX GAMING Motherboard Thumbnail 3 : ASUS AMD Ryzen ROG STRIX B450-I AM4 Mini ITX GAMING Motherboard
Scan code: LN91488 Manufacturer code: ROG STRIX B450-I GAMING
£156.98Item currently awaiting an ETA
Pre order
From £14.10 / month (APR 14.9%)
Monthly Payment: £27.24
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £156.98
Total inc. interest: £163.43
Monthly Payment: £14.10
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £156.98
Total inc. interest: £169.10
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

ROG STRIX B450-I GAMING - AMD Ryzen Mini-ITX Motherboard from ASUS

b450

ROG STRIX MINI ITX MOTHERBOARD with AURA SYNCROG Strix B450 Gaming series provide a widespread of features that give users all the essentials for a well-balanced build. The ROG Strix B450-I Gaming motherboard features firmware controls and software utilities crafted for all skill levels, making first-time setup, tuning, and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want. The ROG STRIX B450-I Gaming features an innovative riser card that frees up real estate by elevating onboard audio and M.2 storage above the board. The ROG Strix B450-I is a compact gaming powerhouse.

AMD B450Chipset

AM4CPU Socket

Mini ITXForm Factor

Enhanced UEFI BIOS

EASILY FIND YOUR WAY WITH EZ AND ADVANCED MODESThe UEFI BIOS is an early waypoint on any PC-building journey, and ROG STRIX B450 Series has one of the best in the business. The EZ mode makes it incredible easy to overclock a CPU to improve performance or even configure a RAID array for faster data retrieval and backups. Whether you're a PC novice or a seasoned overclocker, EZ and Advanced modes will help you quickly find your way, quickly and easily.

EZ

EZ MODEThe wizard in EZ mode makes short work of settings basics like the time and date, as well as more intricate settings like fan parameters and SATA port identification.

search

ADVANCED MODE WITH Search FunctionWhen you're ready for a deeper dive, Advanced mode enables full control over every aspect of the motherboard — with a built-in Search function to find the setting you need in the blink of an eye.

Cooler By Design

Comprehensive Cooling Controls ROG Strix B450-I Gaming features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS. Each header can be set to monitor and react to the thermal sensors. Each onboard CHA FAN header supports PWM and DC mode.

EPU

4-pin PWM/DC fan connectors Every onboard header supports auto-detection of PWM or DC fans.

fan

AIO pump fan connector A dedicated PWM/DC header for self-contained water-cooling setups.

ASUS Aura Sync RGB Lighting

RGB

BRIGHTEN YOUR BUILD A well-tuned enthusiast system deserves a matching aesthetic. ROG Strix motherboards deliver sterling performance and superior aesthetics to Outshine the Competition. ASUS Aura Sync offers full lighting connected via the motherboard's RGB headers, with a variety of functional presets for external LED strips. And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Aura rgb

Speed Up With Onboard M.2

m.2

INNOVATION AT ITS FINEST ROG Strix B450-I Gaming features an innovative riser card to help alleviate the constraints imposed by the mini-ITX form factor. The M.2 Audio Combo Card frees up prized real estate by raising M.2 drives and SupremeFX audio circuitry above the mainboard to minimize lateral signal interference. ROG Strix B450-I Gaming is equipped with a stylish M.2 heatsink that keeps your SSD cool. By efficiently dissipating heat away from the M.2 area, ROG Strix B450-I Gaming minimizes the possibility of performance-sapping throttling, which can occur when drives become too warm.

AMD StoreMI Technology

storemi

Affordable acceleration for any hard drive AMD StoreMI technology is a software utility that accelerates any drive for better system responsiveness with reduced startup and software load times. It combines SSD performance with the affordability and capacity of an HDD by automatically moving frequently accessed data to dedicated SSD storage.

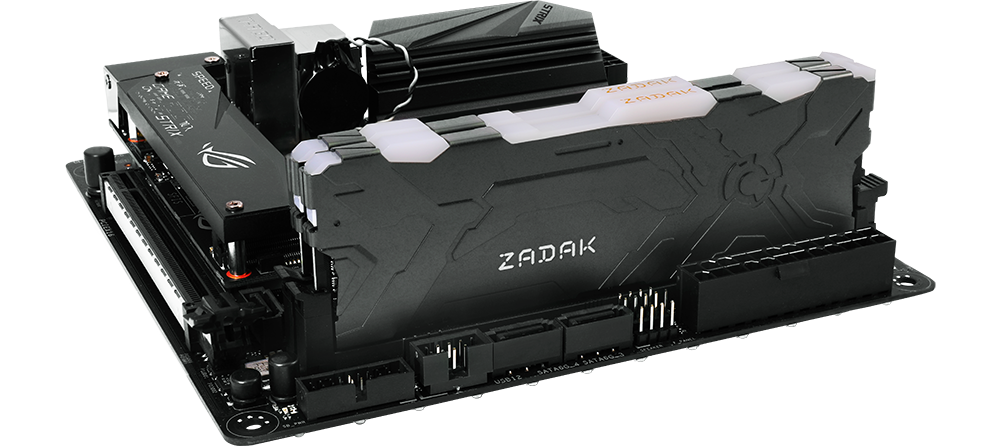

Make Your Memory Faster

memory

Industry-leading DDR4 memory compatibility Tuned to take full advantage of Ryzen's capabilities, and ready for the latest memory kits, ROG Strix B450 Gaming series motherboards are built specifically for high-performance gaming rigs. Intelligent firmware delivers the plug-and-play experience that first-time DIYers demand and the essential tuning options that performance-addicts need. Maximize frame rates with a high-bandwidth memory kit or leverage a host of tuning options to extract peak performance potential from a modest setup. Load up any way you want and get into the game with ROG Strix B450 Gaming Series motherboards.

Level Up Your Performance

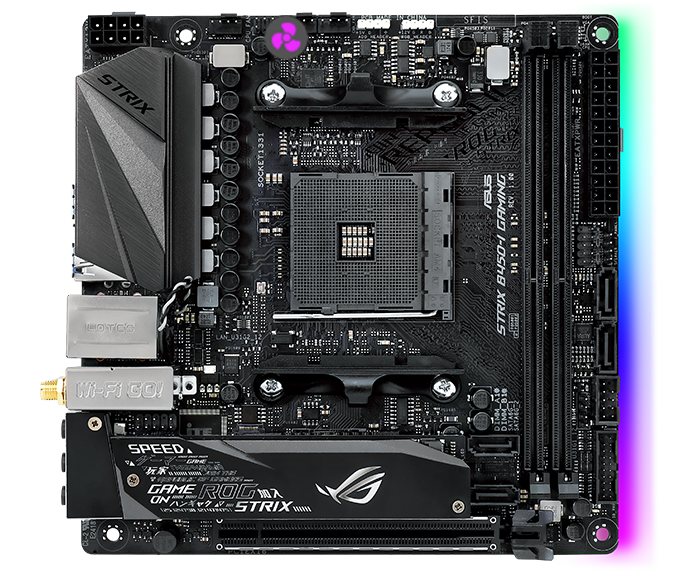

Flexible cooling controls for air or liquid ROG Strix motherboards provide comprehensive control over fans and all-in-one (AIO) coolers. Each header can be set to monitor and react to three user-configurable thermal sensors via Fan Xpert 4 or the media-acclaimed UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode which reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks.

All-around energy efficiency The Energy Processing Unit leverages an onboard microcontroller (EPU) to provide system-wide power savings by automatically optimizing power consumption, and the Away mode smart setting saves energy by shutting down unused I/O controllers.

Precise digital power control The Digi+ voltage regulator module (VRM) with onboard power circuitry delivers real-time control over voltage droop, switching frequency, and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

CPU PERFORMANCE BOOST Unleash your PC's full performance potential with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is an intelligent onboard micro-controller that provides an array of system-tuning features, including the ability to fine-tune voltages, monitor system stats and adjust overclocking parameters.

Visual Beauty, Virtual Worlds

VR

THE MOST IMMERSIVE ENTERTAINMENT The ASUS Beyond VR Ready marque means that ROG Strix B450-I Gaming has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready provides a new way to configure and build your dream system with total confidence.

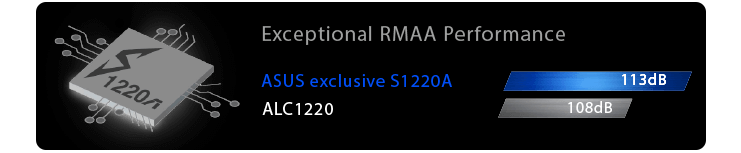

Supreme FX Audio

audio

COMBINED FEATURES DELIVER ELEVATED AUDIO Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.

Sonic Studio III Delivers Immersive Sounds

audio

Sonic Radar III provides even more features Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset. The new Sonic Radar III has an evolved audio engine to process sounds more accurately than ever, ensuring you're always aware of what's going on around you. It now also includes an onscreen arrow to help you instantly pinpoint the enemy's position and the origin of key in-game sounds. Plus, the new Audio Boost feature provides filters that let you hear even the faintest sounds, so you can become the hunter, not the hunted!

Intel Integrated Ultra Wi-Fi Support with Intel Gigabit Ethernet

reliability

PREMIUM ASUS LANGUARD TECHNOLOGY ROG Strix B450-I Gaming features Intel Ethernet (I211-AT), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power available for the game. The B450-I motherboard also features the latest Intel 802.11ac Wi-Fi with 2x2 MU-MIMO and wide 160MHz channels, for wireless speeds of up to 1.73Gbps.* In fact, its integrated Wireless-AC 9560 Wi-Fi adapter pushes wireless data up to 2X faster than other Wi-Fi solutions — so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9560 also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range. Featuring advanced signal-coupling technology and high-tolerance components, LANGuard provides consistent Ethernet performance and greater protection against static electricity and power surges.

Optimise Network Traffic With GameFirst IV

gamefirst

Greater Total Bandwidth GameFirst IV optimizes network traffic for faster, lag-free online gaming. New Multi-Gate Teaming brings together all onboard network controllers to create massive bandwidth. You'll also enjoy the all-new Intelligent mode, which automatically compiles a database by parsing new app data to ensure that every game is optimized for best performance.

ASUS Grid and More

gamefirst

Speed your game loads The brand-new ASUS Grid portal keeps you updated with the latest drivers and BIOS releases. Its easy-to-use UI can be configured to show a variety of information, including security updates, bug patches, the latest ROG news, gaming events and special offers. RAMCache II turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.


Overwolf Overwolf is a clever, unobtrusive overlay that lets you browse the internet, check email, instant message and stream or record gameplay while you're in the game. Color-matched ROG skins that display your status as a member of an elite pack are also available for download from the Overwolf App Store.

DIY Friendly Design

safeslot

SafeSlotA PCIe slot that's reinforced with steel bracing to protect the motherboard from being damaged by heavy graphics cards.

esd guard

ESD Guards2X greater electrostatic protection than the industry standard. ESD guards cover the USB, Audio and LAN ports.

pcislot

Q-SlotOne easy-release clip to swap or secure your graphics card. Press to pop out or push in the card to secure.

memslot

Q-DimmOne sided clips for super simple, secure handling of memory modules.

qled

Q-LEDOnboard LEDs indicate power status as well as problems with the CPU, memory, graphics card or boot device to enable quick diagnosis.

vrm protection

Digi+ VRMThe Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultrasmooth and clean power delivery to the CPU.

dram protection

DRAM overcurrent protectionOnboard resettable fuses protect all connection ports and DRAM modules against overcurrent and short-circuit damage to protect your investment.

components

Durable ComponentsSuperior chokes and durable capacitors are engineers to resist extreme temperatures and provide up to 110% better performance than the industry standard.

Specifications
Core Specifications
Edition ROG STRIX B450-I GAMING
Form Factor Mini-ITX
CPU Socket AM4
Chipset AMD B450
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
Max. Memory Capacity 32GB (2x16GB)
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors HDMI 2.0b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe 3.0
  • 1 x M.2, 2242/2260/2280, PCIe 3.0/SATA
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Aura Addressable Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x RGB LED connector
  • 4 x SATA III - 6Gb/s
  • 1 x speaker header
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x ASUS Dual Band ac WiFi + BT 4.2 with MU-MIMO
  • 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x HDMI 2.0b
  • 1 x Line In (LED-Illuminated)
  • 1 x Line Out (LED-Illuminated)
  • 1 x Mic In (LED-Illuminated)
  • 1 x RJ-45
  • 4 x USB 3.1 Gen1 Type-A
  • 2 x USB 3.1 Gen2 Type-A
  • 2 x WiFi Antenna connectors
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 170 x 170 mm
