Scan code: LN97059 Manufacturer code: ROG STRIX B450-E GAMING

ASUS ROG STRIX AMD B450-E GAMING ATX Motherboard

ASUS ROG STRIX B450-E GAMING, AMD B450, S AM4, DDR4, SATA3, Dual M.2, 3-Way CrossFire, Intel GbE/WiFi, USB 3.1 G2 A, ATX

Thumbnail 1 : ASUS ROG STRIX AMD B450-E GAMING ATX Motherboard Thumbnail 2 : ASUS ROG STRIX AMD B450-E GAMING ATX Motherboard Thumbnail 3 : ASUS ROG STRIX AMD B450-E GAMING ATX Motherboard Thumbnail 4 : ASUS ROG STRIX AMD B450-E GAMING ATX Motherboard
Scan code: LN97059 Manufacturer code: ROG STRIX B450-E GAMING
£163.99
From £14.73 / month (APR 14.9%)
Monthly Payment: £28.46
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £163.99
Total inc. interest: £170.74
Monthly Payment: £14.73
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £163.99
Total inc. interest: £176.68
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 23rd Apr 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

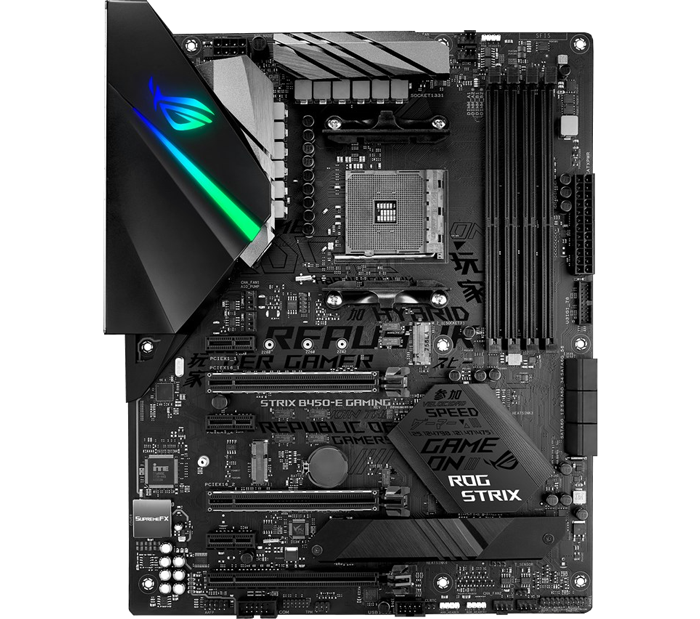

ROG STRIX B450-E GAMING - Ryzen ATX Motherboard

ASUS ROG STRIX b450

SOLID HARDWARE SPECS FOR GAMING AND MOREBuilt for Ryzen Processors the ROG Strix B450 Gaming series provides excellent high-end gaming performance. With comprehensive cooling options to help boost performance to your system. With dual PCIe M.2 Slots that can feature AMD StoreMI support which will allow for incredible storage speeds, improved DDR4 memory stability and much more. The motherboard also offers rich customization options with lighting synchronization as well as guided performance tuning and optimization via intuitive ROG software that makes it easy for experienced and first-time system builders alike to create a gaming system that really stands out.

AMD B450Chipset

AM4CPU Socket

1st & 2nd Gen RyzenCompatible CPUs

ATXForm Factor

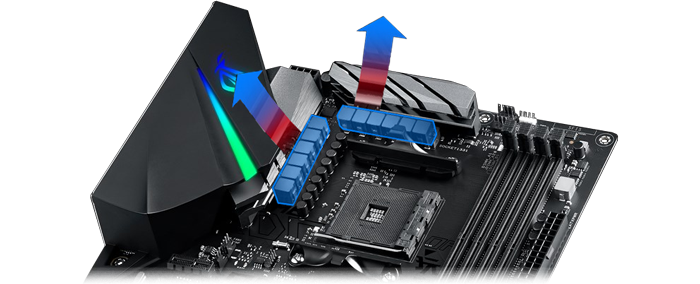

VRM Thermal Enhancement for Better Efficiency

b450 Aura RGB

Higher Quality Cooling for Optimal performance The ROG Strix B450-E Gaming uses new alloy chokes that deliver better efficiency, and high-quality thermal pads to help transfer heat from the VRM array to a sink that has ample surface area for the latest processors and to ensure critical components always make optimal contact, there's a backplate on the rear of the board that helps balances MOSFET temperatures while providing structural reinforcement.

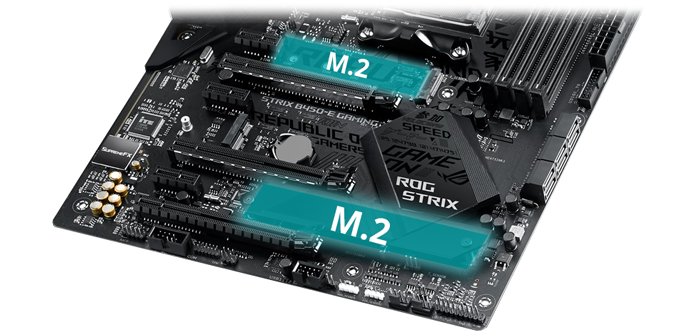

Maximum Storage Flexibility and Speeds

b450 Aura RGB

Experience Fast Dual PCIe 3.0 M.2ROG Strix B450-E Gaming is equipped with two M.2 slots for maximum storage flexibility. With PCIe 3.0 x4 signals coming directly from the CPU, both slots are granted unrestricted bandwidth that maximize performance of your NVMe SSDs. RAID configurations with up to three PCIe 3.0 storage devices are also possible via the two M.2 slots and a PCIe x16 slot, delivering incredible data-transfer speeds on the latest AMD platform.

Take Full Advantage of the Ryzen CPU Lineup

b450 Aura RGB

High Performance 3533MHz+ DDR4 Memory Tuned to take full advantage of Ryzen's capabilities, and ready for the latest memory kits, ROG Strix B450 Gaming Series motherboards are built specifically for high-performance gaming rigs. Intelligent firmware delivers the plug-and-play experience that first-time DIYers demand and the essential tuning options that performance-addicts need. Maximize frame rates with a high-bandwidth memory kit or leverage a host of tuning options to extract peak performance potential from a modest setup. Load up any way you want and get into the game with ROG Strix B450 Gaming Series motherboards.

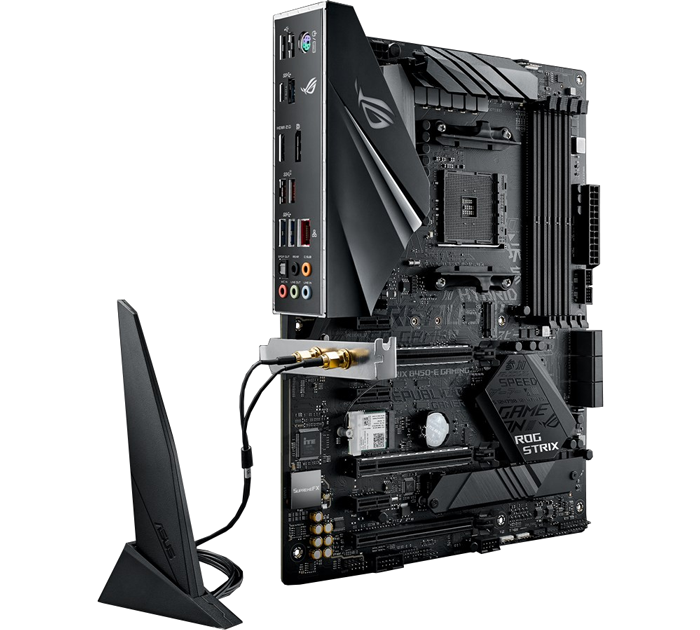

Super-Fast Intel Wi-Fi Connections

b450 Aura RGB

Intel Dual Band PCIe Wi-Fi SupportROG Strix B450-E Gaming features the latest Intel 802.11ac Wi-Fi with 2x2 MU-MIMO and wide 160MHz channels, for wireless speeds of up to 1.73Gbps. In fact, its integrated Wireless-AC 9260 Wi-Fi adapter pushes wireless data up to 2X faster than other Wi-Fi solutions so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9260 also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range.

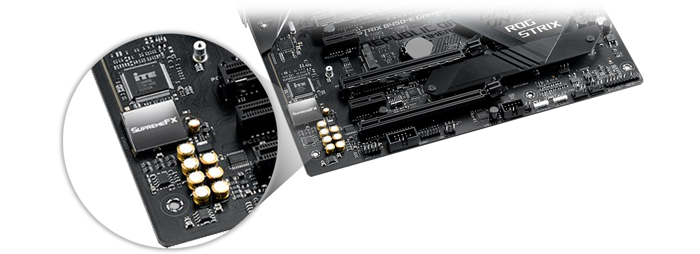

Shielded Audio, Superior Sound

b450 Aura RGB

SupremeFX Audio QualityROG Strix's SupremeFX audio technology has levelled up, delivering an exceptional 113dB signal-to-noise ratio on the line-in connection for best-ever recording quality and 120dB on line-out for crystal-clear sound! We've also added a low-dropout regulator for cleaner power delivery to the SupremeFX S1220A codec. It all adds up to audio that envelops you as never before!

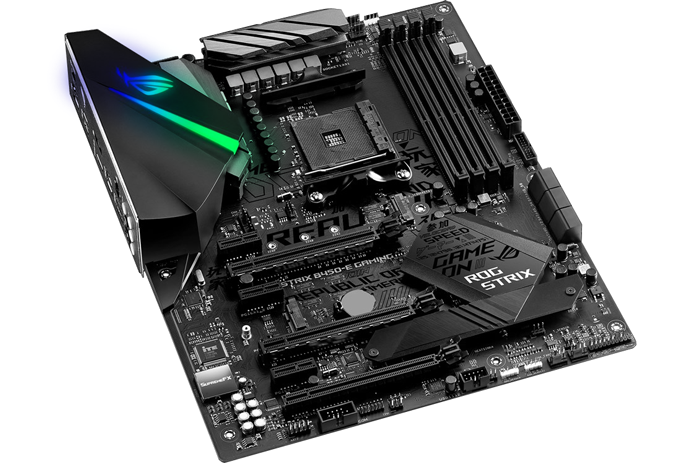

ASUS Aura Sync RGB Lighting

b450 Aura RGB

Effortless Synchronization with all your Components The ASUS Aura ecosystem is in the ascendancy, with an extensive and growing list of ASUS products now offering Aura Sync compatibility — along with loads of compatible accessories and kits available through partners. ROG Strix motherboards deliver sterling performance and superior aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Enhanced UEFI BIOS

EASILY FIND YOUR WAY WITH EZ AND ADVANCED MODESThe UEFI BIOS is an early waypoint on any PC-building journey, and ROG STRIX Gaming Series has one of the best in the business. The EZ mode presents all the vital settings and stats on a single page making it incredible easy to overclock a CPU to improve performance or even configure a RAID array for faster data retrieval and backups. Whether you're a PC novice or a seasoned overclocker, EZ and Advanced modes will help you quickly find your way, quickly and easily.

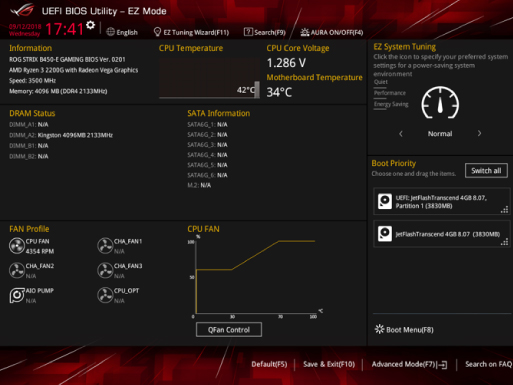

EZ

EZ MODEThe wizard in EZ mode makes short work of settings basics like the time and date, as well as more intricate settings like fan parameters and SATA port identification.

search

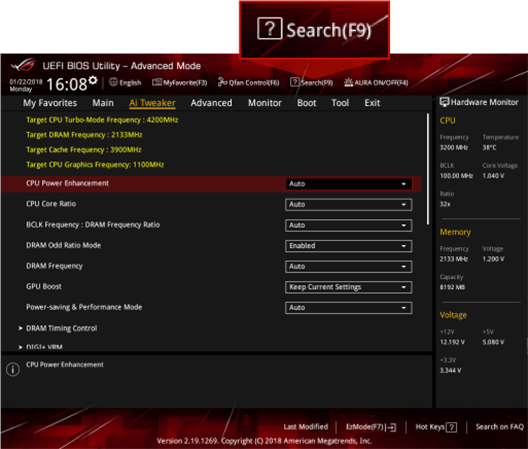

ADVANCED MODE WITH Search FunctionWhen you're ready for a deeper dive, Advanced mode enables full control over every aspect of the motherboard — with a built-in Search function to find the setting you need in the blink of an eye.

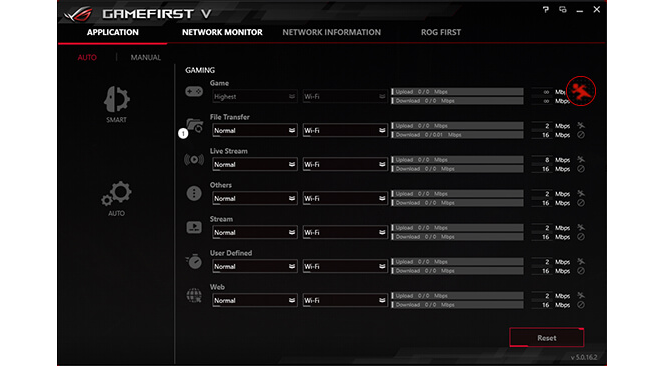

Experience GameFirst V Features

OPTIMIZE YOUR NETWORK TRAFFIC GameFirst V is the ROG-exclusive tool that optimizes network traffic for faster, lag-free online gaming. Team your gateways, keeps tabs on bandwidth-hogging apps and make adjustments on the fly.

Fan Xpert 4

SMART/AUTO MODES Optimize network traffic for active apps, or allocate more bandwidth to games.

TPU Insight

ONE-CLICK PRIORITIZATION Speed network packets for specific applications, helping to reduce latency.

Extreme mode on: 371.7Mbps
Extreme mode off: 16.03Mbps
* Tested with 4GB file download while also playing 4K online video.

EPU Guidance

ROG FIRST Interface directly with a ROG router and automatically configure QoS to prioritize network bandwidth to games.

Turbo App

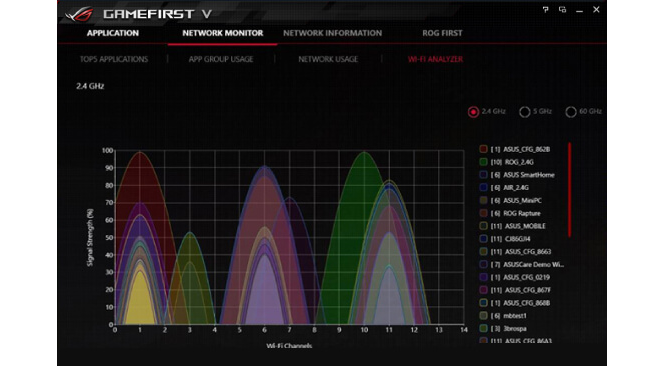

NETWORK INSIGHT View real-time traffic by biggest hogs, app groups, and task types, or drill down for detailed connection information.

ASUS Armoury Crate and More

asus armoury

Speed your game loads The brand-new Armoury Crate portal keeps you updated with the latest drivers and BIOS releases. Its easy-to-use UI can be configured to show a variety of information, including security updates, bug patches, the latest ROG news, gaming events and special offers.


Overwolf Overwolf is a clever, unobtrusive overlay that lets you browse the internet, check email, instant message and stream or record gameplay while you're in the game. Color-matched ROG skins that display your status as a member of an elite pack are also available for download from the Overwolf App Store.

Visual Beauty, Virtual Worlds

VR

THE MOST IMMERSIVE ENTERTAINMENT ROG Strix Gaming is VR Ready and beyond! The ASUS Beyond VR Ready marque means that ROG Strix Gaming has been tested with loads of class-leading components to ensure that your productivity, gaming, and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready provides a new way to configure and build your dream system with total confidence.

Specifications
Core Specifications
Edition ROG STRIX B450-E GAMING
Form Factor ATX
CPU Socket AM4
Chipset AMD B450
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3533(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 2.0b
Internal Connectivity
Expansion Slots
  • 1 x M.2 Socket 1 (for M2 WiFi Module)
  • 1 x M.2, 2242/2260/2280, PCIe 3.0/SATA
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0
  • 3 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel Wireless-AC 9260 (ac WiFi, BT5)
  • 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.2
  • 1 x HDMI 2.0b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
  • 2 x USB 3.1 Gen2 Type-A
Additional Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 244 mm
