Scan code: LN141526 Manufacturer code: ROG MAXIMUS Z790 FORMULA

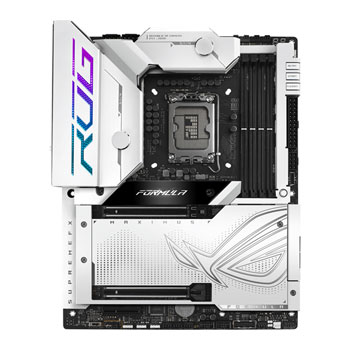

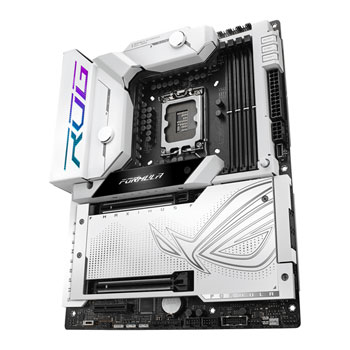

ASUS ROG MAXIMUS Intel Z790 FORMULA DDR5 PCIe 5.0 ATX Motherboard

ASUS ROG MAXIMUS Z790 FORMULA, Intel Z790, S 1700, DDR5, PCIe 5.0, 5x M.2, Realtek 5GbE, WiFi 7, TB4, ATX

Thumbnail 1 : ASUS ROG MAXIMUS Intel Z790 FORMULA DDR5 PCIe 5.0 ATX Motherboard Thumbnail 2 : ASUS ROG MAXIMUS Intel Z790 FORMULA DDR5 PCIe 5.0 ATX Motherboard Thumbnail 3 : ASUS ROG MAXIMUS Intel Z790 FORMULA DDR5 PCIe 5.0 ATX Motherboard Thumbnail 4 : ASUS ROG MAXIMUS Intel Z790 FORMULA DDR5 PCIe 5.0 ATX Motherboard
Scan code: LN141526 Manufacturer code: ROG MAXIMUS Z790 FORMULA
Order now and get it tomorrow, Thu 18th Jul
Was: £729.98
£606.98
Get it Tomorrow, 18 JulIn stock
From £21.26 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £54.99
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £606.98
Total inc. interest: £659.89
Monthly Payment: £29.64
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £606.98
Total inc. interest: £711.31
Monthly Payment: £21.26
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £606.98
Total inc. interest: £765.15
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £16.13 / month (APR 19.9%)
Delivery Options
  • By DPD On 18th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

ASUS ROG Maximus Z790 Formula Intel ATX Motherboard

ASUS ROG Maximus Z790 Dark Hero ATX Motherboard

GET READY FOR THE NEWEST GENERATIONThe ROG Maximus Z790 Formula is the ultimate motherboard to feature our head-turning Moonlight White aesthetic. Beneath this bold expression lies a powerhouse arsenal of features, including the exclusive HybridChill VRM cooling system ready to elevate 14th-gen Intel® processors, advanced DDR5 settings, a multitude of PCIe 5.0 slots for both graphics cards and storage, blistering Intel® Wi-Fi 7 networking and a full slate of customizable ARGB lightning to make your premium build truly stand out from the crowd.

Intel Z790Chipset

LGA 1700CPU Socket

Supports 13th & 14th GenIntel® Core™ Processors

ATXForm Factor

Extreme Power & Performance

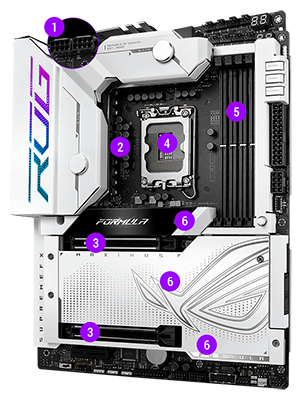

Breakdown

1 | DUAL PROCOOL II POWER CONNECTORS

2 | 20+1+2 POWER STAGES

3 | 2 x PCIe 5.0 x16 Safeslots (x16, x8/x8), 1 x PCIe 4.0 x4 Slot

4 | INTEL® SOCKET LGA 1700

5 | DDR5, 4 X DIMM

6 | 5 X M.2 SLOTS

Supporting the Latest Standards

PCIE 5.0Fully embracing the new standard, the ROG Maximus Z790 Formula offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

back

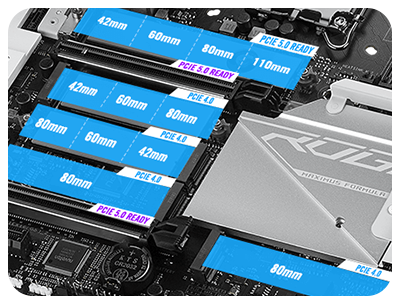

Five Onboard M.2 SlotsThe ROG Maximus Z790 Formula features five onboard M.2 slots, one of which is PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the others offer still-impressive 8 GB/s over PCIe 4.0 interfaces. Expansion SlotsBoth of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the Q-Release button.

Push Frequency and Timings to the Max

DIMM FlexDIMM Flex provides enthusiasts a powerful new way to overclock their memory by employing specialized hardware circuitry to address the stability issues in DDR5 memory caused by temperature sensitivity. When temperatures permit, it can maximise memory performance and efficiency, and when temperatures increase, it can adjust memory performance downward to maintain stability.

features

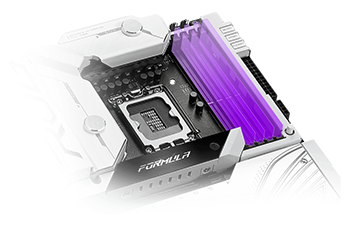

DDR5 DOMINATIONROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 8 GT/s mark on the 8 GT/s Maximus Z790 Formula, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

features

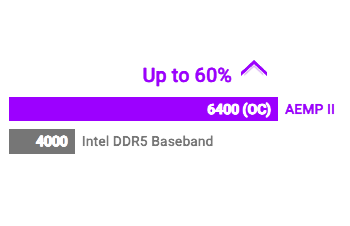

AEMP IIASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature that allows users to achieve supreme memory performance and compatibility with optimized clock speeds, even when they're using PMIC-restricted memory modules that do not provide an XMP or EXPO profile. Developed through a flexible training method, AEMP II simplifies the process of fine-tuning memory settings beyond the baseline configuration, all while ensuring system stability.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Expert Thermal Management

Breakdown

1 | MOONLIGHT-WHITE METAL COVER HYBRIDCHILL

2 | HEATSINKS FOR FIVE M.2 SLOTS

3 | MULTIPLE 4-PIN PWM FAN HEADERS

4 | ROG WATER-COOLING ZONE

Supreme Networking Capability

ASUS WIFI Q-ANTENNADual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

1 - WIFI 7The revolutionary Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.

2 - Intel® 5Gb EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5 Gbps Ethernet.

ASUS WIFI Q-ANTENNA

Up to +6% Faster6 GHz

Up to +18% Faster5/2.4 GHz

Improvement compared to previous generation antenna.

DIY Friendly

PCIE SLOT Q-RELEASE

PCIE® SLOT
Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

M.2 Q-LATCH

M.2 Q-LATCHThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.

Q-ANTENNA

Q-ANTENNAWith Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

Q-LED

Q-LEDThe on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup.

Leading Connectivity

Armed with all the essentials The ROG Maximus Z790 Formula delivers next-gen connectivity for ultrafast data transfers and low-latency networking. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

Two Thunderbolt 4 Type-C ports support up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays, and PCIe bandwidth extends to up to 32 Gbps.

Connectivity

Connectivity Breakdown

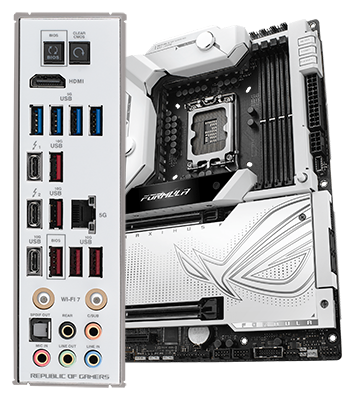

I/O Ports • 2 x Thunderbolt™ 4 USB Type-C® ports
• 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Realtek 5Gb Ethernet port
• 5 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Connectors & Headers • 5 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 20Gbps connector (supports USB Type-C® )
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x Alteration PCIe mode switch
• 1 x Aura RGB header
• 1 x CPU over voltage jumper
• 1 x FlexKey button
• 1 x Front panel audio header (F_AUDIO)
• 1 x ReTry button
• 1 x Start button
• 1 x 10-1 pin system panel header
• 1 x Thermal sensor header

Take Control of Your Rig

Armoury Crate

Armoury Crate Armoury Crate is a software utility designed to give you centralised control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customise RGB lighting and effects for compatible devices and synchronise them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.


*Windows 10 or 11 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.

AI OVERCLOCKING​

AI OVERCLOCKING​Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

Specifications
Core Specifications
Edition ROG MAXIMUS Z790 FORMULA
Form Factor ATX
CPU Socket 1700
Chipset Intel Z790
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
  • DDR5 - 7400(OC)
  • DDR5 - 7600(OC)
  • DDR5 - 7800+(OC)
  • DDR5 - 8000(OC)
Max. Memory Capacity 192GB (4x48GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • HDMI 2.1
  • Thunderbolt 4
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen5x4
  • 2 x M.2, 22-80, PCIe Gen4x4
  • 1 x PCIe 4.0 x4
  • 2 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 2-pin W_IN connector
  • 1 x 2-pin W_OUT connector
  • 1 x 24-pin (Power)
  • 1 x 3-pin W_FLOW connector
  • 1 x 4-pin AIO Pump Connector
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin System Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 2 x 8-pin (Power)
  • 1 x 8-pin PCIe (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x CPU_OV jumper
  • 1 x FlexKey Button
  • 1 x Front Panel Audio Header
  • 5 x M.2
  • 1 x ReTry Button
  • 4 x SATA III - 6Gb/s
  • 1 x START (Power On) button
  • 1 x System panel connector
  • 1 x Thermal Sensor Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
External Connectivity
Network Interface Type
  • 802.11be Wi-Fi 7 LAN
  • Wired 5 Gigabit LAN (5000)
Network Chip/Modules 1 x 802.11be WiFi 7

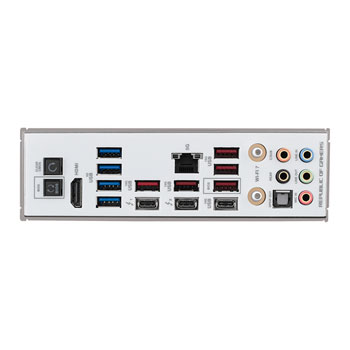

Rear I/O Connectors
  • 1 x 100/1000/2500/5000 (LAN)
  • 1 x BIOS Flashback Button
  • 1 x Central Speaker Out
  • 1 x Clear CMOS Button
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x Thunderbolt 4
  • 4 x USB 3.2 Gen1 Type-A
  • 5 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x USB 4.0 Type-C/Thunderbolt 4
  • 1 x WiFi / Bluetooth Module
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN141526
Model Number ROG MAXIMUS Z790 FORMULA
GTIN 4711387360965
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
