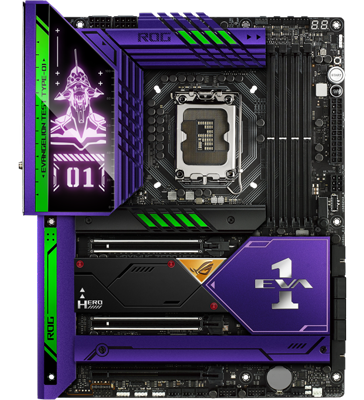

ASUS Intel Z690 ROG MAXIMUS HERO EVA Edition DDR5 PCIe 5.0 ATX Motherboard

ASUS ROG MAXIMUS Z690 HERO EVA, Intel Z690, S 1700, DDR5, PCIe 5.0, SATA3, M.2, 2.5GbE/ax WiFi, TB4, ATX

Thumbnail 1 : ASUS Intel Z690 ROG MAXIMUS HERO EVA Edition DDR5 PCIe 5.0 ATX Motherboard Thumbnail 2 : ASUS Intel Z690 ROG MAXIMUS HERO EVA Edition DDR5 PCIe 5.0 ATX Motherboard
Scan code: LN126710 Manufacturer code: 90MB1BX0-M0EAY0
Order now and get it tomorrow, Wed 6th Jul
£595.49
Get it Tomorrow, 06 JulIn stock
From £18.05 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £51.19
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £595.49
Total inc. interest: £614.19
Monthly Payment: £26.33
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £595.49
Total inc. interest: £631.78
Monthly Payment: £18.05
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £595.49
Total inc. interest: £649.72
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £14.87 / month (APR 15.9%)
Delivery Options
  • By DPD On 6th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ROG Z690 Maximus HERO EVA Edition Intel 12th Generation ATX Motherboard

ASUS ROG Maximus Hero EVA edition Z690 Motherboard

The Ultimate Crossover It’s 2022. The Republic of Gamers is launching new equipment for the EVANGELION project. The ROG Maximus Z690 Hero EVA Edition is covered in the classic purple and green of the EVA-01 and is similarly well-equipped. Robust cooling and power delivery are poised to push the latest 12th Gen Intel® Core ™ processors to the max. An A.T. Field design around the CPU socket and polymo-lighting on the I/O cover the switches between EVA-01 normal and berserk modes in a further aesthetic treat.

Please note: This motherboard is compatible with Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel® Z690Chipset

LGA 1700CPU Socket

12th Gen Intel®Compatible Processors

ATXForm Factor

Break All Limits

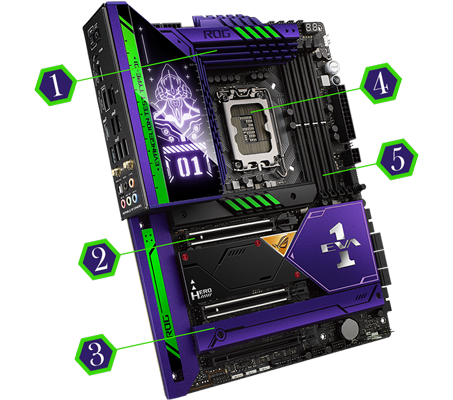

ASUS ROG Maximus Hero EVA edition Z690 Motherboard

1. 20+1 Power Stages

2. Expansion Slot2 x PCIe 5.0 x16 slots (x16. x8/x8)
1 x pcie 4.0 x16 slot (x4, x4/x4 via Rog Hyper M.2 Card)

3. 3 X M.2 SLOTS1 x M.2 2242-22110 supports PCIe 4.0 x4 mode
1 x M.2 2242-2280 supports PCIe 3.0 x4 mode
1 x M.2 2242-2280 supports PCIe 4.0 x4 & SATA modes

4. 2 X M.2 SLOTS VIA ROG HYPER M.2 CARD1 x M.2 2242-22110 supports PCIe 5.0 x4/PCIe 4.0 x4 mode
1 x M.2 2242-22110 supports PCIe 4.0 x4 mode

5. INTEL® SOCKET LGA1700 FOR 12TH GEN INTEL® CORE™

6. DDR5, 4 X DIMM Dual Channel

AI Overclocking at a Glance

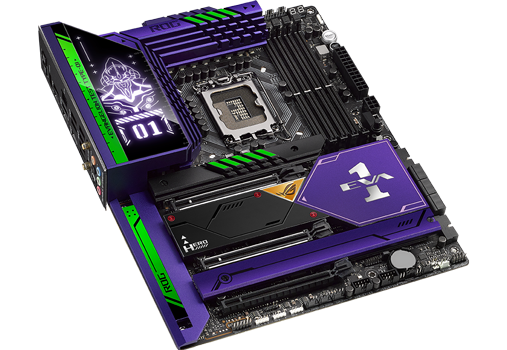

Main Motherboard shot

Intelligent Motherboard ROG engineers developed and extensively-tested intelligent software solutions to ensure your system stays in optimal condition. Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push each system to its limits.

features

Designed by ExpertsFor each new motherboard platform, ROG in-house experts painstakingly profile thousands of processors and system configurations to hone the highly advanced algorithm of AI Overclocking.

features

Predictive EdgeThe algorithm analyses your CPU and system cooling, and then defines optimal voltage and frequency settings. Predicted values can be applied manually or engaged automatically to save time.

features

Real-time AdjustmentsOnce activated, the AI Overclocking utility continually tracks vital system stats, making profile adjustments to account for changes in system usage or ambient temperature.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

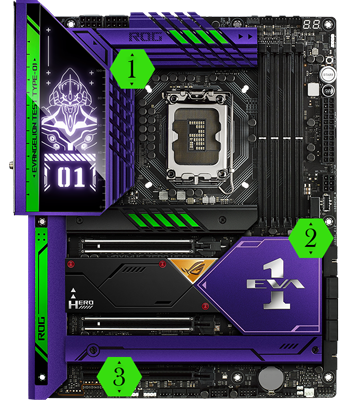

Unprecedented Thermal Dissipation

1.VRM and aluminum I/O heatsinkA VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.

Cooling Features

2. Chipset heatsinkA dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.

3. M.2 heatsinksThree dedicated heatsinks keep up to three M.2 drives in the optimum operating temperature range for consistent performance and reliability.

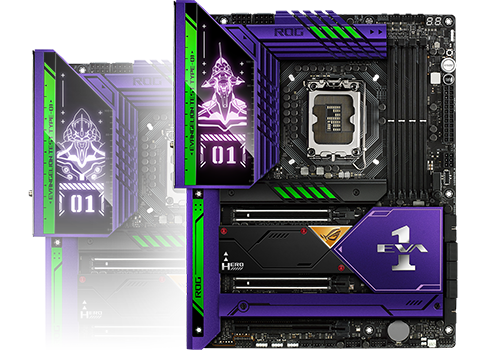

Build Something Beautiful

Incredible Personalisation

Stand Out from The CrowdIn addition to elite performance, ROG Maximus Z690 Hero introduces the new Polymo Lighting display, gracing the I/O cover with an eye-catching microstructural array of light and color. This intricate design features two RGB patterns, empowering builders to show off a luminous RGB style that they won’t see anywhere else.

Specifications
Core Specifications
Edition ROG MAXIMUS Z690 HERO EVA
Form Factor ATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400+(OC)
Max. Memory Capacity 128GB
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen5x4
  • 1 x PCIe 4.0 x16
  • 2 x PCIe 5.0 x16
SATA Support N/A
RAID Support via
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
Internal I/O
  • 1 x 2-pin W_IN connector
  • 1 x 2-pin W_OUT connector
  • 1 x 24-pin (Power)
  • 1 x 3-pin W_FLOW connector
  • 1 x 4-pin AIO Pump Connector
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 6-pin PCIe (Power)
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x FlexKey Button
  • 1 x Front Panel Audio Header
  • 1 x ReTry Button
  • 6 x SATA III - 6Gb/s
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 5 x Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x HDMI
  • 1 x S/PDIF-Out (Optical)
  • 2 x Thunderbolt 4
  • 2 x USB 2.0
  • 6 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 x 490 mm
Note
Additional Information
Scan Code LN126710
Model Number 90MB1BX0-M0EAY0
GTIN 195553762458
