Scan code: LN116159 Manufacturer code: ROG MAXIMUS XIII APEX

ASUS ROG Maximus XIII Apex Intel Z590 PCIe 4.0 ATX Motherboard

ASUS ROG Maximus XIII Apex, Intel Z590, S 1200, DDR4, PCIe 4.0, SATA3, 4x M.2, SLI, 2.5GbE, ax WiFi/BT5.2, TB4, ATX

Thumbnail 1 : ASUS ROG Maximus XIII Apex Intel Z590 PCIe 4.0 ATX Motherboard Thumbnail 2 : ASUS ROG Maximus XIII Apex Intel Z590 PCIe 4.0 ATX Motherboard Thumbnail 3 : ASUS ROG Maximus XIII Apex Intel Z590 PCIe 4.0 ATX Motherboard Thumbnail 4 : ASUS ROG Maximus XIII Apex Intel Z590 PCIe 4.0 ATX Motherboard
Scan code: LN116159 Manufacturer code: ROG MAXIMUS XIII APEX
£459.98
Order now and receive it by Wednesday, 27th October
From £22.08 / month (APR 14.9%)
Monthly Payment: £41.30
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £459.98
Total inc. interest: £495.50
Monthly Payment: £22.08
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £459.98
Total inc. interest: £529.83
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £11.49 / month (APR 15.9%)
Delivery Options
  • By DPD On 27th Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

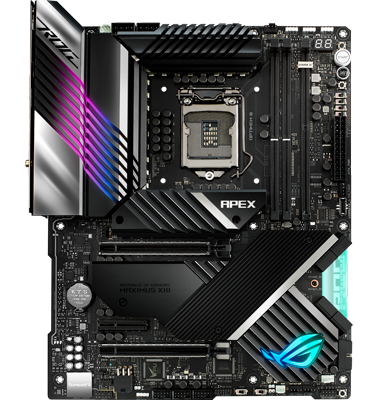

ROG Z590 Maximus XIII APEX 11th Generation Intel ATX Motherboard from ASUS

ROG Maximus XIII apex Motherboard

Get Yourself off to a Great Start The Z590 ROG Maximus XIII Apex has returned to build on the legacy of its predecessors. For generations streamlined layouts that reduce lantency and increase bandwidth have enabled ROG Apex series motherboards to dominate world records and now they are ready to support the latest 11th Generation Intel Processors by packing upgraded power delivery and adding overclocking enhancements, smart cooling and the latest generation of connectivity hidden beneath a cooling stealthy exterior. Feature filled with renowned ROG features like AI-enhanced controls, customisable Aura Sync LED control and bolstered by a few new additions like PCIe 4.0 technology, Quad M.2, USB 3.2 Gen2x2 Connectivity, industry leading SupremeFX audio and a premounted I/O shield combined with DIY friendly build features. All of this make the Maximus XIII Apex a true top-shelf motherboard and a perfect cornerstone for any high-end build.

Intel Z590Chipset

LGA 1200CPU Socket

ATXForm Factor

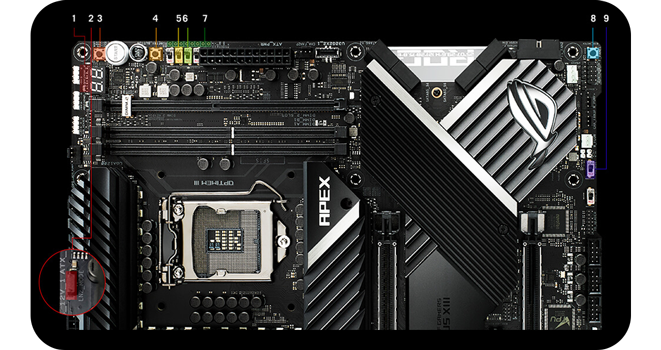

Push the Boundaries of Performance

1. QLEDFour LEDs indicating current boot status.

2. LN2 Mode Jumper to enable special options and functions for liquid-nitrogen overclocking!

3. Safe Boot ButtonInstantly reset the PC and boot directly into sage mode.

down

The Overclockers Toolkit An Overclocker’s Tookit with hardware-level controls will aid your overclocking experience. They’re quick and easy time-savers designed to help you break more records.

4. Retry buttonOne press instantly initiates a hard reset.

5. Slow Mode SwitchInstantly reduces the CPU ratio to 8x to keep stability during extreme overclocking.

6. Pause SwitchActivate to pause the system and fine-tune OC parameters mid-benchmarks.

7. ProbeltIncludes nine integrated measurement points for advanced tuning.

8. BIOS SwitchEasily switch between BIOS 1 and 2.

9. Full Speed SwitchInstantly sets all fans to maximum RPM.

Built to Take the Strain

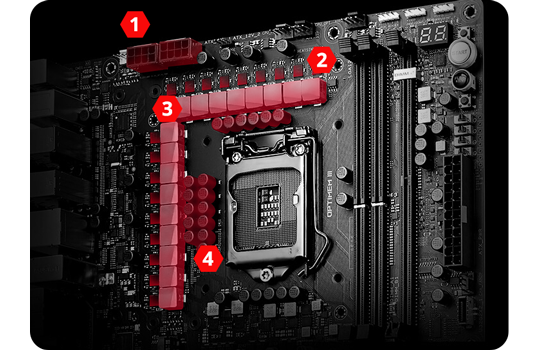

Power Delivery Enhancements

POWER DELIVERY ENHANCEMENTS ROG Maximus XIII Apex makes overclocking accessible to both beginners and seasoned enthusiasts alike. Its intelligent power solution caters to the demands of the latest Intel processors, while comprehensive controls give you the tools you need to ramp up performance.

1. 8-pin ProCool II power connectors Two ProCool II Power Connectors ensure a snug and reliable connection to the EPS 12V Power Lines.

2. 18
Power Stages
The VRM features 18 power stages, each rated to handle 90 amps.

3.MicroFine
Alloy Chokes
Each Power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.

4. 10K Black
Metallic Capacitors
Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.

Cooler by Design

COMPREHENSIVE COOLING ZONEA high-end battle station needs robust cooling to deliver peak performance. ROG Maximus XIII Hero employs an enlarged cooling array for the VRM and chipset, plus four M.2 sinks teamed with backplate blocks to wick heat away from critical components. That rugged foundation is backed by complimentary headers for fans, AIOs and liquid loops, paired with flexible control options that allow you to keep thermals in check at all times.

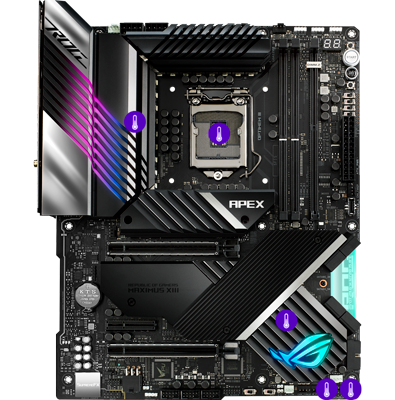

Thermometer sensors

Multiple temperature sources Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI.

Fan detectors and headers

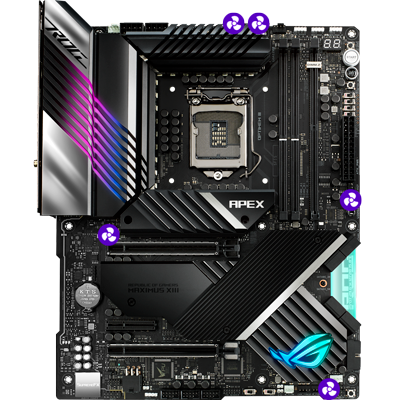

4-pin PWM/DC Fan Every onboard header auto-detects any PWM or DC fan, with three chassis fan headers offering ASUS HYDRANODE support.

 bundled extension card

AIO Pump A dedicated PWM/DC header for self-contained water-cooling setups.

 bundled extension card

Full Speed Fan Two full speed fan headers allow for targeted airflow during extreme overclocking.

 bundled extension card

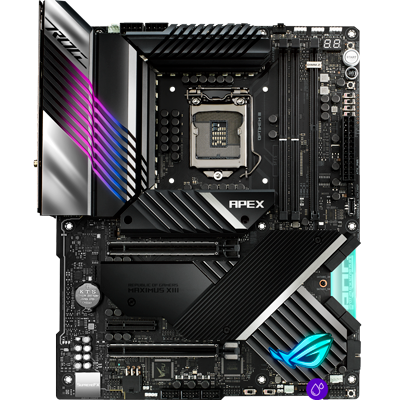

Water pump+ A dedicated header can supply over 3 amps to a high-performance PWM or DC water pumps.

 bundled extension card

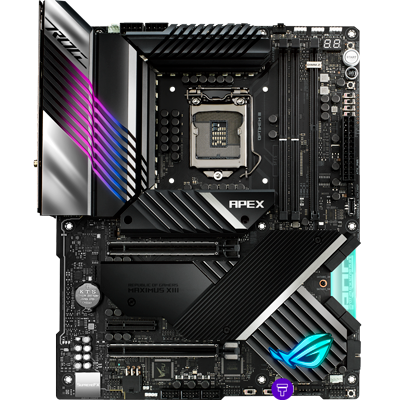

Water in/out A dedicated header enables monitoring of temperatures at the input/output points of any component.

 bundled extension card

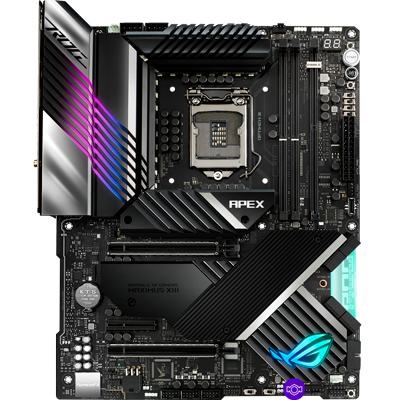

Water flow A dedicated header enables constant monitoring of flow rate throughout the entire loop.

Unprecedented Thermal Dominance

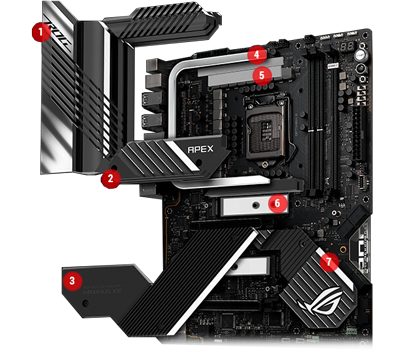

Heatsinks

1. VRM and Aluminium I/O Heatsink A VRM heatsink on the MOSFETs and chokes is connected to the aluminium I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.

2. Extended VRM
& M.2 Heatsinks
The extended heatsink helps further cool the VRM and an M.2 drive mounted in the primary onboard slot.​

3. Aluminium
M.2 Heatsink
An aluminium heatsink cover efficiently cools an M.2 drive mounted in the second onboard slot.

4. U-Shaped Heatpipe The heatpipe efficiently distributes the thermal load across the entire array.

5. High-Conductivity Thermal Pad High-quality thermal pads improve thermal transfer from the power stages to the heatsink.

6. M.2 Backplates The two onboard M.2 slots feature backplate blocks to help cool high-performance drives, even when airflow is restricted.​

7. Chipset Heatsink A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperatures.​

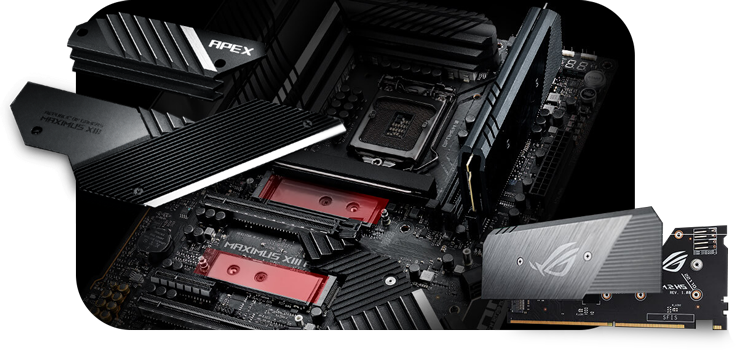

Support for up to Quad PCIe NVMe M.2

M.2 Support

PCIe 4.0 ReadyThe ROG Maximus XIII is equipped with four onboard m.2 slots, with two offering the latest PCIe 4.0 support for the latest GPUs and High-Speed SSDs.

PCIe 4.0-Ready ROG Maximus XIII Apex is equipped with four onboard M.2 slots, with two offering PCIe 4.0 support for the latest GPUs and high-speed SSDs. To cope with the heat generated by high-performance M.2 SSDs, each drive is protected by a dedicated M.2 heatsink and an embedded backplate.

ROG DIMM.2 The ROG DIMM.2 module is an innovative expansion card that allows two M.2 drives to be connected via a DDR4 interface. You can then add metal heatsinks, helping to control thermals for maximum performance while elevating the aesthetics.

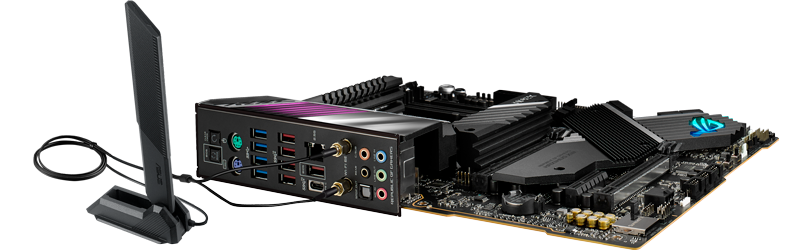

The Future of Home-Networking

Networking

Intel® Wi-Fi 6E (Gig+) Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.

Intel® 2.5 Gb Ethernet Onboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.

5-Way Optimization

Overclocking Intelligence Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimization leverages the same on-board intelligence as AI Overclocking, but goes further by running a Prime95 based stress test to deliver a result that's well-tuned from the beginning.

Fan Xpert 4

Flexible Cooling Controls With the ROG MAXIMUS Series you have comprehensive control over fans via Fan Xpert 4 or the media-acclaimed UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces all fan speeds to below the default minimum assuring your system stays whisper-quiet when performing light tasks.

TPU Insight

CPU Performance Boost Unleash your PC’s full performance with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

EPU Guidance

All-round Energy Efficiency The Energy Processing Unit (EPU) automatically amplifies power consumption and maximises savings with Away mode. The smart setting that produces an extreme energy-saving setup by shutting down unused I/O controllers, with the EPU you will appreciate system-wide power reserves.

Turbo App

Optimization for gamers and professionals Whether you're a professional designer or hardcore gamer, you'll feel the benefit of the ASUS-exclusive Turbo App every day. This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at app level, meaning your ROG system is perfectly optimized for what you're doing.

DIGI+POWER CONTROL

Digital Power Controls The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

World Renowned UEFI BIOS

Not just for veteransThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Mode

Advanced Mode An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Easy Mode

EZ(Easy) ModeEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Boost your Game with Ramcache III

asus RAMCACHE 3

LAUNCH YOUR APPS AT NECK BREAKING SPEEDS RAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds. Smart mode automatically caches all your storage devices to maximize your system's resources using an intuitive interface which displays real time drive information. RamCache III also allows you to efficiently check the health status of assigned memory.

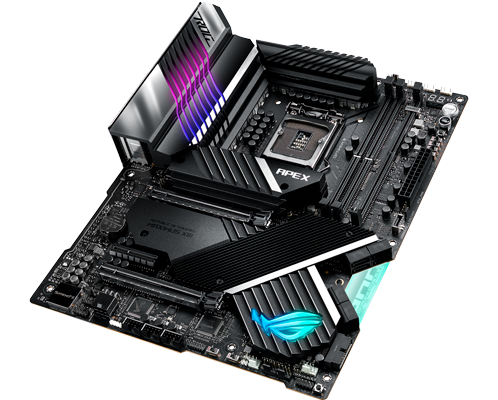

Outshine the Competition with ASUS Aura Sync

asus RAMCACHE 3

Your Motherboard, Your Way Gear up with ROG components, from graphics and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands.

Breathe

Breathe

Colour cycle

Colour Cycle

CPU Temp

CPU Temperature

EQ Effect

Equaliser

Rainbow Effect

Rainbow

Stars Effect

Starry Night

Static Effect

Static

Strobing Effect

Strobing

Specifications
Core Specifications
Edition ROG Maximus XIII Apex
Form Factor ATX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3333(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4500(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4700(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5133(OC)
  • DDR4 - 5333(0C)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 2-Way NVLink
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x DIMM.2 - 1x M.2, 22-42/60/80/110, PCIe
  • 1 x DIMM.2 - 1x M.2, 22-42/60/80/110, PCIe/SATA
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x PCIe 3.0 x4
  • 2 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via SATA / M.2 / PCIe
Storage Mode Support
Internal I/O
  • 1 x 2-pin W_IN connector
  • 1 x 2-pin W_OUT connector
  • 1 x 24-pin (Power)
  • 1 x 3-pin W_FLOW connector
  • 1 x 4-pin AIO Pump Connector
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin Full Speed Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 6-pin PCIe (Power)
  • 2 x 8-pin (Power)
  • 3 x Aura Addressable Gen2 Header
  • 1 x Aura RGB Strip Headers
  • 1 x BIOS Switch button
  • 1 x FlexKey Button
  • 1 x Front Panel Audio Header
  • 1 x LN2 Mode jumper(s)
  • 1 x PAUSE Switch
  • 8 x ProbeIt Measurement Points
  • 1 x ReTry Button
  • 2 x RSVD Switch
  • 1 x Safe Boot Button
  • 8 x SATA III - 6Gb/s
  • 1 x Slow Mode Switch
  • 1 x speaker header
  • 1 x START (Power On) button
  • 1 x System panel connector
  • 1 x T_Sensor Connector
  • 1 x Thunderbolt header
  • 3 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
  • 1 x V-Latch Switch
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Intel® I225V (2.5GbE LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Switch
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 3.2 Gen1 Type-A
  • 5 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 2 x Wi-Fi antenna connector holes
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN116159
Model Number ROG MAXIMUS XIII APEX
GTIN 4711081145431
