ROG MAXIMUS XI GENE - Intel Micro ATX Motherboard from ASUS

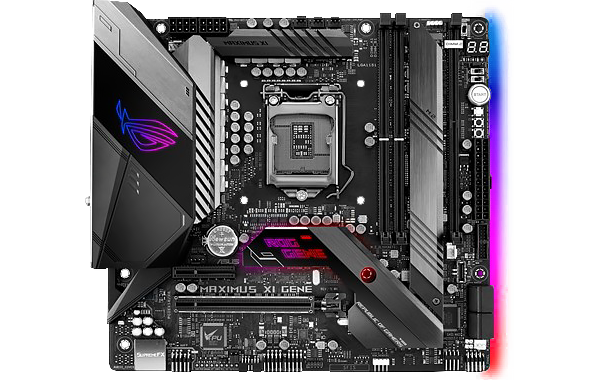

ASUS ROG MAXIMUS XI Gene

UNLEASH YOUR INNER POWER Wait no longer for a small form factor motherboard that brings the greatest power to any PC. With the Maximus XI Gene, experience the power for extreme overclocking, double-capacity DIMMs and unbeatable storage that will flawlessly deliver revolutionary performance that will rival high-end ATX systems. The Maximus XI Gene has been crafted to be a natural fit for showcase PC builds for both gamers and style-craving enthusiasts. Discover where pure adrenaline meets pure style through unparalleled performance.

Please note: This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, and 16 PCI Express 3.0/2.0 lanes for great performance.

Intel Z390Chipset

1151CPU Socket

8th & 9th Gen IntelCompatible CPUs

Micro ATXForm Factor

Comprehensive Cooling Controls

COOLER BY DESIGNROG Maximus XI Formula features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.

temperature

Multiple temperature sources Each header can be set to monitor and react to three user-configurable thermal sensors, for workload based cooling. All easily managed by Fan Xpert 4 or UEFI.

water pump

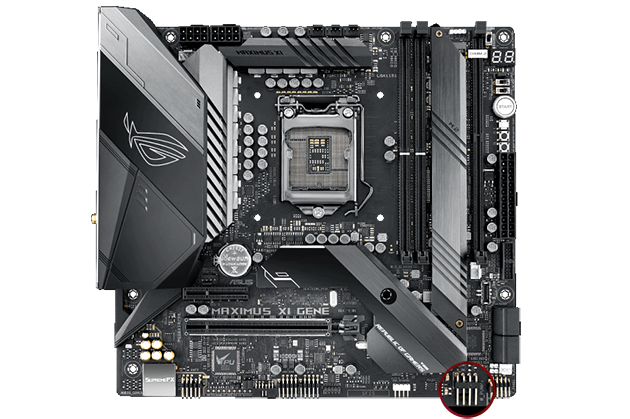

Water pump+ A dedicated header that can supply over 3A to high-performance PWM or DC water pumps.

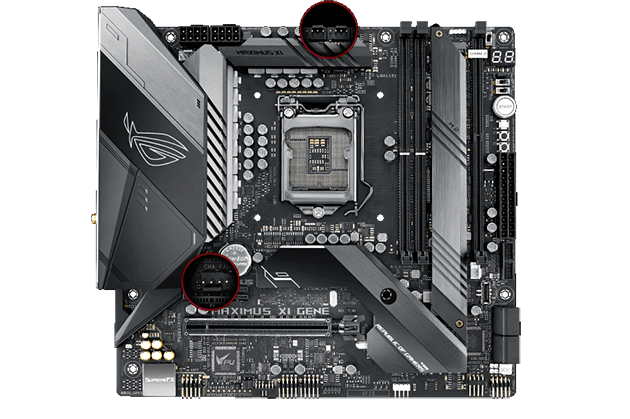

4 pin

4-pin PWM/DC fan Every onboard header supports auto-detection of PWM or DC fans.
*W_PUMP+ and AIO PUMP are also PWM/DC controllable.

fan headers

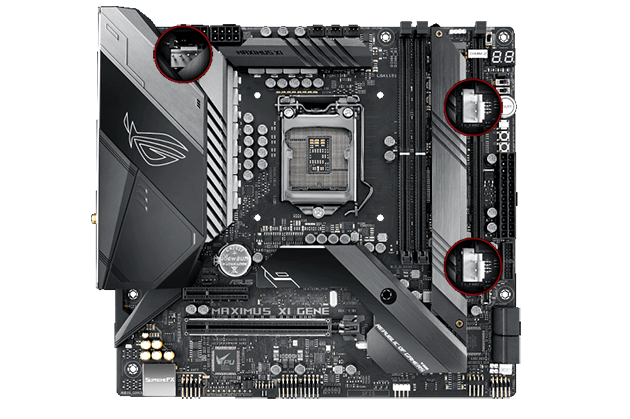

Fan Extension Header Three full speed fan headers for targeted airflow during extreme overclocking.

water in out

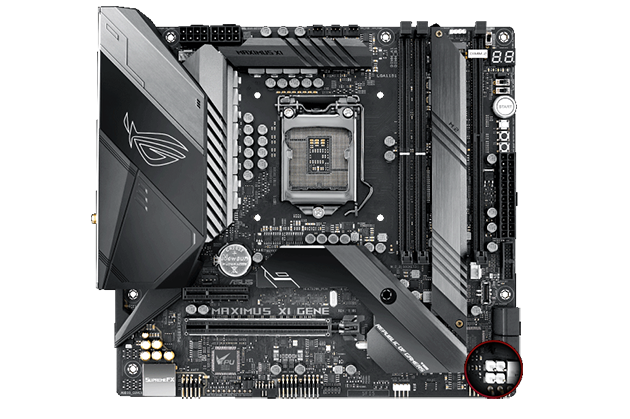

Water in/out Allows for monitoring of temperature at the input/out of any component.

water flow

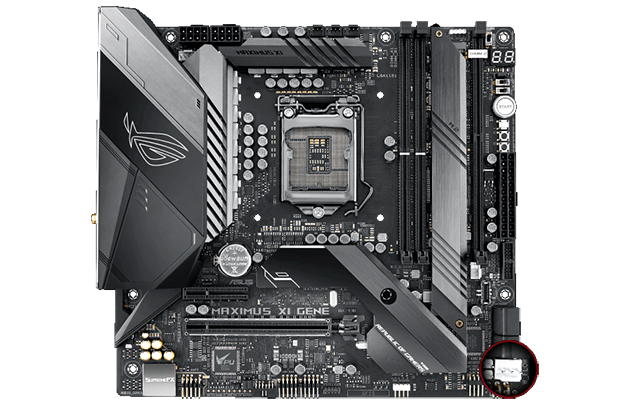

Water flow Allows for constant monitoring of the flow rate of entire loop.

aio

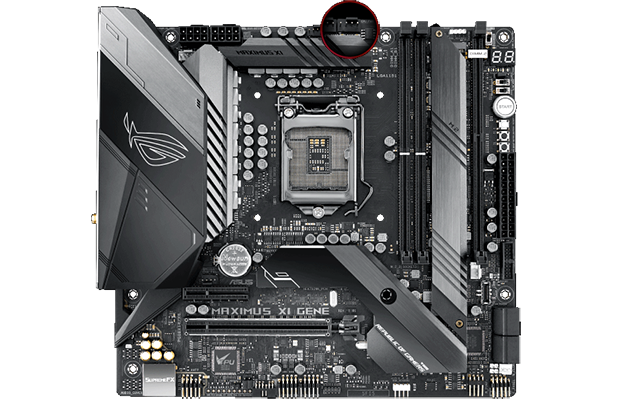

AIO pump An All-In-One header that supports auto-detection of PWM, DC fans and water pumps.

Tune it Your Way with AI Overclocking

AI Overclocking

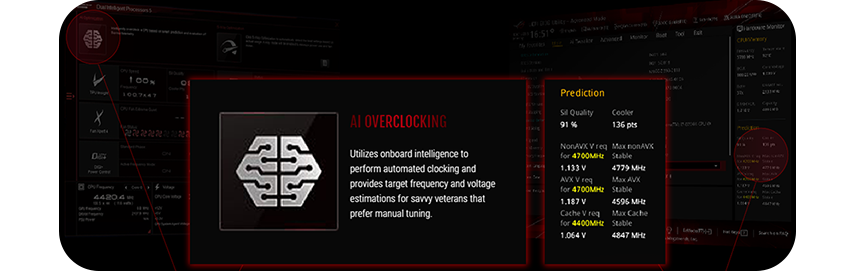

Intelligent Control ASUS AI Overclocking makes automatic tuning faster and smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU and cooling to predict the optimal configuration for each individual system. ASUS have created a proprietary algorithm that evaluates the capabilities of your CPU. The onboard intelligence also watches system vitals like temperatures, fan speeds, and power draw to gauge cooling performance.

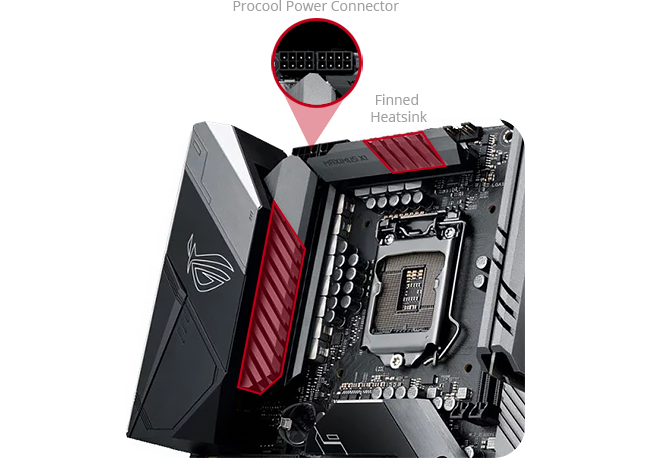

Built for Flawless Overclocking

AI Overclocking

with a dedicated onboard clock generator All of Coffee Lake's major bus frequencies are derived from the same reference clock. This limits the control and flexibility needed to harness the full overclocking potential of the platform. The ROG Maximus XI Gene motherboard offers a dedicated onboard clock generator that delivers dynamic reference clocks to the CPU cores and major subdomains, giving you the freedom to coax every MHz of headroom from the system.

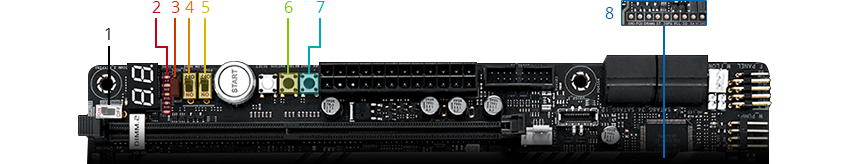

All the Tools you'll Need

1. Memok! II: DRAM Auto Training Switch. | 2. QLED: 4 LEDs to show current boot status.
3. LN2 Mode: Jumper to enable special options for liquid-nitrogen (LN2) overclocking.
4. Pause Switch: Activate to pause the system and fine-tune OC parameters mid-benchmark.
5. Slow Mode Switch: Instantly reduces the CPU ratio to 8X to bypass finicky benchmark passages.
6. ReTry Button: One press instantly initiates a hard reset.  |  7. Safe Boot Button: Reset the PC and boot into a safe mode.
8. Probelt: Check the voltage via integrated measurement points.

AI Overclocking

THE HARDWARE-LEVEL OVERCLOCKERS TOOLKIT The ROG Maximus XI Gene comes with an overclocker's toolkit and hardware-level controls to aid your overclocking experience. It offers a Pause switch to halt the system, Safe Boot and ReTry buttons, an LN2 mode jumper to aid POST at sub-zero temperatures, and a Slow mode switch. Combined together, they're quick and easy time-savers and are designed to help you break more records.
*Slow mode and Pause switches require that LN2 mode is enabled.

5-Way Optimization

Overclocking Intelligence Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimization leverages the same on-board intelligence as AI Overclocking, but goes further by running a Prime95 based stress test to deliver a result that's well-tuned from the beginning.

Fan Xpert 4

Flexible Cooling Controls With the ROG MAXIMUS Series you have comprehensive control over fans via Fan Xpert 4 or the media-acclaimed UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces all fan speeds to below the default minimum assuring your system stays whisper-quiet when performing light tasks.

TPU Insight

CPU Performance Boost Unleash your PC’s full performance with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

EPU Guidance

All-round Energy Efficiency The Energy Processing Unit (EPU) automatically amplifies power consumption and maximises savings with Away mode. The smart setting that produces an extreme energy-saving setup by shutting down unused I/O controllers, with the EPU you will appreciate system-wide power reserves.

Turbo App

Optimization for gamers and professionals Whether you're a professional designer or hardcore gamer, you'll feel the benefit of the ASUS-exclusive Turbo App every day. This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at app level, meaning your ROG system is perfectly optimized for what you're doing.

DIGI+POWER CONTROL

Digital Power Controls The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

Perfect for Intense Multitasking

ddr4 memory

DDR4 4800MHZ+ Whether you're after high memory frequencies or tuning timings for the lowest latency, ROG Maximus XI Gene provides the tools you need to exploit the Coffee Lake architecture's full potential: carefully optimized trace pathways maintain signal integrity, and the ROG firmware offers the necessary tweaks to ensure stability while maximizing memory performance. Load up with a high-density memory kit for heavy multitasking, or run a focused setup that delivers the bandwidth your favorite games and applications need.

Utilize Memory up to 64GB

dual dimm design

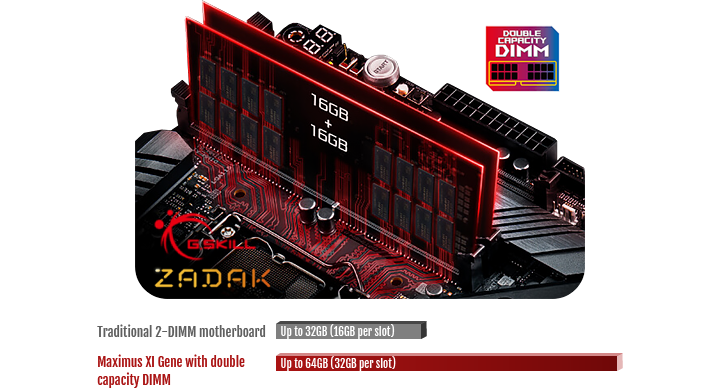

DOUBLE-CAPACITY DIMM SUPPORT The Maximus XI Gene motherboard uses a unique memory-trace design that allows for up to 32GB per slot for a total memory capacity of 64GB. Featuring double-capacity UDIMM modules, the Maximus XI Gene can deliver four-DIMM memory capacity in a compact, dual-DIMM design.

Extensive Storage Options

back

Unthrottled Transfer speed The Maximus XI Gene has provision for four M.2 drives to make the most of Intel's IRST options. Two ride our DIMM.2 module next to the memory slots, while two slot under the extended M.2 heatsink.

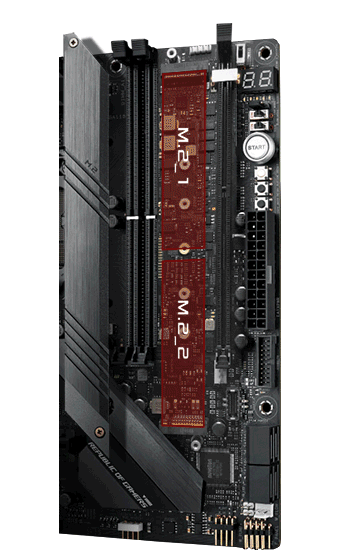

ROG DIMM.2 (PCIe 3.0x4) The ROG DIMM.2 module is an innovative expansion card that allows two M.2 drives to be connected through a DDR4 interface. You can then add a metal heatsink, helping to control thermals for maximum performance while elevating the aesthetics.

Illuminate your Gaming Setup

dual dimm design

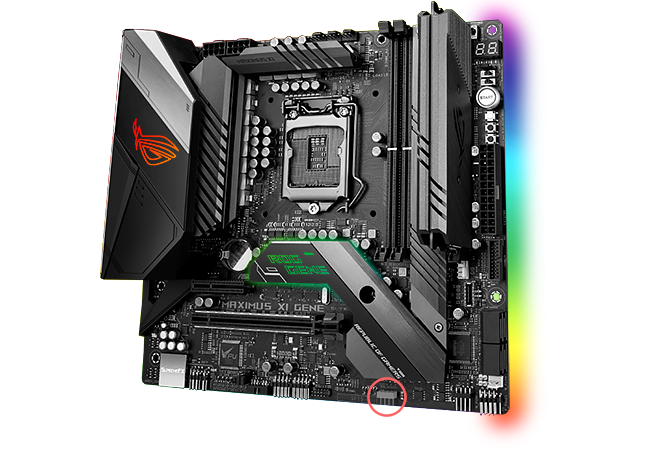

INCREDIBLE ROG ECOSYSTEM Gear up with ROG components, from graphics cards and monitors, to impressive peripherals. Have the ability to up your gaming experience with complementary aesthetics, control and compatibility. The ROG ecosystem is one of the most extensive out there, and allows you to create aesthetics that will impress any PC enthusiast. Choose from a range of vibrant colours and effects that will make your setup stand out from the rest.

Dedicated Technology for Better Connectivity

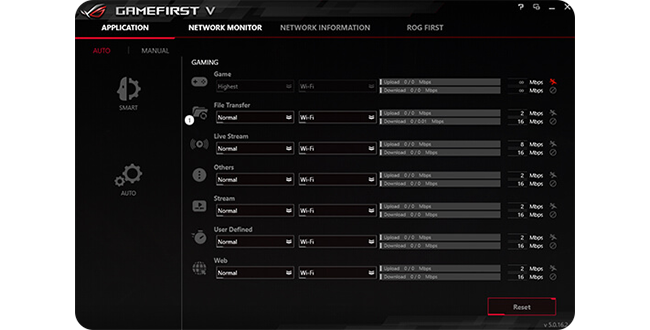

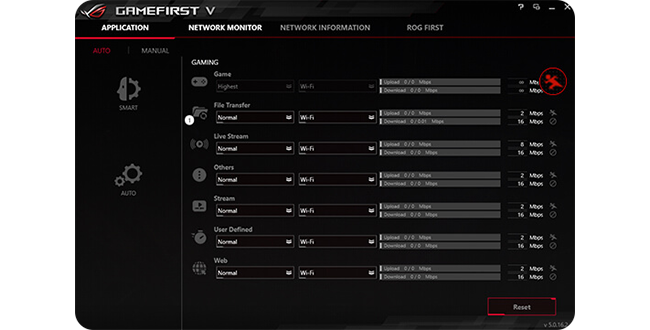

GAMEFIRST V TOOL GameFirst V is the ROG-exclusive tool that optimises network traffic for faster, lag-free online gaming. Make adjustments on the fly, team your gateways and keep tabs on those apps that use up bandwidth.

smart auto modes

SMART/AUTO MODES Optimize network traffic for your active apps, or allocate more bandwidth to your games.

extreme mode

extreme mode Speed network packets for specific applications to help reduce latency.
Extreme mode on: 371.7Mbps
Extreme Mode off: 16.03Mbps
*Tested with 4GB file download while playing 4K online video.

rog first

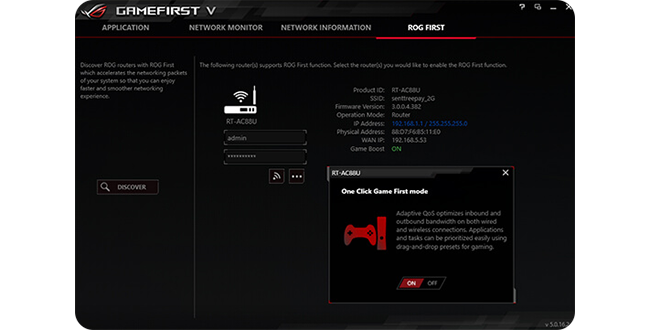

ROG FIRST Interface directly with a ROG router and automatically configure QoS to prioritize network bandwidth to games.

network insight

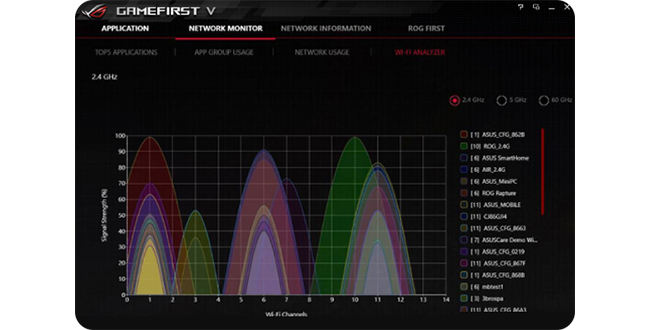

NETWORK INSIGHT View real-time traffic by biggest hogs, app groups, and task types, or drill down for detailed connection information.

Illuminate your Gaming Setup

dual dimm design

INCREDIBLE ROG ECOSYSTEM Gear up with ROG components, from graphics cards and monitors, to impressive peripherals. Have the ability to up your gaming experience with complementary aesthetics, control and compatibility. The ROG ecosystem is one of the most extensive out there, and allows you to create aesthetics that will impress any PC enthusiast. Choose from a range of vibrant colours and effects that will make your setup stand out from the rest.

Boost your Game with Ramcache III

asus RAMCACHE 3

LAUNCH YOUR APPS AT BLAZING FAST SPEEDS RAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds. Smart mode automatically caches all your storage devices to maximize your system's resources using an intuitive interface which displays real time drive information. RamCache III also allows you to efficiently check the health status of assigned memory.

ASUS Armoury Crate

asus armoury

streamline your gaming The brand-new Armoury Crate portal keeps you updated with the latest drivers and BIOS releases. Its easy-to-use UI can be configured to show a variety of information, including security updates, bug patches, the latest ROG news, gaming events and special offers.

Shielded Audio, Superior Sound

ROG Sonic Studio 3 Audio

Sonic Studio III provides crystal quality sounds Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset. Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

Specifications
Core Specifications
Edition MAXIMUS XI GENE
Form Factor MicroATX
CPU Socket 1151
Chipset Intel Z390
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4500(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4700(OC)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors HDMI
Internal Connectivity
Expansion Slots
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x4
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel Wireless-AC 9560 (ac WiFi, MU-MIMO, BT5)
  • 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x Clear CMOS Button
  • 1 x HDMI
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 2 x USB 2.0
  • 6 x USB 3.1 Gen1 Type-A
  • 3 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C
  • 1 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 226 mm
Note
Additional Information
Scan Code LN102345
Model Number 90MB10E0-M0EAY0
GTIN 4718017141437
