New
Scan code: LN93114 Manufacturer code: ROG MAXIMUS XI CODE

ASUS Intel Z390 ROG MAXIMUS XI CODE 9th Gen ATX Motherboard

ASUS MAXIMUS XI CODE, Intel Z390, S 1151, DDR4, SATA3, Dual M.2, 2-Way SLi/3-Way CrossFire, WiFi, USB3.1 G2 A+C, ATX

Thumbnail 1 : ASUS Intel Z390 ROG MAXIMUS XI CODE 9th Gen ATX Motherboard Thumbnail 2 : ASUS Intel Z390 ROG MAXIMUS XI CODE 9th Gen ATX Motherboard Thumbnail 3 : ASUS Intel Z390 ROG MAXIMUS XI CODE 9th Gen ATX Motherboard Thumbnail 4 : ASUS Intel Z390 ROG MAXIMUS XI CODE 9th Gen ATX Motherboard ASUS Intel Z390 ROG MAXIMUS XI CODE 9th Gen ATX Motherboard : video thumbnail 1
Scan code: LN93114 Manufacturer code: ROG MAXIMUS XI CODE
There are 5 people viewing this product
£359.99Item currently awaiting an ETA
Pre order
From £17.28 / month (APR 14.9%)
Monthly Payment: £62.47
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £359.99
Total inc. interest: £374.80
Monthly Payment: £32.32
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £359.99
Total inc. interest: £387.80
Monthly Payment: £22.29
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £359.99
Total inc. interest: £401.07
Monthly Payment: £17.28
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £359.99
Total inc. interest: £414.68
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £8.99 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

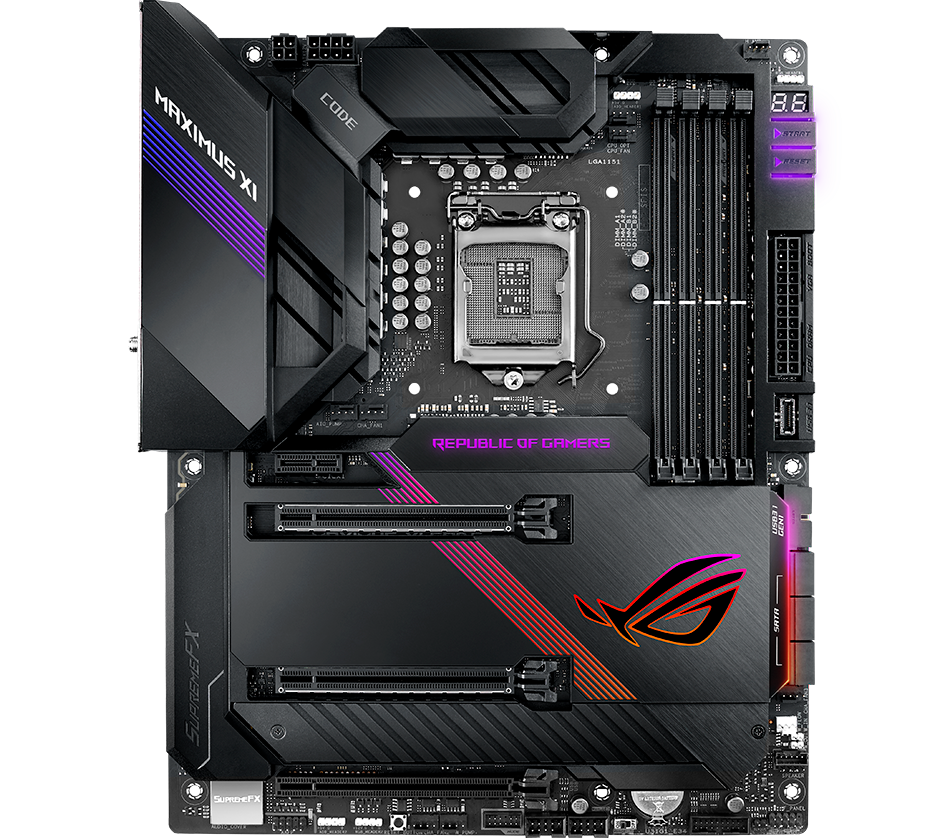

Product Overview ROG Maximus XI Code
The Maximus XI Code’s lighting effects, heatsink fins, and RGB armour all echo ROG’s classic slash design making it the ideal foundation for builds that take centre stage in your gaming environment. The large thermal armour can neatly tuck away two M.2 drives whilst keeping them cool. OptiMem II allows memory speeds to achieve up to 4400MHz+. Networking is well accounted with Intel Wireless-AC 9560 2x2 WiFi and Intel Ethernet. Upgraded software includes Sonic Studio and Sonic Radar III, RamCache III, Ai Suite and Ai Optimisation. Aura is also more powerful and compatible with various devices. Features Innovation
• M.2 heatsinks.
• NODE connector.
• Pre-mounted I/O shield.
• Water cooling zone.

Performance
• CrossChill EK III.
• OptiMem II.
• Up to quad PCIe 3.0 x4 M.2.
• DDR4 4266MHz.

Aesthetics
• Aura Sync.
• Refined two-toned theme.

Audio Fidelity
• SupremeFX S1220.
• ES9023P DAC.
• Sonic Radar III.
• Sonic Studio III + Sonic Studio Link.
Specifications
Core Specifications
Edition ROG MAXIMUS XI CODE
Form Factor ATX
CPU Socket 1151
Chipset Intel Z390
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400+(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors HDMI 1.4b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe 3.0
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0/SATA
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 2-pin W_IN connector
  • 1 x 2-pin W_OUT connector
  • 1 x 24-pin (Power)
  • 1 x 3-pin W_FLOW connector
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin H_AMP_Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 5-pin EXT_FAN(Extension Fan) connector
  • 1 x 8-pin (Power)
  • 2 x Aura Addressable Strip Headers
  • 2 x Aura RGB Strip Headers
  • 1 x Front Panel Audio Header
  • 1 x MemOK!-II switch
  • 1 x NODE connector
  • 1 x Reset Button
  • 1 x ReTry Button
  • 6 x SATA III - 6Gb/s
  • 1 x START (Power On) button
  • 1 x System panel connector
  • 1 x T_Sensor Connector
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen2 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel Wireless-AC 9560 (ac WiFi, MU-MIMO, BT5)
  • 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x HDMI 1.4b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 6 x USB 3.1 Gen1 Type-A
  • 3 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 244 mm
