ASUS AMD Radeon RX 6800 ROG Strix OC 16GB Graphics Card
ASUS Radeon RX 6800 ROG Strix OC 16GB GDDR6 Ray-Tracing Graphics Card, RDNA2, 3840 Streams, 1980MHz GPU, 2190MHz Boost
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
ROG Strix Radeon RX 6800 OC Gaming RDNA2 Graphics Card by ASUS

Frame Crunching Colossus The ROG Strix Radeon RX 6800 brings an industry leading cooling solution to high-end power performance and additional "creature" comforts. Under the hood a large heatsink is cooled by a trio of axial-tech fans whilst top-shelf capacitors chokes and MOSFETs deliver hundreds of watts at a milliseconds notice, Powered by the all-new breakthrough RNDA2 architecture - engineered to deliver powerhouse performance to all gamers. The AMD Radeon™ RX 6800 graphics card powers a new generation of competitive and 4K gaming with vivid visuals, and elevated experiences in every game and every frame with powerful enhanced new compute units, AMD Infinity Cache, DirectX 12/PCIe 4.0 Support and 16GB of dedicated GDDR6 memory. Experience gaming with realistic lighting, shadows, and reflections along with rich detail thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimised for AMD RDNA™ 2 architecture. The AMD Radeon 6800 is engineered to deliver ultra-high frame rates and serious 4K resolution gaming.
3840Stream Processors
16GBGDDR6 Memory
1980 MHzCore Clock
2190 MHzBoost Clock
Increased Fan Blade Count
Axial-Fan Technology A new generation of axial-tech fans has risen with an increased blade count across all three fans; 13 blades on the center with 11 blades on the auxillary fans, the barrier rings on the side fans have been streamlined to allow for more lateral intake to allow better airflow through the cooling array. The central fans additional blades and full-height ring boost static pressure to blast air directly onto the heat spreader, These fans have been designed specifically for a massive new heatsink that features more fins and a larger surface area than previous iterations.
Reverse Rotational Design
Quiet Cunning To assist with the specialised roles of the three fans, the rotational direction of the center fan has been reversed in order to reduce turbulent air inside of the cooling array to give you heightened thermal performance and with fan stop technology fans will only start to spin when GPU temperature hits 60°C reducing noise and increasing fan longevity when under a light load.
MaxContact Cooling

Smoother at a microscopic levelTo ensure maximum thermal efficiency, MaxContact technology has been utilised to smooth the surface of the heat spreader at a microscopic level allowing for better contact with the GPU die giving you enhanced thermal transfer.
No Nonsense Metal Shroud

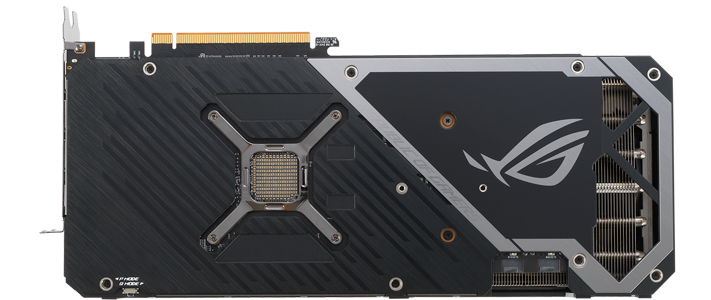

ARMORED UNDERSIDEThe underside of the card reveals further improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. This vent allows hot air to escape towards the chassis exhaust fans instead of being recycled back into the GPU cooler. An included GPU bracket provides extra stability to the critical connection between die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. And a conveniently placed Dual Bios switch allows customisation of the card’s default performance profile without software.
Not Just a Pretty Face

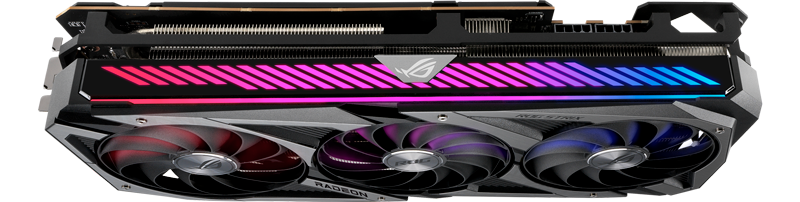

Gnarly GrillAn impressive addressable RGB element on the front of the card can be customized with Armoury Crate to create a uniform look along with other ROG components. To fulfill the power demands of the Radeon RX 6800, two 8-pin power connectors are present, along with an onboard circuit that monitors PSU rail voltage. The circuit is fast enough to catch any transients that result in the rail voltage dropping too low. If that happens, a red LED will light up to indicate a power supply issue. The Strix’s reinforced metal frame is also visible here, adding a literal layer of durability.
A Breakthrough Gaming Architecture

RDNA2 ArchitectureAMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi- gaming platforms, like no other graphics architecture before.

AMD FidelityFX

Contrast Adaptive SharpeningOFF

Contrast Adaptive SharpeningON
Bring Out All The DetailContrast Adaptive Sharpening (CAS) helps increase visual quality by enabling stunning visual sharpness with optional upscaling to restore detail lost after Temporal Anti-Aliasing (TAA) is applied. For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.

Shading Rate OverlayOFF

Shading Rate OverlayON
Get Performance with QualityUsing RDNA2 architecture and variable rate shading allows fidelityFX to analyse luminance and motion of frames to help optimise rending to ensure you also get optimal performance without reducing image quality.

Ambient OcclusionOFF

Ambient OcclusionON
Realistic Geometry ShadingAMD RDNA™ architecture-optimized Combined Adaptive Compute Ambient Occlusion (CACAO) dynamically and efficiently helps improve the appearance of objects based their exposure to ambient light.

Screen Space ReflectionsOFF

Screen Space ReflectionsON
High-Quality Realistic ReflectionsAMD’s implementation of Stochastic Screen Space Reflections (SSSR) delivers high-quality reflections with minimal overhead via an optimised compute shader and AMD RDNA™ architecture-optimised denoising.

DenoiserOFF

DenoiserON
High-Quality Raytracing and EffectsDenoising optimised for AMD RDNA™ architecture to help improve the visual quality of real-time raytracing and other in-game effects.

HDR MapperOFF

HDR MapperON
High-Quality HDR GamingOptimised for use with AMD FreeSync™ Premium Pro1 displays, AMD's Luminance Preserving Mapper (LPM) delivers superb HDR and wide color gamut content.
AMD Graphics Card Specifications
AMD Radeon RX Card Specifications | |||||||
---|---|---|---|---|---|---|---|
Model | RX 6800 XT | RX 6800 | RX 5700 XT | RX 5600 XT | RX 5500 XT | RX 580 | RX 570 |
Architecture | RDNA2 | RDNA2 | RDNA | RDNA | RDNA | GCN 4th | GCN 4th |
GPU | Big Navi | Big Navi | Navi 10 | Navi 10 | Navi 14 | Polaris XTX | Polaris 20 Pro |
Stream Processors | 4,608 | 3,840 | 2,560 | 2,304 | 1,408 | 2,304 | 2,048 |
Ray Accelerators | 72 | 60 | 0 | 0 | 0 | 0 | 0 |
Reference Base Clock | 2,015 MHz | 1,815 MHz | 1,605 MHz | 1,420 MHz | 1,607 MHz | 1,257 MHz | 1,168 MHz |
Reference Boost Clock | 2,250 MHz | 2,105 MHz | 1,905 MHz | 1,620 MHz | 1,845 MHz | 1,340 MHz | 1,244 MHz |
Memory | 16GB GDDR6 | 16GB GDDR6 | 8GB GDDR6 | 6GB GDDR6 | 4GB/8GB GDDR6 | 4GB/8GB GDDR5 | 4GB/8GB GDDR5 |
Memory Controller | 256-bit | 256-bit | 256-bit | 192-bit | 128-bit | 256-bit | 224-bit |
TDP | 300W | 250W | 225W | 160W | 130W | 185W | 150W |
