Scan code: LN105017 Manufacturer code: TUF 3-RX5600XT-O6G-EVO-GAMING

ASUS AMD Radeon RX 5600 XT TUF 3 EVO OC 6GB GDDR6 RDNA PCIe 4.0 Graphics Card

ASUS Radeon RX 5600 XT TUF 3 EVO OC 6GB GDDR6 PCIe 4.0 Graphics Card, 7nm RDNA, 2304 Streams, 1460MHz GPU, 1620MHz Boost

Thumbnail 1 : ASUS AMD Radeon RX 5600 XT TUF 3 EVO OC 6GB GDDR6 RDNA PCIe 4.0 Graphics Card Thumbnail 2 : ASUS AMD Radeon RX 5600 XT TUF 3 EVO OC 6GB GDDR6 RDNA PCIe 4.0 Graphics Card Thumbnail 3 : ASUS AMD Radeon RX 5600 XT TUF 3 EVO OC 6GB GDDR6 RDNA PCIe 4.0 Graphics Card Thumbnail 4 : ASUS AMD Radeon RX 5600 XT TUF 3 EVO OC 6GB GDDR6 RDNA PCIe 4.0 Graphics Card ASUS AMD Radeon RX 5600 XT TUF 3 EVO OC 6GB GDDR6 RDNA PCIe 4.0 Graphics Card : video thumbnail 1
Scan code: LN105017 Manufacturer code: TUF 3-RX5600XT-O6G-EVO-GAMING
£339.98Item currently awaiting an ETA
Pre order
From £16.32 / month (APR 14.9%)
Monthly Payment: £59.00
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £339.98
Total inc. interest: £353.97
Monthly Payment: £30.52
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £339.98
Total inc. interest: £366.27
Monthly Payment: £21.05
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £339.98
Total inc. interest: £378.81
Monthly Payment: £16.32
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £339.98
Total inc. interest: £391.63
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £8.49 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

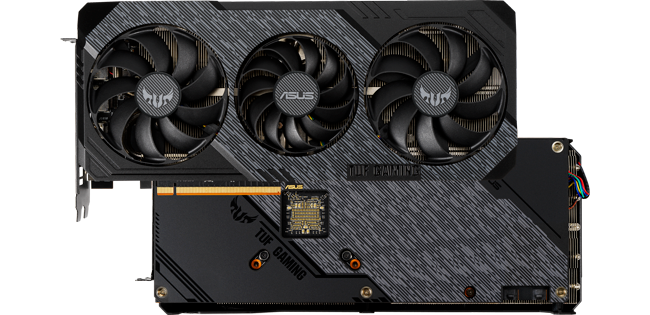

ASUS TUF Gaming AMD Radeon RX 5600 XT EVO Graphics Card

TUF Gaming X3 Radeon RX 5600 XT EVO

Tanks through the oppositionIntroducing the TUF Gaming X3 Radeon RX 5600 XT EVO, the card thats built TUF, bringing 3 powerful fans to up the ante each GPU is built using Auto-Extreme manufacturing and is protected by a rigid backplate that prevents PCB flex and utilizes durable dual ball fan bearings. And, it's all backed by a rigorous battery of validation tests to ensure compatibility with the latest TUF products. If you're looking for the super-cooled tank of graphics cards, lock and load your rig with the TUF Gaming X3 EVO. powered by the latest generation of the advanced 7nm RDNA Architecture from AMD taking 1080p gaming to all new heights with ultra-responsive, high fidelity triple A gaming with up to 60 frames per second and eSports gaming with up to 90 frames/sec and because of the additional compute units you can expect optimised visual and performance benefits including blur effects, volumetric lighting and multi-level cache hierarchy giving you blisteringly fast response times.

2304Stream Processors

6GBGDDR6 Memory

1460 MHz (1495 MHz)Core Clock (OC MODE)

1620 MHz (1640 MHz)Boost Clock (OC MODE)

Axial-Tech Fans

Better, Faster, Stronger Newly designed for the latest generation of top-end ROG graphics cards, these fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.

Smart Fans, Intelligent Cooling

0DB Technology

0DB Technology An advanced onboard controller brings fans to a standstill if GPU temperatures are below 55°C letting you enjoy light gaming/load in relative silence as load increases and temperatures rise the fans will automatically start up again.

How Big?!

2.7 Slot Design

Sink your heat into thisThe TUF Gaming X3 EVO leverages a staggering 2.7-slot design to gain more surface area on the heatsink. the extra headroom increases the potential and stability of overclocking and increases cooling efficiency overall.

Double the Lifespan

Dual Bearing Fans

Dual Ball Fan BearingsBall bearings excel at durability and can last up to twice as long as sleeve bearing designs, keeping your fans running longer and longer.

Precision Automated Manufacturing

Auto-Extreme Technology

Auto-Extreme TechnologyAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

Industry First Technology

Max Contact

Max Contact TechnologyMaxContact is an industry-first technology that utlises precision machining to create a heat spreader surface that makes up to 2x more contact with the GPU chip, resulting in improved thermal transfer.

"Extensive" May be an Understatement

144 Hour Validation Period

Tested to the maxEach card must meet rigorous performance and reliability standards before it ships. Performance and stress tests are run with the latest triple A titles like Fortnite, Overwatch, League of Legends, Call of Duty Etc. ASUS also carry out reliability trials that include a 144-hour stability test and a series of 3DMark benchmarking tests to ensure the card performs well when pushed to its limits.

Monitor, Tweak and Tune

GPU Tweak II

GPU Tweak IIThe ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

Brand New RDNA Architecture with 7nm Process

RDNA Navi Architecture

Reduces latency and provides higher bandwidthPowered by the groundbreaking 7nm RDNA architecture with Radeon™ Image Sharpening and Radeon™ Anti-Lag technology, Radeon RX 5600 XT GPU delivers extremely efficient, ultra-responsive, high-fidelity gaming for immersive explosions, physics, and lighting effects, bringing realism to life. Take your gaming experience to the next level. You can experience stutter-free, tear-free gaming, reduced input latency and day-0 drivers optimized for new game releases.

Featuring GDDR6 Memory and Compatiblity with PCIe 4.0

amd gddr6 4.0

Super-fast performance for todays demanding titlesEquipped with 6GB of advanced GDDR6 memory to provide high bandwidth of up to 224 GB/s, enabling 1080p performance for today’s most demanding games. Radeon RX 5600 XT features PCI® Express 4.0 support, which enables two times the bandwidth compared to PCI Express 3.0. Get ready for the next generation of PC gaming.

High Fidelity Graphics When you Need it Most

FidelityFX

Fidelity FXThe AMD Radeon™ RX 5600 XT graphics card powers high fidelity gaming for immersive explosions, physics, and lighting effects,bringing realism to life. High-performance RDNA architecture was engineered to greatly enhance features like FidelityFX, Radeon™ Image Sharpening,and Integer Display Scaling for maximum performance and beautiful gaming experiences.

High performance, High Resolution

Ultra HD Support

Ultra HD Support The RX 5600 XT GPU is built for high-performance and high resolution gameplay. Experience smooth gameplay performance at 1080p.With support for 8k you are ready for Next-Gen displays. See everything in mind blowing detail without sacrificing performance.

Intuitive Gaming Features

AMD Adrenalin 2020

Adrenalin 2020AMD Radeon™ Software Adrenalin 2020 Edition gives you more control over your gaming experiences. The software's intuitive interface enables players to stream, share and tweak graphics settings in real-time without missing a second of the action or compromising in-game performance.

AMD VR Premium

AMD VR Ready Premium Experience the new generation of compelling Virtual Reality content with the Radeon™ graphics card paired with the leading VR headsets. The Radeon™ card coupled with AMD LiquidVR™ technology delivers a virtually stutter-free, low latency experience, essential for remarkable Virtual Reality environments. Industry leading innovation and powerful performance enables the Radeon™ to deliver premium experiences on high-end VR games, entertainment, and applications.

AMD Eyefinity

AMD Eyefinity TechnologyExpand your territory and customize your field of vision. Connect up to six displays on a single GPU for dynamic, panoramic multi-screen gaming. You’ll get an expansive experience that’s truly out of sight. (additional displays may require the use of MST hub). ‍

AMD Graphics Card Specifications

AMD Radeon RX Card Specifications
Model RX 5700 XT RX 5700 RX 5600 XT RX 5500 XT RX 590 RX 580 RX 570 RX 560 RX 550
Architecture RDNA RDNA RDNA RDNA GCN 4th GCN 4th GCN 4th GCN 4th GCN 4th
GPU Navi 10 Navi 10 Navi 10 Navi 14 Polaris Polaris XTX Polaris 20 Pro Baffin Baffin
Stream Processors 2,560 2,304 2,304 1,408 2,304 2,304 2,048 896/1024 512/640
Reference Base Clock 1,605 MHz 1,465 MHz 1,420 MHz 1,607 MHz 1,469 MHz 1,257 MHz 1,168 MHz 1,175 MHz 1,287 MHz
Reference Boost Clock 1,905 MHz 1,725 MHz 1,620 MHz 1,845 MHz 1,545 MHz 1,340 MHz 1,244 MHz 1,275 MHz 1,287 MHz
Memory 8GB GDDR6 8GB GDDR6 6GB GDDR6 4GB/8GB GDDR6 8GB GDDR5 4GB/8GB GDDR5 4GB/8GB GDDR5 4GB GDDR5 4GB GDDR5
Memory Controller 256-bit 256-bit 192-bit 128-bit 256-bit 256-bit 224-bit 128-bit 64/128-bit
TDP 225W 225W 160W 130W 225W 185W 150W 60-80W 50W
Specifications
Key Specifications
Chipset Radeon RX 5600 XT
Edition TUF 3 EVO OC
Manufacturing Process 7 nm
Microarchitecture RDNA
Cores & Clocks
Streams 2304
Core Clock 1460 (1495 OC Mode) MHz
Boost Clock 1620 (1640 OC Mode) MHz
Video Memory (VRAM)
Memory Size 6GB
Memory Type GDDR6
Memory Clock 12000 MHz
Memory Speed (Effective with DDR)
Memory Bus 192 Bit
Memory Bandwidth
Memory Data Rate
Cooling
Cooling Solution Tri Fan (3)
Cooler Design ASUS Triple Fan Cooler with RGB
Fitted/Included Backplate Yes
I/O & Connectivity
Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
Connectivity
  • 3 x DisplayPort 1.4 (DSC)
  • 1 x HDMI 2.0b
Visuals
AMD CrossFire Support Supported
AMD Freesync Support Yes
AMD FreeSync Version FreeSync™ 2 HDR
HDR Support Yes
Microsoft DirectX Support 12 API
Max. Concurrent Displays 4 Displays
Maximum Digital Resolution 7680x4320 (8K UHD)
Maximum Analog (VGA) Resolution
Compute Performance
Peak Half Precision Compute Performance (FP16)
Peak Single Precision Compute Performance (FP32)
Peak Double Precision Compute Performance (FP64)
Power & Thermals
Graphics Card Power Connectors 1 x 8-pin PCIe
Graphics Card TDP/Power
Minimum Recommended PSU 450 W
Maximum GPU Temperature
Physical
Width 2.75 Slot
Low Profile Support N/A
Dimensions
Package Type Retail
Additional Information
Scan Code LN105017
Model Number TUF 3-RX5600XT-O6G-EVO-GAMING
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
