Scan code: LN120782 Manufacturer code: PROART Z690-CREATOR WIFI

ASUS ProArt Z690-CREATOR WIFI Intel Z690 PCIe 5.0 ATX Motherboard

ASUS ProArt Z690-CREATOR WIFI, Intel Z690, S 1700, DDR5, PCIe 5.0, SATA3, 4x M.2, 10GbE, ax WiFi, USB 3.2 Gen2, ATX

Thumbnail 1 : ASUS ProArt Z690-CREATOR WIFI Intel Z690 PCIe 5.0 ATX Motherboard Thumbnail 2 : ASUS ProArt Z690-CREATOR WIFI Intel Z690 PCIe 5.0 ATX Motherboard Thumbnail 3 : ASUS ProArt Z690-CREATOR WIFI Intel Z690 PCIe 5.0 ATX Motherboard Thumbnail 4 : ASUS ProArt Z690-CREATOR WIFI Intel Z690 PCIe 5.0 ATX Motherboard
Scan code: LN120782 Manufacturer code: PROART Z690-CREATOR WIFI
£499.99Item due on 07 December 2021
Due 7th Dec
From £13.89 / month (APR 0%) or 0% for 4 months
Monthly Payment: £41.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £499.99
Total inc. interest: £499.99
Monthly Payment: £20.84
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £499.99
Total inc. interest: £499.99
Monthly Payment: £13.89
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £499.99
Total inc. interest: £499.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £12.49 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
ASUS Cashback Promo

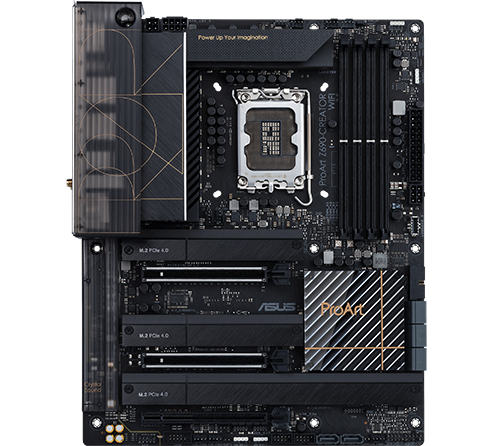

ASUS ProArt Z690 CREATOR 12th Gen Intel ATX Motherboard

ProArt Z690 Creator

Create until your hearts content The ASUS ProArt Z690-Creator WiFi empowers creators of all levels by maximizing the performance of 12th Gen Intel® Core™ processors with powerful hardware and software, efficient cooling and lightning-fast connectivity including Thunderbolt™ 4, onboard 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E. It features dynamic automated tuning with AI overclocking and AI cooling, in addition to the all-new CreationFirst software, which prioritises and optimises your network traffic for faster, lag-free online work. Every aspect of the ASUS ProArt motherboards is built to remove barriers and deliver optimal performance to content creators who work in 3D modeling and rendering, animation or media production. The series empowers you to concentrate on your creativity and expand what is possible.

Intel Z690Chipset

LGA 1700CPU Socket

ATXForm Factor

The Next Generation of Performance

Intelligent VRM Design With tailored CPU power delivery and support for the latest high-performance memory, ProArt Z690-Creator WiFi easily handles the demands of the latest 12th Gen Intel® Core™ processors. It features an intelligent VRM design that’s rated for 70 amps, plus carefully selected components and memory layout optimizations for multithreaded tasks such as 3D animation, video rendering and software compiling.

Power Design

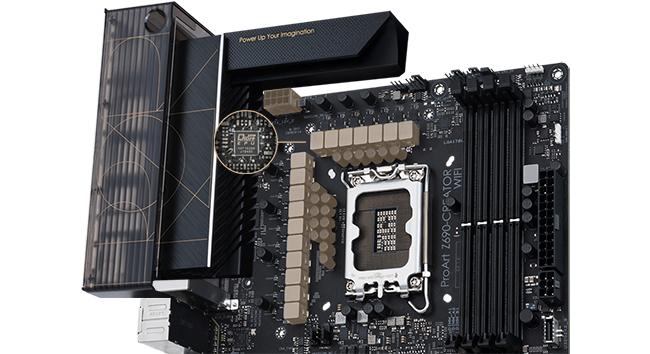

Durable Excellent Power Delivery for the Latest CPUs16+1 power stages rated for 70 amps combine high-side and low-side MOSFETs and drivers which deliver power and efficiency for the latest Intel 12th Gen processors. The ASUS Digi+ voltage-regulator module ensures you get ultra smooth power delivery to your CPU. The ProCool socket enables lower impedance and better heat dissipation. Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures.

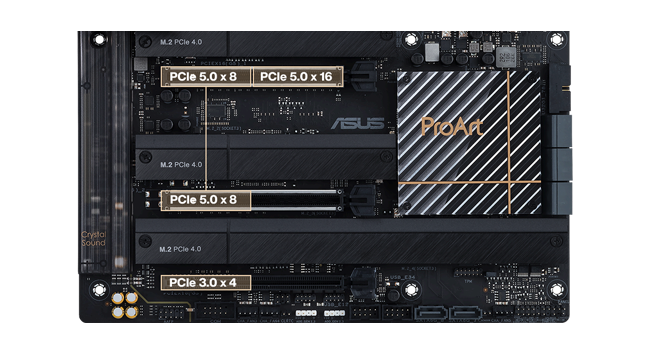

Aggregate bandwidth of up to 512GBPSThe 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as improved signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous PCIe versions.

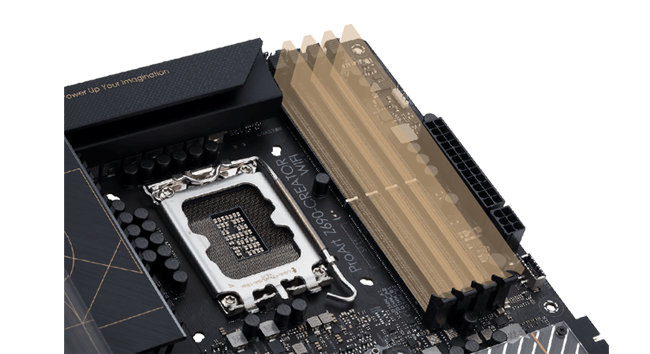

ASUS Enhanced Memory ProfileProArt Z690-Creator WiFi enhances DDR5 performance by providing overclocking options for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC). A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit and push frequency and timings to the max. ProArt Z690-Creator WiFi leverages onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory. For users new to memory overclocking, ProArt Z690‑Creator WiFi includes the exclusive ASUS Enhanced Memory Profile (AEMP) firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

Future-Proofed Connectivity

wifi 6e

Robust Power Design A comprehensive array of powerful I/O ports — including two Thunderbolt™ 4 ports plus 10 Gb and 2.5 Gb Ethernet ports— enables quick data transfers and extensive storage options with flexible, hassle-free connectivity. Each Thunderbolt 4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe® bandwidth to up to 32 Gbps. USB 3.2 Gen 2x2 boosts Type-C data transfers with speeds of up to 20 Gbps. The port also features Quick Charge 4+ technology that can quickly charge devices up to 60 W with a PCIe power supply cable plugged into the nearby 6-pin connector.

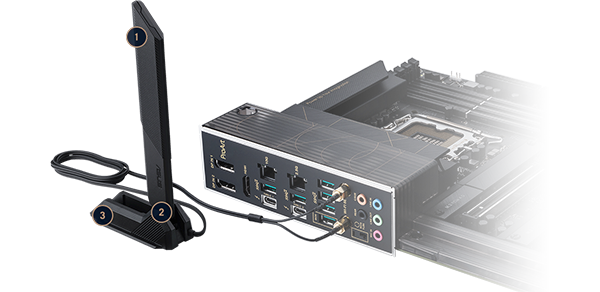

1. WiFi 6E Antenna The antenna has two built-in transmitters and receivers to enable faster transmission speeds, and it supports the 2.4, 5 and 6 GHz bands.

2. Adjustable Design Four-way positioning enables better signal reception.

3. Magnetic Base A powerful magnetic base secures the antenna on the top or side of the PC case.

WiFi 6EOnboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast networking speeds along with improved capacity and better performance in dense wireless environments.

Marvell® AQtion 10 Gb EthernetDesigned to meet the demanding requirements of power users and content creators, onboard 10 Gb Ethernet provides a new level of home networking. With up to 10 times the bandwidth of standard gigabit Ethernet, streaming uncompressed 4K UHD videos, performing system backups or transferring large files is now faster than ever before.

Intel® 2.5 Gb EthernetThe Intel 2.5 Gb Ethernet port provides up to a 2.5 times improvement over standard 1 Gb Ethernet connections for faster data transfers and smooth high-res video streaming.

Ultrafast Transfer Speed with M.2 Storage

m2 storage

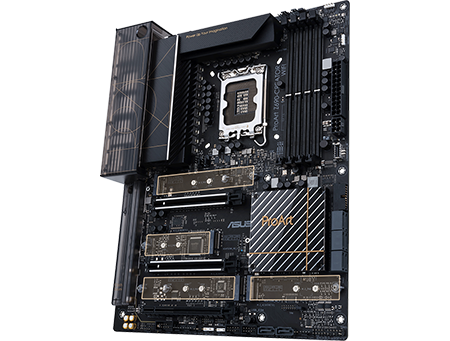

Easy to installFour PCIe 4.0 M.2 slots support up to 22110 and provide NVMe® SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data transfer speeds. The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.

Tweak and Tune your Motherboard to Suit You

Predictive Edge

Designed by ExpertsFor each new motherboard platform, the ASUS R&D team painstakingly profile thousands of processors and system configurations to hone the highly advanced algorithm of AI Overclocking.

Realtime Adjustments

Predictive EdgeThe software monitors workload, system temperature, fan speed and power draw every minute, and makes real-time adjustments to ensure ongoing optimal performance.

Realtime Adjustments

Real-time AdjustmentsThe software monitors workload, system temperature, fan speed and power draw every minute, and makes real-time adjustments to ensure ongoing optimal performance.

AI OverclockingASUS AI Overclocking automatically tunes your system with onboard intelligence that monitors system vitals — such as temperatures, fan speeds and power draw — to estimate cooling and overclocking headroom and deliver optimal performance for content-creation workflows.

Keep Your System Performing with Intelligent Cooling

AI Intelligent Cooling

AI Cooling With one click, AI Cooling function will automatically manage and control motherboard-connected fans to ensure optimal settings based on current system load and temperature.

Temperature detection sensors

CPU Temperature DetectionAI Cooling detects CPU temperatures and uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system and keep fan noise down.

Automated optimisation

Automated OptimisationUnder stable system loads, the software then automatically lowers fan* speed to the optimal setting, decreasing fan noise without compromising performance.

constant monitoring

Ongoing MonitoringAI Cooling continues to monitor the system and adjust fan speed based on current load.

Designed and Optimised for Content Creation

Creation first

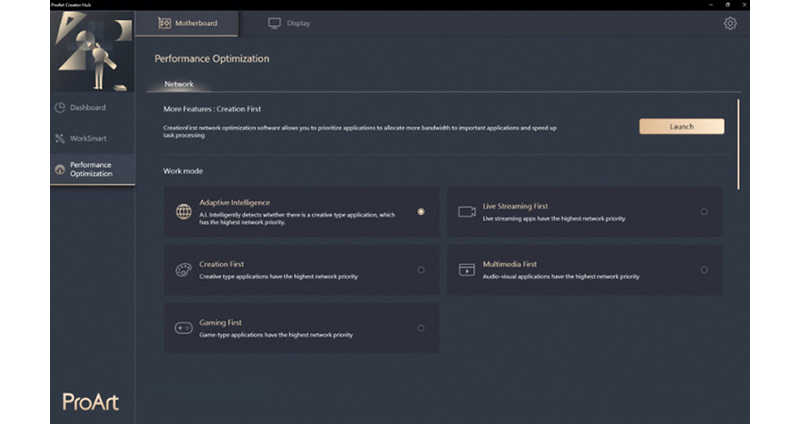

prioritise content creation appsCreationFirst optimization software allows users to prioritize applications to allocate more bandwidth for essential apps and tasks. CreationFirst mode puts content-creation applications at the front of the queue, optimizing network traffic for more efficient workflows. Similarly, Adaptive Intelligence mode analyzes usage patterns and identifies applications that are currently in use, and applies foreground acceleration to ensure smoother online experiences when multitasking.

Comprehensive Cooling Design

AI Intelligent Cooling

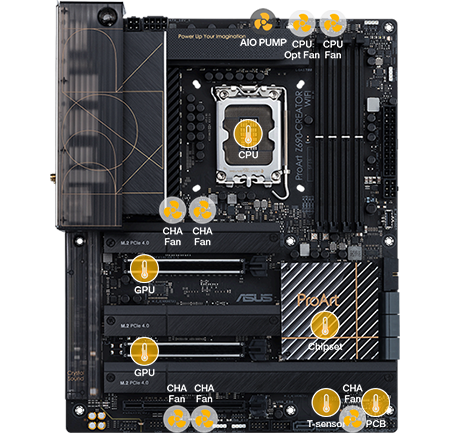

AI Cooling Maintaining system stability under heavy loads is of paramount importance, so ProArt Z690-Creator WiFi features comprehensive cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Integrated premium components and multiple fan headers are also vital design elements that provide the best foundation for content creation systems. ProArt Z690-Creator WiFi features these comprehensive cooling options:

Temperature detection sensors

4-pin PWM/DC Fan HeadersEvery onboard header supports auto-detection of PWM or DC fans.

Automated optimisation

Multiple Temperature SourcesEach header can be set to monitor and react to multiple user-configurable thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4 or UEFI.

constant monitoring

AIO PumpA dedicated PWM/DC header for self-contained water-cooling setups.

Free 3 Months of Adobe Creative Cloud

adobe

EXPLORE THE POSSIBILITIES WITH ADOBE Get complimentary membership with the purchase of selected ASUS products.
Click here for more information.

20+ Adobe appsIndustry-leading apps including Photoshop, Illustrator, InDesign, Spark and XD.

Adobe FontsAccess thousands of fonts right within your Creative Cloud apps.

BehanceFind inspiration in the world’s largest creative community.

Creative Cloud LibrariesYour team can share assets across their apps and devices, so everyone’s in sync.

1TB of cloud storage per userExtra storage makes it easier for your team to share and manage creative assets.

Specifications
Core Specifications
Edition ProArt Z690-CREATOR WIFI
Form Factor ATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 2133
  • DDR5 - 2400
  • DDR5 - 2666
  • DDR5 - 2800
  • DDR5 - 2933
  • DDR5 - 3000
  • DDR5 - 3200
  • DDR5 - 3300(OC)
  • DDR5 - 3333(OC)
  • DDR5 - 3400(OC)
  • DDR5 - 3466(OC)
  • DDR5 - 3600(OC)
  • DDR5 - 3733(OC)
  • DDR5 - 3866(OC)
  • DDR5 - 4000(OC)
  • DDR5 - 4133(OC)
  • DDR5 - 4266(OC)
  • DDR5 - 4400(OC)
  • DDR5 - 4500(OC)
  • DDR5 - 4600(OC)
  • DDR5 - 4700(OC)
  • DDR5 - 4800(OC)
  • DDR5 - 5000(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x16
  • 2 x PCIe 5.0 x16
SATA Support N/A
RAID Support via
Storage Mode Support
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 1 x CPU/DRAM Overvoltage Jumper
  • 1 x Front Panel Audio Header
  • 8 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x speaker header
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 10G LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 10GbE RJ45
  • 5 x Audio I/O
  • 1 x BIOS Flashback Button
  • 2 x DisplayPort
  • 1 x HDMI
  • 2 x Thunderbolt 4
  • 6 x USB 3.2 Gen2 Type-A
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 x 50 mm
Note
Additional Information
Scan Code LN120782
Model Number PROART Z690-CREATOR WIFI
GTIN 4711081460732
