Scan code: LN107137 Manufacturer code: ProART Z490-CREATOR 10G

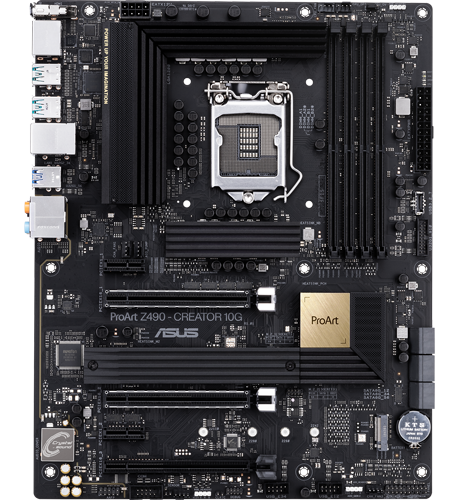

ASUS ProArt Intel Z490-CREATOR 10th Gen ATX Motherboard

ASUS ProArt Z490-CREATOR 10G, Intel Z490, S 1200, DDR4, SATA3, Dual M.2, 3-Way CrossFire, 2.5GbE, 10G LAN Card, ATX

Thumbnail 1 : ASUS ProArt Intel Z490-CREATOR 10th Gen ATX Motherboard Thumbnail 2 : ASUS ProArt Intel Z490-CREATOR 10th Gen ATX Motherboard Thumbnail 3 : ASUS ProArt Intel Z490-CREATOR 10th Gen ATX Motherboard Thumbnail 4 : ASUS ProArt Intel Z490-CREATOR 10th Gen ATX Motherboard ASUS ProArt Intel Z490-CREATOR 10th Gen ATX Motherboard : video thumbnail 1
Scan code: LN107137 Manufacturer code: ProART Z490-CREATOR 10G
£383.99
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
Delivery Options
  • By DPD On 10th Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ProArt Z490-CREATOR 10th Generation Intel ATX Motherboard from ASUS

ProArt Z490 Creator

Create until your hearts content Introducing the all-new ASUS ProArt Z490-CREATOR 10G, this is an outstanding motherboard offering simple and flexible tools that enhance almost every aspect of your content-creation system, giving you the fast, intuitive control needed for an efficient workflow. It features dynamic automated tuning with AI overclocking and AI cooling, in addition to the all-new CreationFirst software, which prioritises and optimises your network traffic for faster, lag-free online work. Every aspect of the ASUS ProArt motherboards is built to remove barriers and deliver optimal performance to content creators who work in 3D modeling and rendering, animation or media production. The series empowers you to concentrate on your creativity and expand what is possible.

Intel Z490Chipset

LGA 1200CPU Socket

ATXForm Factor

High Quality Components to Handle High Core CPUs

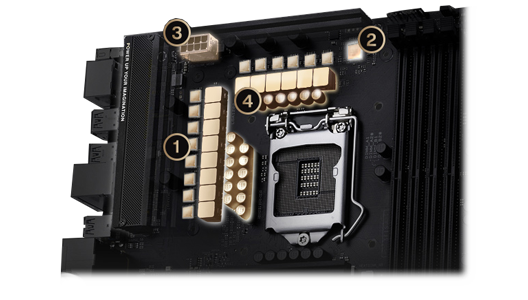

Robust Power Design

Robust Power Design Digital power control and an array of DrMOS power stages ensure that ASUS ProArt Z490-CREATOR 10G has the strength to handle powerful Intel CPUs.

1. 12+2
Power Stages
12+2 DrMOS power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.

2. Digi+
Power Control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

3. ProCool II
Power Connector
ProCool II sockets are engineered to ensure flush contact with the PSU power lines, and have a metal armor for improved heat dissipation. The connector's lower impedance helps prevent hotspots and improves reliability.

4. Choke
& Capacitor
Superior chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

Multi-GPU Support for High Performance Graphics

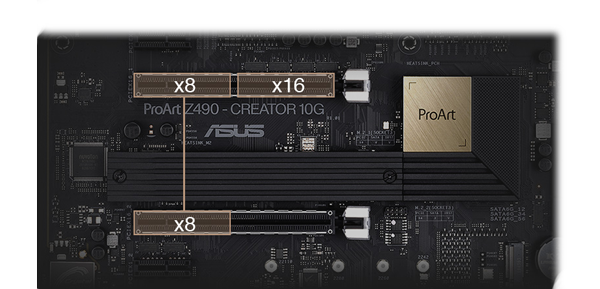

Multi-GPU Support

3x PCIe 3.0 x16 slotsASUS ProArt Z490-CREATOR 10G features three PCIe® 3.0 x16 slots for high-powered graphics cards such as NVIDIA® Quadro®, enabling enhanced performance in professional design, modeling and simulation and rendering applications.

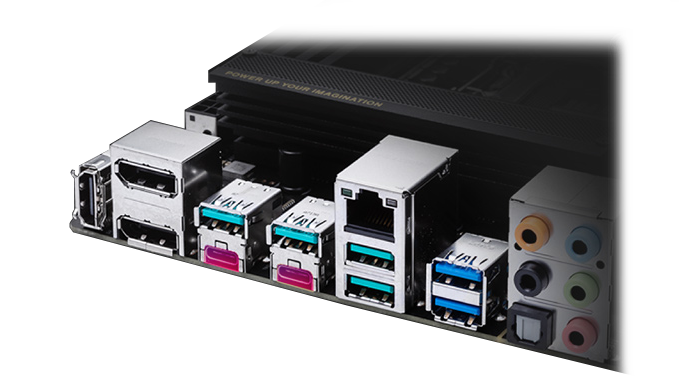

Dual Thunderbolt 3 Type-C Ports

DUAL TB3 Ports

ULTRAFAST CONNECTIVITY FOR SEAMLESS SPEEDEach Thunderbolt 3 port supports DisplayPort 1.4 output and can daisy-chain to up to six devices, with 15 watts of power to fast-charge devices. ProArt Z490-CREATOR 10G features two Thunderbolt 3 ports, offering a total of up to 40 Gbps of aggregate interface bandwidth, which allows numerous devices to be connected to the motherboard at once with ultrafast data transfer speeds.

Give Yourself More Connectivity Options

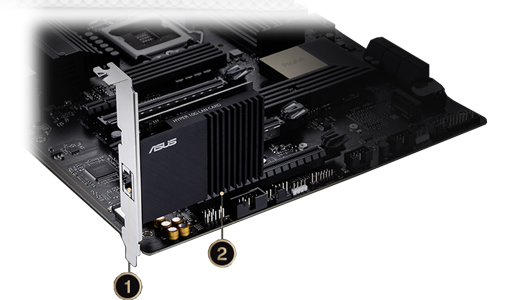

10g LAN Card

HYPER 10G LAN CardA HYPER 10G LAN card enables speeds that are up to 10 times faster than standard Gigabit Ethernet — so it’s ideal for content creators who frequently work with large files. Upload 4K video or transfer other large files quickly and with ease. The HYPER 10G LAN card can be installed for additional connectivity options. Installation is easy, and simply requires inserting the card into a PCIe® 3.0 slot and connecting your existing copper network cables to the RJ45 Ethernet port. No software installation or setup is necessary.

Enough Storage for All of your Creations

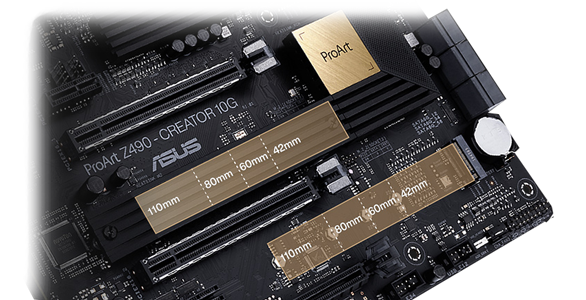

Dual M.2

Dual M.2 SlotsOne M.2 slot supports SATA and PCIe® 3.0 x4 modes, and the other supports PCIe 3.0 x4 for NVMe, offering up to 32 Gbps data-transfer speeds and flexible M.2 interfaces.

Tweak and Tune your Motherboard to Suit You

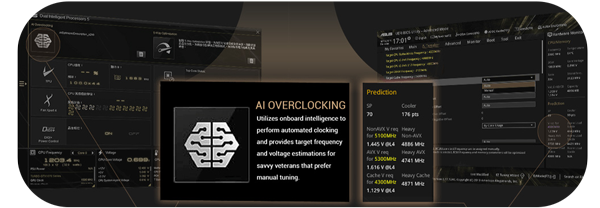

AI Overclocking

AI Overclocking ASUS AI Overclocking automatically tunes your system with onboard intelligence that monitors system vitals — such as temperatures, fan speeds and power draw — to estimate cooling and overclocking headroom and deliver optimal performance for content-creation workflows.

Predictive Edge

Predictive EdgeThe algorithm analyzes your CPU and cooling system and, based on what it finds, predicts optimal settings. The software then uses these settings to automatically guide the clocking process, balancing frequency and voltage.

Realtime Adjustments

Real-Time AdjustmentsThe software monitors workload, system temperature, fan speed and power draw every minute, and makes real-time adjustments to ensure ongoing optimal performance.

Keep Your System Performing with Intelligent Cooling

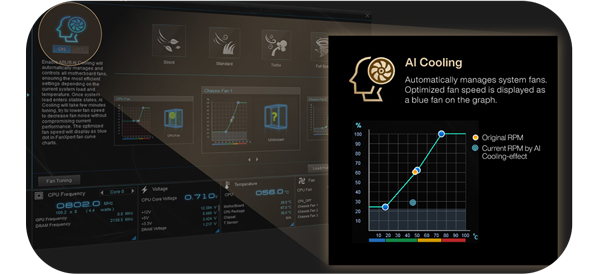

AI Intelligent Cooling

AI Cooling With one click, AI Cooling function will automatically manage and control motherboard-connected fans to ensure optimal settings based on current system load and temperature.

Temperature detection sensors

CPU Temperature DetectionAI Cooling detects CPU temperatures and uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system and keep fan noise down.

Automated optimisation

Automated OptimisationUnder stable system loads, the software then automatically lowers fan* speed to the optimal setting, decreasing fan noise without compromising performance.

constant monitoring

Ongoing MonitoringAI Cooling continues to monitor the system and adjust fan speed based on current load.

Designed and Optimised for Content Creation

Creation First With one click, AI Cooling technology will automatically manage and control motherboard-connected fans to ensure optimal settings based on current system load and temperature.

Adaptive mode

Adaptive Intelligence ModeCreationFirst intelligently prioritises bandwidth of heavy-use applications by identifying in-use applications and using foreground acceleration. This allows for smoother multi-tasking, so you can work on projects while efficiently transferring files and downloading project materials.

Creation First Mode

Creation First ModeCreation First mode allocates more bandwidth to active content creation applications to optimise network traffic, making your content creation workflow more efficient.

Reach Peak Efficiency with the ProArt Creator Hub

Creator Hub

ProArt Creator Hub A user-friendly interface provides applications designed to enhance workflow through central control of all connected ProArt series products, including motherboards and displays.

1. Dashboard The dashboard monitors the overall status of the system and selects different modes to optimise performance for current tasks.

2. Fan Mode Fan mode quickly configures your system cooling by selecting preferred fan settings.

3. Task GroupApplications that are frequently used together can be arranged into groups and launched with a single click. These task groups can be set up on the WorkSmart page.

Specifications
Core Specifications
Edition ProArt Z490-Creator 10G
Form Factor ATX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4500(OC)
  • DDR4 - 4600(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC S1220A 7.1 HD Audio + Crystal Sound 3
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 1.4b
  • Thunderbolt 3
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-60/80/110, PCIe Gen3/SATA
  • 2 x PCIe 3.0 x1
  • 3 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support Intel Optane Memory Ready
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS Header
  • 1 x CPU_OV jumper
  • 1 x FlexKey Header
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 5.1 Audio I/O
  • 2 x DisplayPort IN for Thunderbolt™ 3
  • 1 x HDMI
  • 1 x S/PDIF-Out (Optical)
  • 2 x Thunderbolt 3
  • 2 x USB 3.2 Gen1 Type-A
  • 4 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
