ASUS ProArt Core i9 Mini PC Quadro P4000

ASUS ProArt PA90-M9019ZN, i9 9900K, 32GB DDR4, 512GB PCIe SSD+1TB HDD, 8GB Quadro P4000, GbE/ac WiFi, TB3, Win10 Pro

Thumbnail 1 : ASUS ProArt Core i9 Mini PC Quadro P4000 Thumbnail 2 : ASUS ProArt Core i9 Mini PC Quadro P4000 Thumbnail 3 : ASUS ProArt Core i9 Mini PC Quadro P4000 Thumbnail 4 : ASUS ProArt Core i9 Mini PC Quadro P4000
Scan code: LN99729 Manufacturer code: PA90-M9019ZN-OSS
£3,179.99Item currently awaiting an ETA
Pre order
From £86.85 / month (APR 14.9%)
Monthly Payment: £285.48
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £3,179.99
Total inc. interest: £3,425.72
Monthly Payment: £152.64
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £3,179.99
Total inc. interest: £3,663.21
Monthly Payment: £108.64
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £3,179.99
Total inc. interest: £3,910.98
Monthly Payment: £86.85
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £3,179.99
Total inc. interest: £4,168.75
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Mini PC i9 ProArt PA90 with NVIDIA Quadro P4000 Graphics

ASUS ProArt PA90 i9 Mini PC

workstation-class mini PC for creators ASUS Mini PC ProArt PA90 Series is the core of innovation and is power-driven by a 9th-Generation Intel® Core™ i9 processors for smooth and prevailing performance. Featuring incredible NVIDIA® Quadro® P4000 graphics, ultra-fast storage and connectivity including Thunderbolt™ 3 ports, and all-inclusive features designed for content creators. ASUS Mini PC ProArt provides speedy and proficient performance and supplies the specific needs of creative professionals, delivering powerful and stable computing for computer-aided design (CAD) workflows for architecture, engineering and manufacturing, combined with an outstanding, compact design that blends effortlessly into any workplace.

Core I9-9900KIntel CPU


1TB HDD + 512GB SSDStorage

32GBDDR4 Memory

The Power to Create

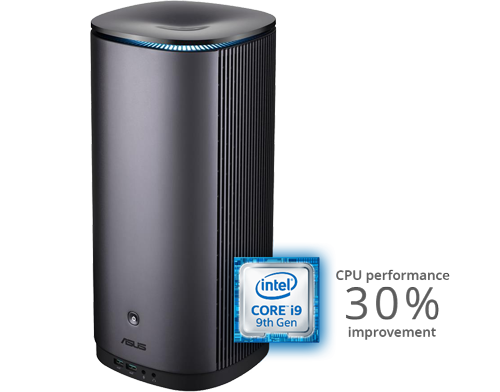

Performance i9

9th Generation® Core™ Performance The Mini PC ProArt PA90 guarantees smooth and receptive multitasking performance for supremely demanding applications and complex projects. Powered by 9th Generation Intel® Core™ processors that provide up to 30% better performance than previous-generation processors. Professional content creation workflows often involve processor-intensive tasks and working with multiple large files instantaneously.

Professional NVIDIA® Quadro® Graphics


enjoy stunning premium graphics The Mini PC ProArt PA90 delivers the precision and detail that professional designers need with NVIDIA® Quadro® P4000 8GB GDDR5 Dedicated Graphics that offer enhanced performance to smoothly drive multiple ultra-high-resolution displays and speed up 3D rendering tasks. It's faultless for photo and video editing, computer-aided design (CAD) workflows for architecture, engineering and manufacturing as well as media and entertainment.
Additionally, the VR-ready NVIDIA® Quadro® P4000 graphics card gives designers the ability to work with models naturally in 3D space and create immersive virtual environments at the scale of their imagination.


Independent software vendor (ISV) certification Independent software vendor (ISV) software is developing into an important factor to users in a range of industries. ASUS works in neighbouring partnership with ISV vendors, such as Adobe and Autodesk, to test and validate compatibility. This ensures that the ASUS Mini PC is trustworthy and highly operative for users in different fields.

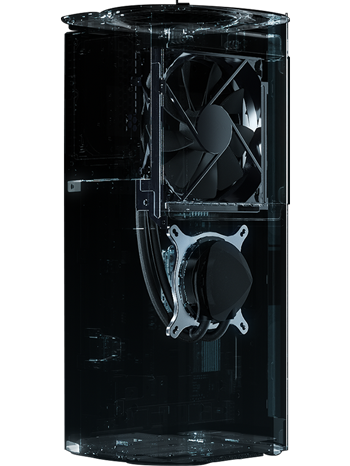

Liquid Cooling for Maximum Performance and Stability

cooling performance

up to 38% more airflow A high-performance cooling system is crucial for heavy design workloads. With an all-in-one liquid CPU cooler, Mini PC ProArt PA90 lets loose the full performance of the CPU, while distributing consistently quiet and steady operation, assisting to avoid slowdowns, application crashes and even unexpected shut downs while working on your projects. Its advanced cooling system also spontaneously extends the PC's top cover when the CPU is at full load to maximise airflow for optimal performance.

Accelerate Your Workflow

Intel® Optane™ technology increases performance Designers who graft with large files are all too accustomed with waiting for data transfers and other disk-intensive tasks to complete. The Mini PC ProArt PA90 advances performance when working with these types of files with its triple-storage design, featuring two M.2 PCIe 3.0 x4 SSDs and one 2.5-inch HDD that run ultra-fast data transfers and high-capacity storage. Also, the support for up to 64GB of 2666MHz DDR4 RAM, provides the ability cache large files and programs for faster access. Intel® Optane™ technology progresses storage and memory performance, increasing overall system alertness and speeding up launch times of the apps and files you practice most to give designers who work with large amounts of data a faster, more efficient workflow.


Media & EntertainmentLet your creativity run free with high-performance photo and video editing, and faster 2D and 3D design workflows.


Architecture, Engineering & ConstructionExperience smooth visual computing, real-time simulation and realistic 3D modeling.


ManufacturingConfidently achieve sophisticated product designs, without missing details.

Extensive Connectivity Options


Ultra-fast Thunderbolt™ 3 connectivity Professional designers and content creators transfer large files to external storage devices and connect to multiple product and data devices at the same time. Mini PC ProArt PA90 easily supports these usage scenarios with Thunderbolt™ 3 connectivity, which delivers ultra-fast data transfer speeds of up to 40Gbps, which is fast enough to transfer a full 4K movie in less than 30 seconds! It also includes Two USB 3.1 Gen2 and Mic in/Mic out Audio Jacks located at the front of the Mini PC for quick access. With Thunderbolt™ 3, it also supports daisy-chaining multiple devices via a single port, and the small and reversible USB-C connector makes connecting docks, external drives and displays super easy.

Quiet, Energy-Efficient Design

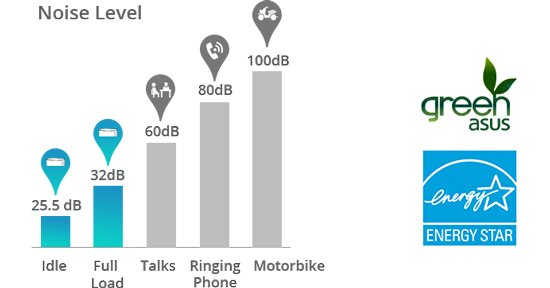

eco-friendly ASUS mini PCS The Mini PC ProArt PA90 is exceptionally quiet with its liquid CPU cooler, which generates only 25.5dB at idle and 32dB at full load, so that you can concentrate on your workload without excessive noise. Eco-friendly ASUS mini PCs are recipients of some of the PC industry's highest environmental certifications, including Energy Star which makes it superbly energy efficient.

energy design

Fully Tested for Perfection

reliability you can trust ASUS mini PCs undergo extensive noise, vibration, drop, and thermal shock tests to ensure they meet exacting ASUS standards and exceed industry requirements. Be confident that your ASUS mini PC can cope with extreme conditions, ranging from dry -40°C temperatures, to humid and hot environments exceeding 60°C for long periods of time.


Vibration Test


Drop Test


Port Test


Temperature and Humidity Test


Noise Test


Line Voltage and Frequency Test

Edition ProArt PA90-M7018ZN-OSS
Form Factor mini PC
CPU Included Yes
CPU Type Intel Core i9
CPU Model 9900K
Architecture Coffee Lake Refresh
Manufacturing Process 14 nm
Unlocked CPU Yes
Core 8 Core
No. of Threads 16
Clock Speed 3.6 GHz
Burst Frequency 5.0 GHz
CPU Cache 16MB
CPU Cooler All-in-One Water Cooler
Max. TDP 95 W
CPU Socket 1151
Chipset Intel Z390
Motherboard Form Factor Bespoke/Custom
Motherboard Model
Memory Type DDR4 SO-DIMM
Memory Included Yes
Memory Capacity Included 32GB (2x16GB)
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz) DDR4 - 2666
Max. Memory Capacity 64GB (4x16GB)
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU Yes
Discrete GPU Chipset Quadro P4000
GPU Architecture Pascal
GPU Manufacturing Process 16 nm
GPU Cores/Streams/Execution Units 1792
GPU Tensor Cores N/A
Base GPU Speed 1202 MHz
Max. GPU Speed 1480 MHz
GPU Memory Size 8GB
GPU Memory Type GDDR5
GPU Memory Clock 7600 MHz
GPU Memory Bus 256 Bit
Discrete GPU Cooler Air Cooled
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface PCIe 3.0 (x16)
Expansion Slots N/A
HDD Storage Included Yes
HDD Storage Type 1x M.2 PCIe NVMe SSD + 1x 2.5" SATA HDD
HDD Storage Capacity 512GB + 1TB
Optical Drive None
Drive Bays N/A
Backplane I/O
RAID Support
Internal I/O N/A
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x 802.11ac WiFi + BT5
  • 1 x Gigabit LAN
Front Panel
  • 1 x Headphone Out
  • 1 x Mic In
  • 2 x USB 3.1 Gen2 Type-A
Back Panel
  • 2 x Antenna Ports
  • 2 x DC-In Jack
  • 4 x DisplayPort
  • 1 x Headphone-Out
  • 1 x RJ-45
  • 2 x Thunderbolt 3
  • 2 x USB 3.1 Gen2 Type-A
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 180 + 230 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included Yes
Operating System Windows 10 Pro
Colour Midnight Blue
Dimensions 176 x 365 x 176 (mm WxHxD)
Weight 5.2 kg
  • 1 x Quick Start Guide
  • 1 x UK Power Cable
  • 1 x Warranty Card
  • 2 x Wi-Fi Antenna
Storage Drives
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Additional Information
Scan Code LN99729
Model Number PA90-M9019ZN-OSS
GTIN 4718017240901
