Scan code: LN122648 Manufacturer code: PROART B660-CREATOR D4

ASUS Intel B660 ProArt B660-CREATOR D4 ATX Motherboard

ASUS ProArt B660-CREATOR D4, Intel B660, S 1700, DDR4, SATA3, PCIe 5.0, M.2, 2.5 GbE, USB 3.2 Gen2 C, ATX

Thumbnail 1 : ASUS Intel B660 ProArt B660-CREATOR D4 ATX Motherboard Thumbnail 2 : ASUS Intel B660 ProArt B660-CREATOR D4 ATX Motherboard Thumbnail 3 : ASUS Intel B660 ProArt B660-CREATOR D4 ATX Motherboard Thumbnail 4 : ASUS Intel B660 ProArt B660-CREATOR D4 ATX Motherboard
Scan code: LN122648 Manufacturer code: PROART B660-CREATOR D4
Order now and receive it by Wednesday, 6th July
£229.99
Get it Wednesday, 06 JulIn stock
From £10.17 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £19.77
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £229.99
Total inc. interest: £237.20
Monthly Payment: £10.17
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £229.99
Total inc. interest: £244.00
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 6th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Intel B660 ProArt B660-CREATOR D4 ATX Motherboard from ASUS

B660

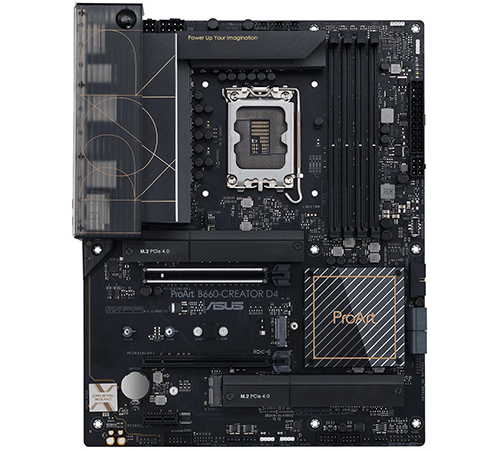

Your Powerhouse for Creativity ProArt B660-Creator D4 is an enhanced motherboard designed for intensive content-creation workloads like 3D rendering and 4K/8K video editing. It unleashes the performance of 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+, and DisplayPort™ via USB-C.

Intel B660Chipset

LGA 1700CPU Socket

ATXForm Factor

Comprehensive Connectivity

down

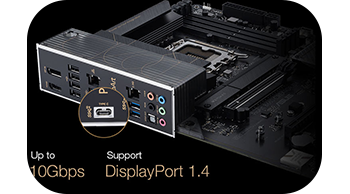

USB-C DisplayPort (DP Alt Mode)This USB Type-C® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort™ 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display*.

up

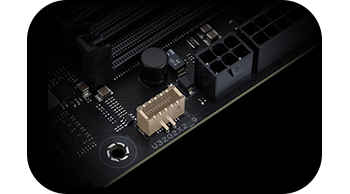

USB 3.2 Gen 2x2 Type-C® Front-Panel ConnectorA USB 3.2 Gen 2x2 connector boosts Type-C data transfers with speeds of up to 20 Gbps. The connector also features Quick Charge 4+ technology that can quickly charge devices up to 60 W with a PCIe power supply cable plugged into the nearby 6-pin connector.


back

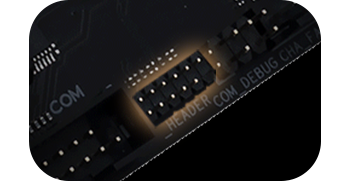

Thunderbolt™ 4 Support ProArt B660-Creator D4 features Thunderbolt™ 4 support via an on-board header. The ASUS ThunderboltEX 4 add-on card is certified by Intel and can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, the card has a daisy-chain function for multiscreen connection and supports one display with up to 8K resolution . It can also provide up to 100 watts of power to fast-charge devices.


back

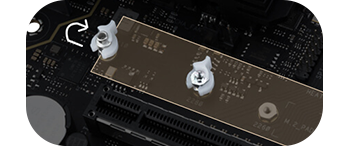

Ultrafast M.2 Transfer SpeedsThree M.2 slots support PCIe 4.0 or 3.0 drives and provide NVMe® SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Next-Gen Performance

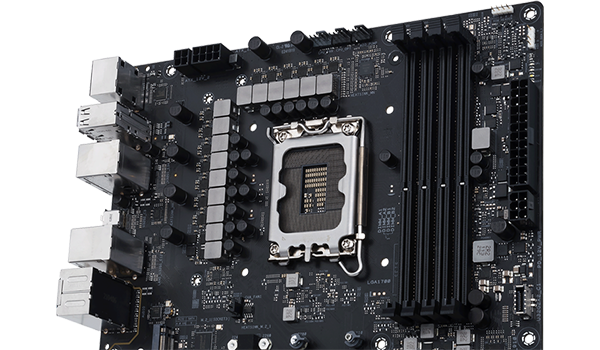

robust power delivery With tailored CPU power delivery and support for high-performance memory, ProArt B660-Creator D4 easily handles the demands of the latest 12th Gen Intel Core processors. It features an intelligent VRM design that’s rated for 50 amps, plus carefully selected components and memory layout optimizations for multithreaded tasks such as 3D animation and video editing.

4K Recording

Teamed power stages12+1 power stages rated for 50 amps combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest 12th Gen Intel Core processors demand.

Digi+ Power ControlThe ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

ProCool power connectorThe ASUS ProCool socket is built to exacting specifications to ensure flush contact with PSU power lines, enabling lower impedance and better heat dissipation.

Chokes & capacitorsPremium alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.


back

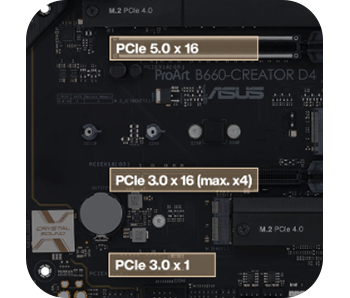

pcie 5.0 ready The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as improved signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous PCIe versions.


back

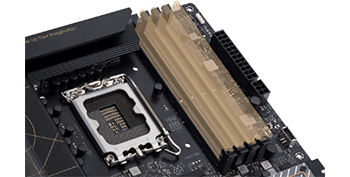

ddr4 memory ProArt B660-Creator D4 supports up to 128 GB of DDR4 memory across four slots. ASUS-exclusive OptiMem II technology improves trace layout to significantly reduce signal distance and crosstalk, enhancing memory stability and compatibility while giving memory kits higher clock speed margins.

Optimized Cooling Design

4K Recording

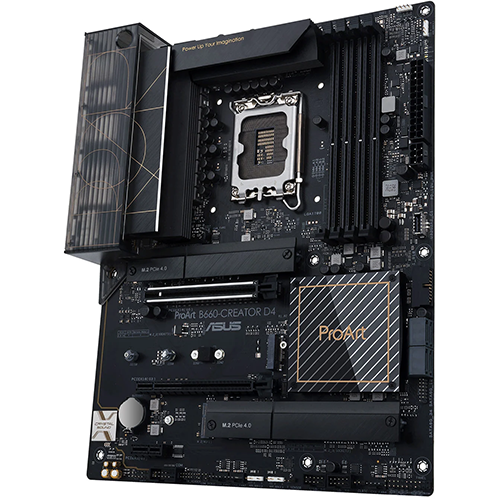

IMPRESSIVE COOLING WITH HEATSINKSMaintaining system stability under heavy loads is of paramount importance, so ProArt B660-Creator D4 features comprehensive cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Integrated premium components and multiple fan headers are also vital design elements that provide the best foundation for content creation systems.

Perfect for Content Creation

ProArt exclusive software utilities deliver intuitive system monitoring, audio and networking enhancements that enable a smoother workflow. ASUS Control Center Express software offers advanced security management functions to protect the system and confidential data.

down

USB port managementEnable or disable USB ports or set them to Read Only to prevent data leaks.

up

Software blacklistFor added security, a software blacklist is available to help identify high-risk applications.

up

Registry editor enabled/disabledRemotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.

Do More with ProArt Creator Hub

4K Recording

an interface for creativesA user-friendly interface helps enhance workflows via a central system that allows monitoring and control of all connected ProArt products, including motherboards and displays. Fan mode allows you to select the preferred fan setting to quickly configure the system’s cooling performance. Task grouping allows applications that are frequently used together to be arranged into groups and launched with a single click.

Specifications
Core Specifications
Edition ProArt B660-CREATOR D4
Form Factor ATX
CPU Socket 1700
Chipset Intel B660
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5333(0C)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 5.0 x16
SATA Support N/A
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel (Gigabit LAN)
  • 1 x Realtek (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x 10/100/1000/2500 (LAN)
  • 5 x Audio I/O
  • 1 x DisplayPort In
  • 1 x HDMI
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN122648
Model Number PROART B660-CREATOR D4
GTIN 4711081518518
