ProArt B550-CREATOR 3rd Gen Ryzen ATX Motherboard Motherboard from ASUS

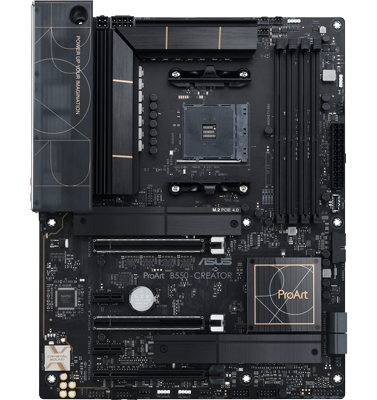

ProArt B550 Creator

Create until your hearts content The ProArt B550-Creator motherboard equips creative professionals with powerful hardware and software tools to accelerate their workflows. Featuring comprehensive, efficient cooling, lightning-fast connectivity and an updated efficient power design, this board maximises the computing power of the latest AMD Ryzen processors to let you create faster and get more done. Boasting PCie 4.0 technology, dual thunderbolt 4 type-C ports and dual M.2 ports Combined with a stylish design, advanced security features and the trusted stability and reliability ASUS motherboards are known for, ProArt B550-Creator perfects the art of performance to empower your creative flow.

AMD B550 Chipset

AM4CPU Socket

ATXForm Factor

High Quality Components to Handle High Core CPUs

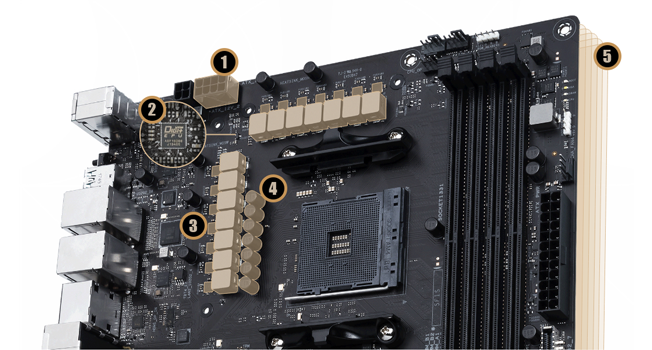

Robust Power Design

Robust Power Design ProArt B550-Creator provides robust power delivery to handle the full power of latest Ryzen processors and improve overall system stability.

1. Procool II
Connector
The ProCool socket is built to exact specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.

2. Digi+
Power Control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

3. 12+2
POWER STAGES
12+2 power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest AMD Ryzen processors demand.

4. Choke
& Capacitor
Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

5. Six Layer
PCB
The 6-layer PCB quickly dissipates heat around the VRM to improve overall system stability and give the CPU more overclocking headroom.

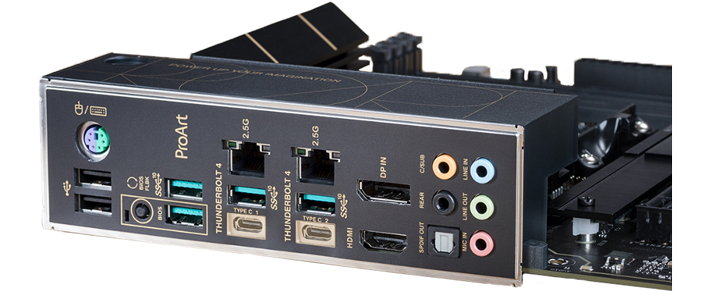

Dual Thunderbolt 4 Type-C Ports

DUAL TB4 Ports

ULTRAFAST CONNECTIVITY FOR SEAMLESS SPEEDEach Thunderbolt™ 4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe bandwidth to up to 32 Gbps.

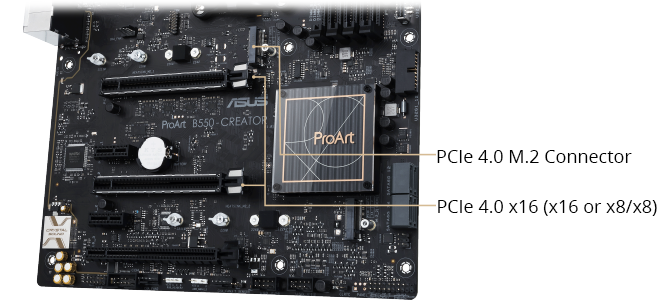

Go Faster with PCIe 4.0

Unthrottled Performance ProArt B550-Creator provides robust power delivery and comprehensive cooling to handle the latest AMD Ryzen™ processors. It also supports PCIe 4.0, providing everything you need for the most demanding multithreaded tasks like 3D or video rendering and software compiling.

4K Recording

Maximise your potentialTo maximise the potential of the AMD Ryzen 3000 and 5000 Series processors, ProArt B550-Creator features faster PCIe® 4.0 x16 slots for high-powered graphics cards as well as PCIe 4.0 and PCIe 3.0 M.2 sockets to support high-bandwidth NVMe SSD RAID for faster content creation.

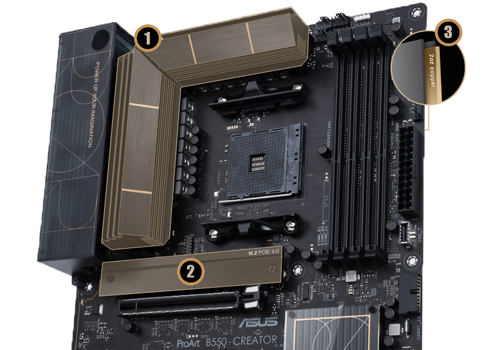

Cool to the Core

4K Recording

1. VRM HeatsinkLarge, high-mass heatsinks with an extensive surface area along with high-quality thermal pads help transfer heat from VRM and choke areas to improve heat dissipation

2. M.2 HeatsinkBoth M.2 drives sit under a passive heatsink to ward off the throttling that can occur with sustained transfers

3. Stack Cool 3+Layers of 2-ounce copper draw heat away from critical components to keep them at their optimal operating temperatures.

Designed and Optimised for Content Creation

Creation First ProArt-exclusive software utilities deliver intuitive system monitoring, audio and networking enhancements that smooth your workflow.

Adaptive mode

Adaptive Intelligence ModeCreationFirst intelligently prioritises bandwidth of heavy-use applications by identifying in-use applications and using foreground acceleration. This allows for smoother multi-tasking, so you can work on projects while efficiently transferring files and downloading project materials.

Creation First Mode

Creation First ModeCreation First mode allocates more bandwidth to active content creation applications to optimise network traffic, making your content creation workflow more efficient.

Reach Peak Efficiency with the ProArt Creator Hub

Creator Hub

ProArt Creator Hub A user-friendly interface provides applications designed to enhance workflow through central control of all connected ProArt series products, including motherboards and displays.

1. Dashboard The dashboard monitors the overall status of the system and selects different modes to optimise performance for current tasks.

2. Fan Mode Fan mode quickly configures your system cooling by selecting preferred fan settings.

3. Task GroupApplications that are frequently used together can be arranged into groups and launched with a single click. These task groups can be set up on the WorkSmart page.

Specifications
Core Specifications
Edition ProArt B550-CREATOR
Form Factor ATX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3333(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4466(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 4866(OC)
  • DDR4 - 5100(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC S1220A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support N/A
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • HDMI 2.1
  • Thunderbolt 4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 2 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 1 x Serial (COM) Header
  • 1 x speaker header
  • 4 x System Fan header
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Dual Wired 2.5G LAN
Network Chip/Modules 1 x Intel® I225V (2.5GbE LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort In
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out
  • 2 x Thunderbolt 4
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 30.5 x 24.4 mm
