Scan code: LN114091 Manufacturer code: PRO B560M-C/CSM

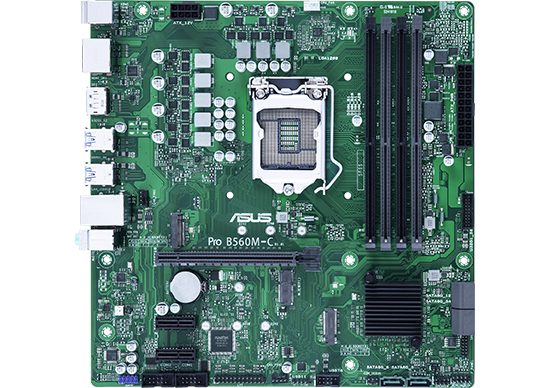

ASUS Pro B560M-C/CSM Intel B560 PCIe 4.0 mATX Motherboard

ASUS Pro B560M-C/CSM, Intel B560, S 1200, DDR4, PCIe 4.0, SATA3, 2x M.2, GbE, USB 3.2 Gen1, Micro-ATX

MORE INFO
MORE INFO
Thumbnail 1 : ASUS Pro B560M-C/CSM Intel B560 PCIe 4.0 mATX Motherboard Thumbnail 2 : ASUS Pro B560M-C/CSM Intel B560 PCIe 4.0 mATX Motherboard Thumbnail 3 : ASUS Pro B560M-C/CSM Intel B560 PCIe 4.0 mATX Motherboard Thumbnail 4 : ASUS Pro B560M-C/CSM Intel B560 PCIe 4.0 mATX Motherboard
Scan code: LN114091 Manufacturer code: PRO B560M-C/CSM
£119.99Item currently awaiting an ETA
Pre Order
Pre order
From £10.78 / month (APR 14.9%)
Monthly Payment: £10.78
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £119.99
Total inc. interest: £129.28
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Pro B560M-C/CSM Business Micro-ATX Motherboard from ASUS

Pro B560M-C/CSM

with enhanced security, reliability and manageability ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

Intel® B560Chipset

LGA 1200Intel® Socket

10th/11th Gen Intel® Core™ Compatible CPUs

Micro ATXForm Factor

Manage your Business with Ease

ASUS Corporate Stable Model (CSM)ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

down

Quick InstallationInstall in less than 5 minutes (no additional software required)

down

Intuitive user InterfaceSingle-view, unified dashboard enables faster management of key information

down

Automatic IP DetectionEasily search, deploy and manage data for multiple clients at one click

down

Floor Plan ViewVisualize client deployments for real-time monitoring and management

down

Hardware-level ControlOut-of-band management tool enables hardware-level control for troubleshooting (optional)

down

Hardware & Software MonitoringMonitor system temperature, fan, voltage and hardware status including add-on VGA cards

down

Remote ManagementRemote desktop, power control, BIOS settings and updates

down

Asset ManagementSoftware dispatch, device-metadata management and report generation

down

Mobile ControlStay in command via a smart device

down

SecurityEnable/disable USB storage, regedit, and software blacklist

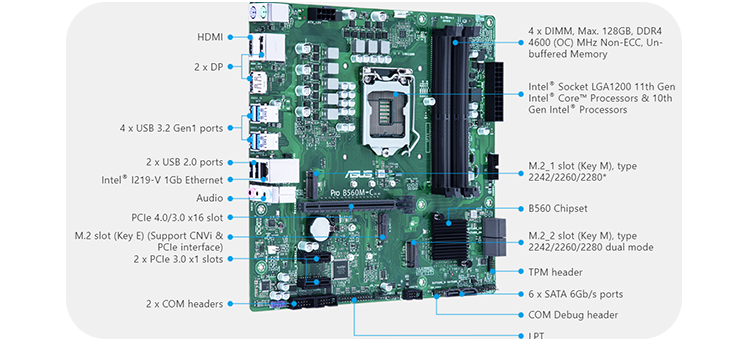

Features of your Pro B560M-C/CSM Motherboard

4K Recording

Internationally Certified Business Motherboard

ASUS Corporate Stable Model (CSM)ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.

ASUS SHIELDEnhances system security from bottom to top.

ASUS ReliantEnsures consistent performance with the finest components and rigorous reliability testing.

MANAGEMENT SUITEMakes customisation and management more efficient.

Specifications
Core Specifications
Edition Pro B560M-C/CSM
Form Factor MicroATX
CPU Socket 1200
Chipset Intel B560
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3200(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.0
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E Vertical (Supports WiFi Modules)
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support N/A
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 2 x M.2
  • 6 x SATA III - 6Gb/s
  • 2 x Serial (COM) Header
  • 1 x SMBus header
  • 1 x System panel connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 2 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN114091
Model Number PRO B560M-C/CSM
GTIN 4711081116318
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
