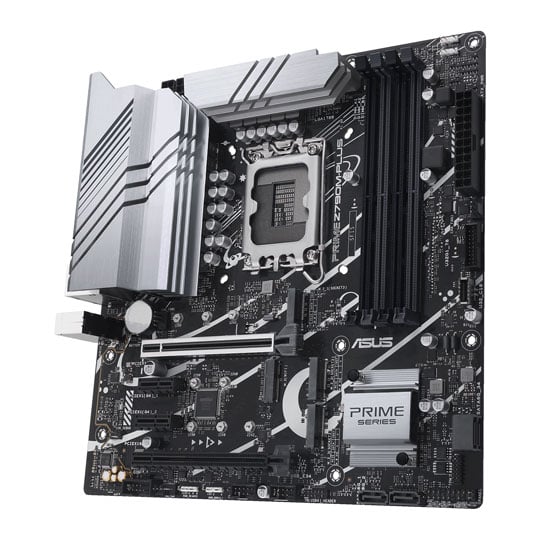

ASUS PRIME Z790M-PLUS DDR5 PCIe 5.0 MicroATX Motherboard
ASUS PRIME Z790M-PLUS, Intel Z790, S 1700, DDR5, PCIe 5.0, 3x M.2, 1x GbE, USB 3.2 Gen2x2, mATX
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Frequently Bought Together
PRIME Z790M-PLUS 13th Gen Intel mATX Motherboard from ASUS
The Latest Addition to the Prime SeriesASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790M-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
LGA 1700Intel Socket
Z790Chipset
13th Gen Intel CoreProcessors
mATXForm Factor
Outstanding Performance
Boost Your ProductivityThe PRIME Z790M-PLUS motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
DDR5 7200+(OC)Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

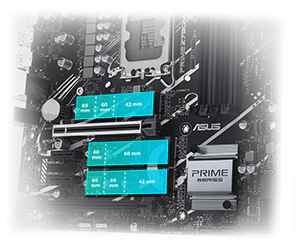

Three M.2 Slots (up to 64 Gbps)PRIME Z790M-PLUS offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.
Intelligent Control
FLEXIBILITYComprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790M-PLUS motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
All-Around Energy EfficiencyThe Power Saving function contains several settings can easily optimise power consumption and maximise energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Flexible Air and Liquid Cooling ControlsASUS Fan Xpert 4 software provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, water pumps and AIO coolers can also be controlled via the UEFI BIOS.
Precise Digital Power ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
Cooler by Design
Configurable CoolingPRIME Z790M-PLUS features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.

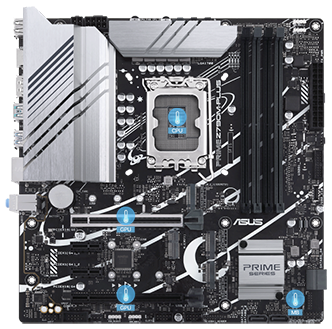

Multiple Temperature SourcesEach header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimise cooling for GPU and CPU-intensive tasks.

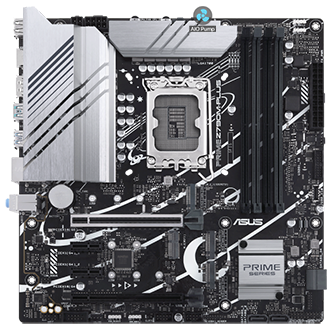

AIO Pump HeaderA dedicated PWM/DC header for self-contained water-cooling setups.
Smart ProtectionA dedicated integrated circuit protects each fan header from overheating and overcurrent.

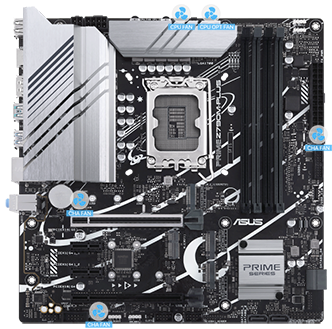

4-Pin PWM/DC FanEach onboard header supports auto-detection of PWM or DC fans.
VRM Heatsinks and Thermal PadsThe extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.
Add A Personal Touch
AURA SYNCA well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Static
Breathing
Strobing
Rainbow
Colour Cycle
Starry Night
Music Effect
Smart
Advanced Configuration Options
UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious TweakersAn intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Quick and Simple SetupEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

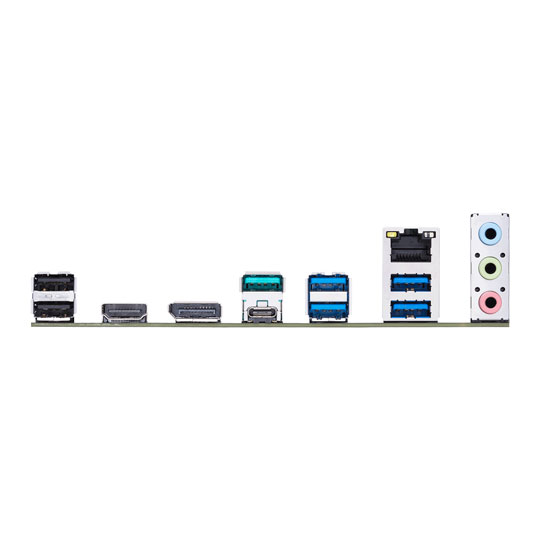

Lightning Fast Connectivity
1 - 2 x USB 2.0 ports (Type-A)
2 - HDMI®
3 - DisplayPort
4 - 1 x USB 3.2 Gen 2x2 Type-C®
5 - 1 x USB 3.2 Gen 2 port
6 - 4 x USB 3.2 Gen 1 ports (4 x Type-A)
7 - Intel® 1Gb Ethernet
8 - 3 x Audio Jacks
