Scan code: LN120794 Manufacturer code: PRIME Z690M-PLUS D4

ASUS Intel Z690 PRIME Z690M-PLUS D4 PCIe 5.0 MicroATX Motherboard

ASUS PRIME Z690M-PLUS D4, Intel Z690, S 1700, DDR4, PCIe 5.0, SATA3, 3x M.2, 2.5GbE, USB 3.2 Gen 2, MicroATX

Thumbnail 1 : ASUS Intel Z690 PRIME Z690M-PLUS D4 PCIe 5.0 MicroATX Motherboard Thumbnail 2 : ASUS Intel Z690 PRIME Z690M-PLUS D4 PCIe 5.0 MicroATX Motherboard Thumbnail 3 : ASUS Intel Z690 PRIME Z690M-PLUS D4 PCIe 5.0 MicroATX Motherboard Thumbnail 4 : ASUS Intel Z690 PRIME Z690M-PLUS D4 PCIe 5.0 MicroATX Motherboard
Scan code: LN120794 Manufacturer code: PRIME Z690M-PLUS D4
£186.98Item due on 07 December 2021
Due 7th Dec
From £15.59 / month (APR 0%) or 0% for 4 months
Monthly Payment: £15.59
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £186.98
Total inc. interest: £186.98
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
ASUS Cashback Promo

ASUS PRIME Z690M-PLUS D4 Intel 12th Generation ATX Motherboard

ASUS PRIME Z690-P

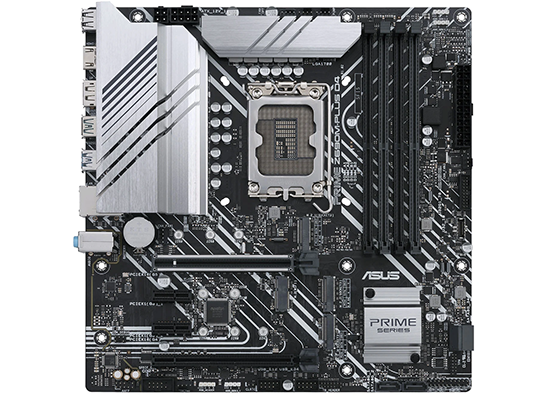

NEXT GENERATION TECH FOR YOUR PC ASUS Prime Z690M-PLUS D4 Intel® Z690 (LGA 1700) mATX motherboard features PCIe® 5.0, DDR4, three M.2 slots, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header and Intel® 1 Gb Ethernet. Prime Z690M-PLUS D4 caters to daily users and all builders looking for well-rounded specs and a range of options for performance tuning via intuitive software and firmware.

Intel® Z690Chipset

LGA 1700CPU Socket

12th Gen Intel®Compatible Processors

ATXForm Factor

Impressive Specs of the PRIME Z690-P

4K Recording

1. Support for the latest 12th Generation Intel® Processors.
2. Dual Channel Memory. DDR4 with support for Optimem II.
3. 3 x M.2 Slots
• 1 x M.2 22110 PCIe 4.0 x4 mode. | • 1 x M.2 2280 PCIe 4.0 x4 mode. |  • 1 x M.2 2280 PCIe 4.0 x4 + SATA modes.
4. Expansion Slots
• 1 x PCIe 5.0 x16 SafeSlot. | • 1 x PCIe 4.0 x 16 |  • 2 x PCIe 3.0 x 16. |  • 1 x PCIe 3.0 x 1.

Utilise Intelligent Control

down

EPUThe Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

down

Fan Xpert 4ASUS Fan Xpert 4 software provides comprehensive control over fans, water pumps and all-in-one (AiO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, water pumps and AiO coolers can also be controlled via the UEFI BIOS.

down

Digi+ VRM ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

Exceptional Performance with Superior Cooling

4K Recording

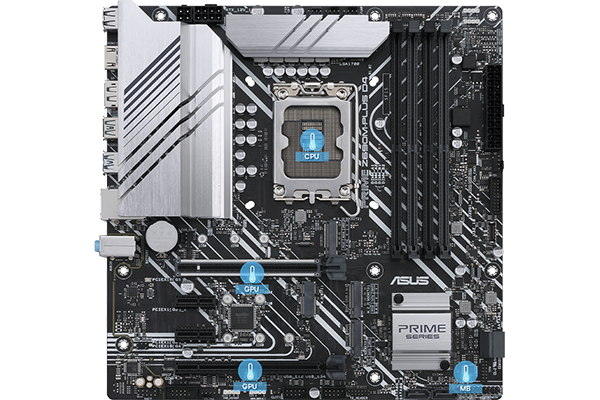

A NEW INNOVATION FOR COOLINGPrime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. Removable captive screws reduce risk of drops or loss during heatsink removal.

Stability like No Other

4K Recording

ASUS OptiMem II & DDR4 5333 (OC)Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

benefits of optimem ii• Improved memory stability and compatibility.
• Allows lower memory latencies at equivalent voltages.
• Improved memory frequency margin.

Versatile Connectivity and Storage

4K Recording

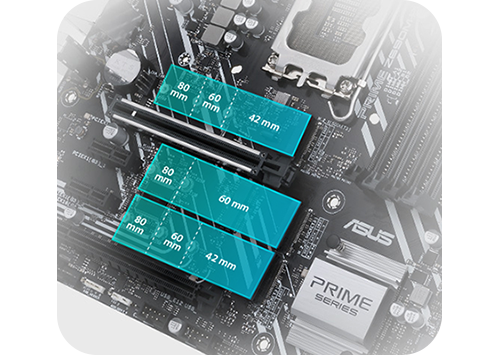

M.2 Slots (Up to 64 Gbps)Prime Z690M-Plus D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.


back

PCIe® 5.0 SlotPCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of PCI Express.


back

USB 3.2 Gen 2x2 Type-C®Numerous USB ports support high-end rigs loaded with peripherals, including both front and rear USB Type-C® connectors with fast USB 3.2 Gen 2x2 for transmission speeds of up to 20 Gbps.


back

Thunderbolt™ 4 Header Prime Z690M-PLUS features Thunderbolt™ 4 via an on-board header. With the latest Intel-certified ASUS ThunderboltEX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display. It also provides up to 100 watts of power to fast-charge devices.


back

Intel® 2.5 Gb EthernetIntel® Ethernet Connection I225-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

Audio for you to be Immersed In

4K Recording

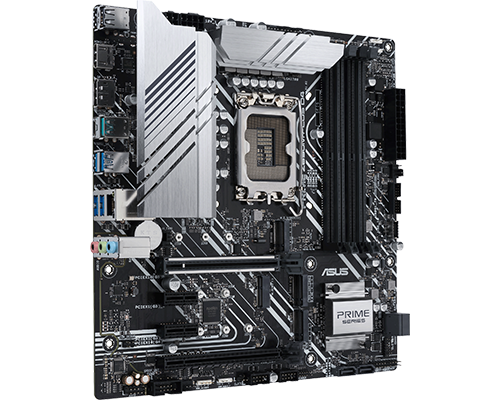

Outstanding AudioCombined onboard features deliver elevated audio. Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced. Audio Shielding separates analog/digital signal domains, significantly reducing multi-lateral interference, whilst separate layers for left and right tracks ensures minimal crosstalk between audio paths. The Z690-P also uses premium parts that provide an immersive sound signature, with exceptional fidelity.

Gain Full Control with Armoury Crate

4K Recording 4K Recording

INTUITIVE MANAGEMENT SOFTWAREArmoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and news to help you stay in touch with the ASUS community.

Specifications
Core Specifications
Edition PRIME Z690M-PLUS D4
Form Factor MicroATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5133(OC)
  • DDR4 - 5333(0C)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10 (SATA only)
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 8-pin PCIe (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x Thunderbolt header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel (Gigabit LAN)
Rear I/O Connectors
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN120794
Model Number PRIME Z690M-PLUS D4
GTIN 4711081466055
