ASUS PRIME Intel Z590M PLUS PCIe 4.0 mATX Motherboard
ASUS PRIME Z590M-PLUS, Intel Z590, S 1200, DDR4, PCIe 4.0, SATA3, 3x M.2, Intel GbE, USB 3.2 Gen2, Micro-ATX
|Instalment Rate:||5.9% p.a. (fixed)|
|Cost of purchase:||£169.98|
|Total inc. interest:||£175.31|
|Cost of purchase:||£99|
|Total inc. interest:||£99|
Purchase Rate: 21.9% p.a. (variable)
Representative: 21.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 27th May
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
ASUS PRIME Z590M-PLUS Intel 11th Generation Micro ATX Motherboard
Get Yourself off to a Great Start Introducing the PRIME Z590M-PLUS motherboard from ASUS, which boasts boosted power delivery, an optimised cooling design to help you get the most out of the latest 11th and 10th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z590 series motherboards provide daily users and DIY PC builders a wealth of performance tuning options via intuitive software and hardware features. PRIME Z590M-PLUS has a futuristic aesthetic with an iridescent metallic nameplate and PCB cover, along with a black and white colour scheme on the PCB. Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximise productivity.
Please note: This motherboard is compatible with Intel® Socket LGA 1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors.

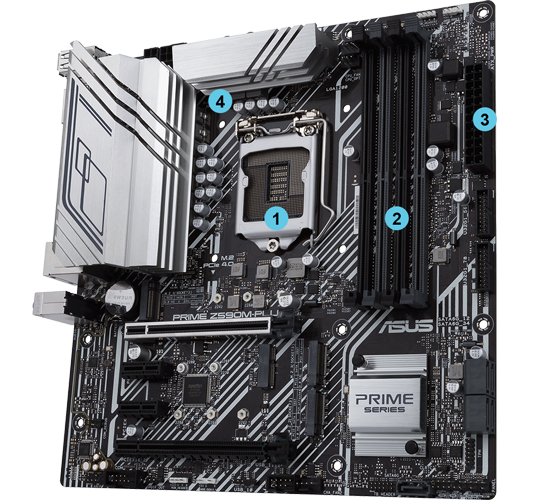

Component Breakdown of the ASUS Z590M-PLUS Motherboard
1. Supports 10th & 11th Gen Processors | 2. 4x DIMM Slots / Max Memory 128GB DDR4 / OPTIMEM II
3. 24Pin ATX Hi-Density Connector | 4. DIGI+ VRM – Digital power design with DrMOS
Expansion Slots: Total supports 3 x M.2 slots and 5 x SATA 6Gb/s ports
CPU Performance BoostPRIME Z590 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. The TurboV Processing Unit (TPU) is an intelligent system-tuning utility that automatically fine-tunes voltages, monitors system stats and adjusts overclocking parameters for optimal performance.
Built to Take the Strain
cool to the core This PRIME Z590M-PLUS motherboard stays cool to the core and includes 2x chassis fan headers, 1x CPU Fan header and 1x AIO/Water pump fan header. With plenty of fan headers you'll know your components will keep cool. It also features multiple temperature sensors and Fan Xpert 4 to provide an overall impressive cooling performance.
VRM Heatsink & Thermal Pads The two massive VRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. A bundled fan holder provides additional cooling options.
Stack Cool 3+ 2-ounce copper PCB design can draw heat away from critical components to keep them at their optimal operating temperatures.

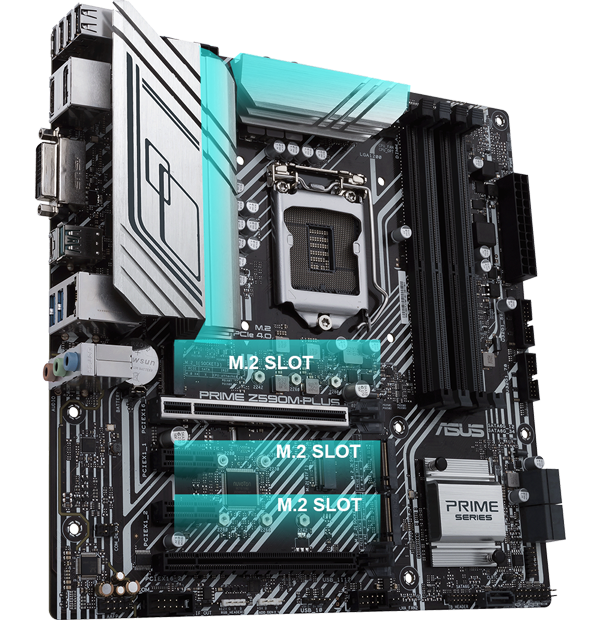

M.2 Heatsink Two M.2 heatsink takes care of the upper M.2 slot, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slots.
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.CLICK HERE TO FIND OUT MORE >
DIY Friendly with a Wealth of Connectivity

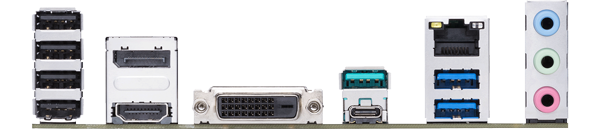

Stainless-Steel Back I/O This ASUS Z590 Intel® motherboard includes a total of 8 Rear USB ports and 7 Front USB ports, supporting high-end rigs loaded with peripherals, including USB3.2 Gen 2x2, a front-panel USB 3.2 Gen1 Type-C connectors and USB 3.2 Gen 2x2 can support data transmitting speeds up to 20Gbps. PRIME Z590M-PLUS supports PCIe 4.0, allowing users to run smoothly among PCIe 4.0 SSD storage devices and PCIe 4.0 graphics cards. With Thunderbolt 4 port can support up to 5 devices in a daisy-chain, and provide up to 100 W of power to fast-charge devices and it can support 8K resolution displays.
Outshine the Competition

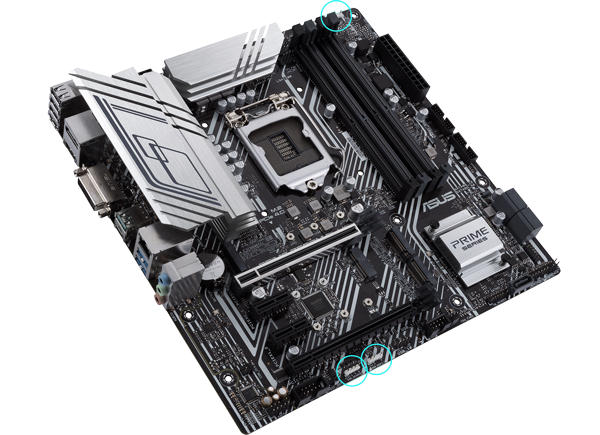

Unique Design Features for Pristine, Powerful Audio ASUS PRIME Z590M-PLUS is perfect for those seeking to create a sleek, futuristic-looking build and iridescent metallic nameplate and PCB cover. Prime Z590 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customise your system to create a uniquely personal look. With a wealth of 2x ARGB Gen2 and 2x Aura RGB headers, to outshine the competition. This DIY friendly motherboard comes with a durable I/O backing and ASUS M.2 Q-Latch, so you can install your M.2 SSD with one click and without a screw.
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB (4x32GB)|
|Audio||Realtek ALC898 7.1 HD Audio|
|Primary GPU Interface||PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]|
|NVIDIA SLI Support||N/A|
|AMD CrossFire Support||N/A|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||
|SATA Support||SATA3 / M.2|
|RAID Support via|
|Storage Mode Support|
|Network Interface Type||Wired Gigabit LAN (10/100/1000)|
|Network Chip/Modules||1 x Intel® I219V (Gigabit LAN)|
|Rear I/O Connectors||
|Board Dimensions||244 x 244 mm|
|Model Number||PRIME Z590M-PLUS|
