ASUS PRIME Intel Z590-A PCIe 4.0 ATX Motherboard

ASUS PRIME Z590-A, Intel Z590, S 1200, DDR4, PCIe 4.0, SATA3, 3x M.2, Intel 2.5GbE, USB 3.2 Gen2, ATX

Thumbnail 1 : ASUS PRIME Intel Z590-A PCIe 4.0 ATX Motherboard Thumbnail 2 : ASUS PRIME Intel Z590-A PCIe 4.0 ATX Motherboard Thumbnail 3 : ASUS PRIME Intel Z590-A PCIe 4.0 ATX Motherboard Thumbnail 4 : ASUS PRIME Intel Z590-A PCIe 4.0 ATX Motherboard
Scan code: LN114064 Manufacturer code: PRIME Z590-A
Order now and get it tomorrow, Tue 24th May
Was: £229.98
Get it Tomorrow, 24 MayIn stock
From £9.07 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £17.62
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £204.98
Total inc. interest: £211.41
Monthly Payment: £9.07
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £204.98
Total inc. interest: £217.48
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

ASUS PRIME Z590-A Intel 11th Generation ATX Motherboard

ASUS PRIME Z590-A ATX Motherboard

Get Yourself off to a Great Start Introducing the PRIME Z590-A motherboard from ASUS, which boasts boosted power delivery, an optimised cooling design to help you get the most out of the latest 11th and 10th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z590 series motherboards provide daily users and DIY PC builders a wealth of performance tuning options via intuitive software and hardware features. PRIME Z590-A has a futuristic aesthetic with an iridescent metallic nameplate and PCB cover, along with a black and white colour scheme on the PCB.

Please note: This motherboard is compatible with Intel® Socket LGA 1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors.

Intel Z590Chipset

LGA 1200CPU Socket

10th & 11th Gen IntelCompatible Processors

ATXForm Factor

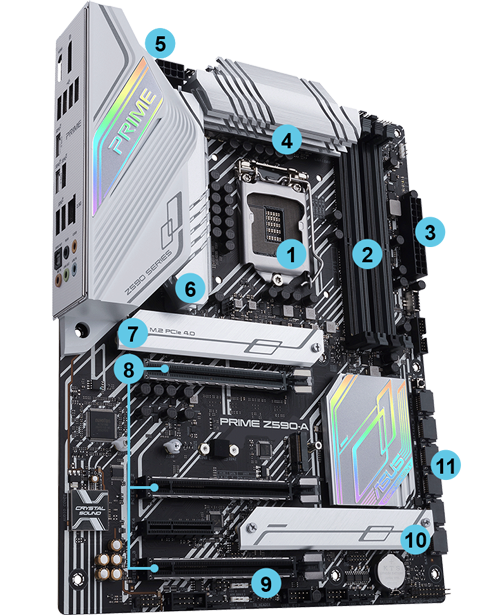

Component Breakdown of the ASUS Z590-A Motherboard


1. Supports 10th & 11th Gen Processors   |   2. 4x DIMM Slots up / Max Memory 128GB DDR4 / OPTIMEM II
3. 24Pin ATX Hi-Density Connector   |   4. 14+2 DRMOS Power Stage   |   5. PROCOOL Connector
6. VRM Heatsink   |   7. 2x M.2 Heatsinks   |   8. 3x PCIe 4.0 x16 Safeslots
9. Thunderbolt 4 Header   |   10. 3x M.2 Slots / 1x PCIe 4.0 x4 / 2x PCIe 3.0 x4   |   11. 6x SATA 6Gb/s

Built to Take the Strain

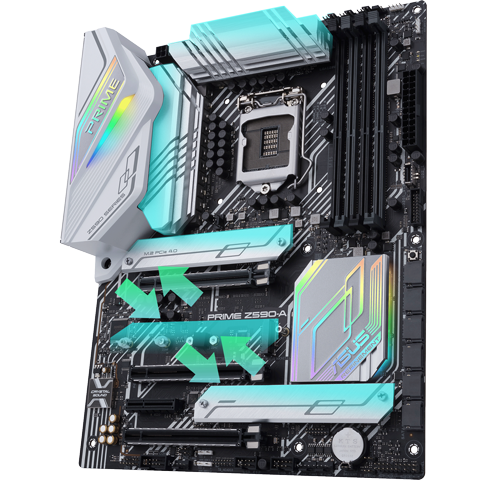

cool to the core This PRIME Z590-A motherboard stays cool to the core and includes 6x chassis fan headers and 2x AIO/Water pump fan headers. With plenty of fan headers you'll know your components will keep cool. It also features multiple temperature sensors, AI Cooling and Fan Xpert 4 to provide an overall impressive cooling performance.

VRM Heatsinks The two massive VRM heatsinks are connected to thermal pads to improve heat transfer from the MOSFETs and chokes for better cooling performance.

Stack Cool 3+ 2-ounce copper PCB design can draw heat away from critical components to keep them at their optimal operating temperatures.

Flexible M.2 Heatsinks An M.2 drive sits under a passive heatsink to ward off the throttling that can occur with sustained transfers. The heatsink is held in place by easily-removable captive screws, giving you the flexibility to move it to another M.2 slot.

DIY Friendly with a Wealth of Connectivity

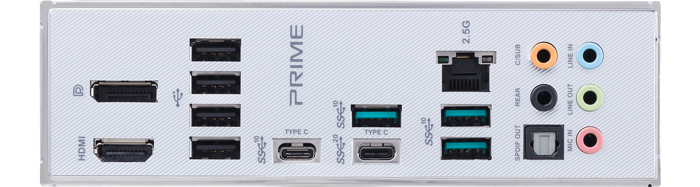

pre-mounted I/O shield This ASUS Z590 Intel® motherboard includes a total of 16 USB ports, supporting high-end rigs loaded with peripherals, including USB3.2 Gen 2x2, a front-panel USB 3.2 Gen1 Type-C connectors and USB 3.2 Gen 2x2 can support data transmitting speeds up to 20Gbps. PRIME Z590-A supports PCIe 4.0, allowing users to run smoothly among PCIe 4.0 SSD storage devices and PCIe 4.0 graphics cards. It also supports Thunderbolt 4, an Intel certified add-on card that enables bi-directional speeds of up to Gbps through a single cable. With Thunderbolt 4 port can support up to 5 devices in a daisy-chain, and provide up to 100 W of power to fast-charge devices and it can support 8K resolution displays.

AI Features Designed to Optimize Performance


comprehensive cooling Introducing AI features such as AI Overclocking: This optimises CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts. With AI Cooling: This manages and controls all motherboard fans, automatically optimising settings based on current system load and temperature. Plus, Two-way AI Noise Cancellation reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.


Outshine the Competition

RGB board

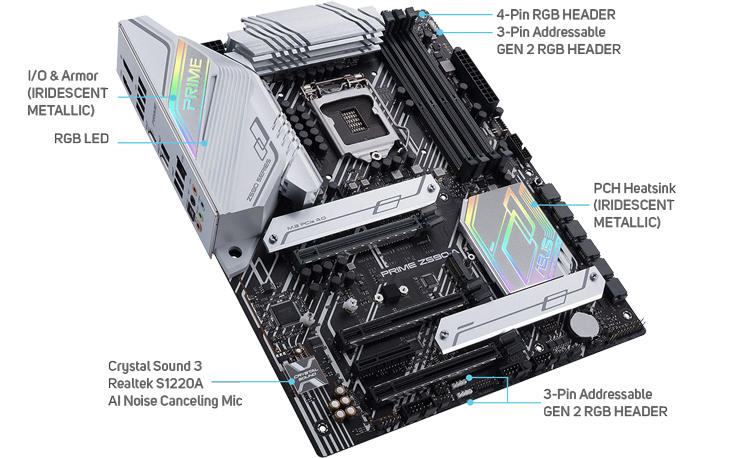

Unique Design Features for Pristine, Powerful Audio ASUS PRIME Z590-A is perfect for those seeking to create a sleek, futuristic-looking build, thanks to its black and white finish and iridescent metallic nameplate and PCB cover. With a wealth of 3 ARGB and 1 RGB headers, to outshine the competition. This DIY friendly motherboard comes with a pre-mounted I/O shield and ASUS M.2 Q-Latch, so you can install your M.2 SSD with one click and without a screw.

featuring flawless audio that immerses you in the game Realtek S1220A also features an unprecedented 120 dB signal-to-noise ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones. DTS:X® Ultra adds a spatial audio feature to boost headphones and speakers for enhanced gaming, VR and extended-reality experiences. Supports sound based on channels, scenes, and objects to allow for deeper sonic immersion in enabled content. It also provides post-processing enhancements and device-level tuning for DTS® codecs.

Control your Rig with Armoury Crate

Armoury Crate

account management software This new software utility is designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customise RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for ASUS product, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community.

Core Specifications
Edition PRIME Z590-A
Form Factor ATX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4500(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4700(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5100+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio Realtek ALC S1220A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.0
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80/110, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x4
  • 3 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 8-pin (Power)
  • 3 x Aura Addressable Gen2 Header
  • 1 x Aura RGB Strip Headers
  • 1 x Clear CMOS Header
  • 1 x CPU_OV
  • 1 x Front Panel Audio Header
  • 3 x M.2
  • 1 x Power button
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Intel® I225V (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 5.1 Audio I/O
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note Intel® 11th Core processors support PCIe 4.0 x16
Additional Information
Scan Code LN114064
Model Number PRIME Z590-A
GTIN 4711081103868

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
28 days
RTB Period:
36 months
