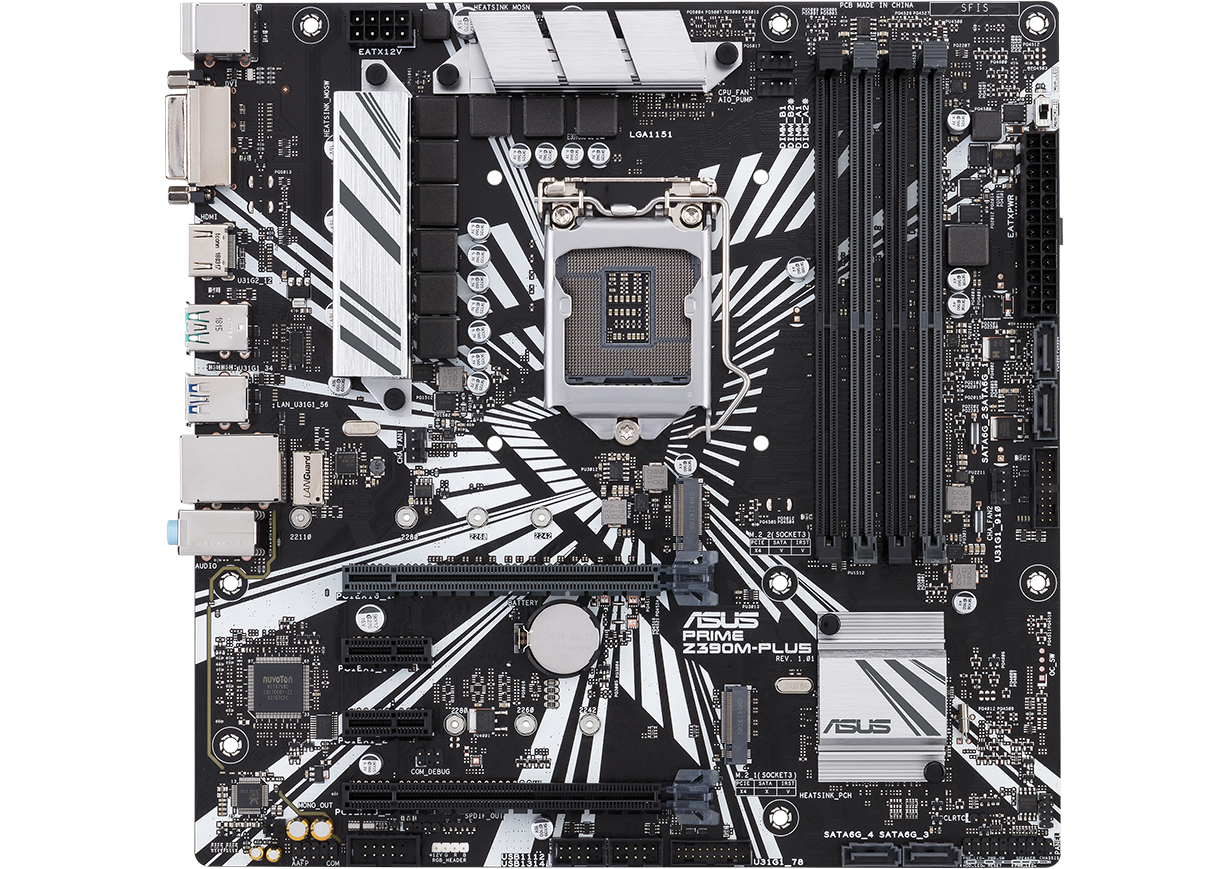

PRIME Z390M-PLUS - Intel mATX Motherboard from ASUS
Next Level Reliability with ASUS Technology
PRIME Z390 series motherboards boasts ASUS engineering and a dominant overall design for an excellent build. The Prime Z390M-PLUS features innovative hardware and firmware, ready to enhance system performance and provide maximum durability. With 5050 RGB strips connected to the RGB header, you can create your own stunning multicolour lighting displays for your setup with ASUS Lighting Control.
Please note: This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
EPU & Fan Xpert 4
Tune it Your Way Prime Z390 simplifies CPU overclocking with software and extensive tweaking options that give beginners and seasoned overclockers alike the tools to build well-tuned machines. A new memory trace layout provides stability and compatibility for both traditional DIMMs and RGB-infused memory, letting you pair a broad choice of DRAM kits with your build.
Flexible Cooling Controls for Air or Liquid With Prime Z390M-PLUS you have comprehensive control over fans via Fan Xpert 4 or the media-acclaimed UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces all fan speeds to below the default minimum assuring your system stays whisper-quiet when performing light tasks.
All-round Energy Efficiency The Energy Processing Unit (EPU) automatically amplifies power consumption and maximises savings with Away mode. The smart setting that produces an extreme energy-saving setup by shutting down unused I/O controllers, with the EPU you will appreciate system-wide power reserves.
Media-acclaimed UEFI BIOS
Including EZ Mode & Advanced Mode The UEFI BIOS is an early waypoint on any PC-building journey, and Prime Z390M-PLUS offers one of the best in the business. Featuring Easy and Advanced Modes for quick and easy access to find the setting you're looking for. Fine-tune individual fans simply by dragging a curve with the mouse using intuitive graphical fan control. Discover useful settings for your setup with ASUS Technology.
EZ Tuning WizardQuickly apply a CPU overclock to improve system performance, or configure a RAID array for faster data retrieval and backups.
My FavouritesQuickly discover tuning options and add preferred tools to the list.
ASUS OptiMem II Technology
Including MemOK! II Automated Recovery To provide Intel's latest processors' unfettered access to memory bandwidth, we've reimagined motherboard trace routing from the ground up. Our OptiMem II tech carefully maps memory signal pathways across different PCB layers to reduce vias and also adds shielding zones that significantly reduce crosstalk. And to further enhance overclocking headroom for fully stacked memory configurations, we've employed a highly customized T-Topology layout that delivers time-aligned signaling.
MemOK! II automatically fixes boot failures that arise due to memory overclocking and instability. When a DRAM-related POST error occurs, the motherboard adjusts memory parameters until the system is able to start.

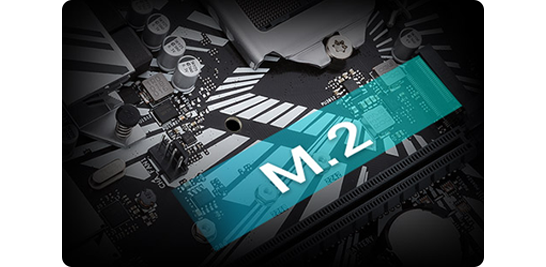

speed up with on-board M.2 up to 32gbps With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It’s the perfect choice for an operating system or application drive, providing fast access to data.
Supported by Prime z390M-PLUS Intel Optane™ is a revolutionary non-volatile memory technology supported by Prime Z390M-PLUS. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.

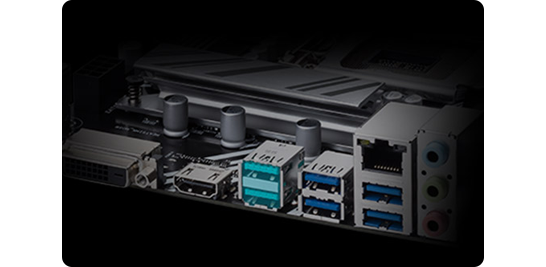

Ulimate speed 10GBPS with on-board USB 3.1 Gen 2 With backward-compatible USB 3.1 Gen 2 Type-A™, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.

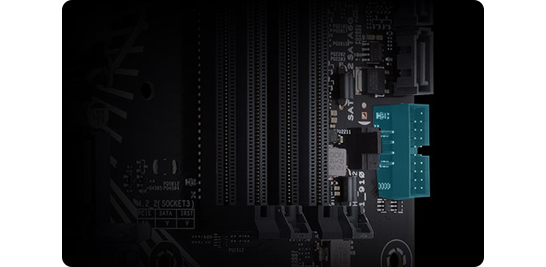

USB 3.1 Gen 1 Front Panel Connector USB 3.1 Gen 1 is right where you need it, with four super-speed headers for the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, and avoid back-breaking contortions in the hunt for hard-to-reach rear ports.
ASUS Lighting Control

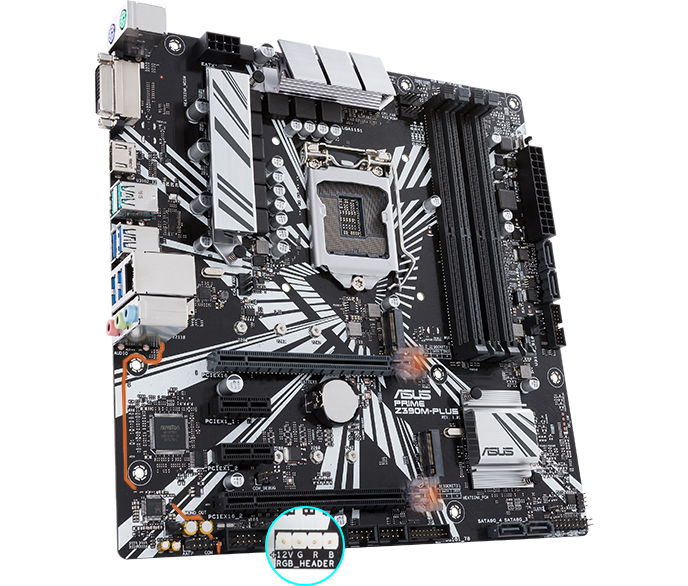

Brighten up your build A well-tuned enthusiast system deserves a matching aesthetic. With 5050 RGB strips connected to the RGB header, you can create your own stunning multicolour lighting displays with static, blinking, fading, and strobing effects. * The RGB-strip header supports 5050 RGB LED strips with a max power rating of 3A (12V). For maximum brightness, strip length should not exceed 3m.

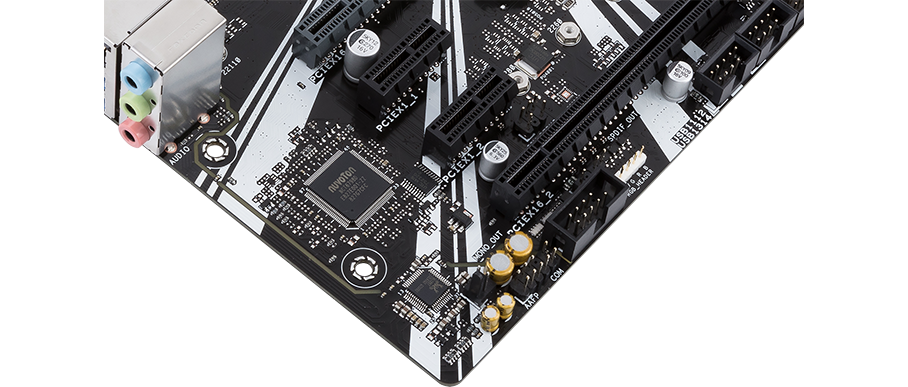

Intelligent design & premium hardware Discover sound quality unlike anything you've experienced before with special audio features on the Prime Z390 series motherboards. Audio shielding separates analog/digital signal domains, significantly reducing multi-lateral interference. A separate layer for left and right tracks ensures minimal crosstalk between audio paths. Designed with premium Japanese-made audio capacitors, which provides an immersive sound signature with exceptional fidelity.
Comprehensive Cooling Controls
Multiple Temperature Sources Each header can be set to monitor and react to up to three thermal sensors. Via Fan Xpert, you can also assign a sensor to monitor the temperature of supported ASUS graphics cards to ensure optimal cooling during GPU- or CPU-intensive workloads.

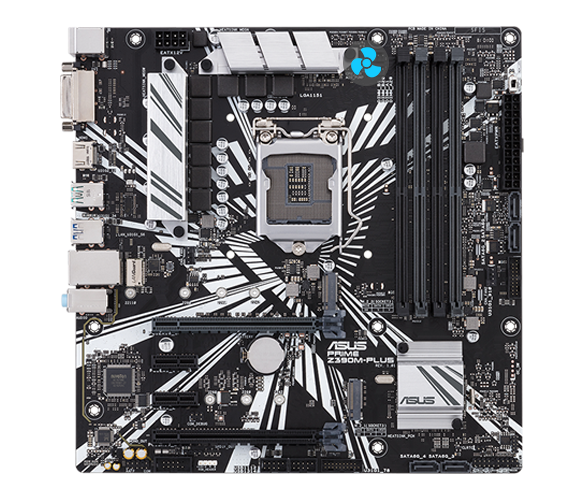

Dedicated PWM/DC Header A dedicated PWM/DC header for self-contained water-cooling setups.

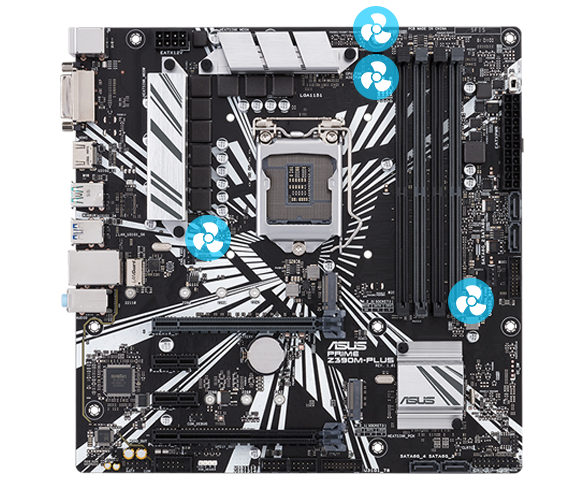

4-Pin PWM/DC fan connectors Each on-board header supports auto-detection of PWM or DC fans.
Smart Protection A dedicated integrated circuit protects each fan header from over-temperature and over-current.

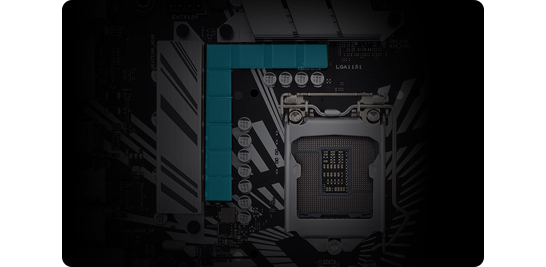

Enhanced Power Delivery
Maximum Power & Efficiency Prime Z390M-PLUS adjusts power delivery based on the number of power phases, optimizing power and efficiency for the latest Intel processors.

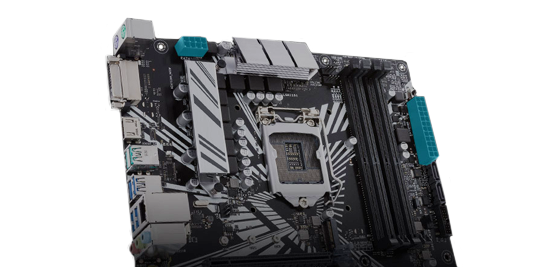

ProCool Power Connector
Built to prevent connector failure Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. This lowers impedance, which helps to prevent hotspots and connector failure.
ASUS SafeSlot Protection
PREMIUM ASUS TECHNOLOGY SafeSlot Core is the ASUS-exclusive PCIe® slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6X-stronger retention and 1.3X-greater shearing resistance than standard expansion slots. ASUS Prime motherboards have strengthened solder points around both the PCIe and DIMM pins.
Ultra-durable ASUS Protection
Trustworthy Stability and Compatibility Prime Z390M-PLUS is designed for builders who want essential ASUS reliability and performance. More CPU cores create power-delivery challenges, so Prime Z390M-PLUS has extra power phases and comprehensive cooling features for optimal performance.
LANGuardASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput.
Overvoltage protectionAn exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DIGI+ VRMASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
DRAM Overcurrent ProtectionOn-board resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Stainless-Steel Back I/OCorrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
ESD GuardsASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/- 6kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components
PRIME Z390 Tried and Tested
Superior Reliability with 8000+ validation hours ASUS motherboards offer superb endurance verified by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.
Temperature and humidity testsEnsures components withstand extreme conditions.
Thermal measurement testsEnsures that the system remains cool and stable under the heaviest loads.
Insertion testsEvery port and connector is put through repeated installation cycles.
Aging testsUp to 48-hour aging test ensures reliability.
Power-consumption testsDelivers world-class energy efficiency.
Temperature and DC margin testsEnsures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.
Thermal-shock testsEnsures ability to survive temperature changes during transportation.
Non-operation shock testsBuilt to withstand jolts that may occur during shipping.
Burn-in testsEvery component is checked to ensure flawless operation.
Installation testsConnector placement is double-checked to ensure hassle-free installation.
Drop testsDrop tests from various heights ensure durability.
Salt and spray testsTested for I/O reliability, prolonged lifespan and rust-resistance.
Built to Last ASUS is the world's leading motherboard brand. Our motherboards are extensively tested for compatibility with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation — offering the peace of mind of knowing that your ASUS motherboard is fit for all environments and applications. Choosing ASUS is an assurance of trouble-free DIY experiences.
5X ProtectionHardware safeguards to ensure long-term durability.
520+ DDR4 compatibilityIndustry-leading DDR4 memory compatibility for best flexibility and reassurance.
1000+ compatible devicesCompatibility with a range of CPUs, memory modules, graphics cards and more.
8000+ validation hoursExtensive testing with latest components for enhanced reliability, compatibility and safety.
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||64GB (4x16GB)|
|Audio||Realtek ALC887 7.1 HD Audio|
|Primary GPU Interface||PCIe 3.0 (x16)|
|NVIDIA SLI Support||Not Supported|
|AMD CrossFire Support||2-Way CrossFire|
|On-Board Graphics Connectors||
|SATA Support||SATA3 / M.2|
|RAID Support via||SATA3 / M.2 (PCIe)|
|Storage Mode Support||
|Network Interface Type||Wired Gigabit LAN (10/100/1000)|
|Network Chip/Modules||1 x Intel® I219V (Gigabit LAN)|
|Rear I/O Connectors||
|Board Dimensions||244 x 244 mm|
|Model Number||PRIME Z390M-PLUS|
