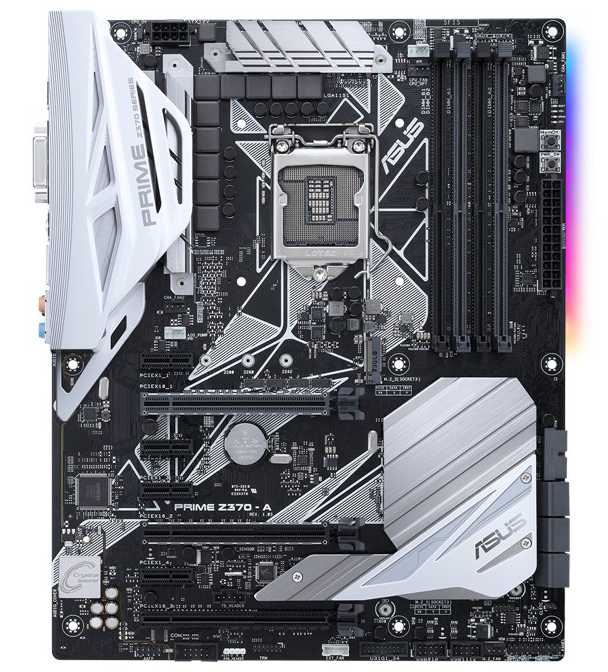

ASUS PRIME Intel Z370-A Coffee Lake ATX Motherboard

ASUS PRIME Z370-A, Intel Z370, S 1151, DDR4, SATA3, Dual M.2, 2-Way SLi/3-Way CrossFire, Intel GbE, USB3.1 Gen2 A+C, ATX

ASUS
Scan code: LN84737 Manufacturer code: 90MB0V60-M0EAY0 Request call
£157.99
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £11.50 By DPD On 18th Dec 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

ASUS Prime Gaming Motherboard - Z370-A - Intel 8th Gen

ATX Gaming Motherboard - 300 Series

ASUS Prime Z370 Series motherboards provide the solid foundation needed for your first build, plus loads of scope to grow with your ambitions. We've melded all the good stuff that's packed into the latest 8th Generation Intel® Core™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, immersive onboard audio, and support for the ASUS Fan Extension Card. Build smart and easy with ASUS Prime Z370.

Please note: Z370 Motherboards are ONLY compatible with Intel 8th Gen 'Coffee Lake' CPUs. Although these Intel Z370 Motherboards share the same socket as Intel's 200 & 100 Series Motherboards, they are electrically incompatible & will not work with 7th & 6th Gen Intel CPUs.

Intel Z370
Chipset

1151
CPU Socket

8th Gen Only
Compatable CPUs

ATX
Form Factor

5-Way Optimisation

One-click overclock and cooling

ASUS 5-Way Optimisation makes your PC smart. One click takes care of complex tuning, dynamically optimising essential aspects of the system to provide overclocking and cooling profiles that are tailored for your rig. An automated tuning utility that optimises overclocking and cooling profiles for your unique system configuration. Fans stay whisper-quiet with everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks. Stress test function helps optimise and overclock for CPU- or memory-centric workloads.

CPU Performance Boost

Unleash your PC's full performance with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

All-round Energy Efficiency

With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimises power consumption and maximises savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Flexible Cooling Controls

With Prime Z370-A you have comprehensive control over fans, water pumps, and even all-in-one (AIO) coolers ― all via Fan Xpert 4 or our media-acclaimed UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.

Precise Digital Power Control

Digi+ delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

App specific Optimisation

Whether you're a professional designer or hardcore gamer, you'll feel the benefit of the ASUS-exclusive Turbo App. This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritise network data and optimise audio settings at app level ― so your Prime Z370-A system is perfectly optimised for whatever you're doing.

AURA Sync RGB LED Lighting

AURA - Static

Static

AURA - Breathing

Breathing

AURA - Strobing

Strobing

AURA - Rainbow

Rainbow

AURA - Colour Cycle

Colour Cycle

AURA - Comet

Comet

AURA - Flash & Dash

Flash & Dash

AURA - Wave

Wave

AURA - Glowing Yo Yo

Glowing Yo Yo

AURA - Starry Night

Starry Night

AURA - Music Effect

Music Effect

AURA - Temperature

Temperature

Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full RGB control with a variety of functional presets for the built-in RGB LEDs as well as the LED strips connected to the onboard RGB headers.* And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Beyond VR Ready

Complete your Immersion

Prime Z370-A isn't just VR ready — it goes way beyond. The ASUS Beyond VR Ready marque means that Prime Z370-A has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.

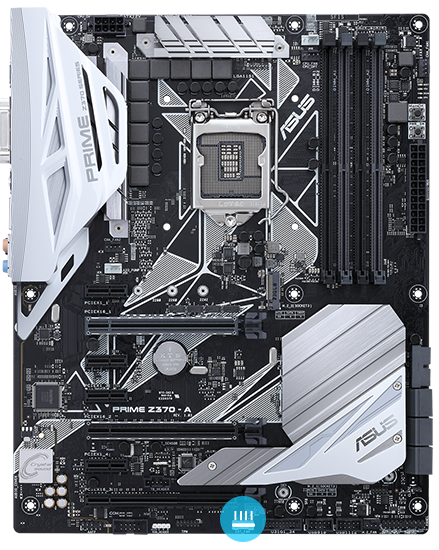

Cooler by Design

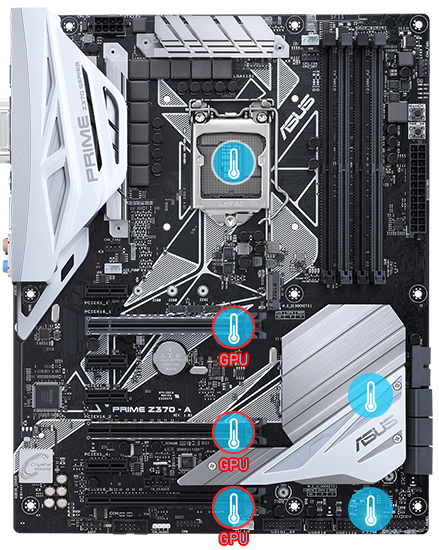

Multiple Temperature Sources

Each header can be set to monitor and react to three thermal sensors, and via Fan Xpert 4 you can even assign a sensor to monitor the temperature of supported ASUS graphics cards — for optimal cooling during GPU- or CPU-intensive workloads.

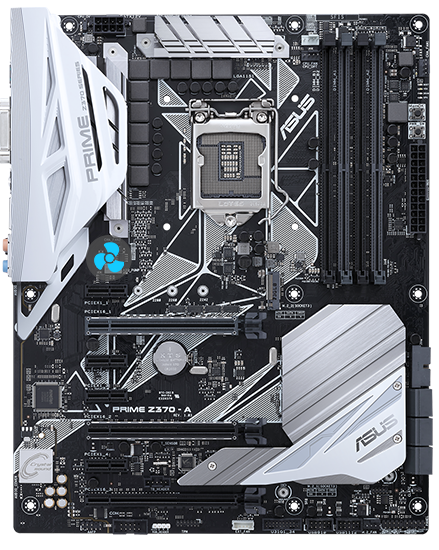

AIO Pump

A dedicated PWM/DC header for self-contained water-cooling setups.

Precise Digital Power Control

Includes three additional DC or PWM fan headers, plus three thermal-probe headers.

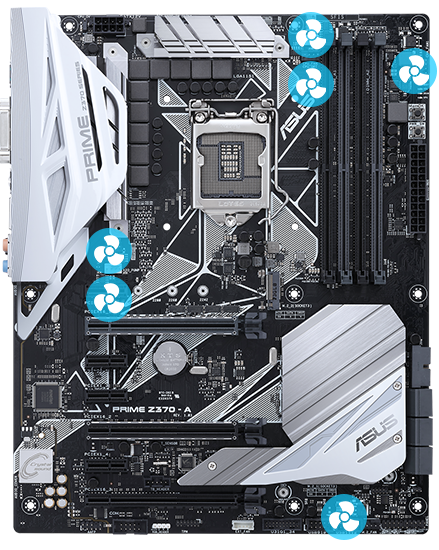

4-pin PWM/DC fan

Each onboard header supports auto-detection of PWM or DC fans.

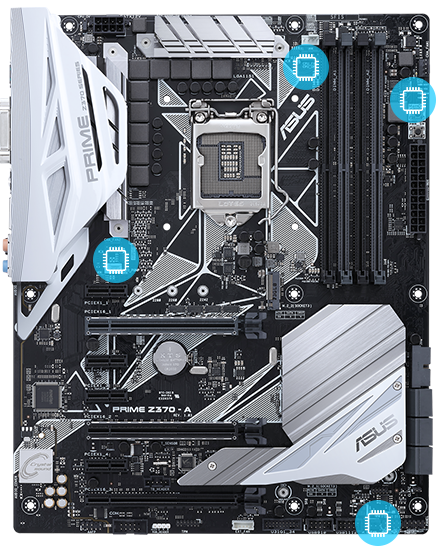

Smart Protection

A dedicated integrated circuit protects each fan header from over-temperature and over-current.

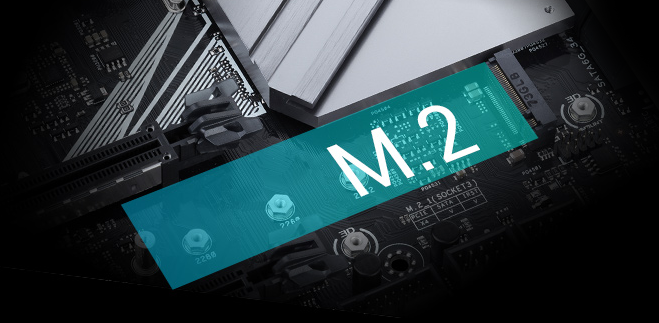

Ultrafast M.2 Connectivity

Speed up with onboard M.2 up to 32Gbps

With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, providing fast access to data. Prime Z370-A also has an ultra-efficient heatsink to reduce M.2 SSD temperatures by up to 20°C — and that means optimal storage performance and improved SSD longevity.

Intel® Optane™ Memory

Advanced performance with the Optane Cache Memory

Intel Optane™ is a revolutionary non-volatile memory technology supported by Prime Z370-A. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.

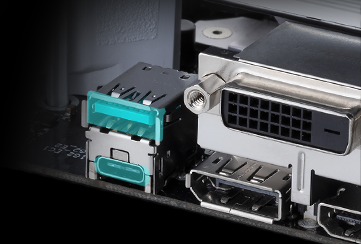

USB 3.1 Gen 2 Type-C & A

Ultimate-speed 10Gbps with USB 3.1 Gen 2

With backward-compatible USB 3.1 Gen 2 Type-A and reversible USB 3.1 Gen 2 Type-C ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.

Intel Ethernet & Turbo LAN

More throughput, less CPU usage

Prime Z370-A features the very latest Intel Ethernet. Intel's LAN has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer. Turbo LAN with cFosSpeed traffic-shaping technology allows you to configure application priority via an intuitive interface, and reduces network lag.

SafeSlot Core

Protect your graphics card investment

SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

Built to Last

5x protection
Hardware safeguards to ensure long-term durability.

520+ DDR4 compatibility
Industry-leading DDR4 memory compatibility for best flexibility and reassurance.

1000+ Compatible Devices
Compatibility with a range of CPUs, memory modules, graphics cards and more.

8000+ Validation Hours
Compatibility with a range of CPUs, memory modules, graphics cards and more.

ASUS is the world's foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments and applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences.

LANGuard

LANGuard

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput.

LANGuard

Overvoltage Protection

An exclusive circuit design with built-in voltage regulators protects your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

LANGuard

DIGI+ VRM

ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

LANGuard

DRAM Overcurrent Protection

Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

LANGuard

Stainless-Steel Back I/O

Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide assure a lifespan that's 3X longer than ordinary panels.

LANGuard

ESD Guards

ASUS ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge.

Outstanding audio

pristine, powerful audio

Prime Z370-A utilizes a unique audio codec designed in close collaboration with Realtek — the Realtek S1220A. It also features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and a 113dB SNR for the line-in, providing pristine audio quality. Additionally, a new impedance-sensing circuit automatically adjusts gain to ensure the optimal volume range for your headphones. DTS Headphone:X is an mmersive 3D surround-sound technology provides incredible audio experiences.

Crystal Sound 3

Reduces power-input noise to ensure consistent performance. Separates analog/digital signal domains, significantly reducing multi-lateral interference. Ensures minimal crosstalk between audio paths. Capable of driving high-impedance headphones, without rolling-off high or low frequencies. Reduces start-up popping noise to all audio outputs. Premium parts provide an immersive sound signature, with exceptional fidelity.

Specifications
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel Z370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC S1220A 7.1 HD Audio + Crystal Sound 3
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 2-Way SLi
Crossfire Support 3-Way CrossFire
On-Board Graphics Connectors
  • DisplayPort 1.2
  • DVI-D
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe
  • 1 x M.2, 2242/2260/2280, PCIe/SATA
  • 4 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
  • Intel® Smart Response Technology
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0 (SATA 0~5 ONLY)
  • RAID 1 (SATA 0~5 ONLY)
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 3D Mount screw port
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 5-pin EXT_FAN(Extension Fan) connector
  • 1 x 8-pin (Power)
  • 1 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x CPU_OV
  • 1 x EZ XMP Switch
  • 1 x Front Panel Audio Header
  • 1 x M.2_FAN Connector
  • 1 x MemOK! Button
  • 1 x Power button
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel(s) (Q-Connector)
  • 1 x T_Sensor Connector
  • 1 x Thunderbolt header
  • 1 x TPM Header (14-1 pin)
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 2 x Audio I/O
  • 1 x DisplayPort 1.2
  • 1 x DVI-D
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x SPDIF Out (Optical)
  • 2 x USB 2.0
  • 2 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type A
  • 1 x USB 3.1 Gen2 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
