Scan code: LN99746 Manufacturer code: PRIME X570-Pro

ASUS AMD Ryzen PRIME X570 PRO AM4 PCIe 4.0 ATX Motherboard

ASUS PRIME X570-PRO, AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, 2-Way SLi/3-Way CrossFire, Intel GbE, USB3.2 Gen2 A+C, ATX

MORE INFO
MORE INFO
Thumbnail 1 : ASUS AMD Ryzen PRIME X570 PRO AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : ASUS AMD Ryzen PRIME X570 PRO AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : ASUS AMD Ryzen PRIME X570 PRO AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : ASUS AMD Ryzen PRIME X570 PRO AM4 PCIe 4.0 ATX Motherboard ASUS AMD Ryzen PRIME X570 PRO AM4 PCIe 4.0 ATX Motherboard : video thumbnail 1
Scan code: LN99746 Manufacturer code: PRIME X570-Pro
£258.98Item due on 13 July 2022
Pre Order
Due 13th Jul
From £11.45 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £22.26
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £258.98
Total inc. interest: £267.12
Monthly Payment: £11.45
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £258.98
Total inc. interest: £274.74
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ASUS PRIME X570-Pro AMD Ryzen ATX Motherboard

ASUS Gaming Motherboard

Get incredible power with the new Ryzen CPUsDressed in a professional attire, the Prime X570 series caters to users with serious pursuits of demanding tasks such as video editing, photo manipulation and other various content creation, something to put the Ryzen processors to more productive use. Prime X570, known for its all-around specs and ASUS signature features, includes a wide range of tuning options for accessible performance. Hosting the latest Ryzen processor with increased number of cores and bandwidth, the Prime X570 series is ready for action with stable power, intuitive cooling and flexible transfer options. It provides all the fundamentals to increase your everyday productivity especially when paired with the brand new Ryzen CPUs.

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

ATXForm Factor

ASUS Prime Pro Power Delivery

ASUS Gaming Motherboard

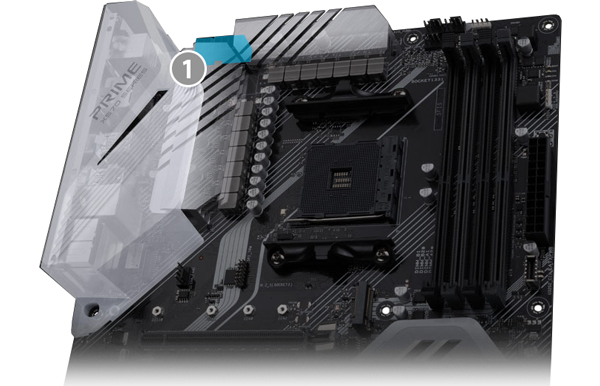

ProCool connectors It augments the motherboard's link to the PSU with 8+4 pin connectors that pass 12V power directly to the processors. Based on our ProCool design, these jacks use solid pins that can handle more current than hollow-pin connectors.

ASUS Gaming Motherboard

Power stages with DrMOS design The CPU VRM on Prime X570-Pro employs a 12+2 power stage design with DrMOS, combining high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that high core count processors demand.

ASUS Gaming Motherboard

Efficient Alloy chokes The Prime X570 series uses efficient alloy chokes and high-quality thermal pads to help transfer heat from the VRM array to a sink with ample surface area for the processors.

ASUS Gaming Motherboard

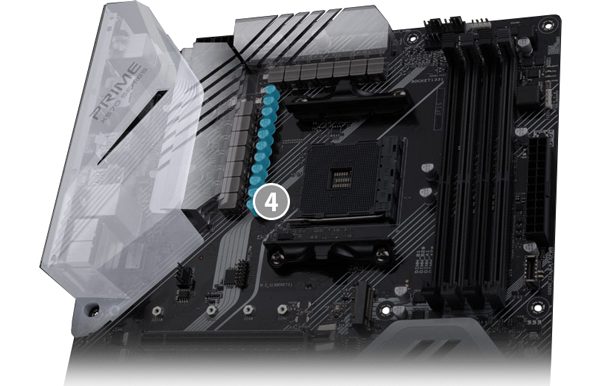

Extremely Durable capacitors Durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

ASUS Gaming Motherboard

6-layer PCB design Multiple PCB layers take in huge amounts of heat and shift it away from critical components, providing more headroom to push your CPUs beyond stock speeds.

Engineered Protective Safeslot

Safeslot

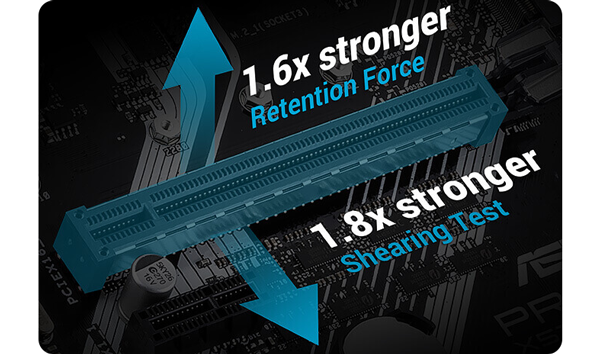

Superior retention and shearing resistance SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is firmly anchored to the PCB through additional solder points.

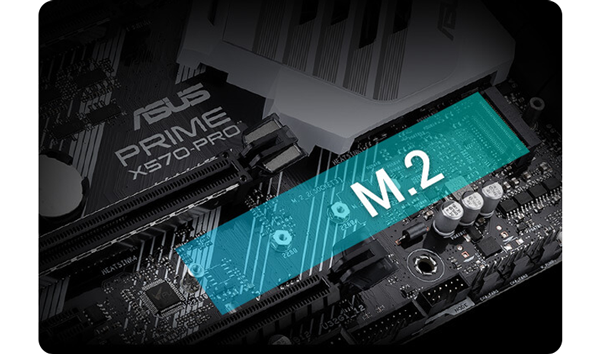

Prime Pro Dual PCIe M.2 Slots

m.2

Support For Incredibly Fast Storage Options Dual PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.

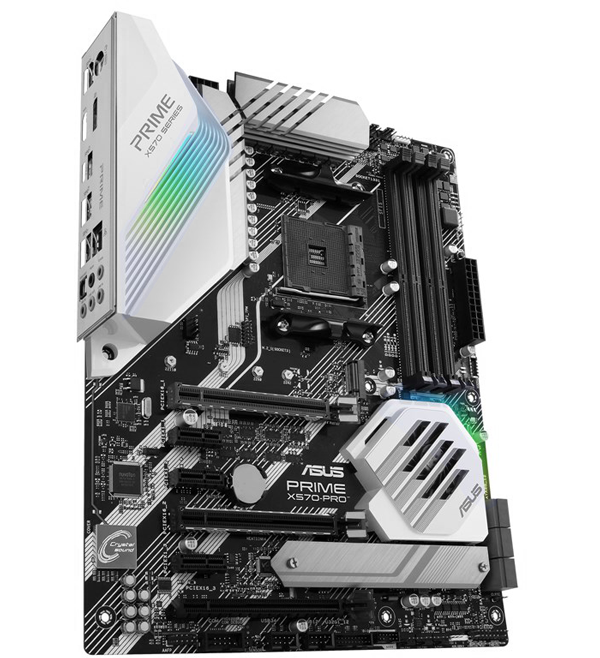

Get the Ultimate Light Show with ASUS AURA SYNC

RGB

Get the ultimate control of all your RGB DevicesASUS motherboards deliver sterling performance, accented by aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

ASUS' High Level Connectivity

m.2

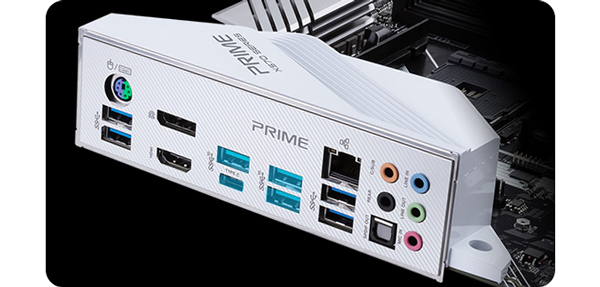

Ultimate-speed 10Gbps with USB 3.2 Gen 2 onboard With backward-compatible USB 3.2 Gen 2 Type-A and reversible USB 3.2 Gen 2 Type-C ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.

m.2

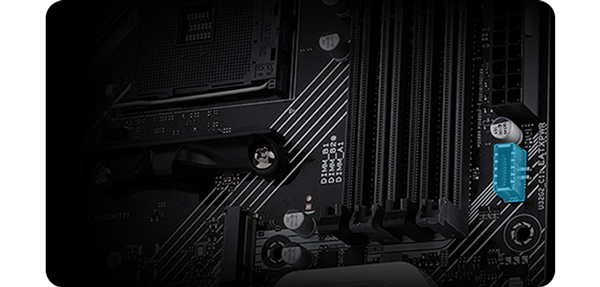

USB 3.2 Gen 2 front-panel connector Prime X570-Pro front panel USB 3.2 connector is ready for next-gen PC cases and devices.

m.2

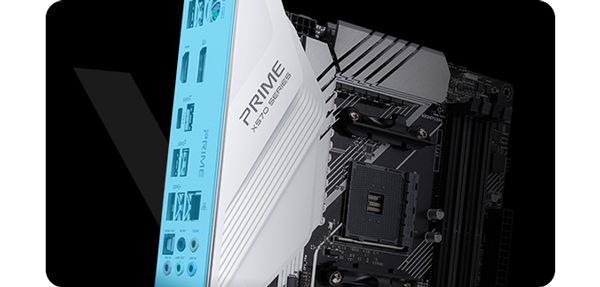

Pre-mounted I/O Form meets function in the pre-mounted I/O shield that we pioneered with the ROG series. Now available on Prime X570-Pro, this feature streamlines the installation process for budding builders and savvy enthusiasts alike.

ASUS Cooling Optimization and Monitoring

powerconnector

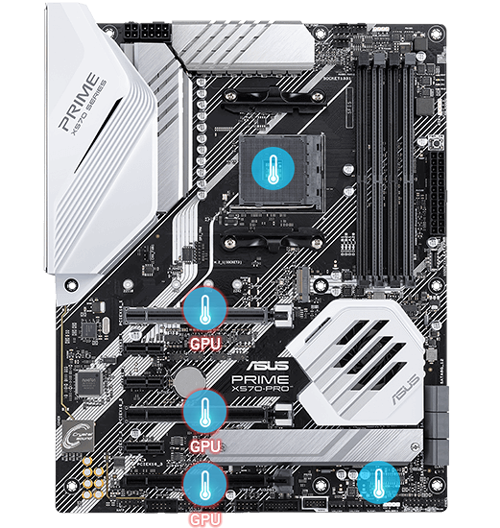

Multiple temperature sources Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.​

controller

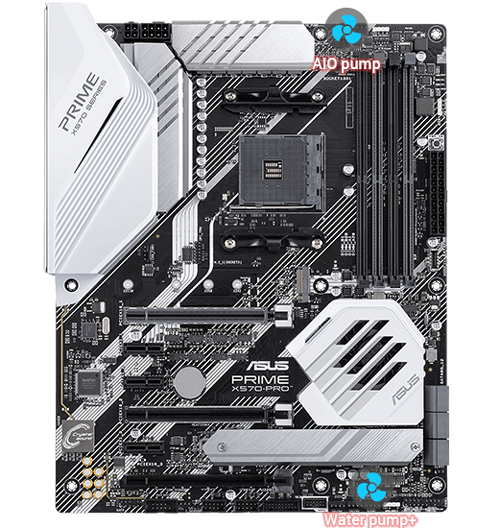

All in One Water Cooling Set Enables full control of PWM or DC water pumps, perfect for both custom and self-contained cooling setups.

4-PIN

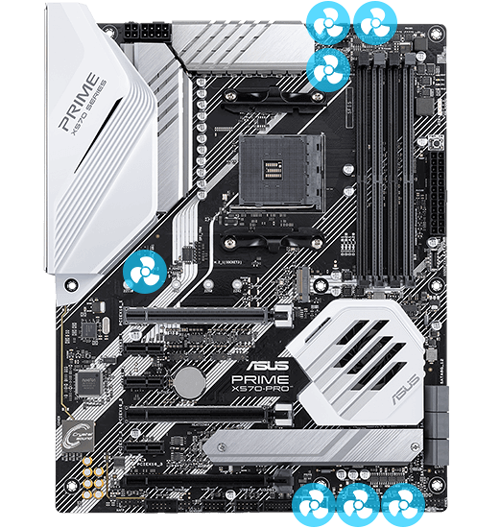

4-Pin PWM/DC fan Every onboard header supports auto-detection of PWM or DC fans.

Smart Protection

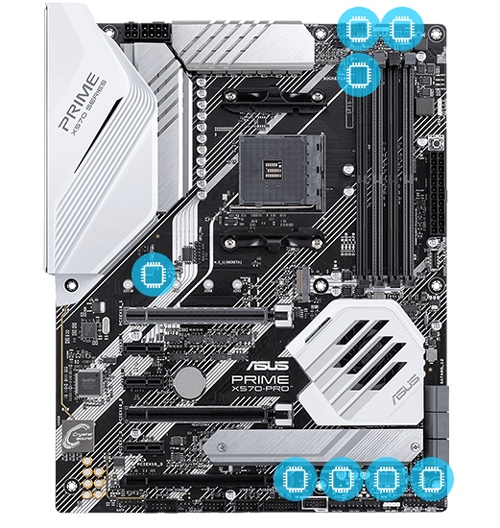

Smart Protection A dedicated integrated circuit protects each fan header from over-temperature and overcurrent.

Control Your Rig With Detailed Tuning Software

Fan Xpert 4

Flexible Cooling Controls With the ROG Series you have comprehensive control over fans via Fan Xpert 4 or the media-acclaimed UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces all fan speeds to below the default minimum assuring your system stays whisper-quiet when performing light tasks.

TPU Insight

CPU Performance Boost Unleash your PC’s full performance with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

EPU Guidance

All-round Energy Efficiency The Energy Processing Unit (EPU) automatically amplifies power consumption and maximises savings with Away mode. The smart setting that produces an extreme energy-saving setup by shutting down unused I/O controllers, with the EPU you will appreciate system-wide power reserves.

Turbo App

Optimization for gamers and professionals Whether you're a professional designer or hardcore gamer, you'll feel the benefit of the ASUS-exclusive Turbo App every day. This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at app level, meaning your ROG system is perfectly optimized for what you're doing.

DIGI+POWER CONTROL

Digital Power Controls The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

Specifications
Core Specifications
Edition PRIME X570-PRO
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC S1220A 7.1 HD Audio + Crystal Sound 3
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 2.0b
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 3 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 4.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin PCH_FAN Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 8-pin (Power)
  • 1 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x NODE connector
  • 1 x Power button
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x T_Sensor Connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.2
  • 1 x HDMI 2.0b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN99746
Model Number PRIME X570-Pro
GTIN 4718017254014
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
ASUS PRIME X570-PRO, AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, 2-Way SLi/3-Way CrossFire, Intel GbE, USB3.2 Gen2 A+C, ATX is rated 4.7 out of 5 by 7.
Rated 4 out of 5 by from It's good but This was my first build so I don't know if this a common issue but after putting two graphics cards everything gets covered up. For any adjustments i need to make I have to take out both cards . And you effectively can only use two of the PCI slots. Besides that's it was easy to install everything worked out of the box. The features are decent. In hindsight I should have probably researched it a bit more and gone for a different model but it's doing it's job for now.
Date published: 2020-08-09
Rated 5 out of 5 by from Stable, feature packed, fast and robust Very impressed with this motherboard. Packed full of features and is very stable, fast and well made. Overclocking support is incredible and easy to understand, and fan control superb.
Date published: 2020-06-06
Rated 4 out of 5 by from Good well-rounded motherboard with plenty of features. The overall experience with the motherboard is very good, with the only downside being some weird ASUS software experience for edge overclocking scenarios. The hardware is excellent for a mid to high-performance platform. A very important point to make is that the mobo will successfully match XMP-profiled RAM to work with a Ryzen processor.
Date published: 2020-05-30
Rated 5 out of 5 by from Best x570 for a white build Firstly when looking at other reviews there were a few negatives about the BIOS but honestly I haven't had any issues at all this could have been because of a BIOS update but that just goes to show ASUS is on top with updates. Build quality is excellent and the board looks premium. Colour scheme, if you're going for a white build no other x570 will fit it as perfectly as this one. IO is plenty and having the IO shield preinstalled as little as it seems makes it extremely easier and pain free as I've had hastle with these in the past. The only issue I have with the preinstalled IO shield is it's slightly raised, not as flush as I'd like but eh that's just being picky it has no effect on the performance. A great motherboard and would highly recommend if you have the cash and want something white themed.
Date published: 2020-01-28
Rated 5 out of 5 by from Great looks, great features Upgraded from Skylake to Ryzen 3 and replaced my Maximus IX Hero with this. Same amazing build quality and BIOS and haven't had any issues so far. There aren't many white themed motherboards out there, which was a must for my build, and this board fits the bill and looks awesome.
Date published: 2020-01-26
Rated 5 out of 5 by from All top end features on one board. Best X570 My 3rd ASUS Prime motherboard. Another well balance board with a great spec, good included accessories and an excellent BIOS to tweak features / controls. Build quality is superb. I cannot think of any features extra I would want on such a board. Highly recommended.
Date published: 2020-01-21
Rated 5 out of 5 by from Easy to set up and rock steady I looked at many different motherboards but decided that the ASUS X570 prime pro had the best mix of features for me. Its been a long time since I built a DIY setup, but this turned out to be an easy task. The motherboard BIOS is very easy to set up. Selecting the boot device and RAM speed and timings was easy, you must set both if you are using faster RAM than 2133Mhz. You have to use the D.O.C.P enable (aka XMP) drop down menu in the Ai Tweaker section in the BIOS setup, it found the correct timings for my RAM. The heat sink on the PCIe SSD slot is a good feature. I am running Linux with a KDE desktop and the Ryzen/ASUS X570 is running cool and rock steady:- well pleased.
Date published: 2020-01-16
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_7
  • loc_en_GB, sid_99746, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

Does the Chipset cooler get in the way of a full length GFX card

I have an RX-5700xt and, as it is quite a long, hefty card, was wondering if the chipset cooler will get in the way, or if the GFX card will inhibit any airflow/cooling of the chipset.
Asked by: Chinnery
Yes, the card will go over the fan of the motherboard chipset, if put in PCIE16_1 slot. This does not negatively impact the chipset temps in any meaningful way, at least in my case.
Answered by: bochko
Date published: 2020-07-29
