Scan code: LN89350 Manufacturer code: PRIME X470-PRO

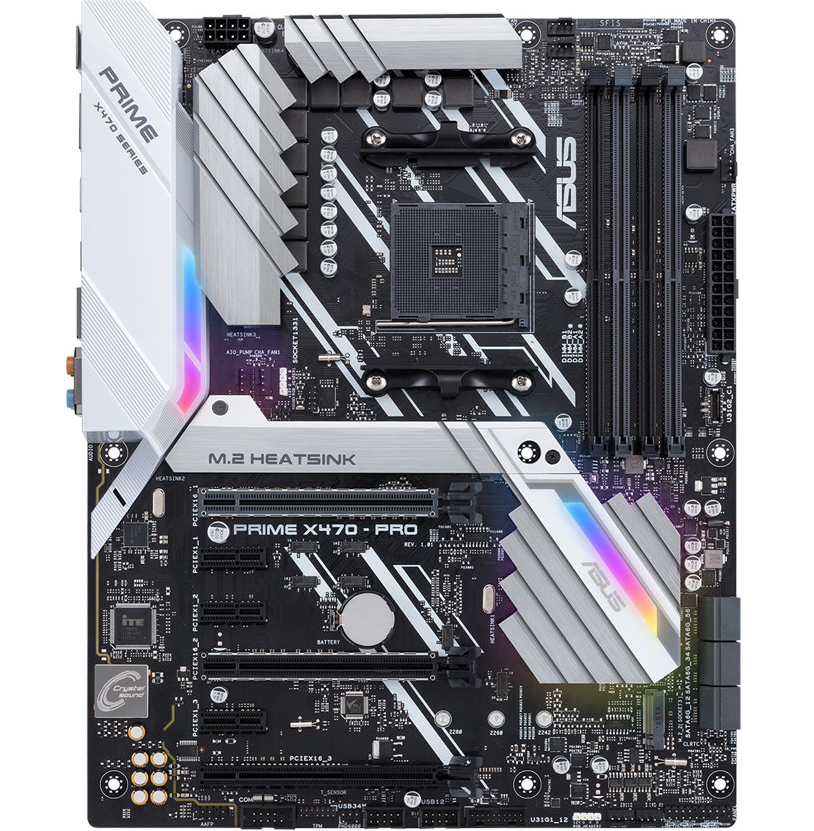

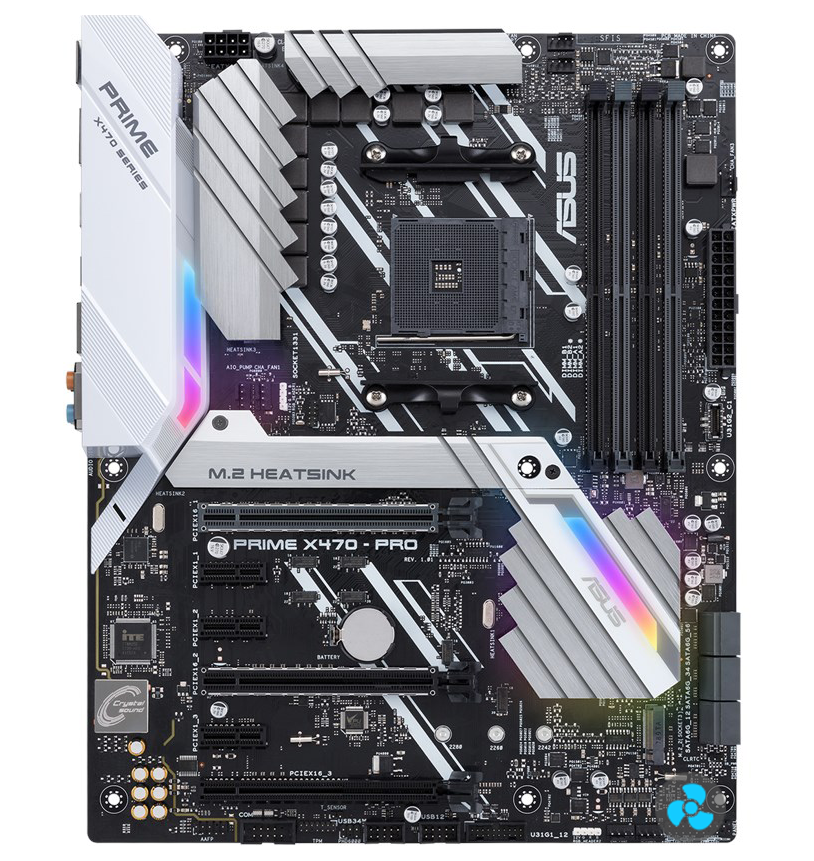

ASUS PRIME AMD Ryzen X470-PRO AM4 ATX Motherboard

ASUS PRIME X470-PRO, AMD X470, S AM4, DDR4, SATA3, Dual M.2, 2-Way SLi/CrossFire, Intel GbE, USB 3.1 Gen2 A, ATX

Thumbnail 1 : ASUS PRIME AMD Ryzen X470-PRO AM4 ATX Motherboard Thumbnail 2 : ASUS PRIME AMD Ryzen X470-PRO AM4 ATX Motherboard Thumbnail 3 : ASUS PRIME AMD Ryzen X470-PRO AM4 ATX Motherboard Thumbnail 4 : ASUS PRIME AMD Ryzen X470-PRO AM4 ATX Motherboard ASUS PRIME AMD Ryzen X470-PRO AM4 ATX Motherboard : video thumbnail 1 ASUS PRIME AMD Ryzen X470-PRO AM4 ATX Motherboard : video thumbnail 2
Scan code: LN89350 Manufacturer code: PRIME X470-PRO
From £13.75 / month (APR 0%)
Monthly Payment: £27.50
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £164.99
Total inc. interest: £164.99
Monthly Payment: £13.75
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £164.99
Total inc. interest: £164.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 9th Dec To 11th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

PRIME X470 - PRO Gaming Motherboard – X470 AM4


AMD ATX Gaming Motherboard by ASUSASUS Prime X470-Pro provides the solid foundation needed for your initial build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into the latest AMD Ryzen™ 2nd Generation processors with essential ASUS design and engineering, so you benefit from industry-leading technologies such as automated system tuning, comprehensive cooling controls, and immersive on-board audio. Build smart, easy and affordably, with ASUS Prime X470-Pro.

AMD X470Chipset

AM4CPU Socket

ATXForm Factor

DDR4Memory Type

5-Way Optimisation

One-click overclock and cooling ASUS 5-Way Optimisation makes your PC smart. One click takes care of complex tuning, dynamically optimising essential aspects of the system to provide overclocking and cooling profiles that are tailored for your rig. An automated tuning utility that optimises overclocking and cooling profiles for your unique system configuration. Fans stay whisper-quiet with everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks. Stress test function helps optimise and overclock for CPU- or memory-centric workloads.

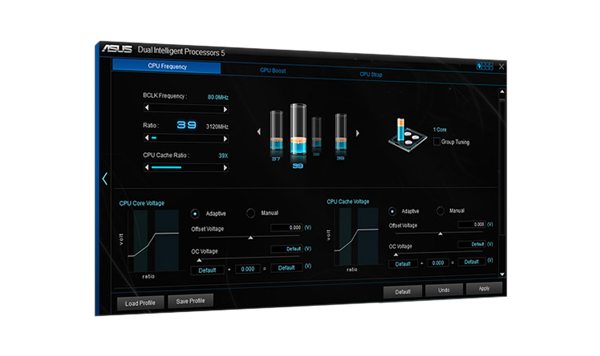

CPU Performance Boost
Unleash your PC's full performance with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

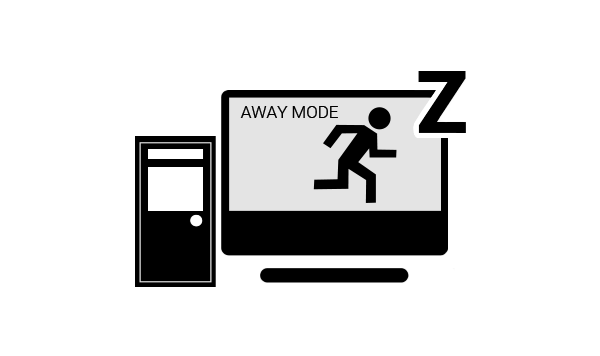

All-round Energy Efficiency
With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimises power consumption and maximises savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

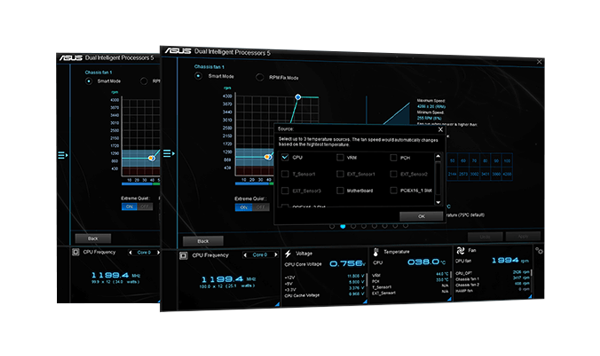

Fan Xpert

Flexible Cooling Controls
With Prime X470 PRO you have comprehensive control over fans, water pumps, and even all-in-one (AIO) coolers ― all via Fan Xpert 4 or our media-acclaimed UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.

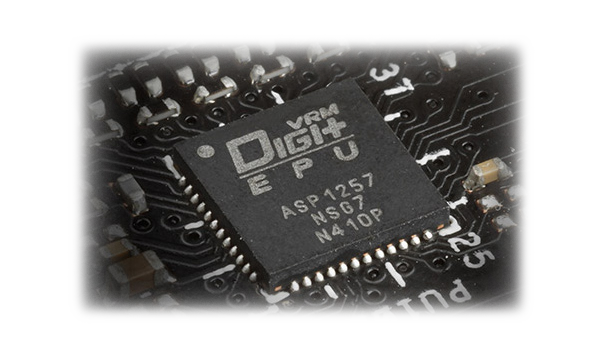

Precise Digital Power Control
Digi+ delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

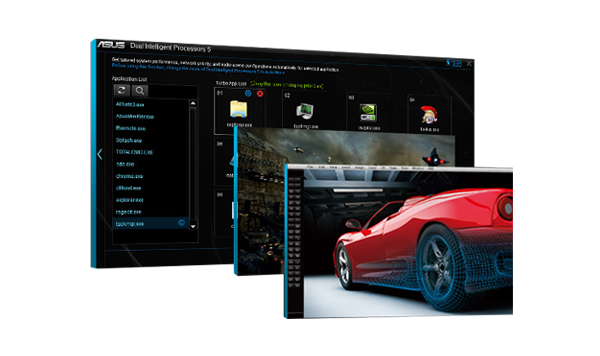

App specific Optimisation
Whether you're a professional designer or hardcore gamer, you'll feel the benefit of the ASUS-exclusive Turbo App. This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritise network data and optimise audio settings at app level ― so your Prime X470 Pro system is perfectly optimised for whatever you're doing.

AURA Sync RGB LED Lighting


Outshine the Competition A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full RGB control with a variety of functional presets for the built-in RGB LEDs as well as the LED strips connected to the onboard RGB headers.* And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware. Create a glow to match your environment, or have the LEDs react to changes in CPU temperature.

Cooler by Design

temp sources

Multiple Temperature Sources
Each header can be set to monitor and react to three thermal sensors, and via Fan Xpert 4 you can even assign a sensor to monitor the temperature of supported ASUS graphics cards — for optimal cooling during GPU- or CPU-intensive workloads.

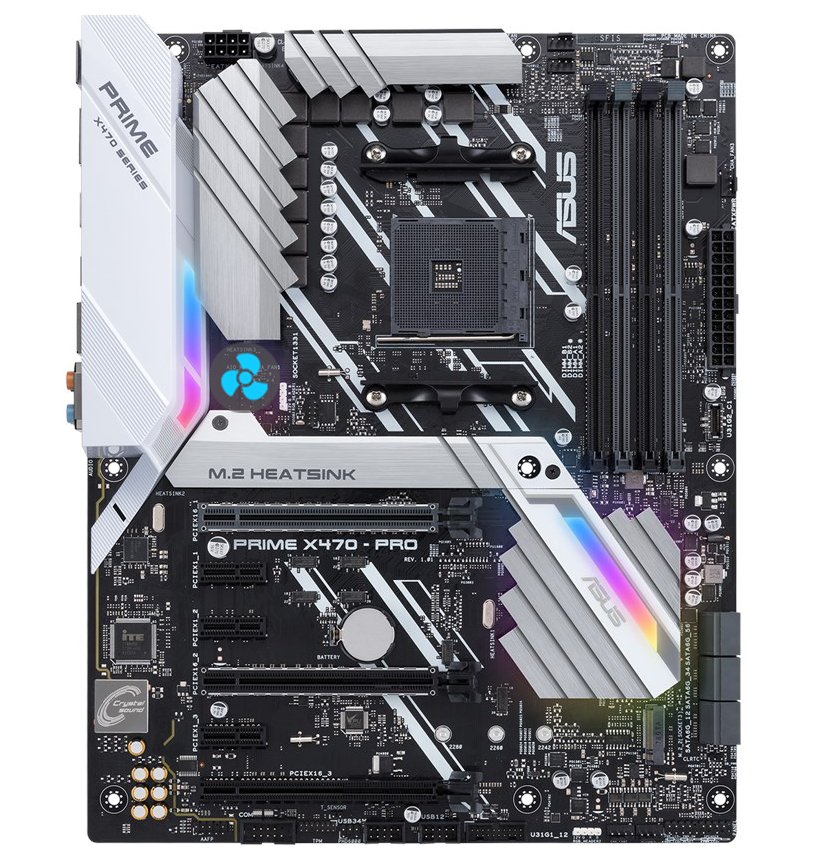

AIO Pump
A dedicated PWM/DC header for self-contained water-cooling setups.

water pump

Water Pump
A dedicated header that can supply over 3A to high-performance PWM or DC water pumps.

fan headers

4-pin PWM/DC fan
Each onboard header supports auto-detection of PWM or DC fans.

smart protection

Smart Protection
A dedicated integrated circuit protects each fan header from over-temperature and over-current.

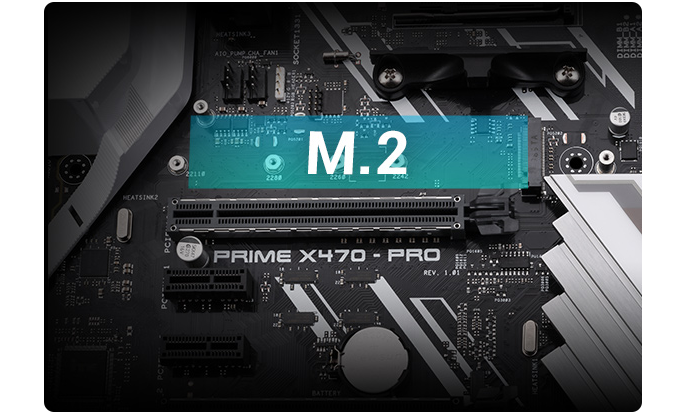

Ultrafast M.2 Connectivity


Speed up with onboard M.2 - up to 32Gbps With x4 PCI Express® 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, providing fast access to data. Prime X470 also has an ultra-efficient heatsink to reduce M.2 SSD temperatures by up to 20°C — and that means optimal storage performance and improved SSD longevity. With X470-Pro you're free to join the storage fast lane and build a RAID 0 array using two PCIe drives to experience accelerated data transfers.

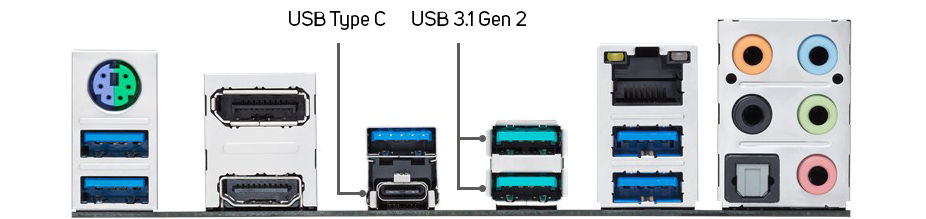

2nd Generation Ultra Fast USB


Ultimate-speed 10Gbps with USB 3.1 Gen 2 With backward-compatible USB 3.1 Gen 2 Type-A and reversible USB 3.1 Gen 2 Type-C ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.

Intel Ethernet & Turbo LAN


More throughout, less CPU usage Prime X470 PRO features the very latest Intel Ethernet. Intel's LAN has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer. Turbo LAN with cFosSpeed traffic-shaping technology allows you to configure application priority via an intuitive interface, and reduces network lag. ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput.

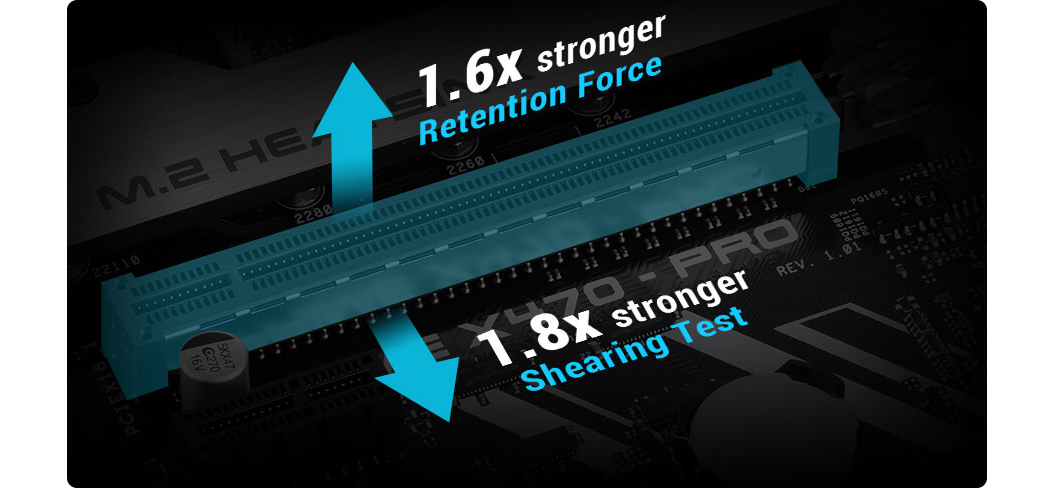

SafeSlot Core


Protect your graphics card investment SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

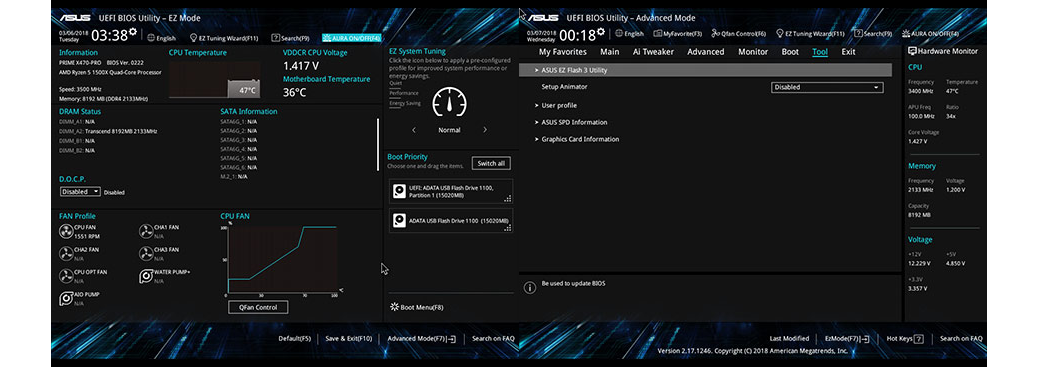

Improved UEFI BIOS


Media-acclaimed UEFI BIOS The smoothest, slickest mouse-controllable graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, EZ and Advanced modes will help you quickly find your way, quickly and easily.

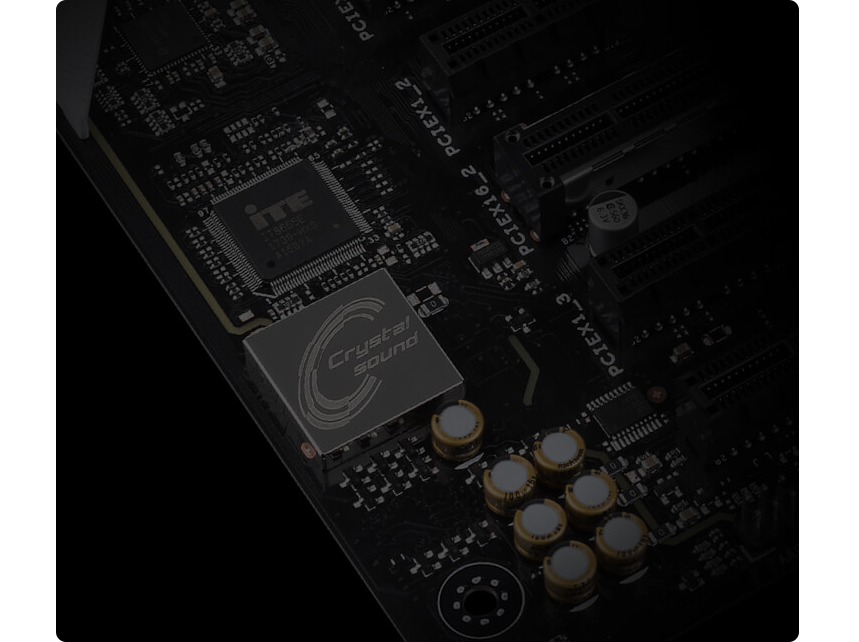

Outstanding Audio


Crystal Sound 3 Reduces power-input noise to ensure consistent performance. Separates analog/digital signal domains, significantly reducing multi-lateral interference. Ensures minimal crosstalk between audio paths. Capable of driving high-impedance headphones, without rolling-off high or low frequencies. Reduces start-up popping noise to all audio outputs. Premium parts provide an immersive sound signature, with exceptional fidelity.

Core Specifications
Edition PRIME X470-PRO
Form Factor ATX
CPU Socket AM4
Chipset AMD X470
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3466(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio Realtek ALC S1220A 7.1 HD Audio + Crystal Sound 3
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 3 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 8-pin (Power)
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x T_Sensor Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen2 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.2
  • 1 x Front Speaker Out
  • 1 x HDMI 1.4b
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 5 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen1 Type-C
  • 2 x USB 3.1 Gen2 Type-A
Additional Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 244 mm
Additional Information
Scan Code LN89350
Model Number PRIME X470-PRO
GTIN 4712900935103

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
01442 265548
Loading Please Wait

Please wait . . .

ASUS PRIME X470-PRO, AMD X470, S AM4, DDR4, SATA3, Dual M.2, 2-Way SLi/CrossFire, Intel GbE, USB 3.1 Gen2 A, ATX is rated 4.7 out of 5 by 7.
Rated 5 out of 5 by from Good motherboard for such a price. I am using this motherboard for over 8 months, all fine. The only small issues I had was with hardrives recognition after BIOS flash. Overclocking took some time but it was straightforward. I bought this mobo to try out 2 GTX970 in SLI, but it did not work out for me. Anyway, a good product, recommend it.
Date published: 2019-09-08
Rated 5 out of 5 by from excelent board bought the board the first mounth off rizen 2 launch got to 4th place in world overclocking worldwide results with this board a ryzen 2 2600 corsair h100 aio watercooling the standard aircooling is ok for very low overclocking the m.s slots are diffrent speeds thought to get full speed from the m2 slot you got to use the one coverd by the heatsink closets to the chip socket
Date published: 2018-12-04
Rated 5 out of 5 by from Prime I highly recommend this motorbored looks amazing and runs amazing I really don't have anything bad to say about this! just wow!
Date published: 2018-10-15
Rated 3 out of 5 by from Do not install ASUS AI Suite 3! A word of warning for anyone considering this board, it seems to perform well enough so far but the included software such as ASUS AI Suite 3 runs a very high risk of causing constant blue screens. I'm an experienced system builder however I usually go with Gigabyte for my motherboards. This time after seeing this boards price and appearance I figured I would buy it, everything on the board itself seems to be fine but running this with a Ryzen 5 2600x, 16GB corsair vengeance RAM and an EVGA 1070ti FTW the software suite that comes with the board has a high chance of causing crashes, this is not a rare thing either. Even after a clean install of Windows when everything is running fine as soon as you install AI Suite you will get BSODs upon every restart. Useless. My advice would be go for another board unless you aren't bothered about installing this type of stuff.
Date published: 2018-09-17
Rated 5 out of 5 by from The product has great features So far this product is doing a great job and I have no problems in recommending it
Date published: 2018-07-27
Rated 5 out of 5 by from Great VR board Nice board simple and robust. Plenty of ports for VR. Great buy.
Date published: 2018-06-24
Rated 5 out of 5 by from Amazing MBO Nice build quality, M.2 slot with cooler, better than expected. If I need to highlight any "issue" only 2 RGB PINs on the board, rest is good. Used with R7 2700X and Corsair 2x8GB 3600MHz, with XMP 2 stable on 3200MHz CL15, CL18 on 3600MHz. Stable and already got 2 new BIOS (with out of box, 3600MHz DDR4 caused BSOD under PUBG, after 2 updates nothing). Highly recommended.
Date published: 2018-05-21
