Scan code: LN113415 Manufacturer code: Prime TRX40-PRO-S

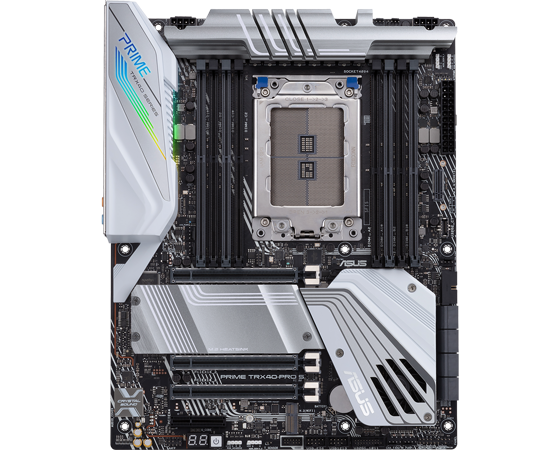

ASUS AMD Threadripper PRIME TRX40-PRO-S PCIe 4.0 ATX Motherboard

ASUS PRIME TRX40-PRO-S, AMD TRX40, sTRX4, DDR4, PCIe 4.0, 3x M.2, SLI/CrossFire, GbE, USB 3.2 Gen2 A+C, ATX

Thumbnail 1 : ASUS AMD Threadripper PRIME TRX40-PRO-S PCIe 4.0 ATX Motherboard Thumbnail 2 : ASUS AMD Threadripper PRIME TRX40-PRO-S PCIe 4.0 ATX Motherboard Thumbnail 3 : ASUS AMD Threadripper PRIME TRX40-PRO-S PCIe 4.0 ATX Motherboard Thumbnail 4 : ASUS AMD Threadripper PRIME TRX40-PRO-S PCIe 4.0 ATX Motherboard
Scan code: LN113415 Manufacturer code: Prime TRX40-PRO-S
£439.98
Order now and get it tomorrow, Mon 2nd Aug
With a 10% deposit from just £10.99 / month (APR 15.9%)
Delivery Options
  • By DPD On 3rd Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

ASUS Prime TRX40 PRO S ATX Motherboard

Prime TRX40 PRO S

Getting the Most out of all your coresThe ASUS Prime TRX40-PRO S is designed to unleash the full potential of the latest AMD high-core count processors for content creators, designers and professional use in the 3rd generation Ryzen Threadripper. Combining a robust power design, outstanding cooling solutions, PCIe 4.0 connectivity with triple M.2 slots, USB 3.2 Gen2 Type C connections, ASUS Aura Sync lighting and intelligent tuning options, the high-end desktop motherboard delivers the performance and stability needed to turn every creative vision into reality.

AMD TRX40Chipset

sTRX4CPU Socket

AMD 3rd Gen Ryzen ThreadripperCompatible CPU

ATXForm Factor

Ready for New Multi-Core Processors

Power Connectors

8-pin Power ConnectorsProCool II connectors ensure a snug and reliable connection to the EPS 12V power lines. The second-generation features upgrades of metal amour and solid pins for better heat dissipation, as well as a warning LED-display with a BIOS POST message to indicate improper connections.

Power

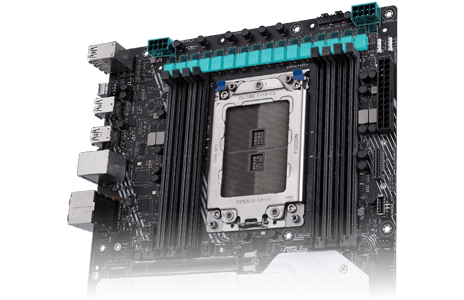

Robust Power DeliveryThe new AMD Socket sTRX4 is compatible with 3rd Gen AMD Ryzen Threadripper CPUs with up to 64 cores, up to 64 PCIe 4.0 lanes, and 280-watt thermal design power (TDP). Such specifications require serious power, so Prime TRX40-Pro S is equipped with an enhanced power solution that includes 16 power stages to ensure your processor keeps up with your creativity.

Mosfets

Power Stage MosfetsPrime TRX40-Pro S's VRM is comprised of 16 power stages, delivering the power and efficiency that the latest AMD processors demand.

Caps

Premium Chokes & CapsSuperior chokes and durable caps are engineered to resist extreme temperatures and provide better performance.

Make Your Memory Go Faster

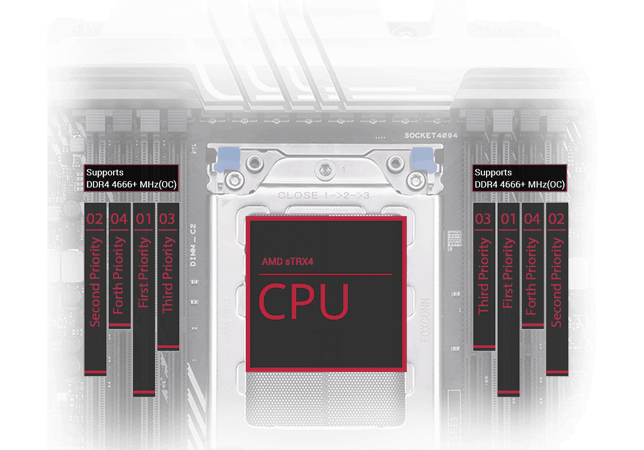

Quad Channel Memory Support

Quad Channel Memory SupportThe TRX40 platform delivers ample bandwidth on multiple fronts, boasting quad-channel memory controller supports up to a whopping 256GB of DDR4 memory across eight slots.

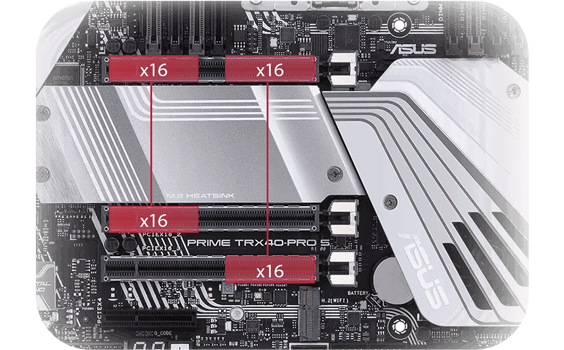

Multi-GPU Support

4K Recording

Create until your hearts contentFully loaded takes on a new meaning when you have up to 64 PCIe 4.0 lanes stemming from the CPU. These lanes can be split in an x16/x16/x16 configuration spanning the board's trio of PCIe x16 slots, allowing you to load up on GPUs to supercharge your work efficiency – whether you're a CAD professional, 3D artist or other content creation experts.

Innovative Storage to Keep your Stuff

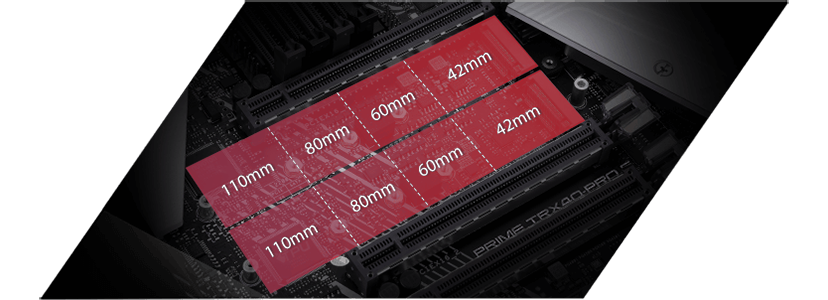

Tri M.2

Serious Speeds with Onboard M.2 Professional content creation applications require fast solid-state storage, which is why Prime TRX40-Pro S is equipped with three PCIe 4.0 M.2 slots that are compatible with the latest NVMe SSDs. All slots support up to 110 mm drives, and they can be configured into bootable RAID arrays for ultrafast data-transfer speeds.

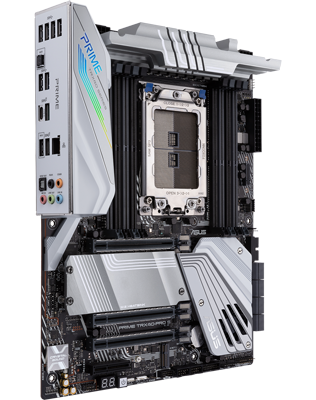

Light Up your System with ASUS Aura Sync

Aura Sync

Outshine your CompetitionA well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers – and they can all be synced with an ever-growing portfolio of Aura-capable hardware.

Ultimate Cooling Performance

Thermal

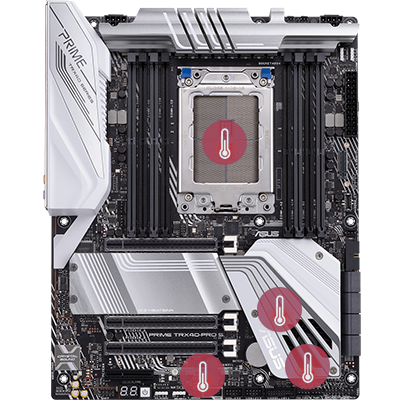

Multiple Temperature Sources Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.

Pump

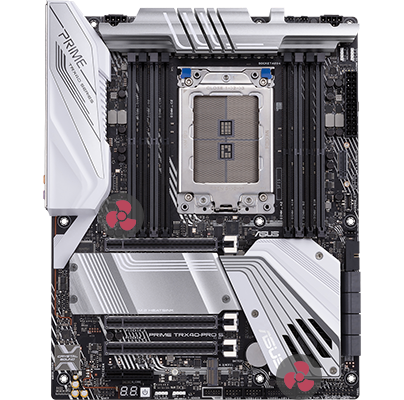

Dual Pump Headers A dedicated header that supplies over 3A for high-performance PWM or DC water pumps, plus a second dedicated header for AIOs.

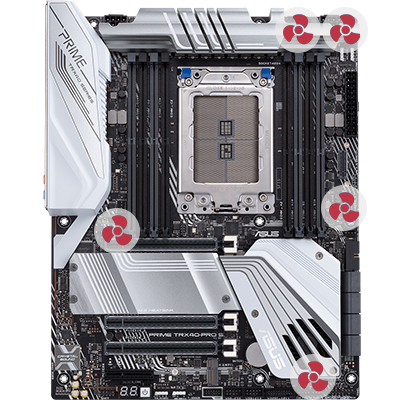

Fans

4-Pin PWM/DC Fan Every onboard header supports auto-detection of PWM or DC fans.

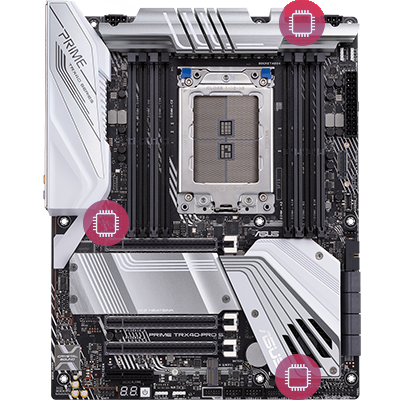

ROG

Smart Protection A dedicated integrated circuit that protects each fan header from overheating and overcurrent.

World Renowned UEFI BIOS

Not just for veteransThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Mode

Advanced Mode An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Easy Mode

EZ(Easy) ModeEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Control Your Rig With Detailed Tuning Software

Fan Xpert 4

Flexible Cooling Controls Get comprehensive control over fans via Fan Xpert 4 or the media-acclaimed UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces all fan speeds to below the default minimum assuring your system stays whisper-quiet when performing light tasks.

TPU Insight

CPU Performance Boost Unleash your PC’s full performance with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

EPU Guidance

All-round Energy Efficiency The Energy Processing Unit (EPU) automatically amplifies power consumption and maximises savings with Away mode. The smart setting that produces an extreme energy-saving setup by shutting down unused I/O controllers, with the EPU you will appreciate system-wide power reserves.

Turbo App

Optimization for gamers and professionals Whether you're a professional designer or hardcore gamer, you'll feel the benefit of the ASUS-exclusive Turbo App every day. This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at app level, meaning your system is perfectly optimised for what you're doing.

DIGI+POWER CONTROL

Digital Power Controls The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

All The Connections You Will Need

Complete I/O
Specifications
Core Specifications
Edition PRIME TRX40-PRO S
Form Factor ATX
CPU Socket TRX4
Chipset AMD TRX40
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4666(OC)
Max. Memory Capacity 256GB
Audio
Audio Realtek ALC S1220A 7.1 HD Audio + Crystal Sound 3
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Supported
AMD CrossFire Support Supported
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 3 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x4
  • 8 x SATA 6GB/s
SATA Support N/A
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 8-pin (Power)
  • 1 x AIO Pump Connector
  • 2 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 3 x Chassis Water Pump/Fan Connector
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x CPU OPT Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x NODE connector
  • 1 x Power button
  • 1 x Q_Code
  • 8 x SATA III - 6Gb/s
  • 1 x System panel connector
  • 1 x T_Sensor Connector
  • 2 x USB 2.0 Port
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
  • 1 x Water Pump+ Connector (4-Pin)
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x 7.1 Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 6 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 240 mm
Note
Additional Information
Scan Code LN113415
Model Number Prime TRX40-PRO-S
GTIN 4718017660914
