PRIME H570M-PLUS 11th Gen Intel Micro ATX Motherboard from ASUS

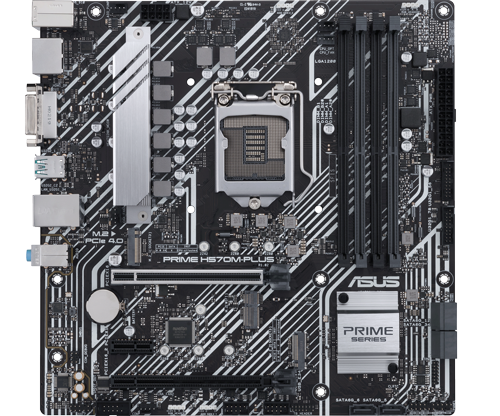

ASUS PRIME H570M-PLUS micro ATX Motherboard

Tune it Your Way Introducing the all-new ASUS Prime motherboards expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. The Prime H570M-PLUS Micro ATX motherboard features a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime motherboard provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Intel H570Chipset

LGA 1200CPU Socket

10th & 11th GenerationIntel Compatible Processors

Micro ATXForm Factor

Super-Fast Dual M.2 Slots

M.2 Slots

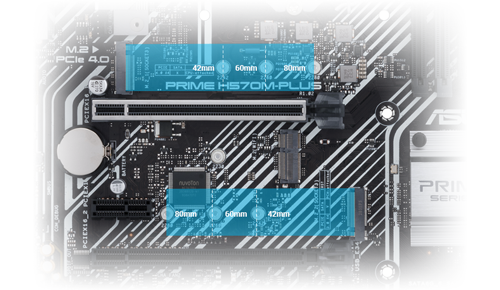

Dual M.2 slots (up to 64 Gbps)Prime H570M-PLUS offers a total of two M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express® 4.0, enabling quicker boot-up and app load times with OS or application drives.
* Actual transmission speeds will be lower than the theoretical maximum speed.
** The M.2_1 supports PCIe 4.0, and the M.2_2 support PCIe 3.0.

Intelligent ASUS PRIME Control

Tune It Your WayComprehensive controls form the foundation of the ASUS Prime series. Prime H570 motherboard's pack flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.

epu

All-Around Energy EfficiencyThe Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode – a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

controls

Flexible cooling with Fan Xpert 2+ASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AiO) cooler. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AiO cooler can also be controlled via the UEFI BIOS.

controls

Digi+ VRM ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

Outshine the Competition

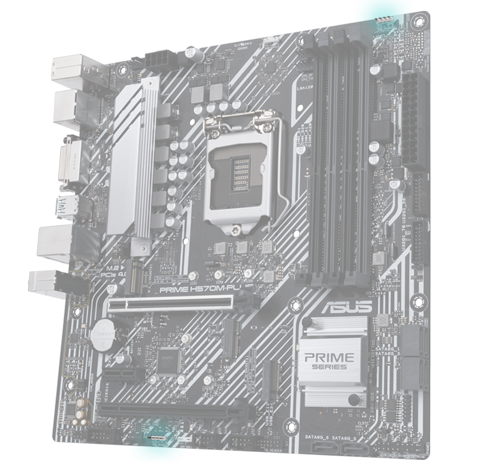

Aura Sync

control settings for an ever-growing number of ASUS productsA well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers – and it can all be synced with an ever-growing portfolio of Aura-capable hardware. Two addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal.

Cooler by Design

Fan Controls

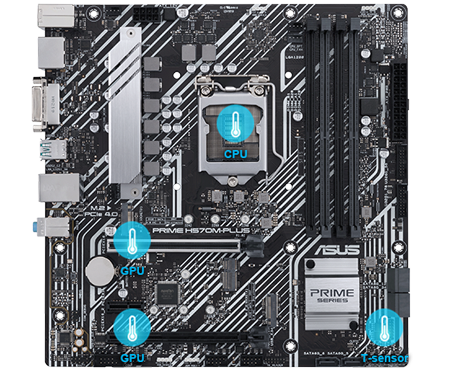

MULTIPLE TEMPERATURE SOURCESEach header can dynamically reference varied thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

Fan Controls

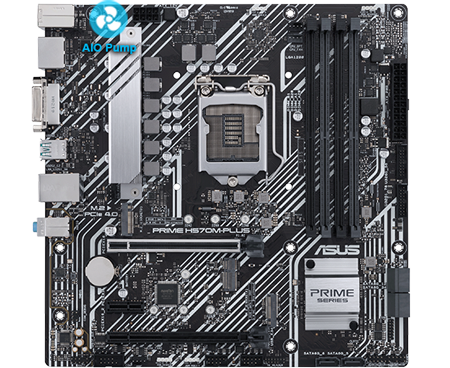

AIO PUMP HEADERA dedicated PWM/DC header for self-contained water-cooling setups.

Fan Controls

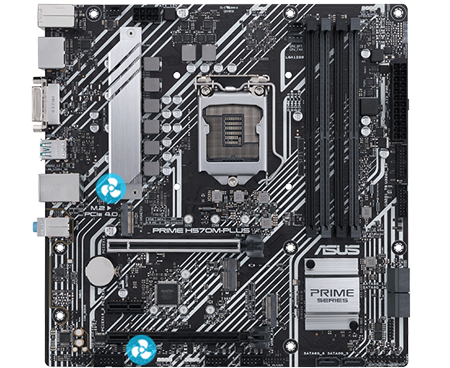

4-PIN PWM/DCSome onboard headers support auto-detection of PWM or DC fans.

Fan Controls

SMART PROTECTIONA dedicated integrated circuit protects each fan header from overheating and overcurrent.

Cool to the Core

M.2 Heatsink

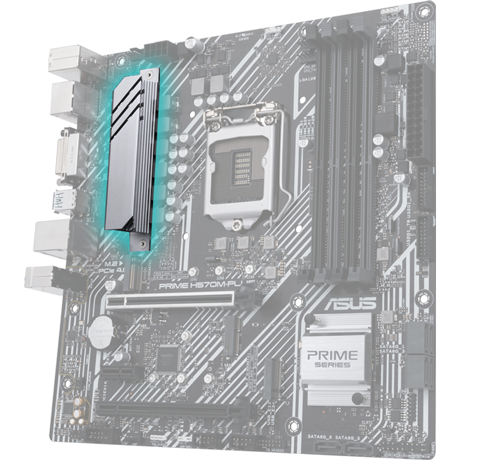

VRM Heatsink and Thermal PadsThe VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. Prime H570 series features comprehensive cooling controls that are configurable via Fan Xpert2+ software or via the UEFI BIOS.

Build on a Solid Foundation

Optimem

ASUS OptiMemPrime H570 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS H570 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

Unbeatable and Flexible Connectivity Options

connectivity

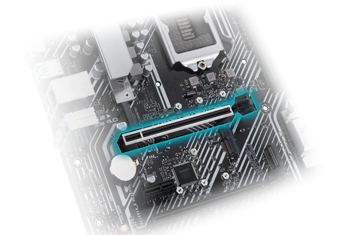

PCIe® 4.0 SlotASUS H570 motherboards are designed specifically for 11th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and super-fast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

connectivity

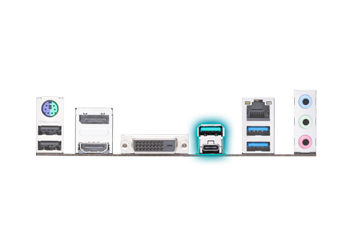

USB 3.2 Gen 2 Type-C®Numerous USB ports support high-end rigs loaded with peripherals, including two rear USB connectors with fast USB 3.2 Gen 2 for transmission speeds of up to 10 Gbps.

connectivity

Thunderbolt™ 4 header SupportPrime H570M-PLUS features Thunderbolt™ 4 support via an on-board header. With the latest Intel-certified ASUS ThunderboltEX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power.

Intel® 1Gb Ethernet

Intel® 1Gb EthernetIntel Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

M.2 Slot (Key E)

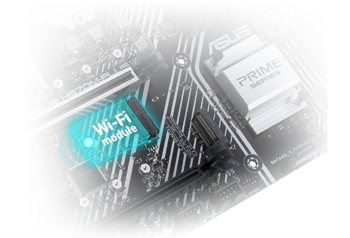

M.2 Slot (Key E)Prime H570M-PLUS motherboard comes along with a M.2 Slot (Key E) which can support type 2230 Wi-Fi/BT and Intel® CNVi (Integrated Wi-Fi/BT) module.
* The Wi-Fi/BT module is purchased separately.

Outstanding Audio

Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.

Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Separate Layer For Left and Right Tracks it ensures minimal crosstalk between audio paths.

Premium Japanese Capacitors Premium parts provide an immersive sound signature, with exceptional fidelity.

Tweak and Tune Your System

ASUS UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

BIOS

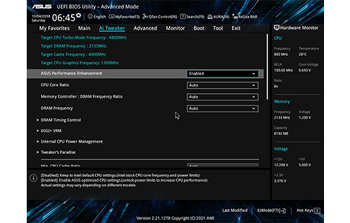

Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

BIOS

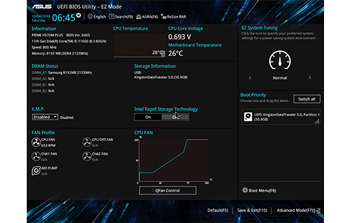

Quick and Simple Setup EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings – all to help you get your rig up and running in no time. Fine-tune individual fan settings simply by dragging a curve with the mouse.

DIY Friendly Design Makes a Big Difference

Safeslot

SafeSlot Core+ SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

Safeslot pcie

STRONGER FOR LONGER Strengthened solder points around the PCIe and DIMM pins.

Safeslot pcie

SIMPLE INSTALLATION Metal inserts keep graphics cards properly aligned during installation.

Safeslot pcie

FIRM SIDE PANELS The metal side-panels feature hooks that firmly clasp the slot body.

Specifications
Core Specifications
Edition Prime H570M-PLUS
Form Factor MicroATX
CPU Socket 1200
Chipset Intel H570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3200(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
Max. Memory Capacity
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • DVI-D
  • HDMI 2.0
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x1 Bandwidth)
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 1 x AIO Pump Connector (4-Pin)
  • 2 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 2 x M.2
  • 1 x M.2 Socket 1 with E key, type 2230 Wi-Fi devices
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Thunderbolt header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x DisplayPort
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN114075
Model Number PRIME H570M-PLUS
GTIN 4711081127000
