Prime H570-PLUS 11th Generation Intel ATX Motherboard from ASUS

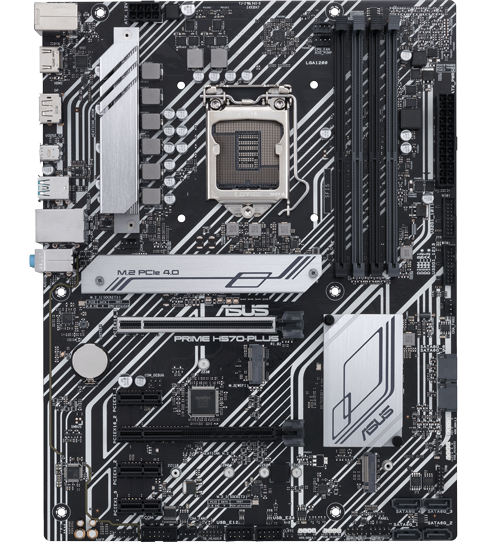

ASUS PRIME H570-PLUS ATX Motherboard

Tune it Your Way Introducing the all-new ASUS Prime motherboards expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. The Prime H570-PLUS motherboard features a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H570-PLUS provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Intel H570Chipset

LGA 1200CPU Socket

10th & 11th GenerationIntel Compatible Processors

ATXForm Factor

Super-Fast Dual M.2 Slots

M.2 Slots

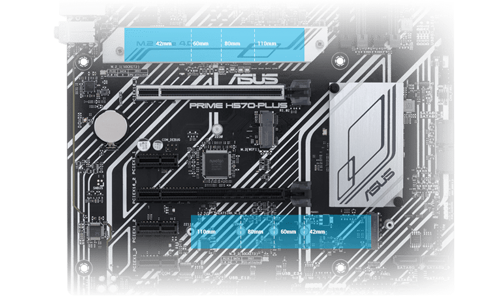

Dual M.2 slots (up to 64 Gbps)Prime H570-PLUS offers a total of two M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express® 4.0, enabling quicker boot-up and app load times with OS or application drives.
* Actual transmission speeds will be lower than the theoretical maximum speed.
** The M.2_1 supports PCIe 4.0, and the M.2_2 support PCIe 3.0.

Intelligent ASUS Prime Control

Tune It Your WayComprehensive controls form the foundation of the ASUS Prime series. The Prime H570 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.

epu

All-Around Energy EfficiencyThe Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode – a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

controls

Flexible cooling with Fan Xpert 2+Prime 500 Series motherboards offer comprehensive control over system fans, via the included Fan Expert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click.

controls

Digi+ VRM ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

Cooler by Design

Fan Controls

MULTIPLE TEMPERATURE SOURCESEach header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

Fan Controls

AIO PUMP HEADERA dedicated PWM/DC header for self-contained water-cooling setups.

Fan Controls

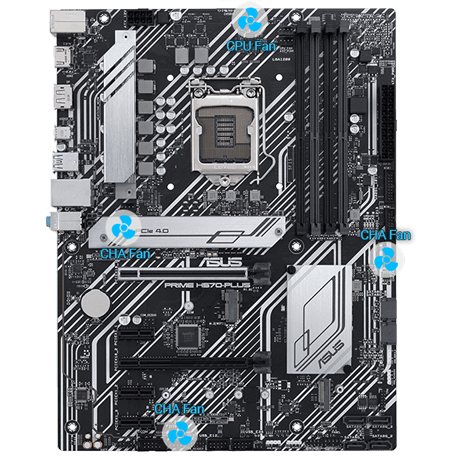

4-PIN PWM/DCAll onboard chassis fan headers support auto-detection of PWM or DC fans.

Fan Controls

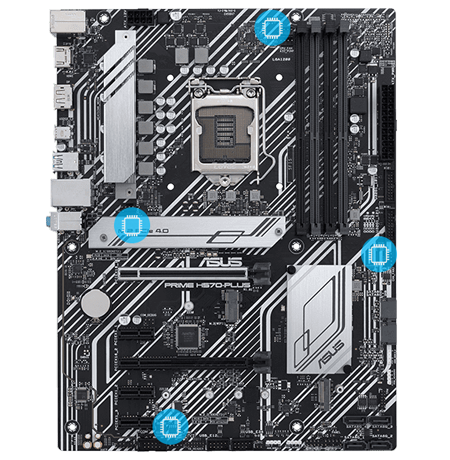

SMART PROTECTIONA dedicated integrated circuit protects each fan header from overheating and overcurrent.

Cool to the Core

M.2 Support

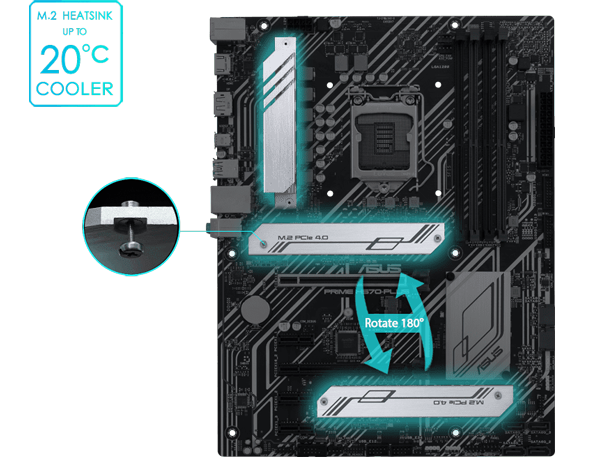

M.2 HEATSINK, PLUS THERMAL PADS AND VRM HEATSINKAn M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot. Removable captive screws reduce risk of drops or loss during heatsink removal. Includes one massive VRM heatsink and thermal pads to improve heat transfer from the MOSFETs and chokes for better cooling performance.

Outshine the Competition

Aura Sync

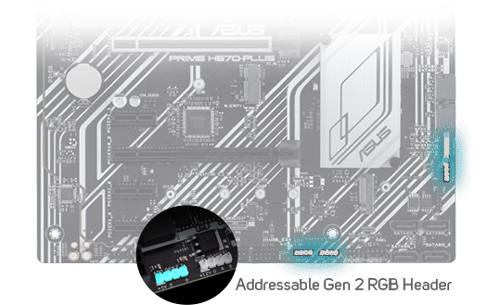

control settings for an ever-growing number of ASUS productsA well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers – and it can all be synced with an ever-growing portfolio of Aura-capable hardware. Two addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal.

Build on a Solid Foundation

Optimem

ASUS OptiMemPrime H570 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS H570 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

Unbeatable and Flexible Connectivity Options

connectivity

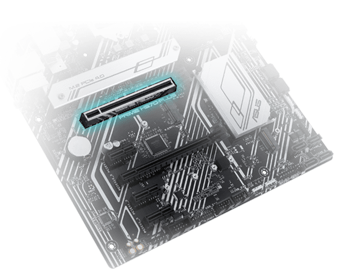

PCIe® 4.0 SlotASUS H570 motherboards are designed specifically for 11th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and super-fast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

connectivity

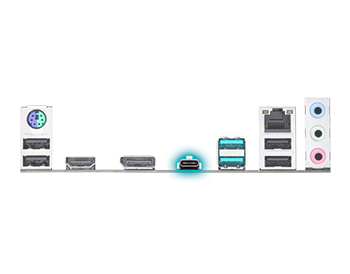

USB 3.2 Gen 2 Type-C®Numerous USB ports support high-end rigs loaded with peripherals, including a rear-panel USB Type-C® connector with fast USB 3.2 Gen 2 connectivity for compatible case.

connectivity

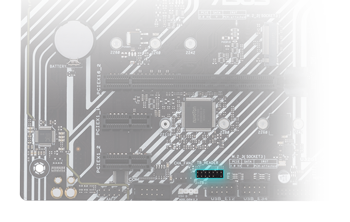

Thunderbolt™ 4 header SupportPrime H570-PLUS features Thunderbolt™ 4 support via an on-board header. With the latest Intel-certified ASUS ThunderboltEX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power.

Outstanding Audio

Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.

Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Separate Layer For Left and Right Tracks it ensures minimal crosstalk between audio paths.

Premium Japanese Capacitors Premium parts provide an immersive sound signature, with exceptional fidelity.

Tweak and Tune Your System

ASUS UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

BIOS

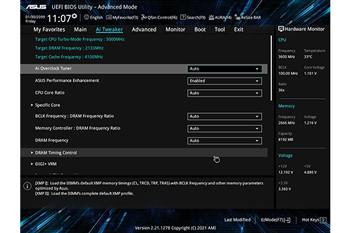

Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

BIOS

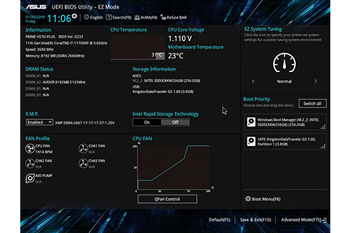

Quick and Simple Setup EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings – all to help you get your rig up and running in no time. Fine-tune individual fan settings simply by dragging a curve with the mouse.

DIY Friendly Design Makes a Big Difference

Safeslot

SafeSlot Core+ SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

Safeslot pcie

STRONGER FOR LONGER Strengthened solder points around the PCIe and DIMM pins.

Safeslot pcie

SIMPLE INSTALLATION Metal inserts keep graphics cards properly aligned during installation.

Safeslot pcie

FIRM SIDE PANELS The metal side-panels feature hooks that firmly clasp the slot body.

Specifications
Core Specifications
Edition Prime H570-PLUS
Form Factor ATX
CPU Socket 1200
Chipset Intel H570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3200(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
Max. Memory Capacity
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.0
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 1 x AIO Pump Connector (4-Pin)
  • 2 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 2 x M.2
  • 1 x M.2 Socket 1 with E key, type 2230 Wi-Fi devices
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Thunderbolt header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN114074
Model Number PRIME H570-PLUS
GTIN 4711081124566
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
