ASUS PRIME B660M-A D4 Intel B660 PCIe 4.0 mATX Motherboard
ASUS PRIME B660M-A D4, Intel B660, S 1700, DDR4, PCIe 4.0, SATA3, 2x M.2, GbE, USB 3.2 Gen 2, mATX
|Instalment Rate:||0% p.a. (fixed)|
|Cost of purchase:||£179.99|
|Total inc. interest:||£179.99|
|Cost of purchase:||£99|
|Total inc. interest:||£99|
Purchase Rate: 21.9% p.a. (variable)
Representative: 21.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

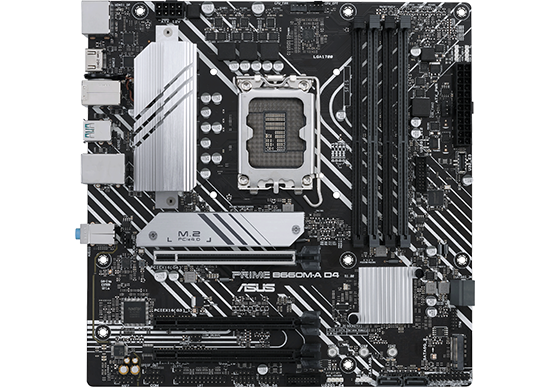

PRIME B660M-A D4 Motherboard from ASUS
NEWEST ADDITION TO THE PRIME SERIES Introducing the ASUS Prime B660M-A D4, Perfect for everyday users who want the same stable performance in a smaller form factor. Expertly engineered to unleash the full potential of Intel 12th Gen processors. Ram-packed with features like the ground-breaking PCI-E 4.0 technology to give you lightning speeds, a robust power design, USB 3.2 Gen2 Type-A Rear IO connectivity, ASUS AURA RGB Header, comprehensive cooling solutions and intelligent tuning options, Prime series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Tweak and Tune Your Way
Wide Range of Performance and Tuning OptionsComprehensive controls form the foundation of the ASUS Prime series. The Prime B660M-A motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximising your productivity.
All-Around Energy efficiencyThe Energy Processing Unit (EPU) automatically optimises your power consumption and maximizes energy savings with a simple Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down any unused I/O controllers.
Fan Xpert 2+ Fan Xpert 2+ software provides comprehensive control over system fans. Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.
Precise Digital Power ControlThe Digi+ voltage-regulator module (VRM) gives real-time control over voltage drop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
World Renowned UEFI BIOS
Not just for veteransThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Mode An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
EZ(Easy) ModeEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
Keep your Components Cool for Longer
M.2 HeatsinkM.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws.
Robust Power Design
Stable power is essential to extract every last bit of performance out of 12th Generation Intel processors. PRIME B660M-A D4 is geared to cater to the demands of these high-core-count CPUs.
ProCool ConnectorProprietary connector augments the motherboard's link to the PSU with 8 pin connector that passes 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
New and Improved Storage
DDR4 5333(OC)Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

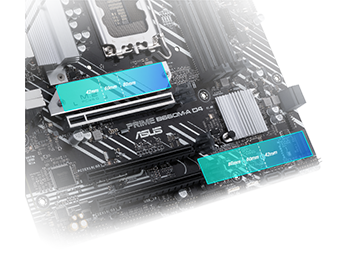

Two M.2 slots (up to 64 Gbps)Prime B660M-A D4 offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.
Outshine the Competition

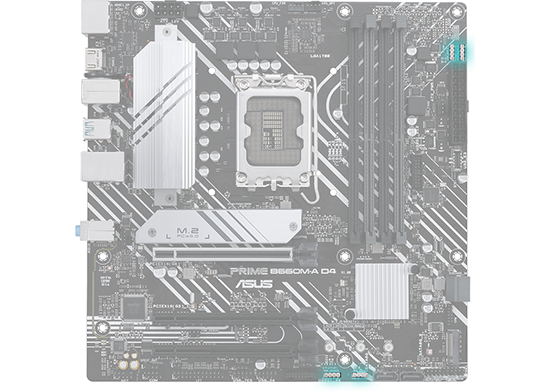

Aura Sync A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

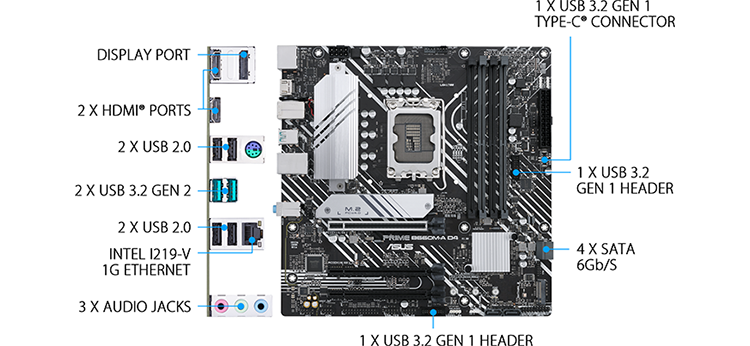

Future Proof Connectivity
PRIME Tried and Tested
Superior Reliability with 8000+ validation hours ASUS motherboards offer superb endurance verified by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.
Temperature and humidity testsEnsures components withstand extreme conditions.
Thermal measurement testsEnsures that the system remains cool and stable under the heaviest loads.
Insertion testsEvery port and connector is put through repeated installation cycles.
Aging testsUp to 48-hour aging test ensures reliability.
Power-consumption testsDelivers world-class energy efficiency.
Temperature and DC margin testsEnsures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.
Thermal-shock testsEnsures ability to survive temperature changes during transportation.
Non-operation shock testsBuilt to withstand jolts that may occur during shipping.
Burn-in testsEvery component is checked to ensure flawless operation.
Installation testsConnector placement is double-checked to ensure hassle-free installation.
Drop testsDrop tests from various heights ensure durability.
Salt and spray testsTested for I/O reliability, prolonged lifespan and rust-resistance.
|Edition||PRIME B660M-A D4|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB (4x32GB)|
|Audio||7.1 Channel HD Audio|
|Primary GPU Interface||PCIe 5.0 (x16)|
|NVIDIA SLI Support||N/A|
|AMD CrossFire Support||N/A|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||
|SATA Support||SATA3 / M.2|
|RAID Support via||Intel® SATA RAID 0/1/10/5|
|Storage Mode Support||
|Network Interface Type||Wired Gigabit LAN (10/100/1000)|
|Network Chip/Modules||1 x Gigabit LAN|
|Rear I/O Connectors||
|Board Dimensions||244 x 244 mm|
|Model Number||PRIME B660M-A D4|
